48 в 500 Вт dc Кондиционер 1700BTU уличный кондиционер для телекоммуникационного шкафа, кондиционер постоянного тока

Share on (60838107949):


Price:325,00 $

Quantity:


Product Overview

Description



Product Overviews

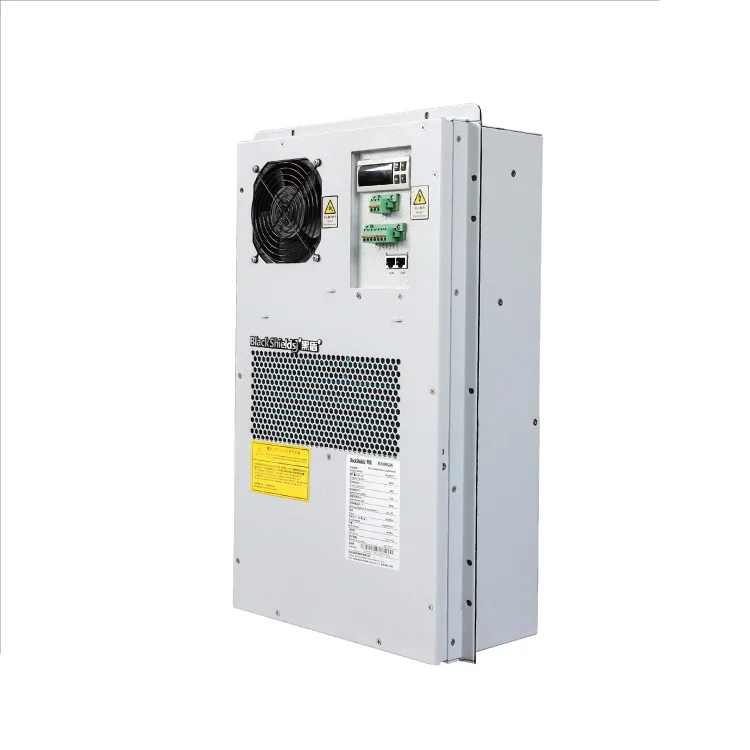

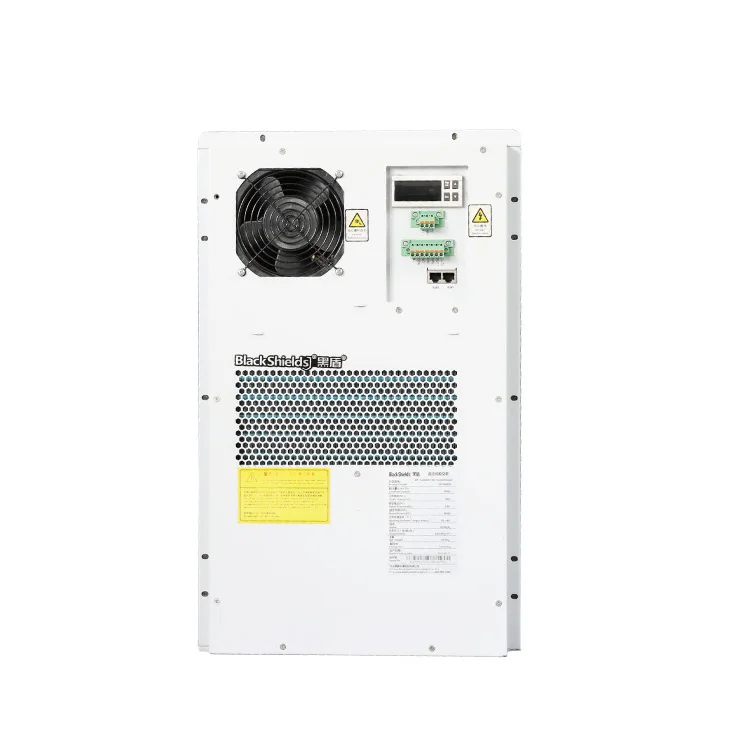

1700BTU 48VDC 500w Cabinet Air Conditioner For Outdoor Telecom Cabinet







    BlackShields DC-H series Air Conditioner  is designed for control the climate of equioment is these off-grid sites with challenging indoor and outdoor environments.





   With the true DC Compressor and DC Fans ,it effectively solves the heat problem of indoor/ outdoor cabinet and is the first choice for the base stations with renewable power or Hybrid power in the off-grid sites.






Energy efficiency and environmental protection

--- True 48VDC Compressor and fans , no inverter , speed adjustable with long life time and minimal power


consumption for energy saving.
--- Soft start to avoid the high inrush current to damage the generator in off-grid sites.


--- Using Environmentally - friendly refrigerant R134a , protecting the ozone layer .


---RoHs compliance





Easy installation and Operation





--- Compact , mono-block , low weight , plug and play unit to ensure easy installation.


--- Designed with flange for convenient through wall mounting.


--- Closed loop cooling protects equipment against ambient environment .


--- Constructed of sheet metal , powder coated with RAL7035 , excellent anti-corrosion and anti-rust properties , endure hash environment .





Intelligent controller


--- Multifunction alarm output , real-- time system monitoring and convenient human - computer interface .


--- Self-recovery , with multi protection function.







Certifications


We have CE certificates and some types have UL ,KC certificates, welcome to contact us for more details.





 Certificate 1





Technical Data

























































































Model Number


DC0500


Brand Name


Blackshields


Product name / Type


500W DC Cabinet Air Conditioner


Power supply


-48VDC


Cooling capacity / Heating capacity (W)


500   /  NA


Power consumption(W)


160


Range of working temperature(℃)


-40 ~+55


Running current (A)


3.3


Starting  type


Soft start-up


Dimension (mm)


320*171*550


Refrigerant type


R134a


IP level


IP 55


Noise level (dB)


65


Net Weight (Kg)


15.5


Installation


Door mounted (Embedding slighted)


Certification


CE


Color


Electrostatic coating


Ambient set temperature (℃)


20~40


Temperature control mode


Digital display thermostat


Power supply connection


Three-core conductor (2~5m long)





Company Info


006






Warmly Welcome to Suzhou Blackshields Environment Co., Ltd.




In 1958, Blackshields was founded in California, USA. It is a high-tech enterprise dedicated to providing temperature control solutions for computer room and equipment. It has been providing the world's leading


technical service for Telecommunication, Electric Power, Finance, Energy, Transportation and Eco-friendly


Industries for more than half a century.

As full membership of China Communications Standard Association, Blackshields actively participates in


the development of relevant industry standards. We provide temperature-humidity and energy-saving


solutions for Data Center, medium and small-sized computer room, micro module, container and modular


data center, communication base station and cabinets.

Blackshields is qualified for ISO9001 Quality Management Certificate, ISO14001 Environmental


Management Certificate and OHSAS18001 Occupational Health Management Certificate. Our products are certificated with 3C, CE ,UL and TUV . The company, short for Blackshields shares with code 839800, was


listed in NEEQ in 2016.

With the duty to create a cooler world, we continuously innovate and explore to work hard for protecting the human common homeland.


004007



National Level Air Conditioning Comprehensive Performance Laboratory




We have large stroehouse , the standard model air condition in stock now.


All the equipment in our company has been tested strictly before leaving the factory.


One year free warranty , life time guarantee .


Professional technical team. Any problem , quickly feedback in 2 hours.


008

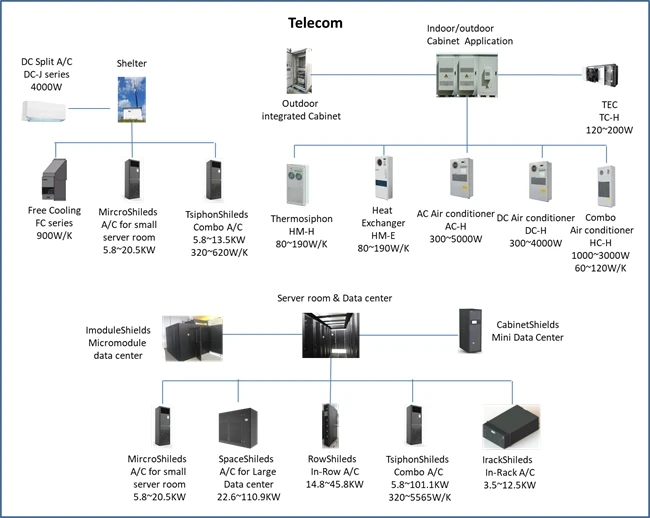

Relate Product AC/DC


DC0300 DC0500    DC1000


AC0500 AC1500 AC3000





Trade Show


CommunicAsia2018 Singapore





Air Conditioner  Exhibition





FAQ



Quality is our culture . With us your money and business in safe.


For more information or customized industrial cooling solutions,please contact US for free.







Q1.Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.

Q2.How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 10 days to arrive. Airline and sea shipping also optional.

Q3. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing, telecommunications, financial, metallurgy, petrification, building materials, cars and war industry etc.

Q5: Are your products can be customized?
A: Yes. Also welcome to customized non-standard products.
