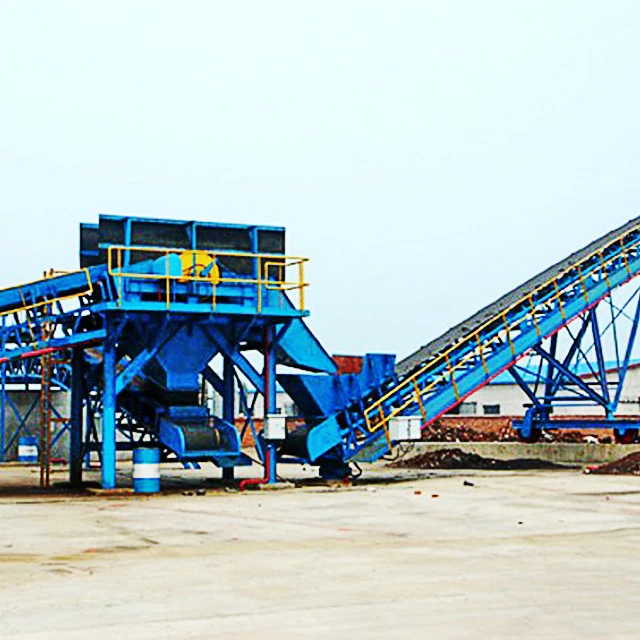

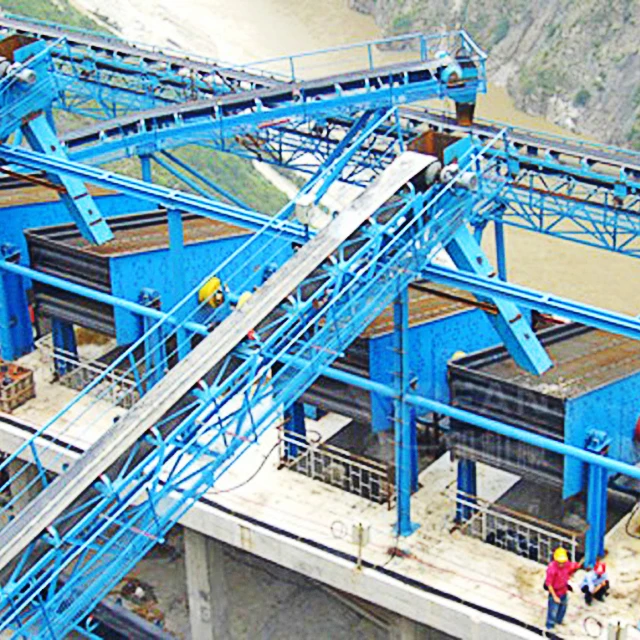

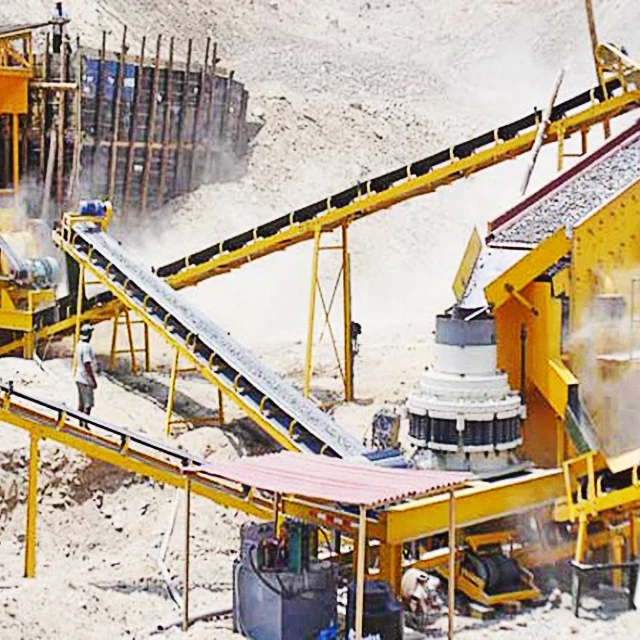

Inclined rubber belt conveyor price sell well in stone crushing line, mining, construction

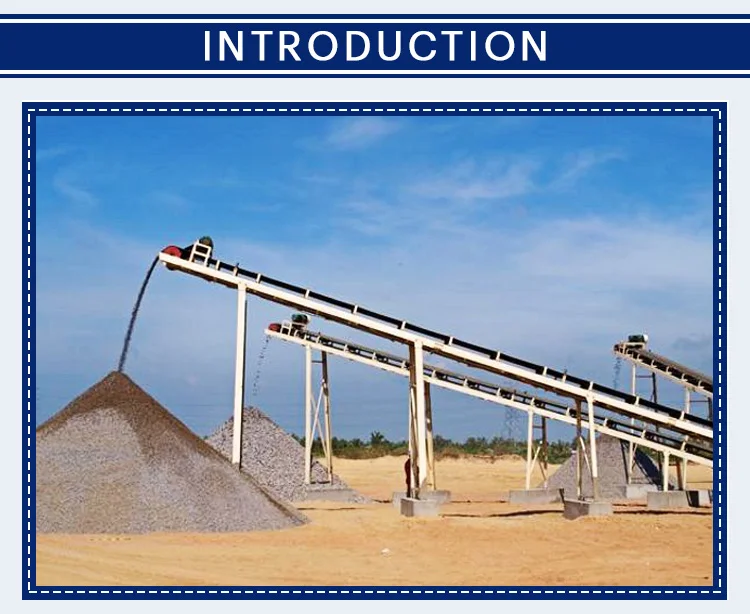

Describe:

Belt conveyor is a kind of friction driven to transport materials in a continuous way machinery.

It can put the material on a certain conveying line and form a conveying process of material from the initial feeding point to the final unloading point.

Touch roll

form

Belt speed

(m/s)

Belt width(mm)

500

650

800

1000

1200

1400

Capacity(t/h)

Groove

touch roll

0.8

78

104

/

/

/

/

1.0

97

131

278

435

655

891

1.25

122

206

318

544

819

1115

1.6

156

264

445

696

1048

1427

2.0

191

323

646

853

1284

1748

2.5

232

391

551

1033

1556

2118

3.15

/

/

824

1233

1858

2528

4.0

/

/

/

/

2202

2995

Parallel

touch roll

0.8

41

67

118

/

/

/

1.0

52

88

147

230

345

469

1.25

66

110

184

288

432

588

1.6

84

142

236

368

558

753

2.0

103

174

289

451

677

922

2.5

125

211

350

546

821

1117

Note:

1. Throughput in the table is in the material density of 1-1.6 t/m³, conveyor angle ≤18°, condition of material accumulation angle of 30 °.

2. The density of transportable material is below 2.5t/m³.

3. Delivery length is not limited to the values listed in the table, can be designed according to customer requirements.

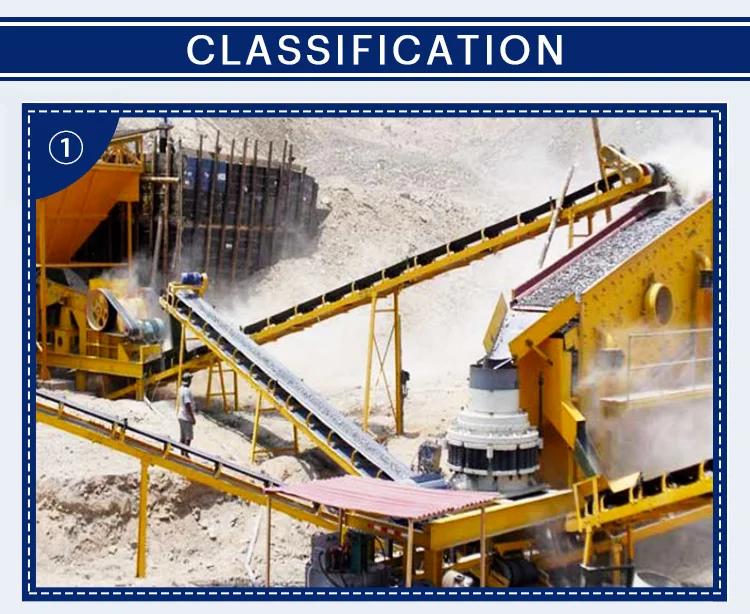

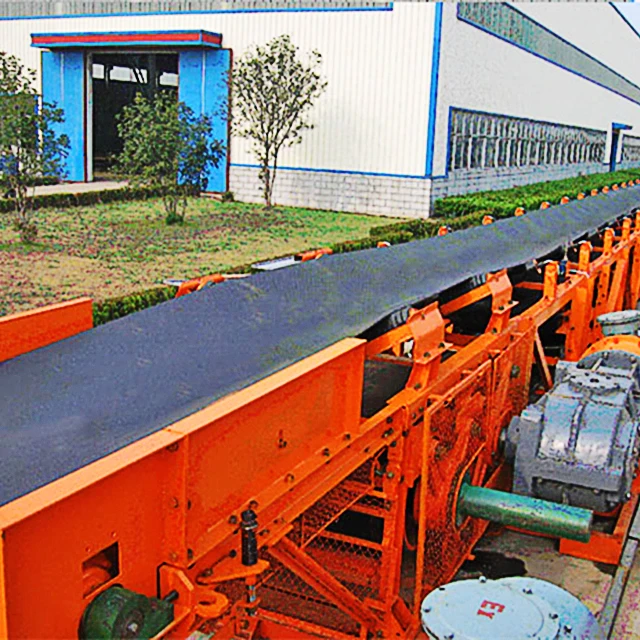

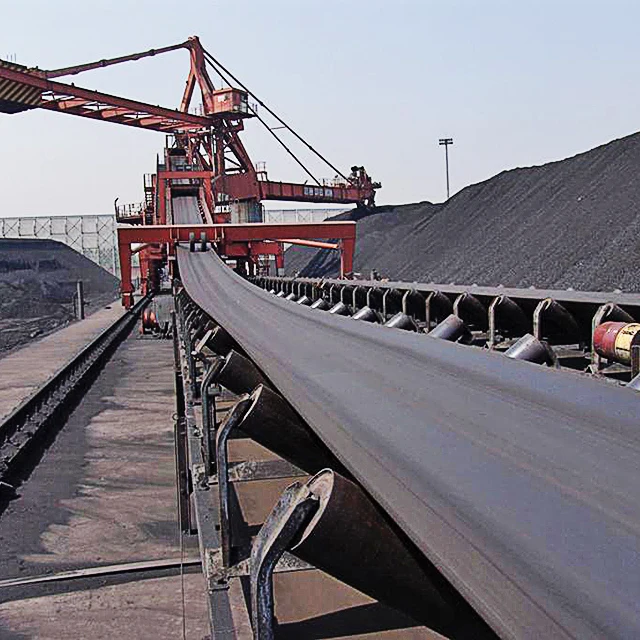

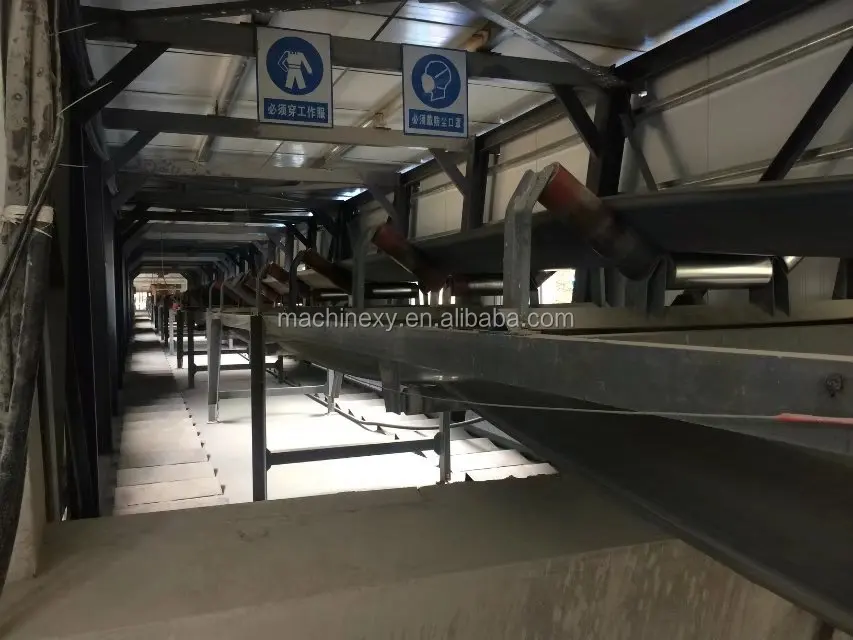

Heavy belt conveyor:

Heavy belt conveyor, also known as mine belt conveyor, is mainly used in conveying ore, sand, coal powder, cement and other materials.

Features:

1. High running speed.

2. Large delivery value.

3. Long delivery distance.

4. High delivery height.

5. Belt width: 200-2000 mm.

6. Length: 1000-40000 mm.

7. The frame is made of carbon steel/stainless steel.

8. The touch roll commonly is designed with groove structure.

Note:

Mining heavy belt conveyor has big dust and serious pollution, belt machine can be equipped with dust removal equipment to achieve dust-free transport, in the high pressure of environmental protection, to ensure that users normal production operations.

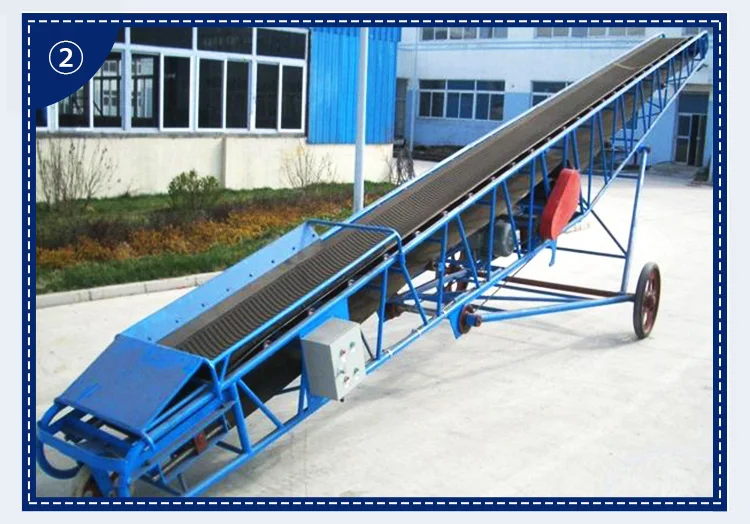

Mobile belt conveyor:

Mobile belt conveyor is composed of body frame, walking wheel, universal wheel, lifting device, etc. It is widely used in indoor and outdoor loading and transferring operations of grain, bulk materials, light industry and packaging materials.

Features:

1. Light in weight and small in size.

2. Compact structure and small floor space.

3. Low power consumption and flexible transmission.

4. Applicable site is not limited (can be used for indoor work).

5. Good mobility (only needs one worker to move).

6. Equipped with electric cabinet, easy to operate.

Note:

The main frame is made of steel tube to reduce its weight. The bottom of the frame is equipped with universal wheels, which can be moved at will according to the stacking position of materials.

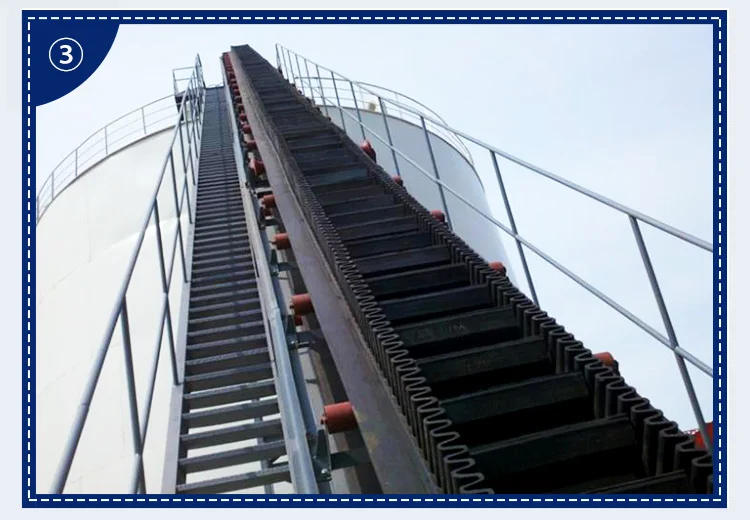

High-angle belt conveyor:

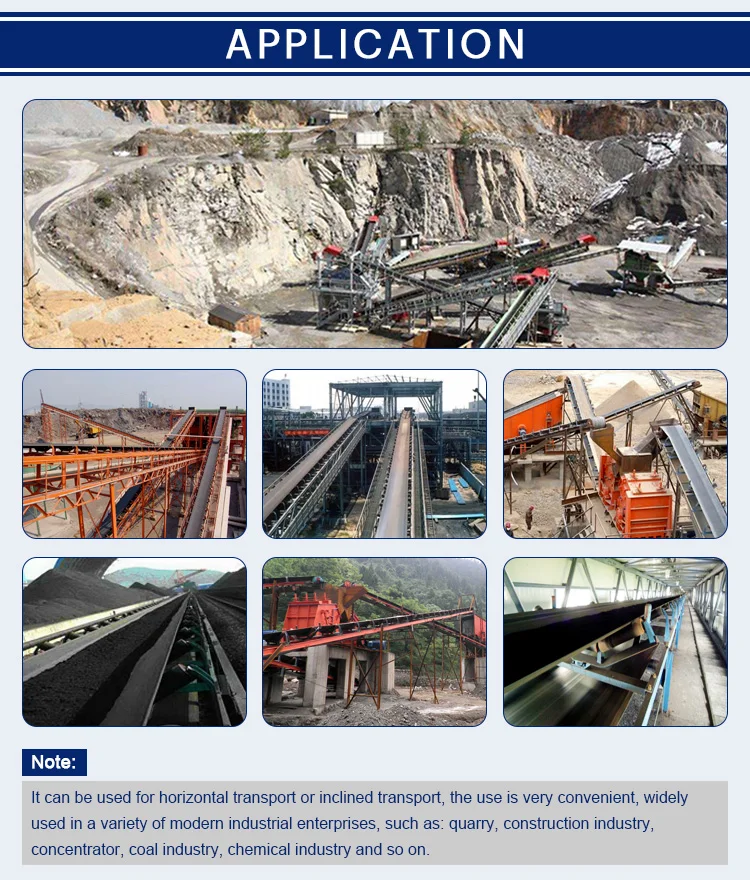

The most prominent advantage of the belt conveyor with large inclination angle is that it can be vertical conveying with high conveying height, occupies a small area and has a large conveying capacity. It is widely used in coal, grain, building materials, construction, metallurgy, electric power, chemical industry and light industry and other industries.

The high-angle belt conveyor adopts corrugated flanged conveyor belt, with the conveying height up to 203m and the conveying capacity up to 6000t/h.

Features:

1. High inclination.

2. Vertical delivery.

3. Small footprint.

4. High conveying height up to 203m.

5. Large conveying capacity up to 6000t/h.

Note:

The corrugated side conveyor belt is adopted to avoid spillage and leakage of materials during transportation.
