Короткий путь дистилляции простой оборудование для экстракции эфирного масла

Product Description

The Essential Oil Distiller is mainly used for enrichment, crystallization, drying, separation, drug, solvent recycling, bio~pharmaceutical industry and others. Under vacuum conditions, it is heated at a constant speed by constant heating to form a large-area thin film on the cylinder wall to increase the evaporation efficiency.

The short path distillation is widely used in Pharmaceutical industry, laboratory fractional distillation and purification, essential oil/CBD oils extraction, etc.

Parts Name	Number
2000 ml Digital Heating Mantle	1
2000 ml 2 Neck Boiling Flask	1
Short Path Distillation Head	1
Cow Receiver	1
500 ml Round Bottom Flasks	3
Plastic Keck Clips	7
Cast Iron Stand	1
Metal Three Finger Clamp	1

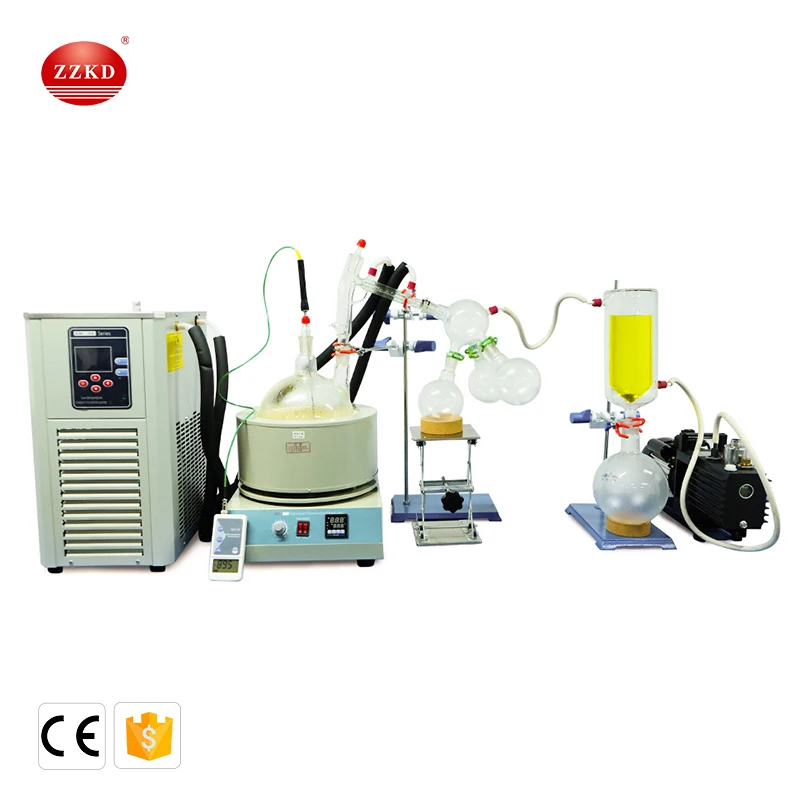

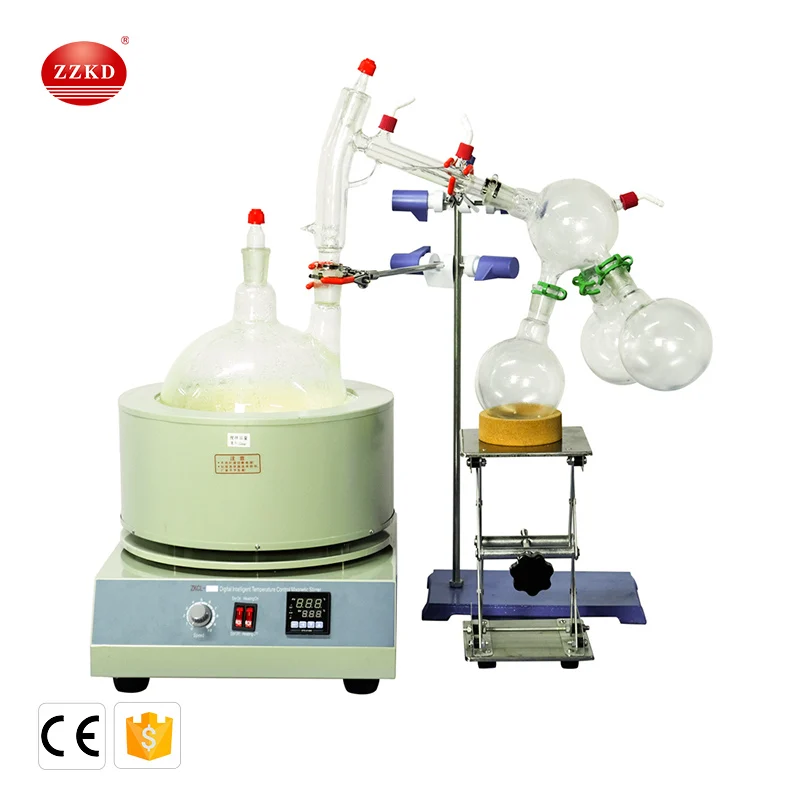

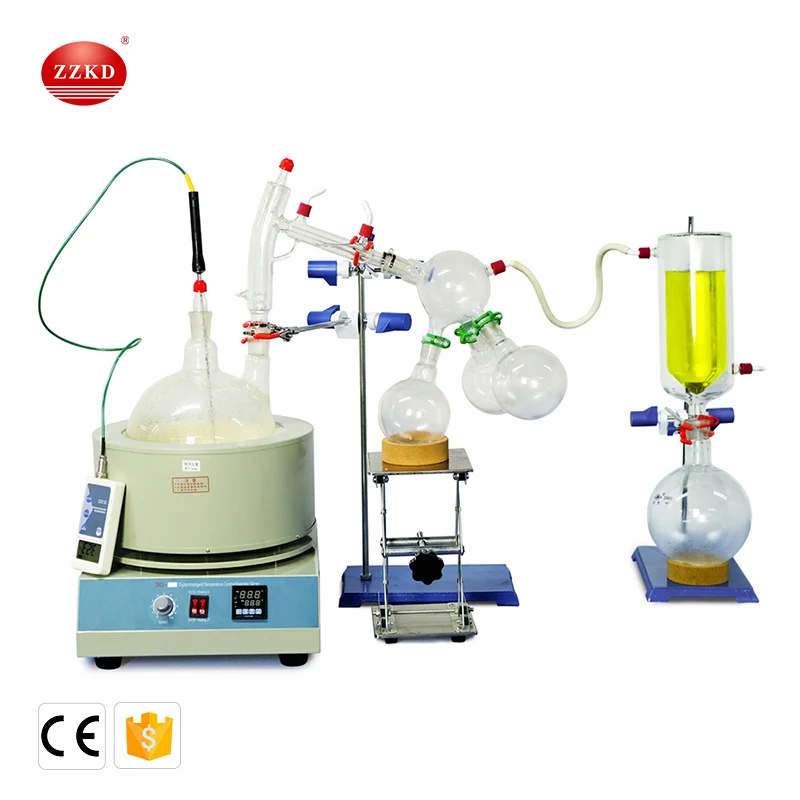

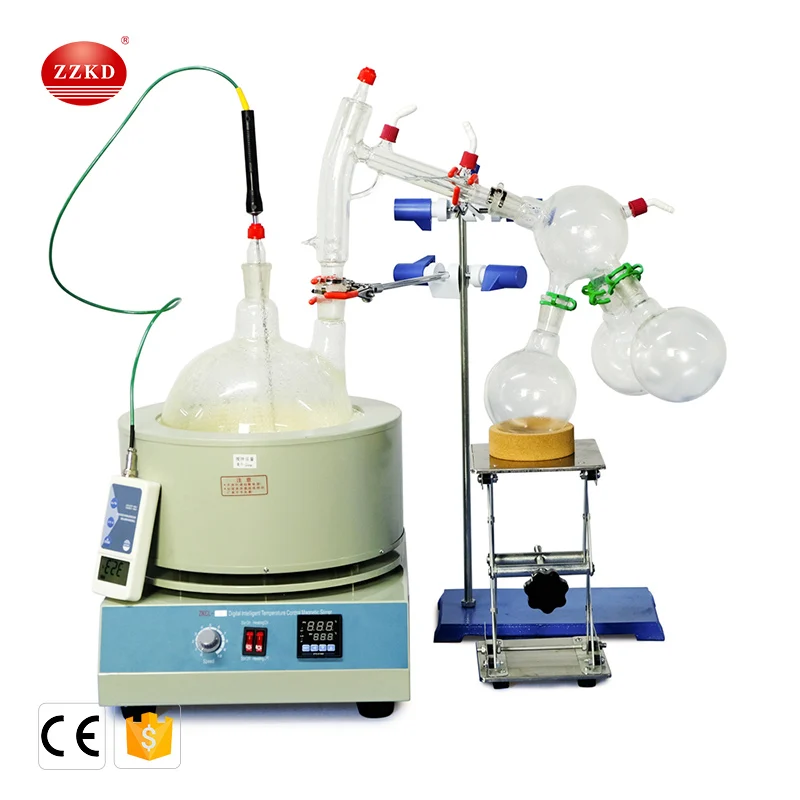

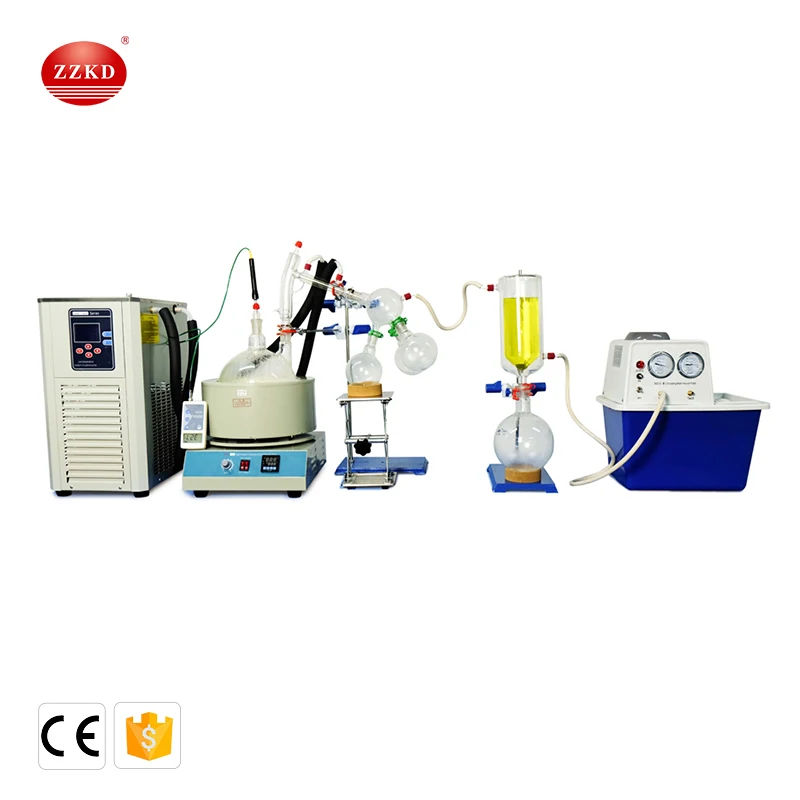

Features of Short Path Distiller System:

• High quality and heavy duty Borosilicate 3.3 glass for durability.
• Vacuum-jacketed distillation adapter, with 4 Vigreux stages.
• 5L heating mantle with magnetic stirring function, available in 220V.
• Detachable plastic 3/8”(10mm) hose barbs for maximized safety during operation.
• Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks.
• TGCT-01 cold trap protects the vacuum pump from contamination and damage of vapors.
• Flexible choice of vacuum pumps and heater/chillers.
• Detachable plastic 3/8''(10mm) hose barbs for maximized safety during operation.

Vacuum jacketed distillation adapter, with 4 vigreux stages.
	Detachable plastic 3/8''(10mm) hose barbs for maximized safety during operation.   Carefully designed 3-way adapter accommodates up to 3 pcs of 500ml flasks.
Cold trap protect the vacuum pump from contamination and damage of vapors.

Other models

Ancillary device of Short Path Vacuum Distillation:

FAQ

 1.How will package glass equipment?

We package these glass equipment in good and Non fumigation standard wooden case.



2. What's the size do you have?
We can offer you 2L, 5L, 20L.



3. What can do with the vacuum distillation equipment?
Mainly Vacuum distillation for essential oil.



4. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you demand.



5. What's the minimum order quantity?
No limited at present.

Company and Service



Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is a famous manufacturer of lab equipment located in the central China.
The main product is rotary evaporator, short path distillation, glass reactor, circulating water vacuum pump,cooling chiller,drying oven and so on lab instrument device.
We have 7 years of experience in operating Alibaba,have bacome a Gold Plus Supplier,the amount of transactions conducted via Alibaba.com in the past 6 months is over 550000 dollars.
We are professional enough to get your trust.

Pre-sale Service: 24 Hours online service for your consult. Help choose right model,and a series of service,person,advise.  Provide discount for many sets order Choose payment term you convienent. Promptly production and delivery,inform you in time.

After sale service: 1 year warranty service and all life maintenance. Technical Egineer are avalible for oversea trainning. Free change for some parts Remote control technical consult Free installation DVD Maintenance plan

Packaging & Shipping

Packing:

• Both neutral and cuistomized packing are available.

Shipping:

• We can ship the goods to you by international express,such as DHL, UPS, TNT and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.



Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up  the goods at your local airport,which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.

We are a company with 6 years of experience in exporting  laboratory equipment.

we can provide professional service and products with good quality.

Just send us an inquiry.
