PP,PE,ABS,PS,PA ротационный двойной экран без фильтра проволочной сетки для переработки пластикового гранулятора

Rotary double-screen without Wire Mesh Filter

The duplex cleaning blade continuous melt filter uses double rotating blades to filter PP, PE or other plastics, resulting in higher plasticity upon extrusion. The double screen design increases the filtration area and improves the extruded output in the unit time. The continuous melt filter utilizes no wire mesh, so that the users do not need to replace the mesh, reducing the manual labor intensity and ensuring this filter is a high-performance filter system.

Parameters

Filter system parts

Blade: Germany quality H13, welded by hard alloy, 90° HRC, high wear-resistance.
Filter body: die steel P20, high strength, high temperature resistance, damage resistant, simple to repair and maintain.
Mesh screen: tool steel through heat treatment to achieve 65° HRC, longer working life.
Motor: Siemens.
Gear box: with hard gear surface and grinding gear, high strength and barely any noise.
Electric control cabinet: standard equipped with the electric cabinet from Chint Group, featuring high stability. Other brands can also be appointed by customers.
Hydraulic power unit: four brands are available, including Taiwan Electronic Component, Nojima, Beijing Huaze and Shanghai Lixin.

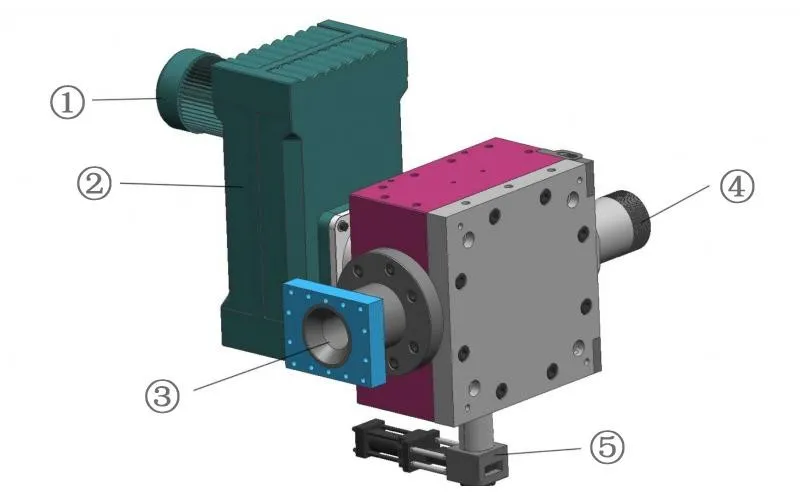

Principle

①driving motor
②reduction gearbox
③feeding inlet (connected to the outlet of the granulator)
④venting outlet (connected to the mould or the inlet of the granulator)

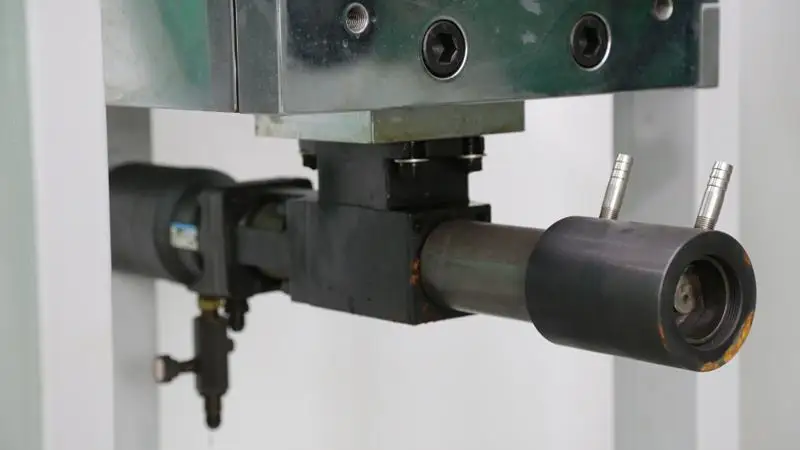

⑤automatic waste discharge device (waste residues are automatically removed from it)

Suitable plastic

The duplex cleaning blade continuous melt filter is suitable for various types of plastics, such as PP, PE, soft PVC, PS, ABS, PA, etc. The die head of the melt filter can be replaced according to the actual plastic customers need to filter, required output per hour and the mesh size, so that different users' requirements can be satisfied.

Features

1.Compared to traditional filter screen, this filter doesn't require constant replacement of the mesh screen as it allows for a continuous, 24-hour filtration, which makes it a high-performance filter system and an automatic self-cleaning screen.

2.Duplex rotating blades and high-speed kneading make it easier to discharge waste, and increases the plasticity and reduces the raw material cost.

3.The openable cover board of the filter makes it easier and more convenient to clean the inner cavity, plastic residues and surface of the screen and check the congestion or wear conditions of screen and blades.

4.Mesh accessories are also available and the customers don't have to search and buy any from other manufacturers.
