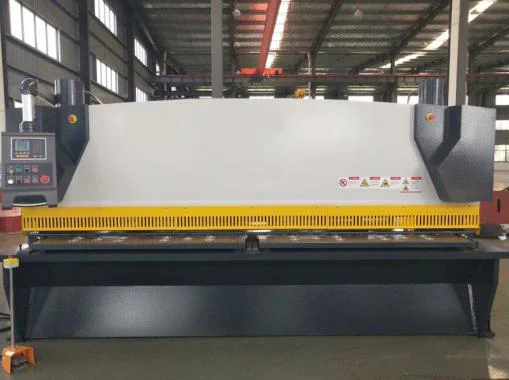

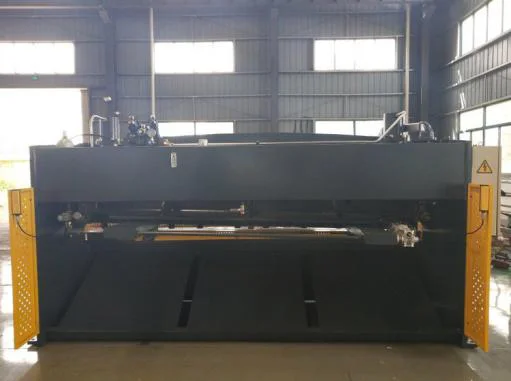

Hydraulic Plate Shearing Machine
Detailed Images
* The streamlined welded machine structure achieves high rigidity;the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.
* The motors for backgauge are controlledby inverter, which can achieve high positioning accuracy 0.05mm of the backguage by changing the frequency and voltage of motor.
* Top blade with two cutting edges and bottom blade with four cutting edges (6CrW2Si).
* X axis(Backgauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs.
* Pressing foot can fix the metal sheet during cutting operation which can eliminate operation error.
* Hydraulic overloadcan be protected by overflow valve, knife rack returns by Nitrogen cylinders.
* Foot switch with emergency button can stop the machine immediately when accident happens.
* Adjusting knife gap between upper and bottom blades can achieve better cutting performance.
Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.
* The motors for backgauge are controlledby inverter, which can achieve high positioning accuracy 0.05mm of the backguage by changing the frequency and voltage of motor.
* Top blade with two cutting edges and bottom blade with four cutting edges (6CrW2Si).
* X axis(Backgauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs.
* Pressing foot can fix the metal sheet during cutting operation which can eliminate operation error.
* Hydraulic overloadcan be protected by overflow valve, knife rack returns by Nitrogen cylinders.
* Foot switch with emergency button can stop the machine immediately when accident happens.
* Adjusting knife gap between upper and bottom blades can achieve better cutting performance.
Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.
Size Information
Main parameter
No. | Item | Unit | 16*4000 | ||
1 | Max cutting thickness | mm | 16 | ||
2 | Max cutting length | mm | 4000 | ||
3 | Throat depth | mm | 200 | ||
4 | Cutting angle | ° (degree) | 2°30′ | ||
5 | Cutting speed | Cutting times/minutes | 7 | ||
6 | Cutting Blade | length | mm | 1025*4 | |
quantity | pcs | 4(upper)+4(bottom) | |||
7 | Backgauge | travel | mm | 800 | |
speed | mm/sec | 160 | |||
accuracy | mm | ±0.02 | |||
8 | Front arms | length | mm | 800 | |
quantity | pcs | 3 | |||
9 | Spring pressure cylinder | pcs | 14 | ||
10 | Main motor | KW | 18.5 | ||
11 | Control system | / | E21S | ||
12 | Dimension | (L*W*H)mm | 4650*2150*2200 | ||
13 | Weight | kg | 16300 | ||
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
