914 610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine

Product Overview

Description

914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine



Welcome to Yingkou Longshun Machinery

1. Professional in producing arch roof machine for more than 25 years.

2. OEM & ODM are welcomed here.

3. MOQ: 1 set

4. Customized size and color

5. Competitive price with top quality

6. Quick delivery time.

914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine



914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine

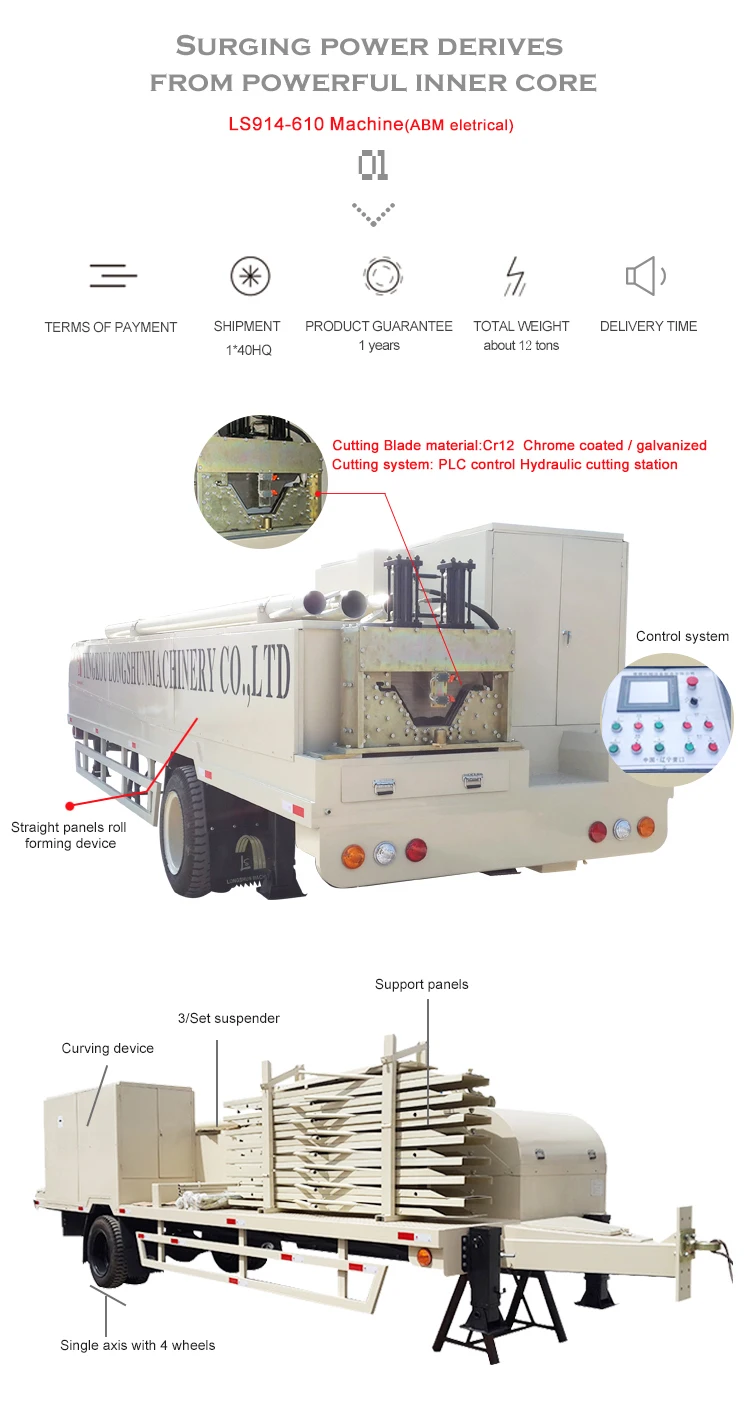

Technical parameters with its accessories
Main Machine Dimension	8.8*2.23*2.35m
Total weight	12 T
Suitable material	Galvanized steel / Colored steel
Coil Thickness	0.6-1.5mm
Shafts station	14
Roller material	Galvanized 45# steel (solid)
Shafts material	Galvanized 45# steel (solid)
Cutting Blade Material	Cr12 steel high temper quenched
Total Power	18.5kw
Power Supply	AC380V 50Hz, 3 phases or as you need
Max Span	38m



914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine

914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine

Other model

Model	Feeding width (mm)	Effective width (mm)	Suitable Coil thickness (mm)	Max building width (m)	Use Ratio	The depth of the groove (mm)
LS600-305	600mm	305mm	0.8-1.5mm	25m	50.8%	109mm
LS914-400	914mm	400mm	0.8-1.5mm	40m	43%	210mm
LS914-610	914mm	610mm	0.8-1.5mm	38m	66.7%	203mm
LS914-650	914mm	650mm	0.8-1.5mm	26m	71%	181mm
LS914-700	914mm	700mm	0.8-1.5mm	20m	76%	123mm
LS914-750	914mm	750mm	0.8-1.5mm	15m	82%	86mm
LS1000-400	1000mm	400mm	0.8-1.5mm	42m	40%	253mm
LS1000-550	1000mm	550mm	0.8-1.5mm	32m	55%	187.5mm
LS1000-610	1000mm	610mm	0.8-1.5mm	40m	61%	243mm
LS1000-680	1000mm	680mm	0.8-1.5mm	35m	68%	223mm
LS1000-700	1000mm	700mm	0.8-1.5mm	25m	70%	175mm
LS1000-750	1000mm	750mm	0.8-1.5mm	22m	75%	138mm
LS1000-800	1000mm	800mm	0.8-1.5mm	14m	80%	114mm
LS1200-800	1200mm	800mm	0.8-1.5mm	40m	66.7%	292mm
LS1220-610	1220mm	610mm	0.8-1.5mm	42m	50%	320mm
LS1200-800	1220mm	800mm	0.8-1.5mm	40m	65.5%	302mm
LS1250-800	1250mm	800mm	0.8-1.5mm	42m	64%	320mm



914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine

914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine

 914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine



Payment	30% for deposit, 70% should be done before loading in the factory

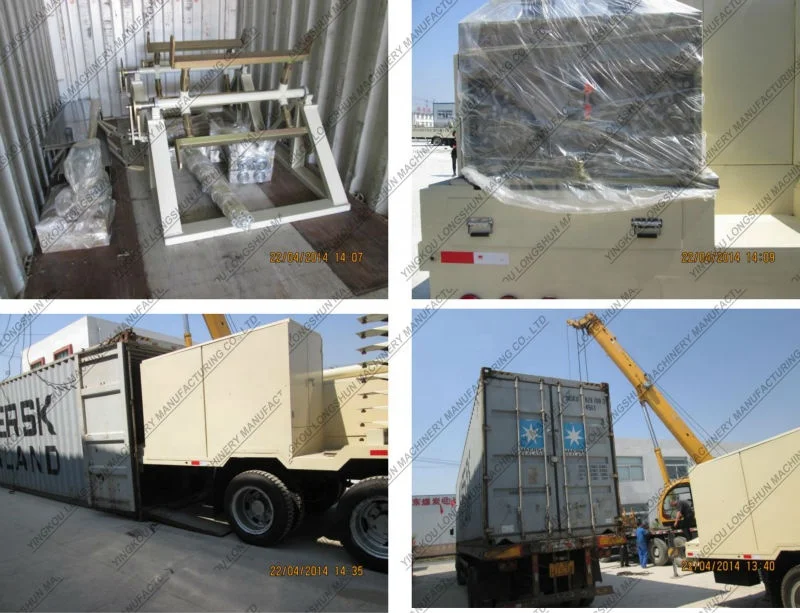

Packing	Standard seaworthy packing
Delivery	within 25 days
Guarantee	12 months
Installation & Training	If buyers visit factory and check the machine,  we will teach you how to operate the machine face to face here for free.  without visting, we will send the user manual to you.  if customer needs our engineer to go to your local factory for training,  please arrange board and lodging and other necessary things.





914-610 Arch Curving Metal Roof Sheet Bending Roll Forming Machine



For more details, just no hesitate to contact with me.

No matter when and where, i am here waiting for you.





                       Contact: Joanna
