Product Overview

Description

Due to some fluctuations in raw material prices and workers' wages, this is not the exact price. If you are interested in our products, please contact us, we will let the technical department give you a quote based on the current situation.

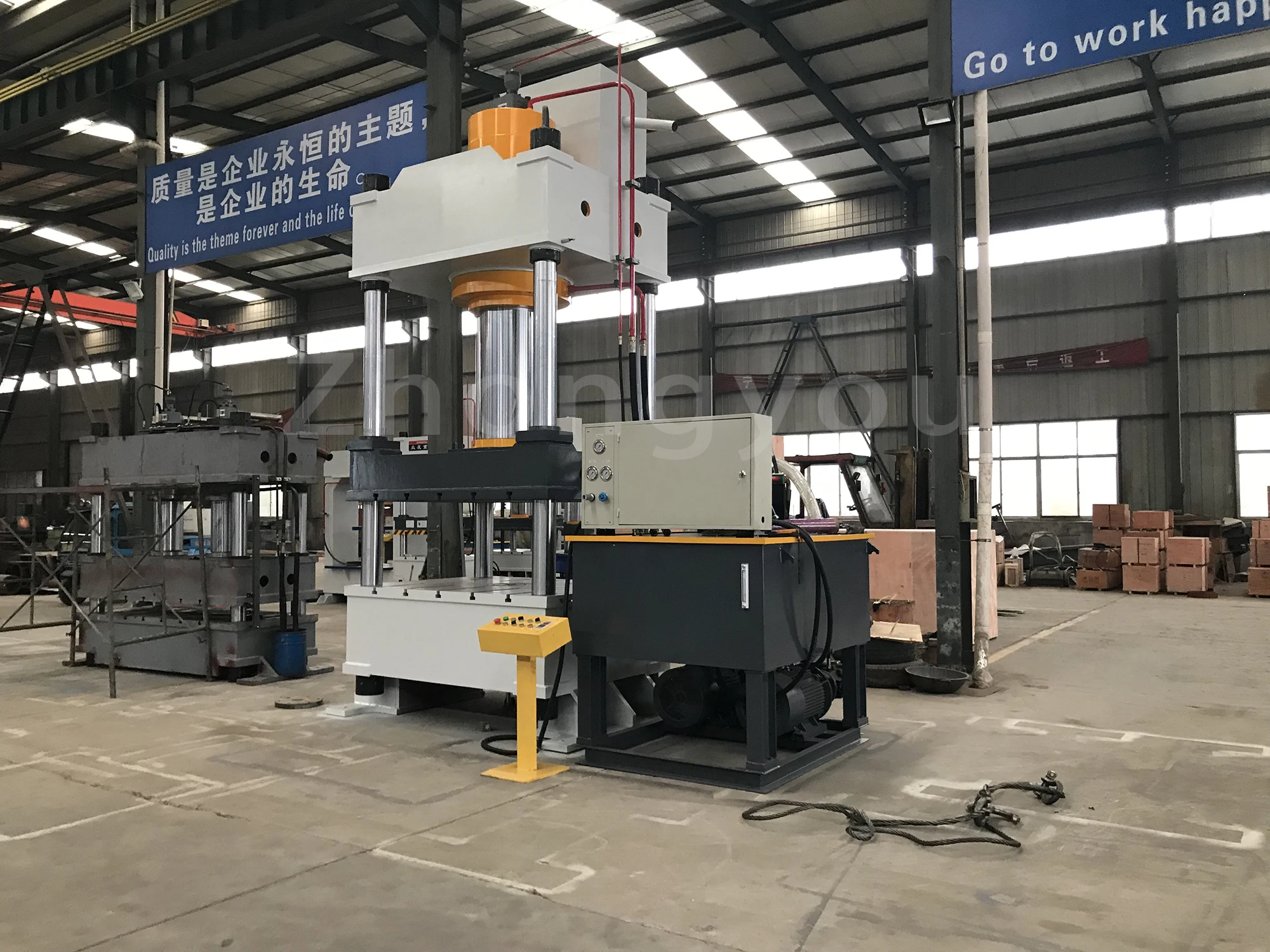

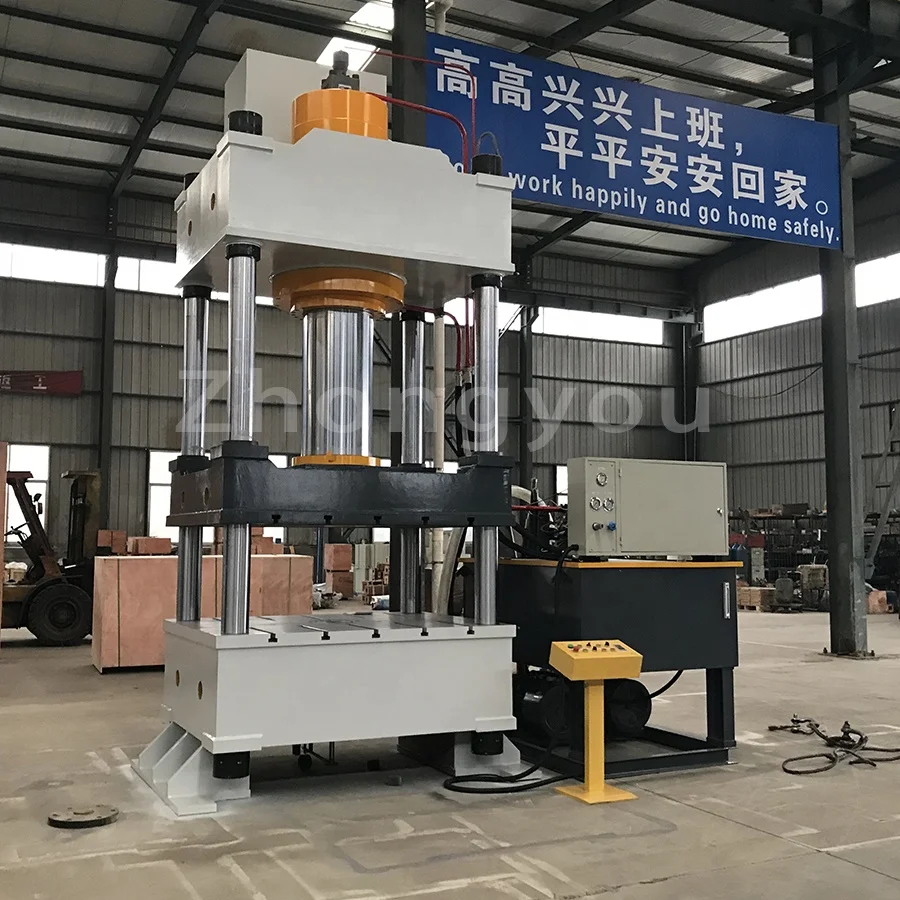

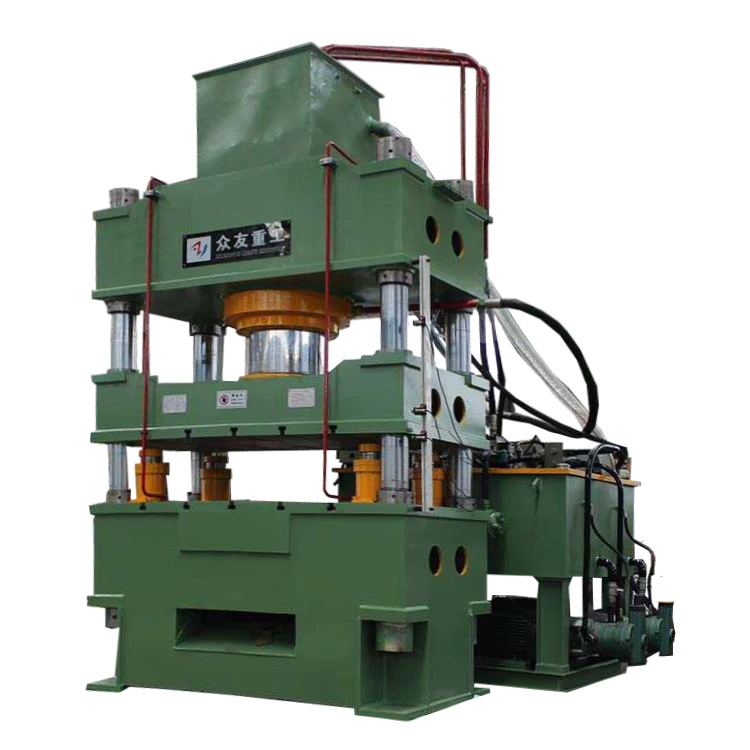

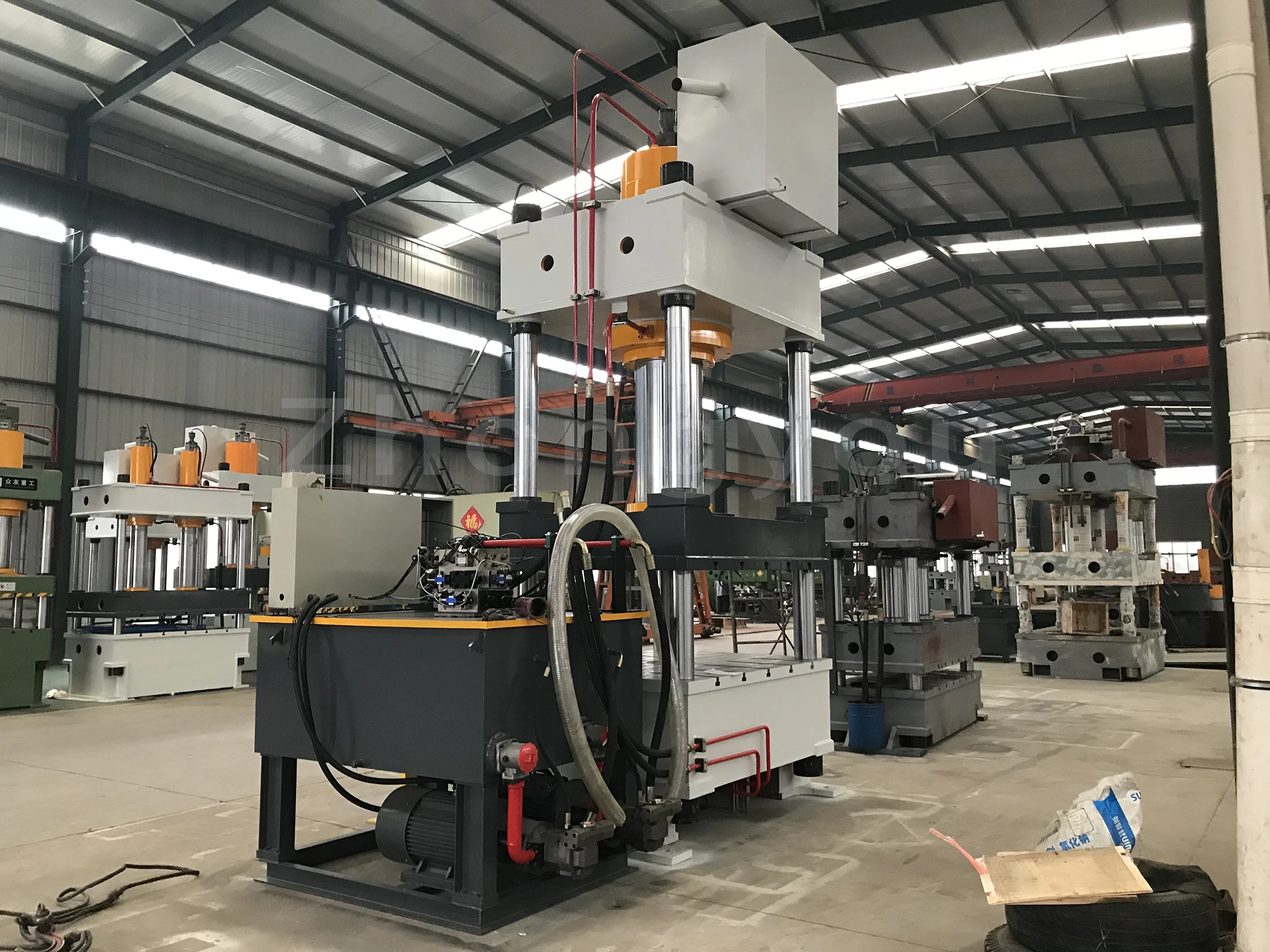

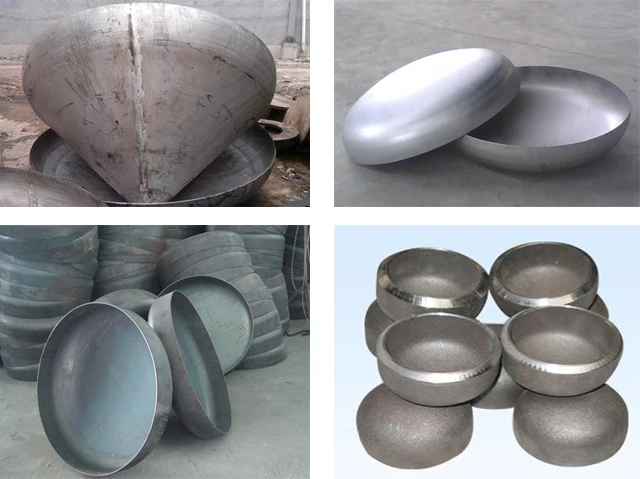

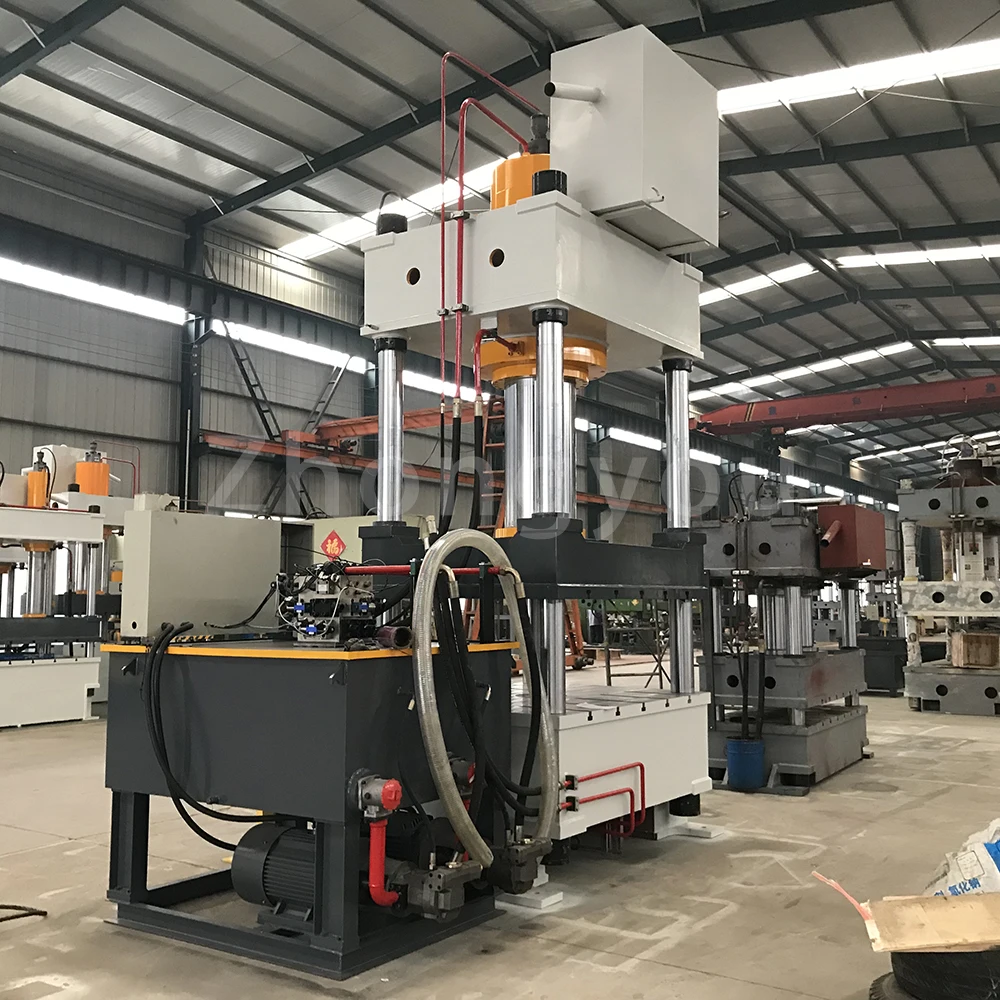

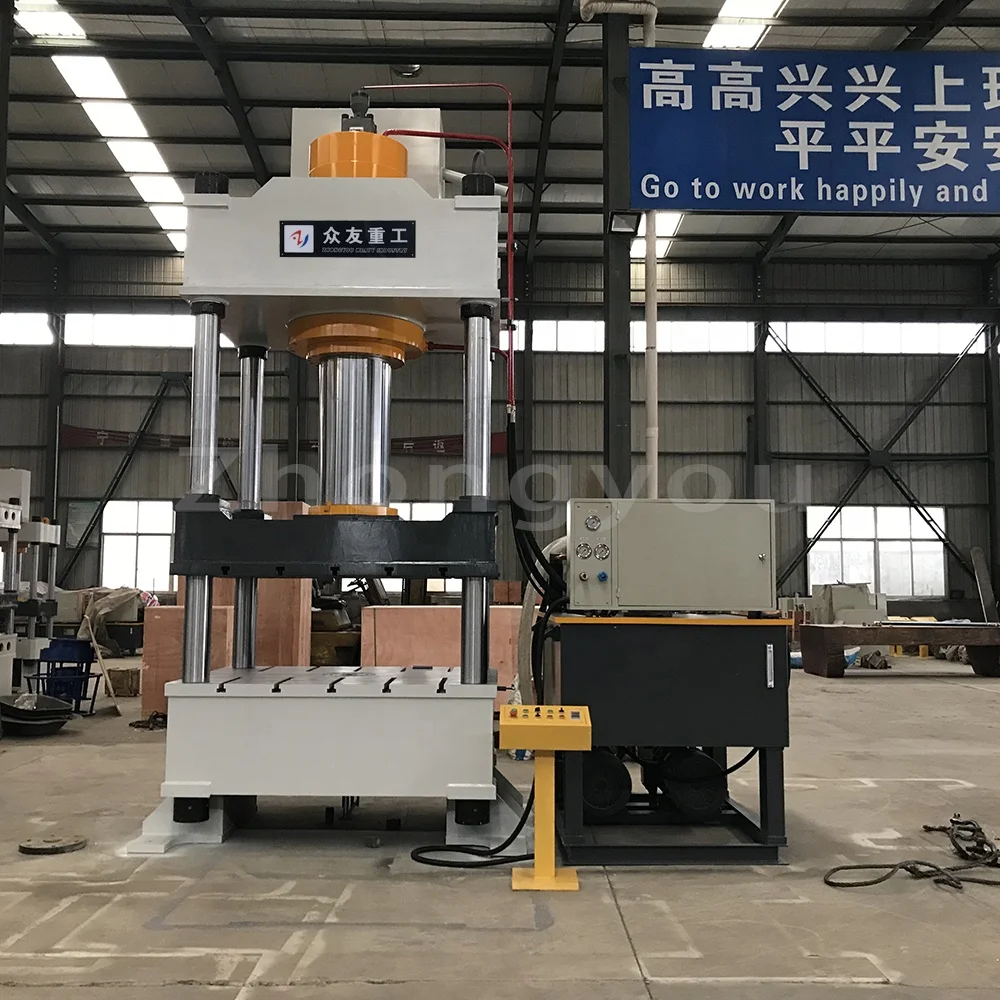

4 Columns Hydraulic Deep Drawing Press Machine For Dish End

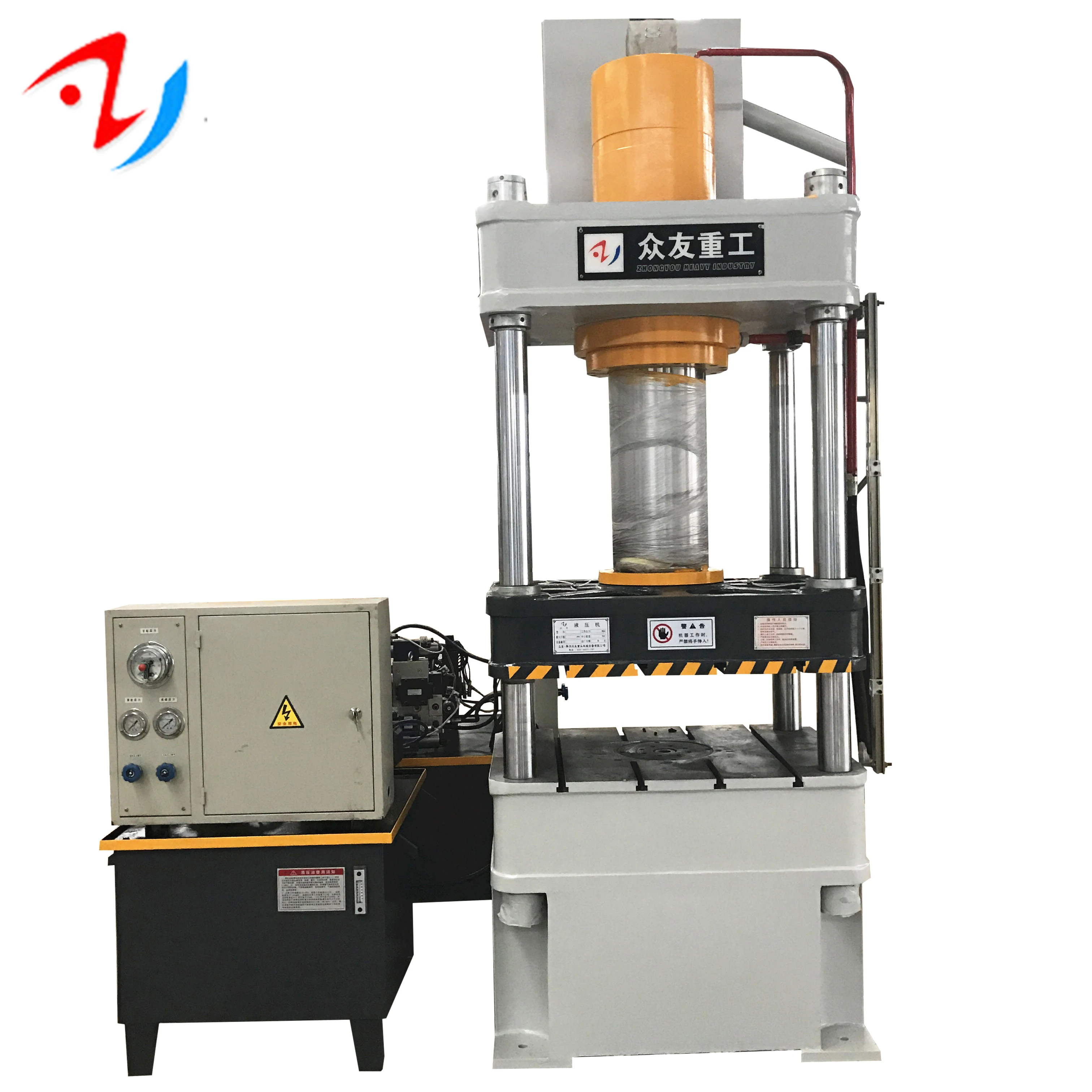

1. Main machine: It consists of rack, hydraulic cylinder, mold, supporting mold frame and punch.

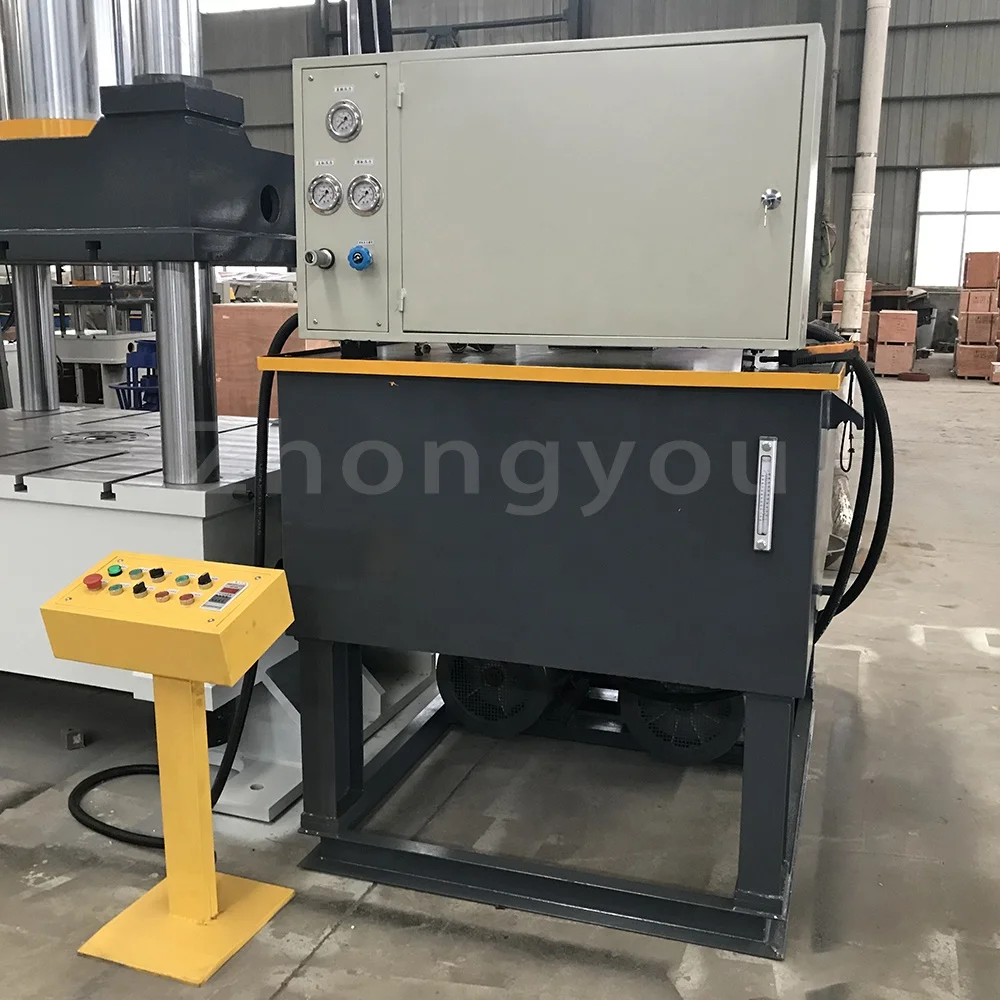

2. Hydraulic pump station: It consists of motor, hydraulic valve, oil block and oil pipe.

3. Electrical control cabinet: It consists of electrical control system and text display.



Application:

1.Metal or non-metallic parts,stamping,molding,light stretching,plastic and pressure assembly;
2.Glasses,locks and hardware parts of repression,electronic connectors,electrical parts,electrical switch,stator press-fit,etc.
3.Especially suitable for punching the phone keypad,transformer plastic,motor assembly,shaft,bearings pressed into the other.





Features:

1. Hydraulic machine body:
The four-column hydraulic press uses galvanized sheet as the substrate, the work table and the slider are made of 45# cast steel, and the galvanized sheet is used as the substrate. The high-quality environmentally-friendly polyester paint is used as the top coat.

2. Hydraulic machine master cylinder:
The cylinder of the machine is 45# steel, which is processed by forging to extend the service life of the machine.

3. Hydraulic system:
The high-flow cartridge valve is used, and an oil suction filter is arranged at the oil inlet of the pump to prevent impurities from entering the hydraulic system to ensure the normal operation of the oil circuit; the oil temperature and oil level display, air filtration and the like are included in the system; the oil tank is a steel plate The welded structure has a screw plug for draining and draining at the bottom; a plug-in hydraulic special motor reduces the noise in the workshop.

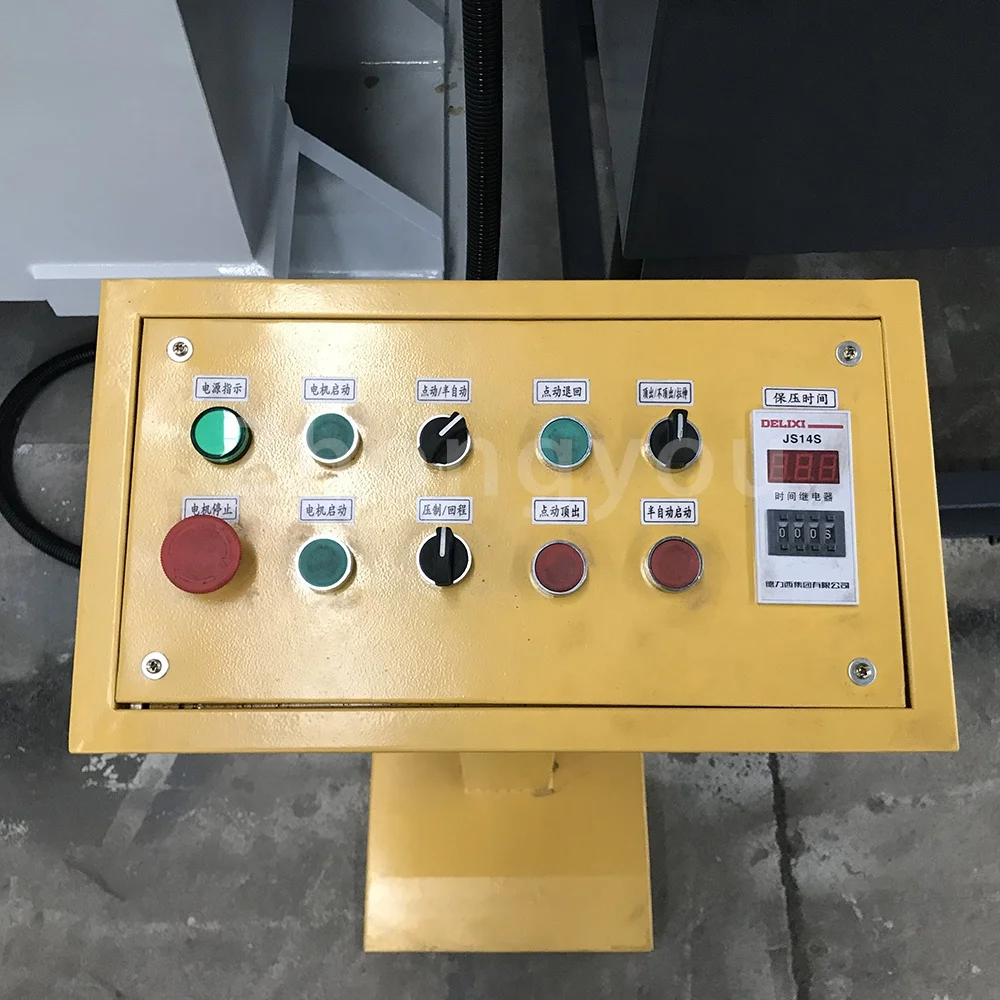

4. Electrical system:
The machine has a separate electrical control box that centrally controls the operation of the entire machine. The equipment is equipped with photoelectric protection and emergency stop buttons to ensure the safety of personnel and equipment during operation.

5. Operating system:
The PLC programming system is used to realize automatic switching between automatic and semi-automatic operation modes, which is convenient for equipment maintenance; the operating speed of the equipment and the pressure of the master cylinder can be adjusted arbitrarily; the process requirements of fixed and constant pressure during production can be met.



About Product	We will ensure the machine has no problem before the delivery.
About Color	Color according to customer requirements. If not required, we will use the default color.
About Parameter	Every kind of equipment produced by our company can be customized according to the needs of customers.
About Services	1. Inquiry and consulting support 2. Sample testing support  3. Recommend the most suitable machine according to customer's purpose 4. Factory visiting welcomed  5. Warranty 1 year 6. Engineers available to service machinery oversea 7. Spare parts support

Our machine has passed the domestic ISO quality management system certification, EU, CE , SGS and other certifications, and has a number of product innovation patents and honorary certificates.
