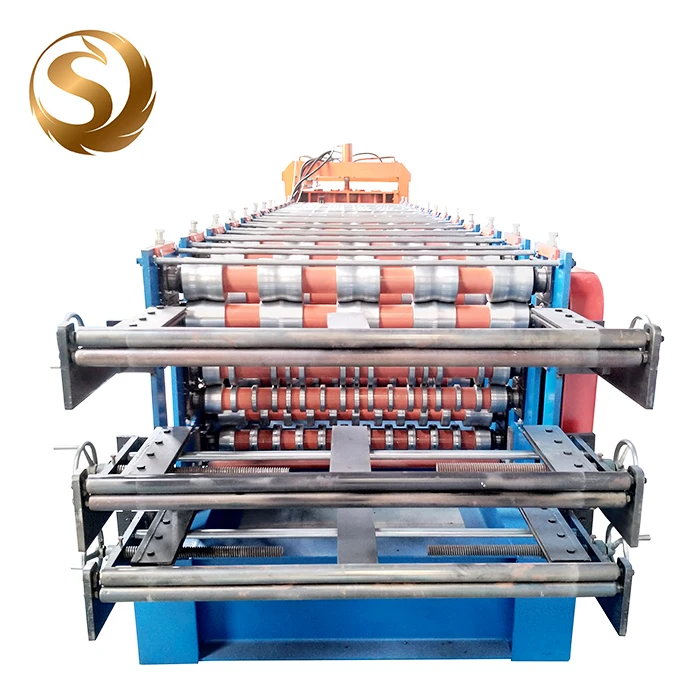

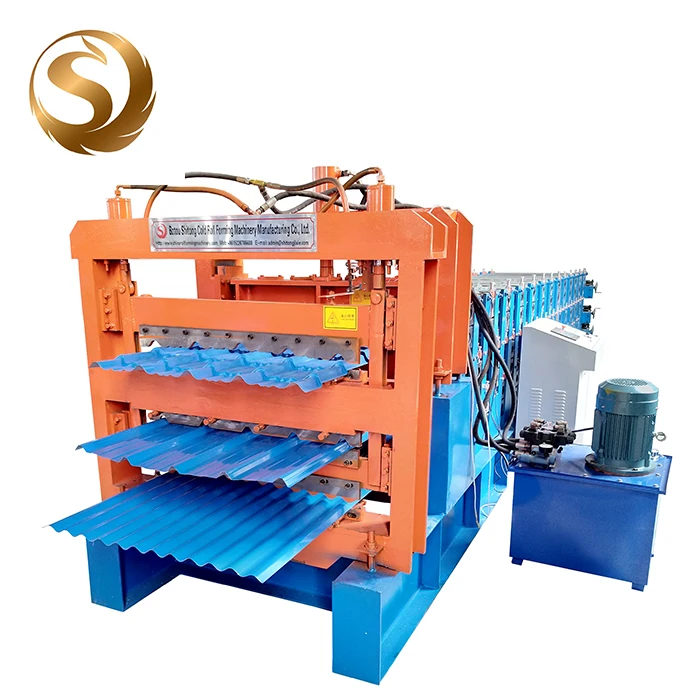

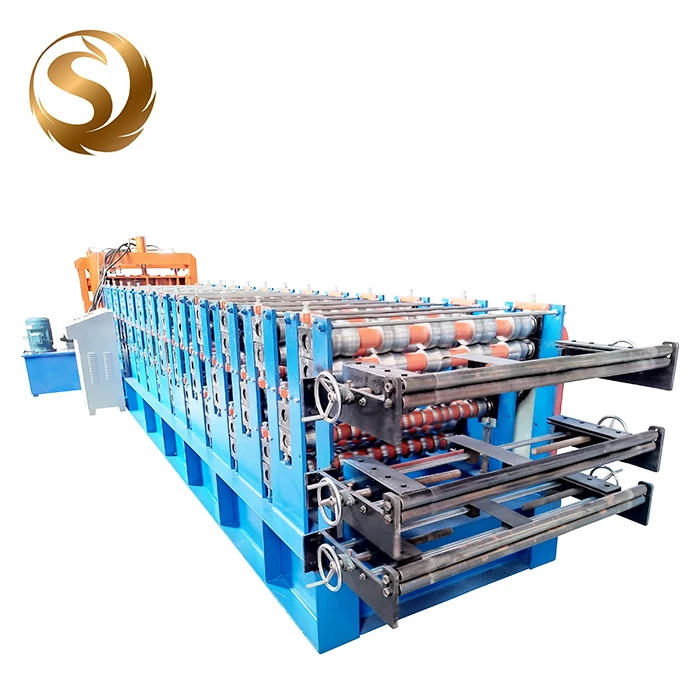

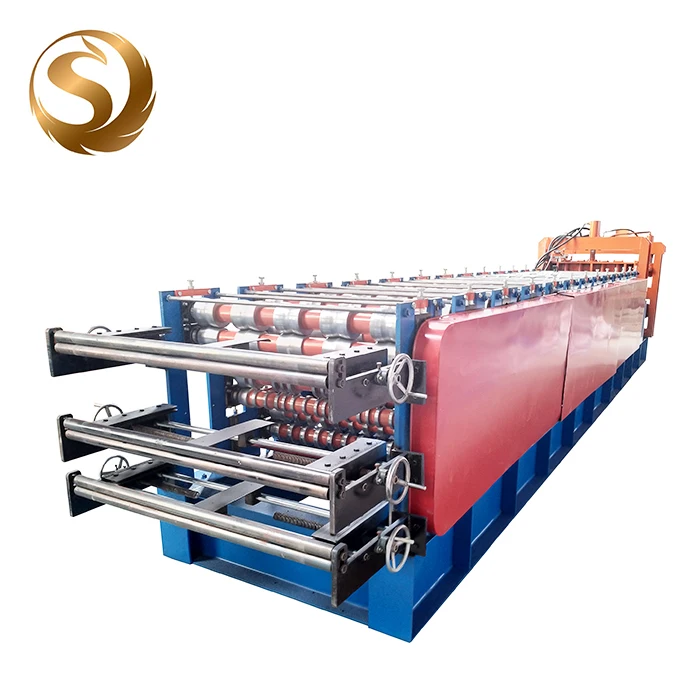

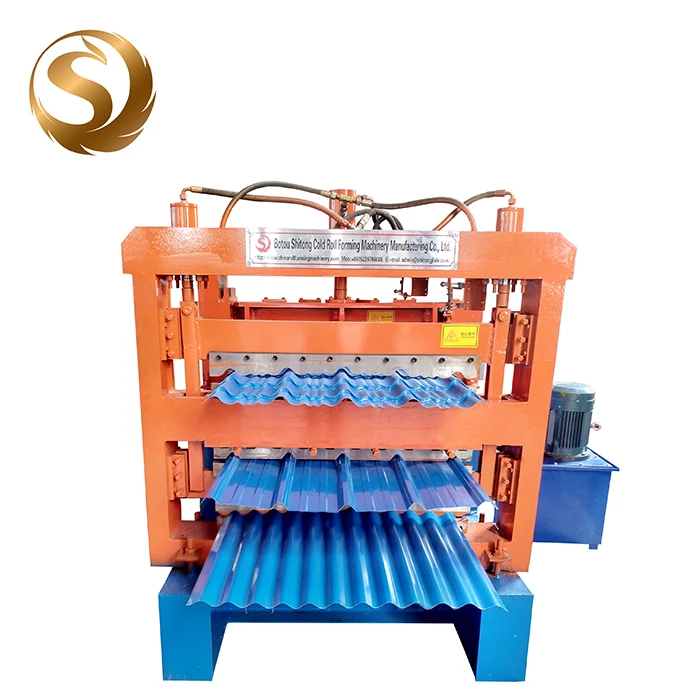

Трехслойный кровельный лист, трапециевидная плитка, роликогибочная машина

Share on (60861142430):


Price:26 000,00 $ - 28 000,00 $

Quantity:


Product Overview

Description

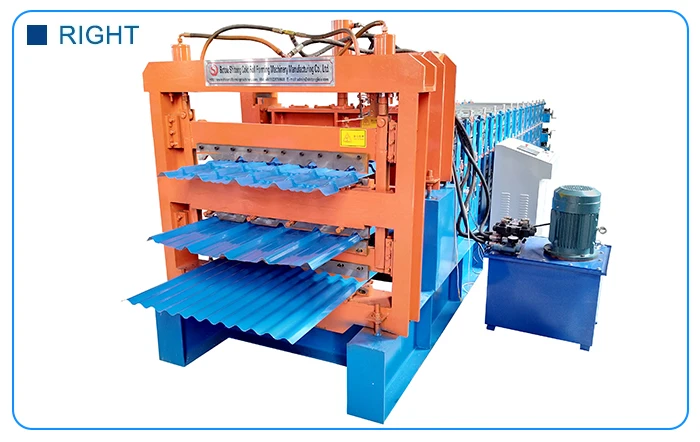

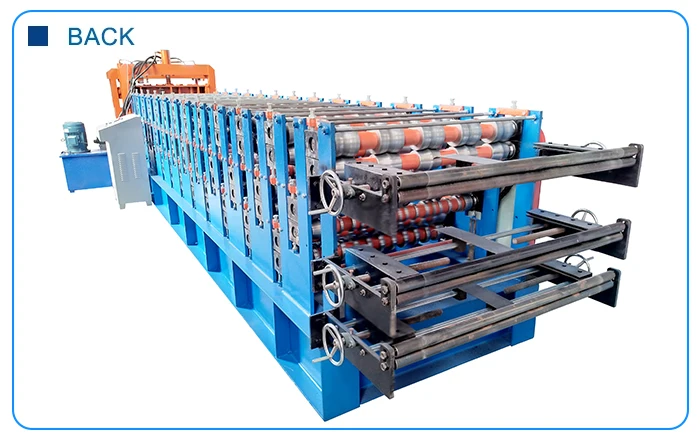

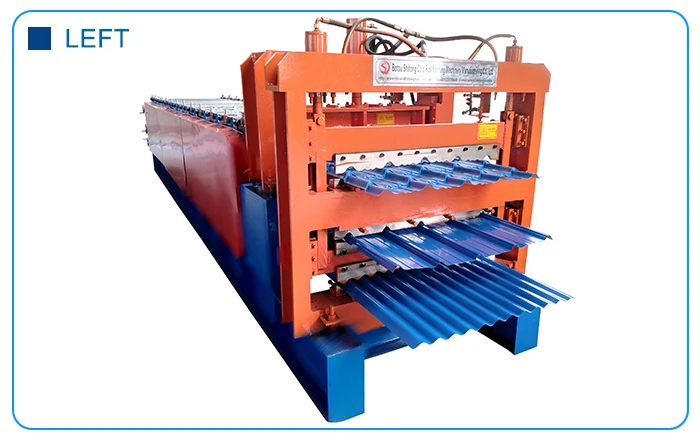

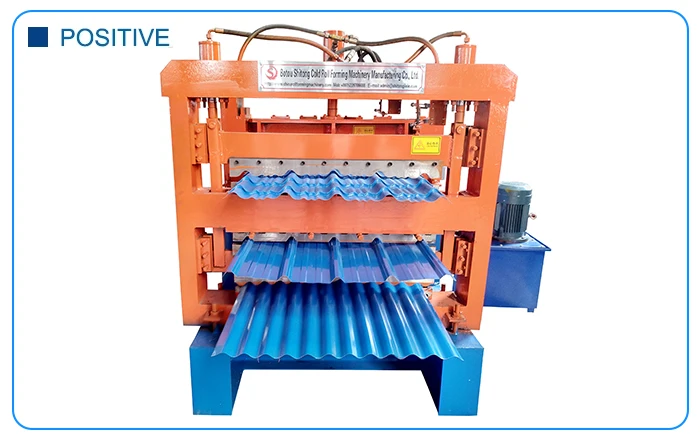

_01Three layer type roofing sheet trapezoid tiles roll forming machine



Product Description








































































































Raw material



Material



Colored steel sheet, galvanized steel sheet, aluminum sheet



Thickness of coil sheet



0.2-0.8 mm



Material expand width



1000 mm



Efficiency width



840-850-900 mm

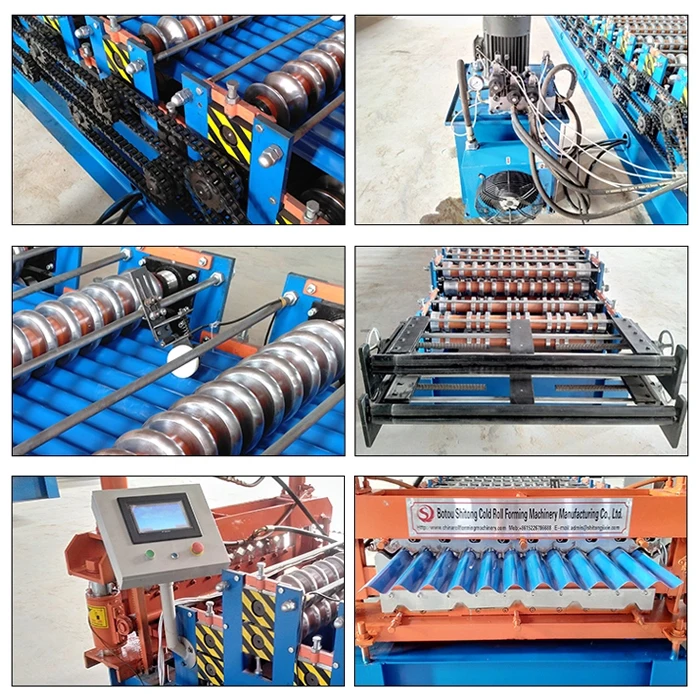

Machine details



Roller material



High grade NO. 45 forged steel with 0.05mm hard chrome plating



Shaft material



High grade NO. 45 carbon wrought steel



Cutting blade



Cr12 mould steel with quenched treatment



Diameter of shaft



70mm or as your requirement



Main frame



300 H steel



Forming steps



Up layer:9 stations


Middle layer:11 stations


Down layer: 13 stations



Productivity



Up layer:4-5m/min


Middle layer:20-25m/min


Down layer:20-25m/min



Hydraulic station power



4+4KW



Hydraulic pressure



10-12MPa



Appearance size



6500mm*1500mm*1800mm



Weight



8-10tons



Hydraulic oil



40# hydraulic oil



Electric tension



380V 50 Hz 3 Phase or as your requirement



Cut Mode



Hydraulic forming after cutting off



Cutter materia



Cr12 Heat Treatment



Electronic control system



PLC, Touch Screen, Encoding counter



Color



Blue, green or yellow or as your requirement



Rolling material



45# steel,roller surfaces polishing, hard plating



Service life



10 years










Company Information


 _03





Our Services


 _04





























1. Installation and training:

A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,


and also trainyour workers/technician face to face.


B.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and


other necessary things.


2. after Service
A.One year guarantee for whole machine.
B.24 hours technical support by email or phone call.

C.If there is any problem found of the machine, we will repair it for free in one year.






Packaging & Shipping


 _05





FAQ





1. Does one machine can only produce one style panel profile?


Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.


2. Do you have after sales support?


Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.


3. How to visit your company?


A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.


B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.


4. What can you do if the machine broken?


Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.


5. Can you be responsible for transport?


Yes, please tell me the destination port or address.we have rich experience in transport.


6. You are Trade Company or factory?


We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.


7. Why your price is higher than others?


As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.


8. How long the machine could be made?


Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
