CE Approved fish powder machine fishmeal making machine factory fish meal machine

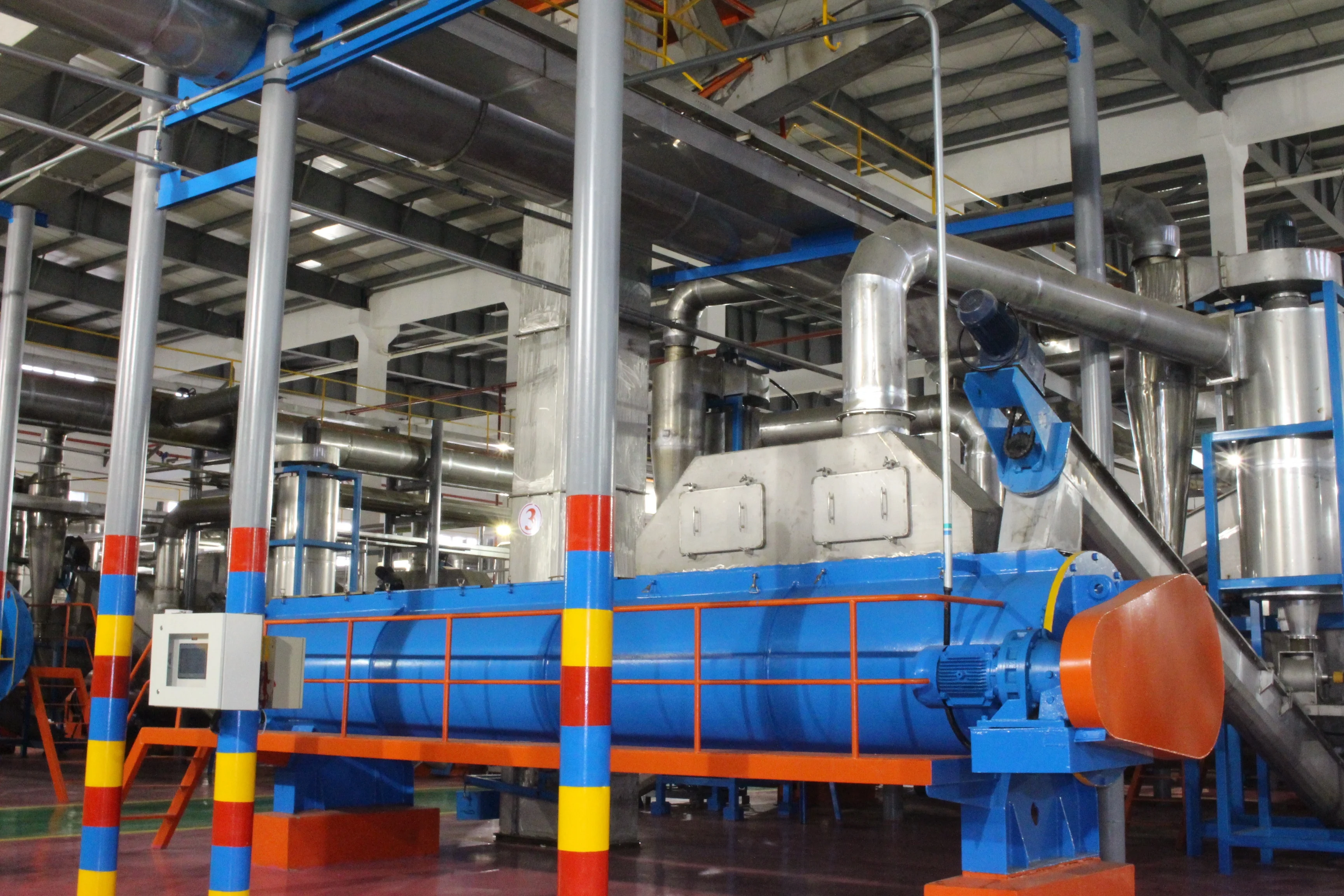

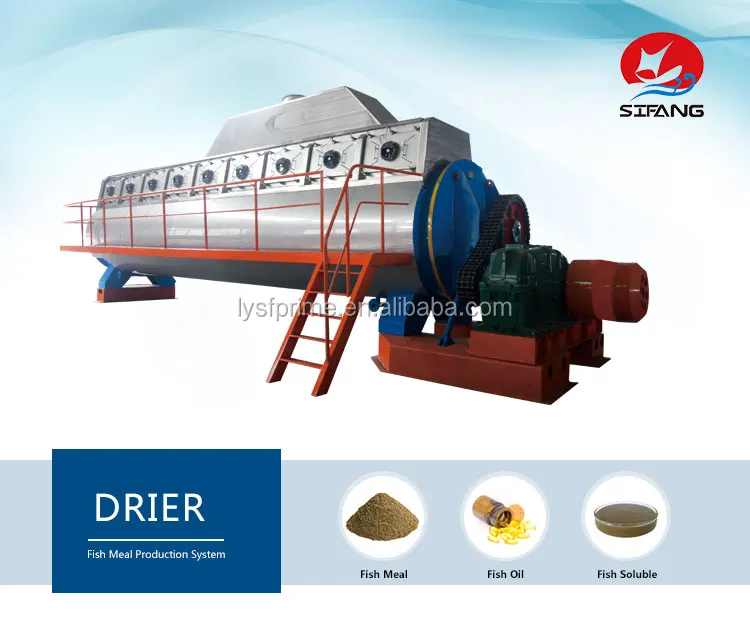

The Drier is composed of a horizontal crust, a revolving shaft, weld with a heating plate that has vanes. The coil can heat the fish meal, at the same time push fish meal towards the outlet by the vanes. Steam is evenly distributed into the heating plate by the allotter. Since the steam and condensate flow respectively in channels on the plates, so as to stabilize the high temperature.

With the rotation of shaft, fish meal is agitated by the vanes and heating plates, thus to keep the best contacted with the shaft and plates. Vapors from heating is let out from the top by the pipeline, with the weak vacuum inside pipeline, less cold air is absorbed and no steam leaks. The Steam enters through inlet, and condensate drained out from outlet.

Features
1. Fitting with Clutch, the Drier could be directly restarted with loading when sudden-stop during operation, avoid emptying inside materials.
2. With steam jacket, increase drying area, properly improve drying efficient, to assure material drying adequately.
3. Compression handles, compact structure, convenient open & shut.
4. The Main shaft is made of super thick quality seamless pipe.
5. By means of drainage system, take condensate back to boiler, therefore improve boiler efficiency, meanwhile reduce energy consumption.
6. With steel foundation, no concrete foundation, changeable installation position.
