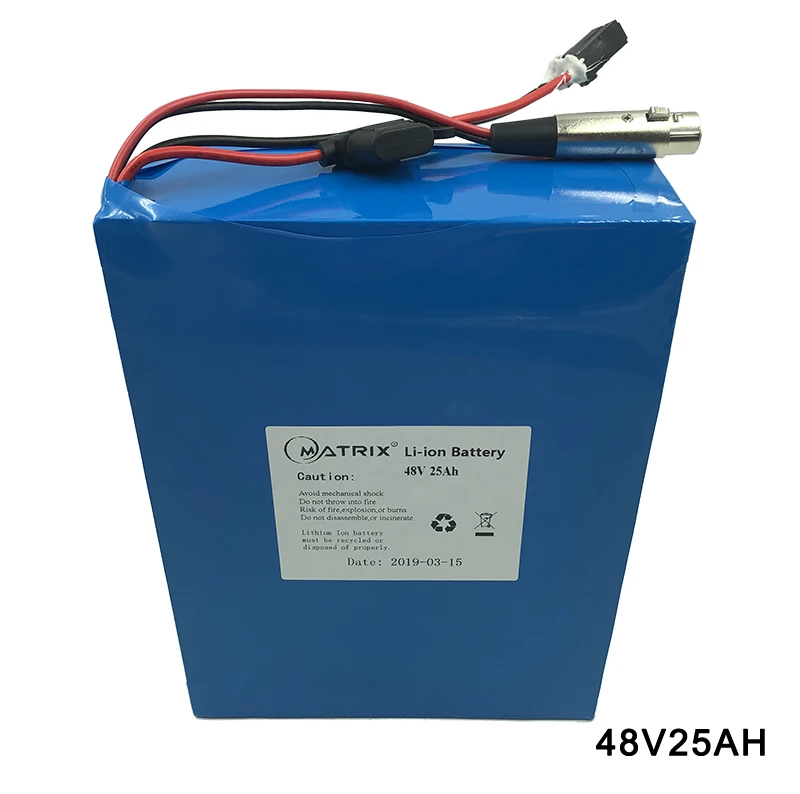

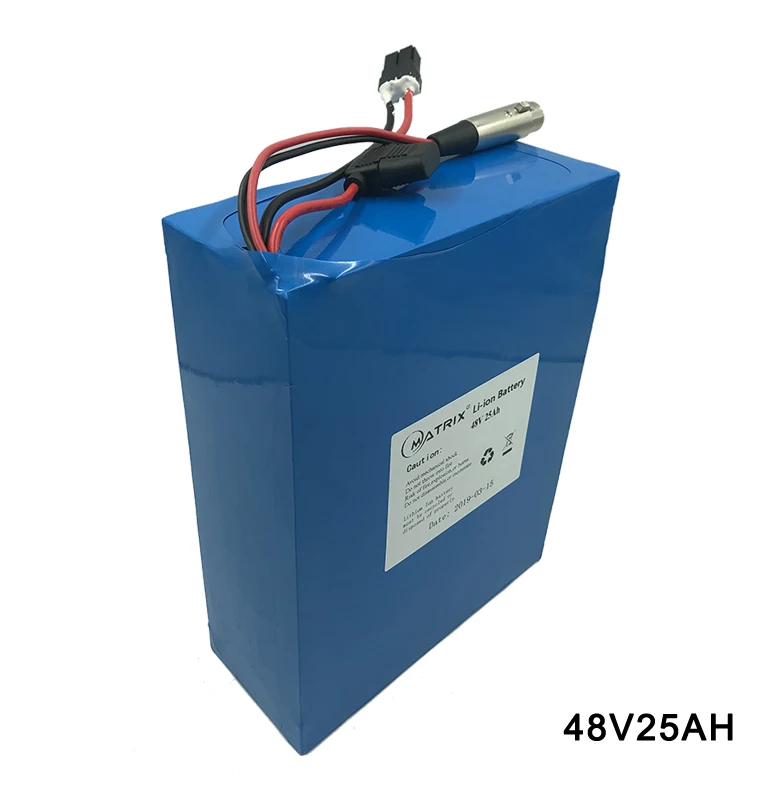

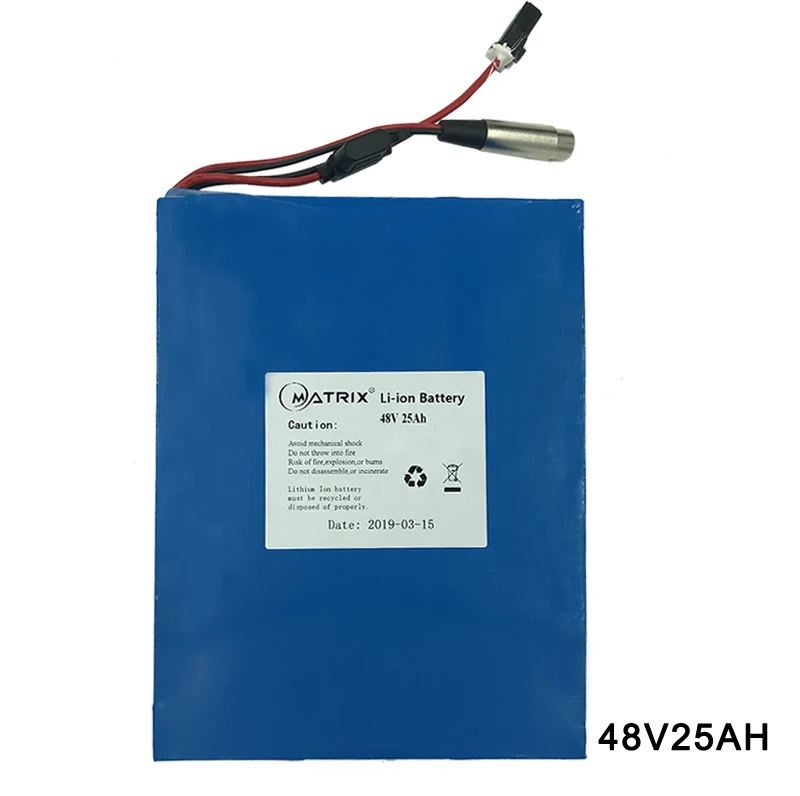

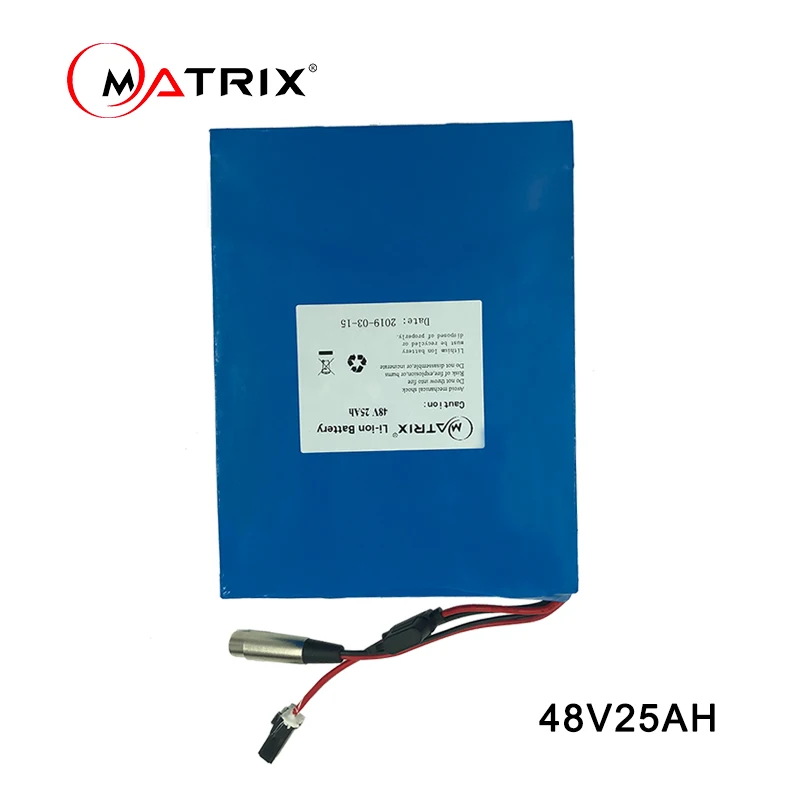

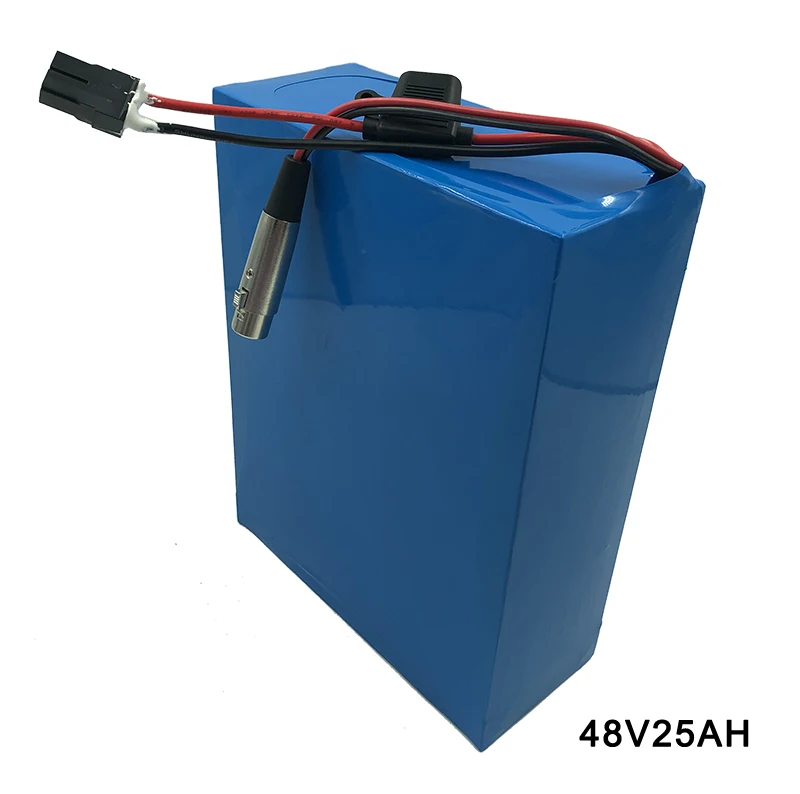

Rechargeable 48V 52V 60V 72V Super Capacitor 25Ah 30Ah 35Ah 40Ah Lithium ion Ebike Battery
- Category: Batteries >>>
- Supplier: Shenzhen Matrix Battery Co. Ltd.
Share on (60866196868):
Product Overview
Description
Hot products
Rechargeable 48V 52V 60V 72V Super Capacitor 25Ah 30Ah 35Ah 40Ah Lithium ion Ebike Battery
Product Information
Specification
|
Battery Type |
Lithium Ion Battery |
|
|
Nominal Voltage |
48V |
|
|
Nominal Capacity |
25Ah |
|
|
Battery Energy |
1200Wh (Approx.) |
|
|
Cell Assembly |
18650-3.7V 2.5AH-13S10P |
|
|
Charge |
Charge Model |
CC/CV |
|
Charging Time |
2A Charger: 12.5 Hours |
|
|
5A Charger: 5 Hours |
||
|
Charge Cut-off Voltage |
54.6V |
|
|
Cell Overcharge Protection Voltage |
4.2V/Cell |
|
|
Discharge |
Max Continuous Discharge Current |
50A |
|
Peak Discharge Current |
150A |
|
|
Discharge Cut-off Voltage |
36.4 +/-1V |
|
|
Cell Overdischarge Protection Voltage |
2.8V/Cell |
|
|
Working Temperature |
Standard Charge |
0~45°C |
|
Quick Charge |
10~45°C |
|
|
Standard Discharge |
-20~65°C |
|
|
48V 13S BMS |
50A BMS (Over-Charge/Discharge Protection, Over-Heat Protection) |
|
|
Cycle Life |
800-1000 times |
|
|
Fit for Motor |
48V 500W-2400W |
|
|
Dimension |
Customized |
|
|
Weight |
around 6.5kgs |
|
|
Certifications |
CE; UN38.3; MSDS; RoHS |
|
|
Application |
E-bike, E-motorcycle, E-scooter etc. |
|
|
Warranty |
13 Months |
|
|
Part Includes |

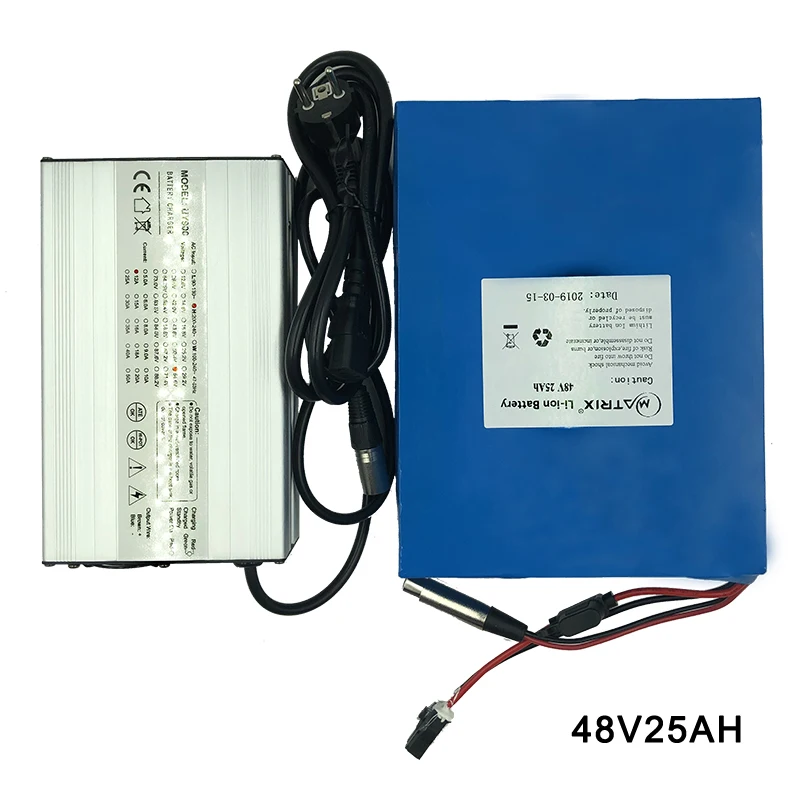

1× 48V 25AH Lithium Ion Battery Triangle 1× 50A BMS System Inside 1× 54.6V 2A / 5A Charger |
|
|
Discharge Port: Customized |
||
Charge
1. AC Input Voltage: 100-240V.
2. Charge Voltage: 54.6Volts.
3. Charge Current: 2Amps.
4. AC Charger Plug: EU/US/UK/AU you can choose
Working temperature
Charging 0°C~45°C
Discharging -20°C~60°C
Storage -10°C~45°C
Cycle life (times): More than 500
Applications:
·Electric Vehicles, such as E-bike, E-scooters
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power supplier for Training systems
Product Description
1. Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 500 times deep cycle,8 times of lead acid battery
4. No memory effect,highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70°C
6.Small size, light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly
