Rotary Evaporator 50L, Rotovap factory price

Product Overview

Description

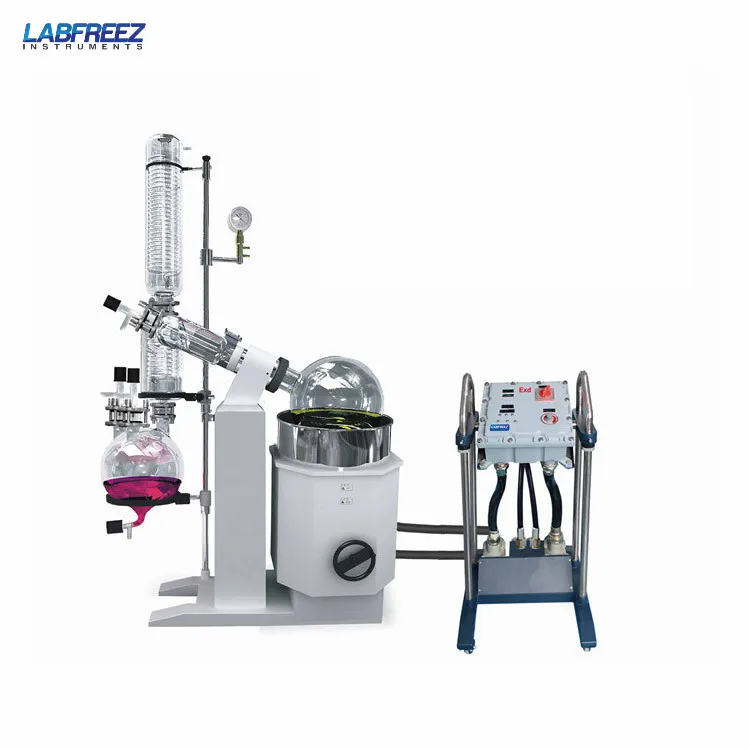

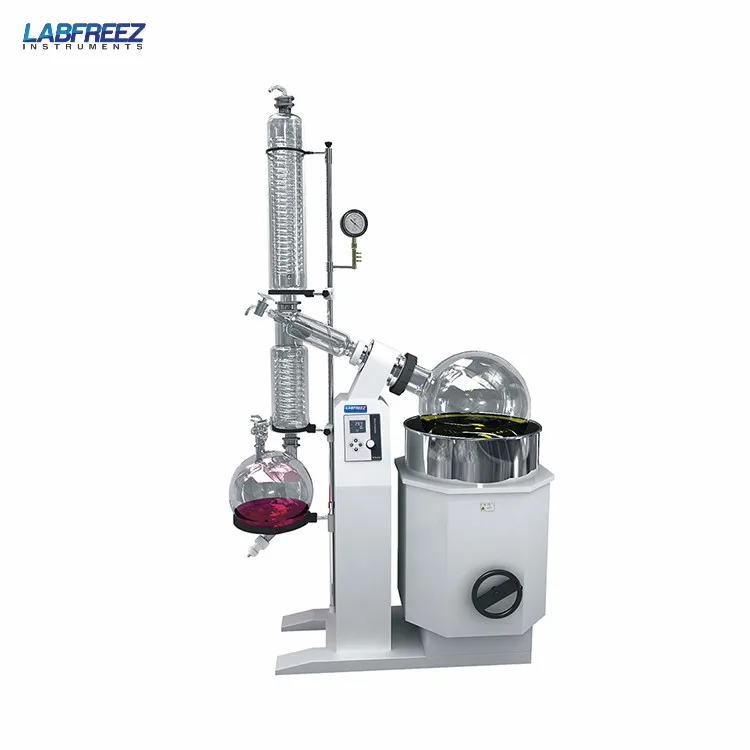

Rotary Evaporator 50L



Labfreez™ Large capacity vacuum rotary evaporator, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.



Features:

• Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.


• the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.


• a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.


• water bath electric lift and manual lift support, easy to use.


• PTEE discharge valve, corrosion resistance, pollution-free.



Specifications:

Model	RE-LA-5 RE-LA-5Ex	RE-LA-10 RE-LA-10Ex	RE-LA-20 RE-LA-20Ex	RE-LA-50 RE-LA-50Ex
Capacity of Rotary Bottle	5L	10L	20L	50L
Flanged diameter	Φ50mm	Φ95mm	Φ95mm	Φ125mm
Capacity of Collecting bottle	3L	5L	10L	20L
Rotary control	LCD display, frequency conversion stepless
Rotary speed	20 ~ 140r/min	20 ~ 130r/min	20 ~ 130r/min	20 ~ 110r/min
Power of rotary motor(W)	40W	90W	120W	120W
Condensing tube	Vertical double serpentine tube	Vertical, main + auxiliary cooling and highly efficient three circulating

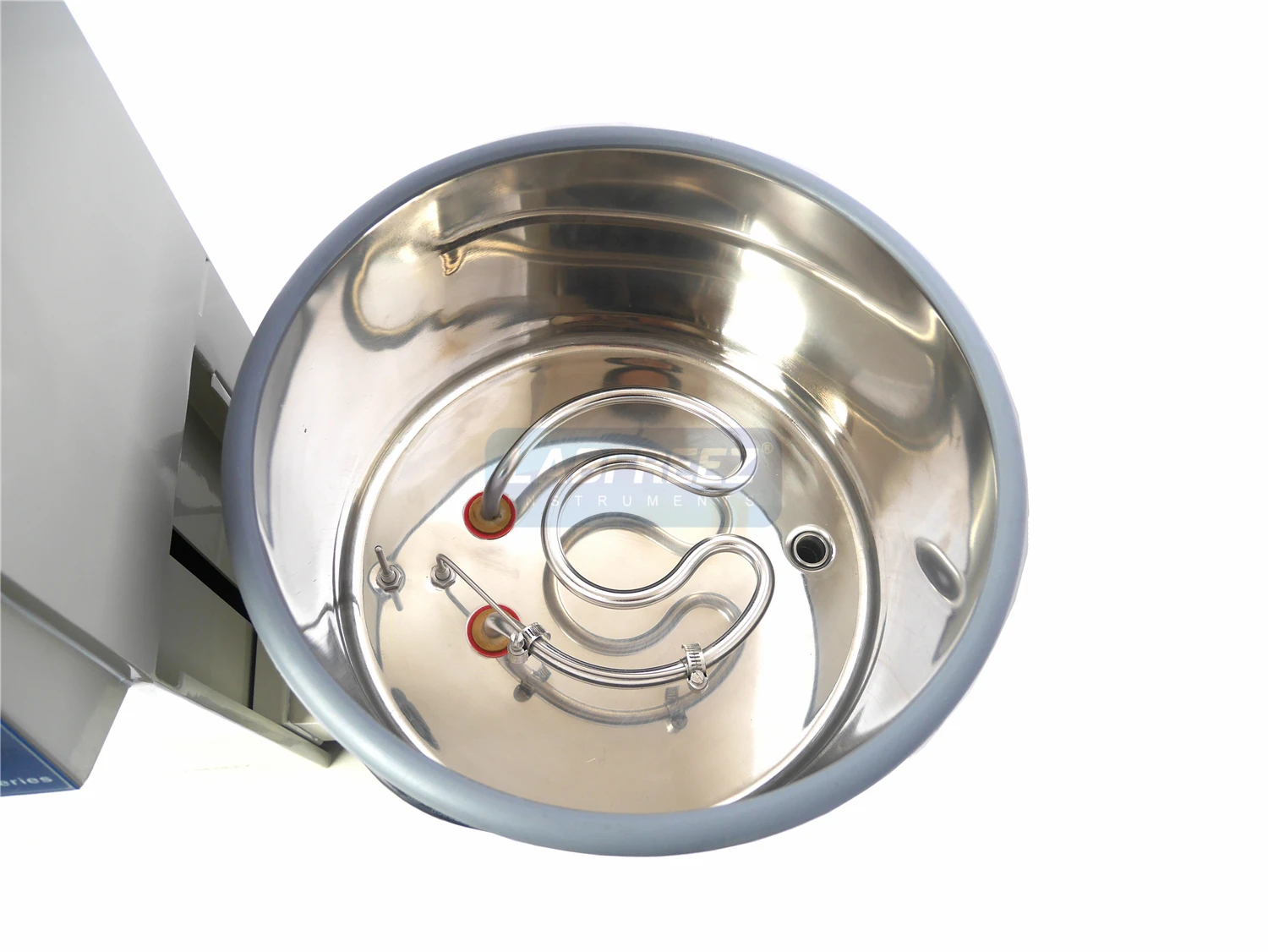

Water Bath	Stainless steel water bath
Temp. Range	Digital display, RT~99°C
Vacuum degree	399.9Pa (below 3mmHg)
Evaporating capability	Water≥2L/h Alcohol≥4L/h	Water≥3.2L/h Alcohol≥6.5L/h	Water≥5L/h Alcohol≥11L/h	Water≥9L/h Alcohol≥19L/h
Elevating mode	Electric Manual	Electric Manual	Electric Manual	Electric Manual
Elevating stroke	0~150mm	0~160mm	0~190mm	0~230mm
Power supply	220-240V/50Hz		380V/50Hz
Power	2.2KW	4.8KW	6.3KW	8.3KW
Dimensions(mm)	765L*400W*1070H	920L*550W*1700H	1250L*600W*2100H	1320L*770W*2340H
