500 тонная машина для производства люверсов, одобренная CE, для Венгрия, Ирландии, Нидерланды, Кувейта, Словении, Египта

Share on (60869812811):


Price:

Quantity:


Product Overview

Description

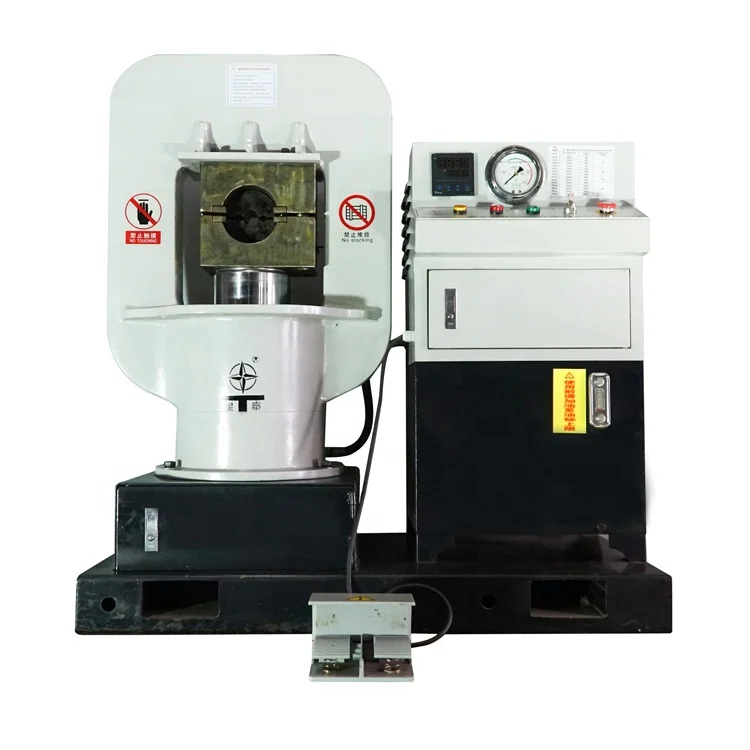

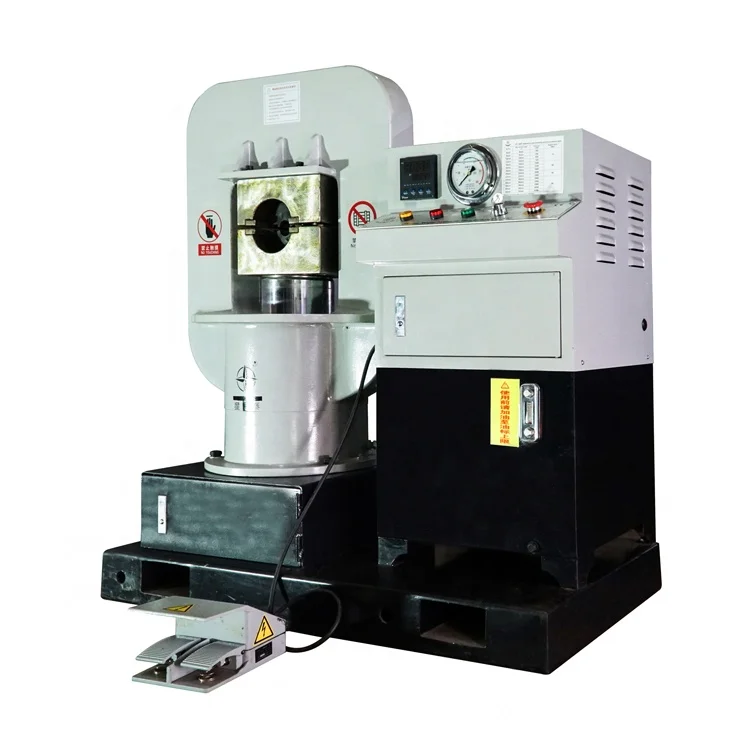

 Product Description of wire rope pressing machine

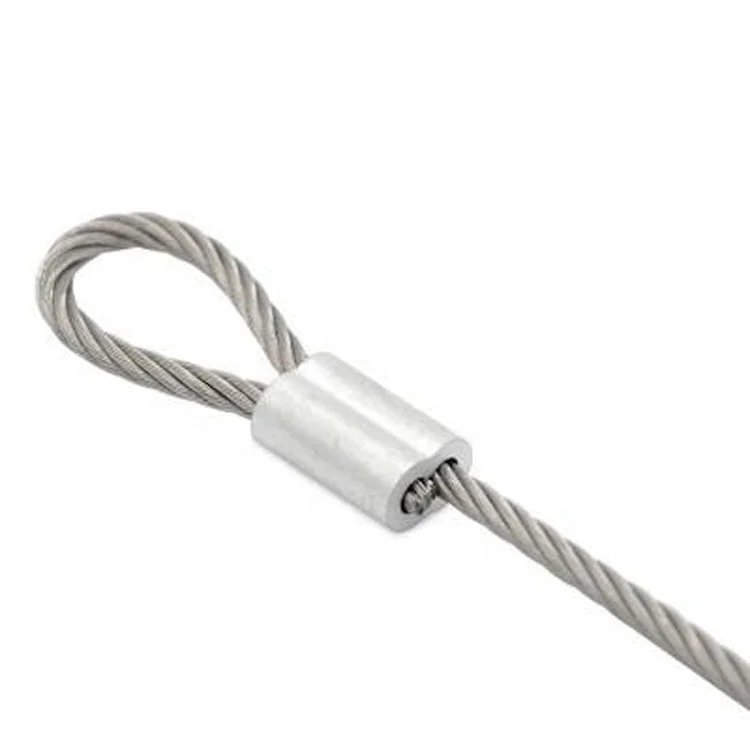

Xingtai wire rope pressing machines are used to make pressed wire rope sling.

The body of swagers are manufactured from one single block construction that ensure strength,

long service life and a minimum of maintenance. All swagers are thoroughly test run and are

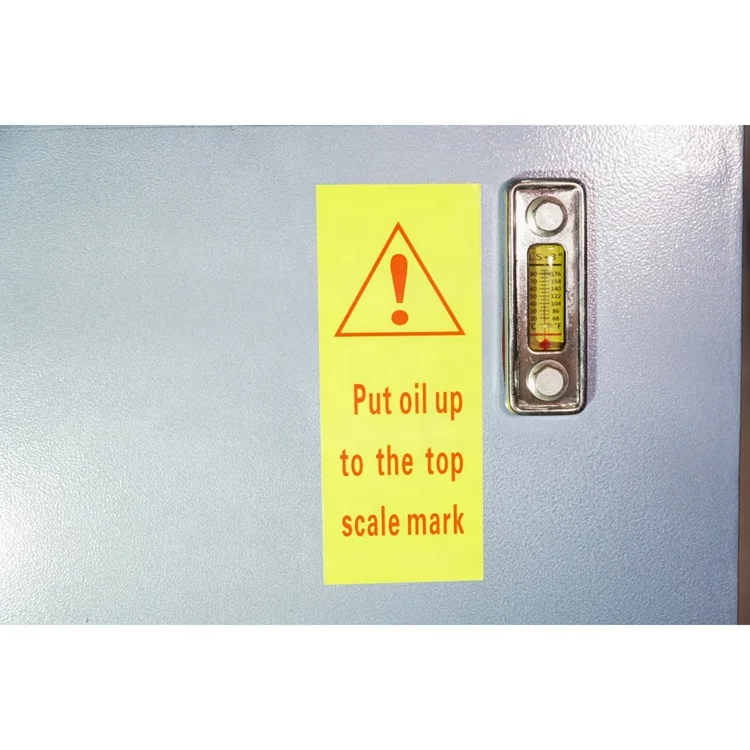

supplied with a full tank of oil.



 1.  It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.

 2.  Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure

gauge can be accurately controlled.

 3.  Electric control parts of the low-voltage control, an increase of operating system security.

 4.  Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work

efficiency.

 5.  Xingtai wire rope press machine have exported to many countries, UK, Australia, Holland,

 Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.



 Technical data of wire rope pressing machine

Mode No.

GT-300T

GT-500T

Max press power (KN)

3000

5000

Max wire rope diameter in one pressing (mm)

Φ24

Φ32

Max wire rope diameter in multi-pressing (mm)

Φ32

Φ42

Power (KW)

2.24

Max working pressure (Mpa)

56Mpa

56Mpa

Max piston movement (mm)

80

100

The up speed of piston (mm/sec)

4.5

5

The down speed of piston (mm/sec)

4.5

6

Total length (mm)

1200

1500

Total width (mm)

650

610

Total height (mm)

1400

1600

Net weight (kg)

900

1300





 350ton press machine 1.jpg650TON machine application.jpgwire rope slings.jpg350ton PACK.jpg

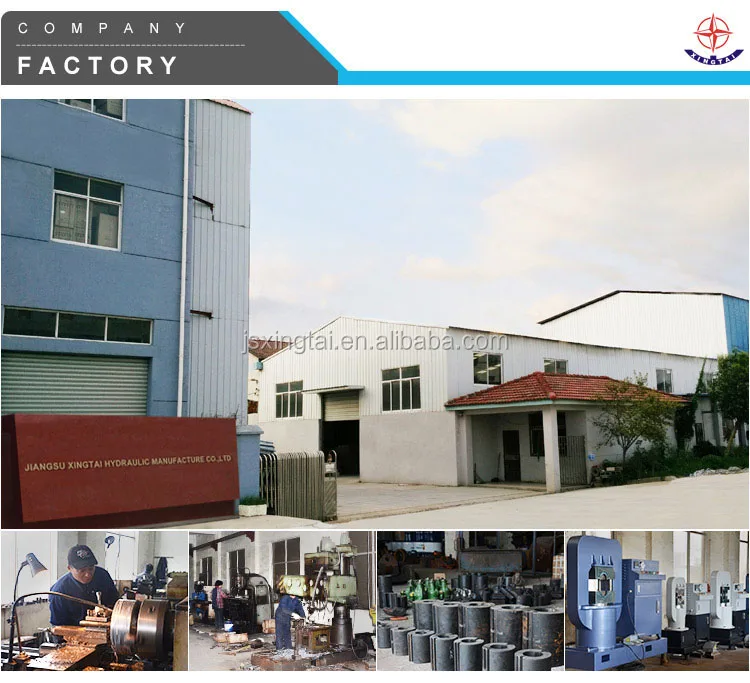

Company Information

 wire rope press machine 4.jpghydraulic press machine.jpg

FAQ

1. What is after-sales services?
 24 hours around the clock & 12 months warranty
 Life-long maintenance service for the product



2. If I didn't use press machine before, how can I install and operate the machine?

We will delivery machine with use manual.



3. Shall I see the machine work before I order?

a. Please send us inquiry and we will check whether there are customers in your country.

b. You may come our factory, we will teach you how to operate.

c.  We may send you video.



4. How long to finish one machine if I place order?

As usually, delivery time is 30 days.  If we have machine and dies that you need in stock,  we may delivery machine in 7-10 days after receipt of your payment.



5. Why are the color of your dies black?

    All our dies are quenched.



5. How to contact sales?

Please contact person details as below,
