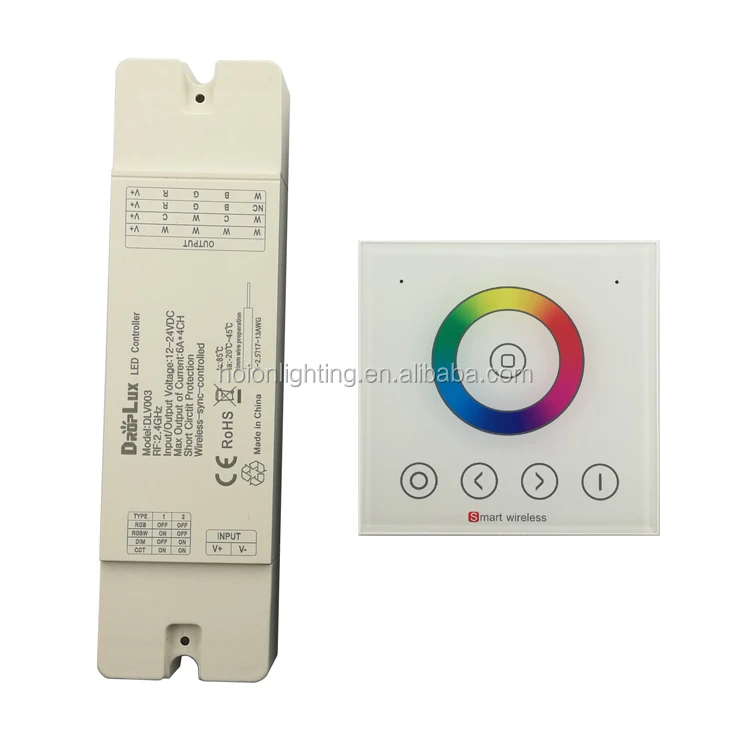

4 in 1 DIM CCT RGB RGBW 2.4G Wireless Sync Control Colorful Changeable Dimming LED Strip Controller with RGB Wall Mount

DLV003

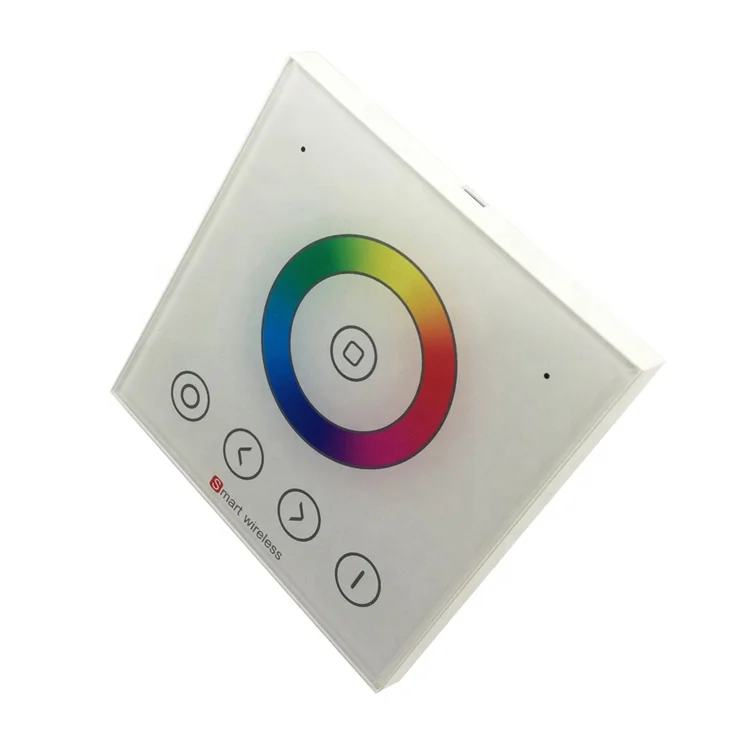

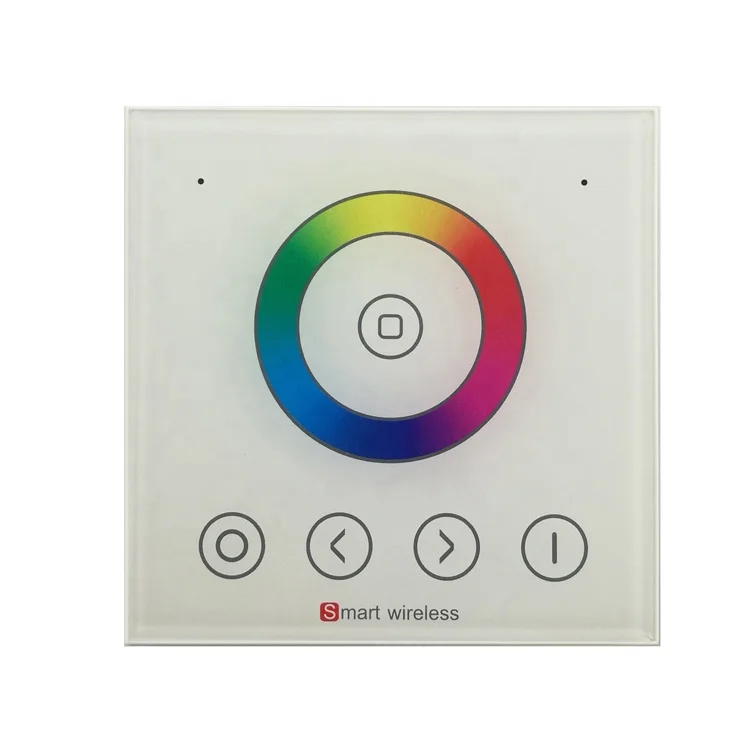

4 in 1 2.4GHz wireless-sync-control RF wall mount controller-RGB

Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on; It belongs to low-voltage DC power input and output with five interfaces, including V+ is extremely common interfaces, the other four for the 4 channels output control interface. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through RF remote control. Especially, it is integrated 4 optional programs for different color type LEDs, contains single color/CW+WW/RGB/RGBW. It means only one item stock for 4 types applications.

Product Feature

1. Designed as 4 in 1 controller for DIM/CCT/RGB/RGBW constant voltage LED lights.

2. DC12-24V, four channels output, Max. load current: 4CH*6A; Max. load power: 288W/12V; 576W/24V.

4. Wireless-sync-control in both static color and dynamic modes, unlimited by remote control distance.

5. Batch-operation is available for RF code matching/clearing between remote control and receivers.

6. Memory function, each time power-on reserve the mode which stop in the last power-off.

7. Perfect control effect, including 1024 static colors(RGB/RGBW) and soft dim function.

8. The brightness of static color is adjustable, 1024 levels in total; the speed of dynamic changes is      adjustable, 100 levels in total.

9. Long-press the brightness and speed key can get the fast adjustment, convenient for operation.

10. Short circuit protection.

11. Warranty of this product is three years, exclude the artificial situation of damaged or overload working.

Technical Parameters

Controller

Remote control

Dimensions

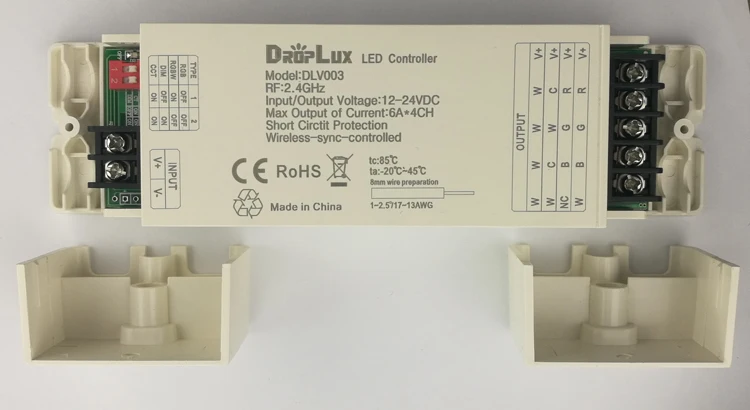

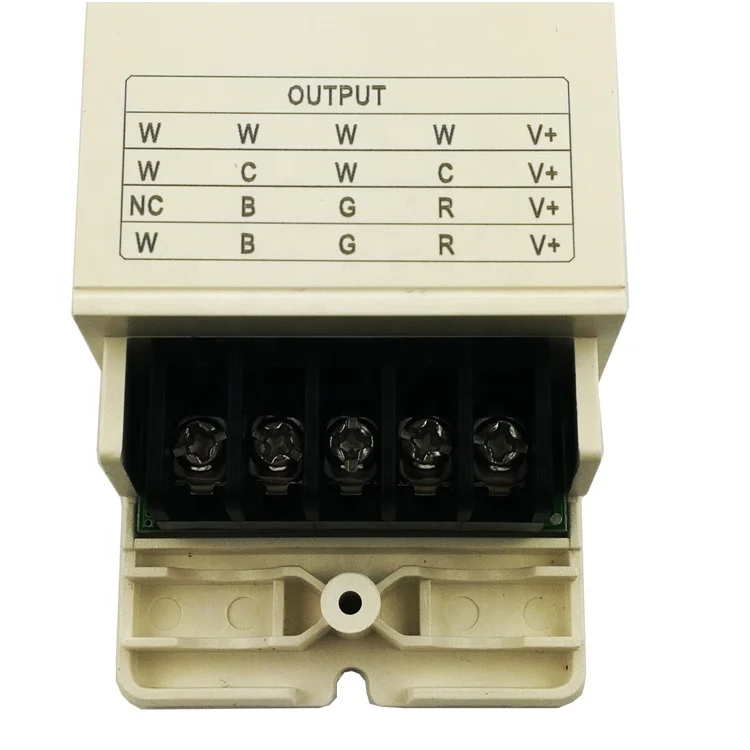

Interface Specifications

Wireless-synchronization function

Receivers will transmit the control signals from the remote control and self-inspection the work statues for each other,

so multiple receivers in same zone will wireless-sync-work completely, not only static mode but also dynamic mode,

to achieve wired-like operation experience.

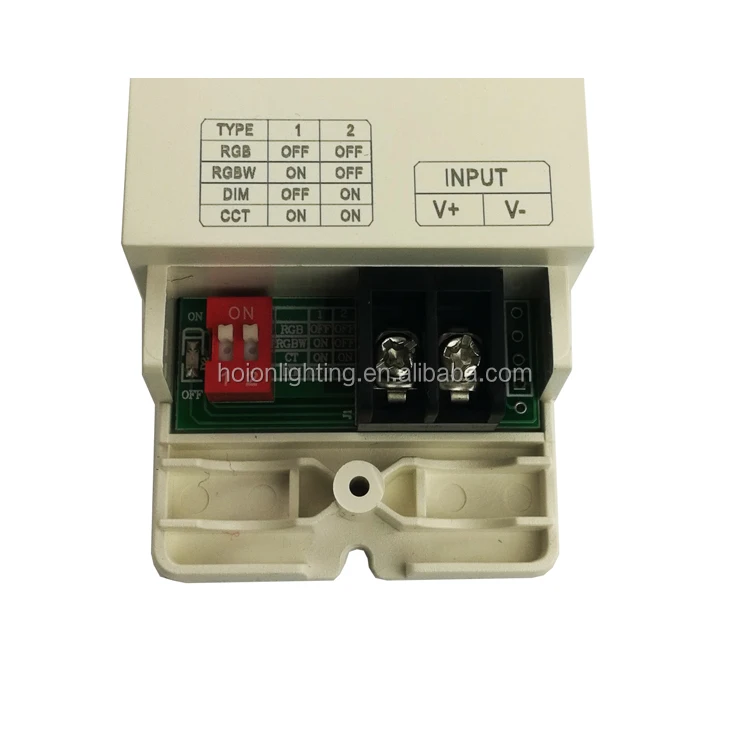

DIM/CCT/RGB/RGBW 4 types controllers in 1 :

About “all-control”.

This system is available to achieve mixed control, like zone 1-single color, zone 2-CCT, zone 3- RGB, zone 4- RGBW.

The all buttons’ functions are active in all-control mode, the effect for each zone will according to the output type setting of each receiver.

Pakaging:

G.W.: 200g

Package size: L163*W46*H25mm
