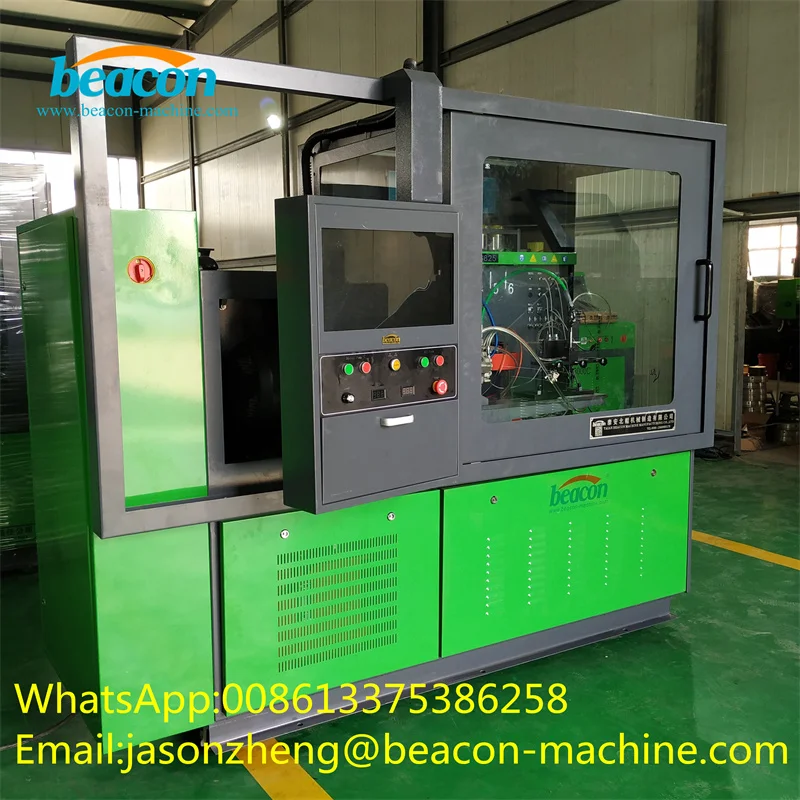

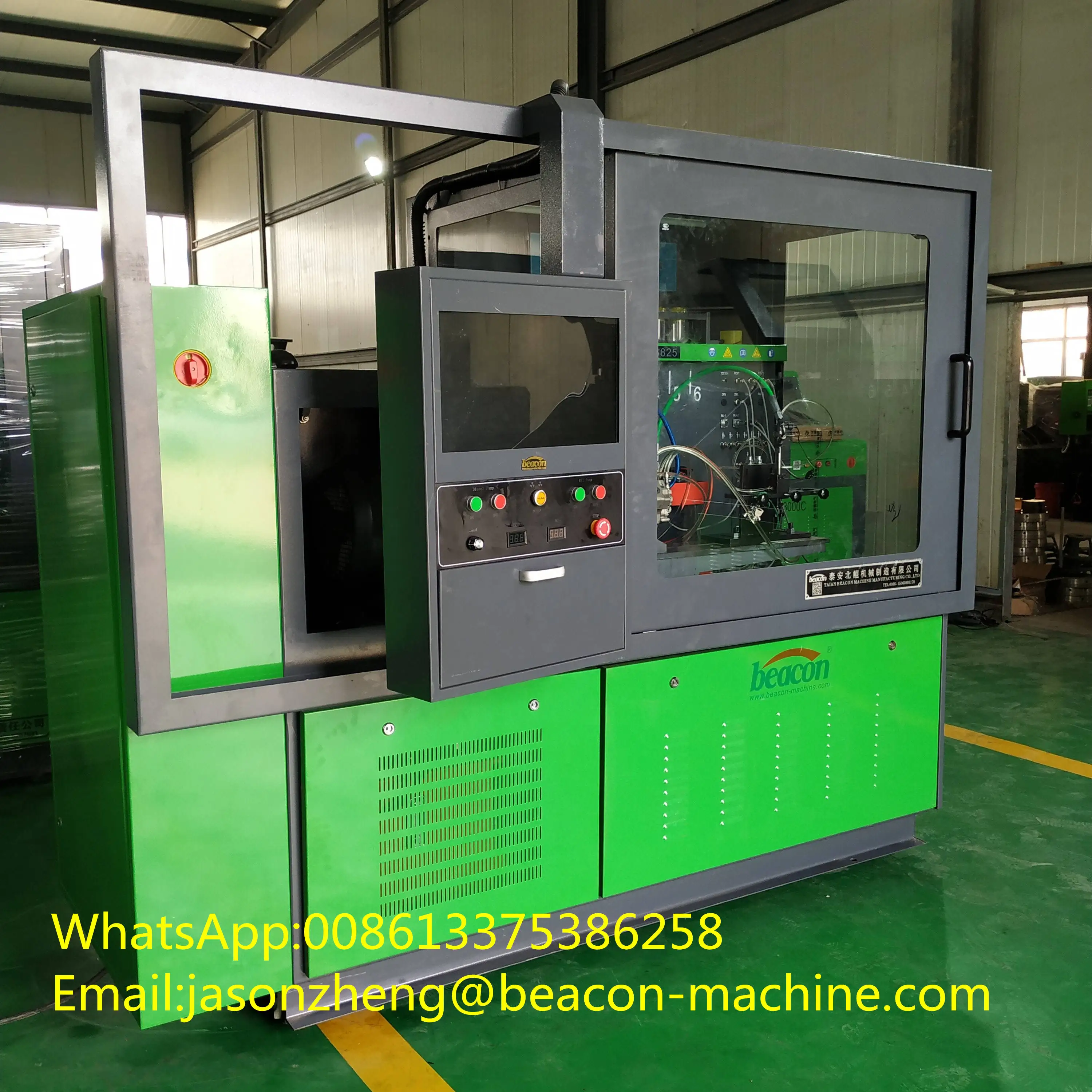

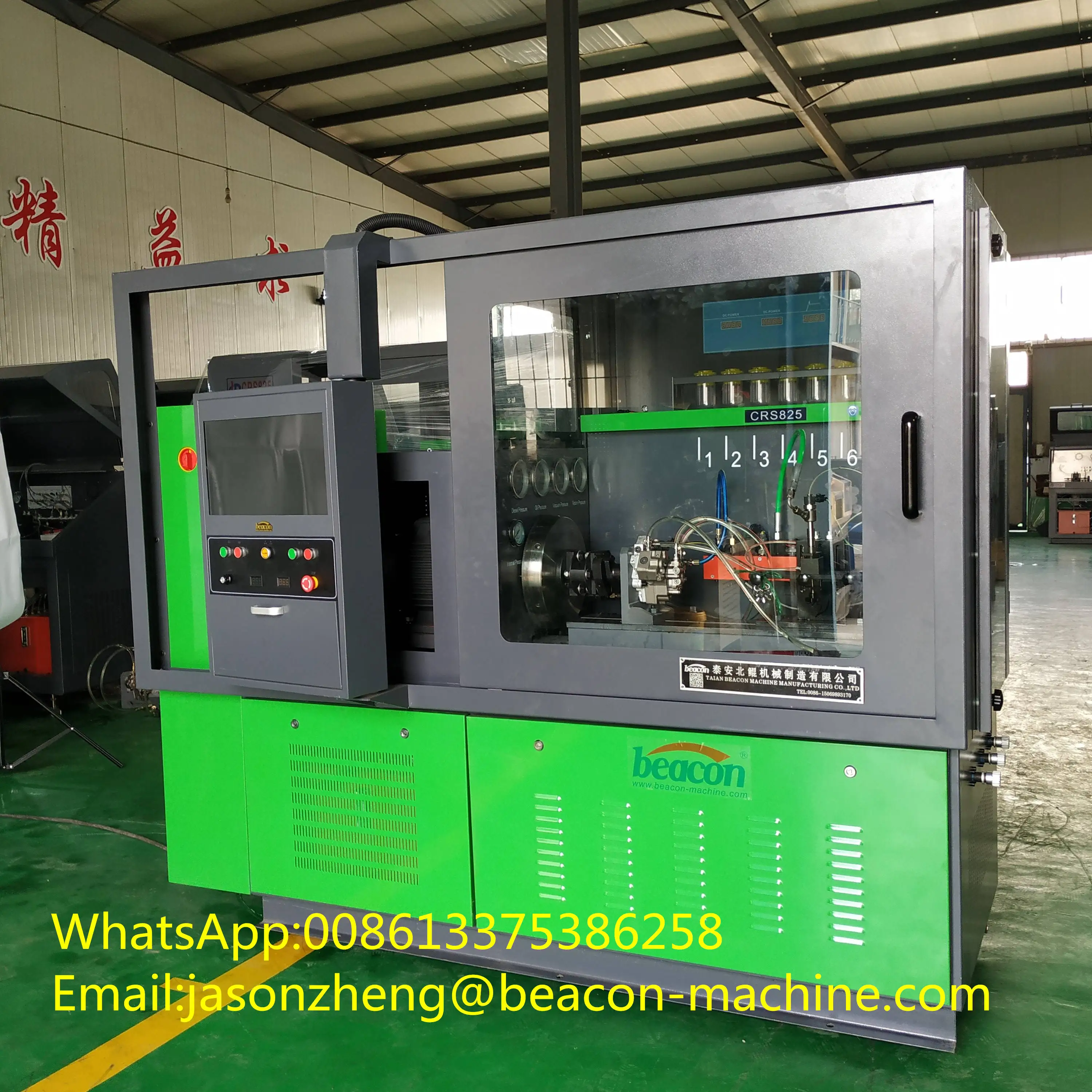

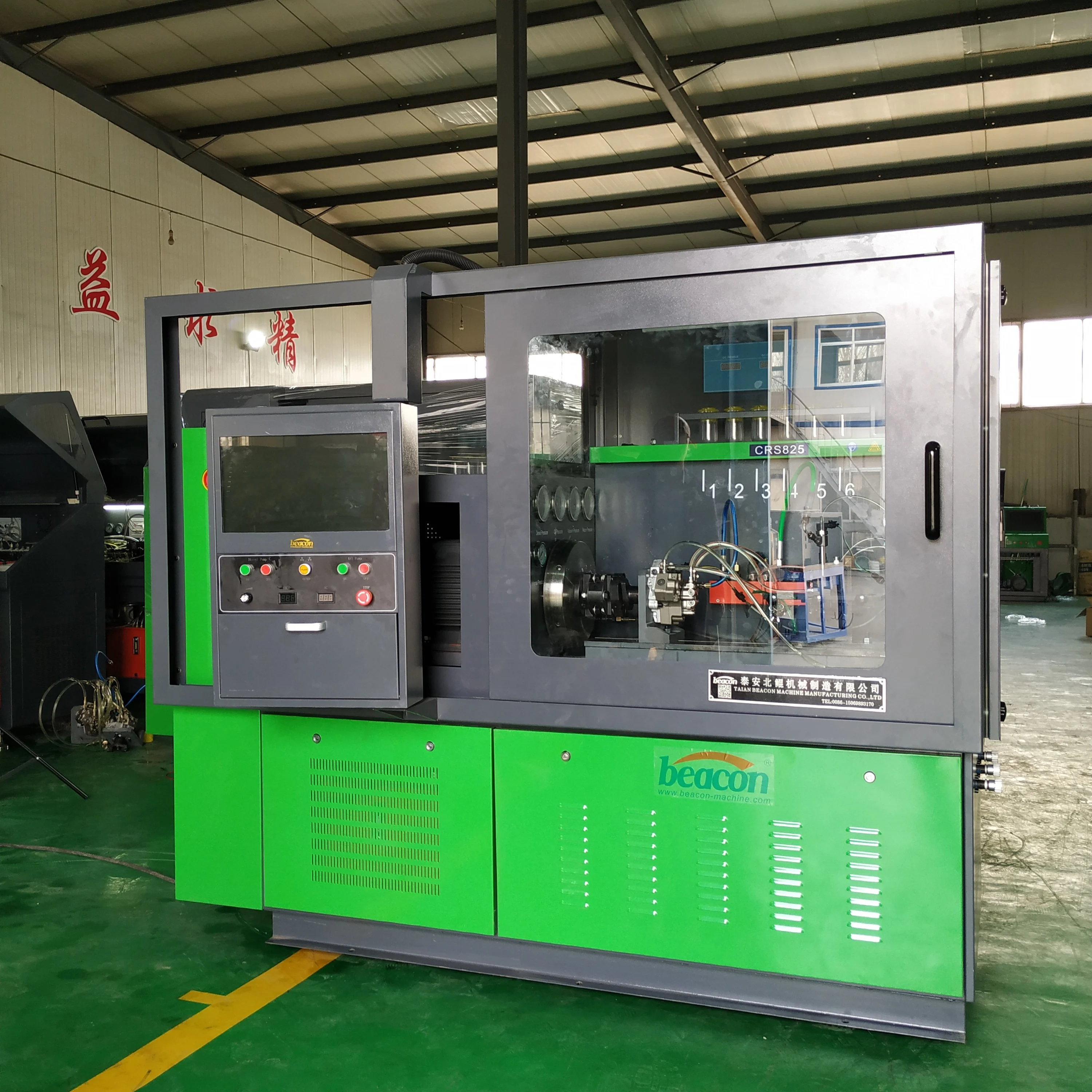

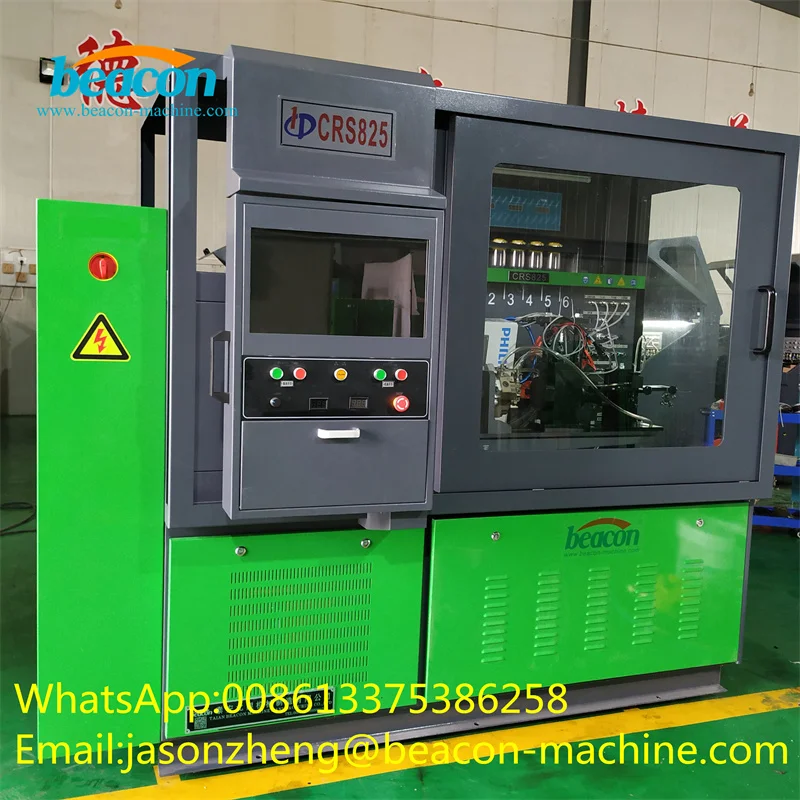

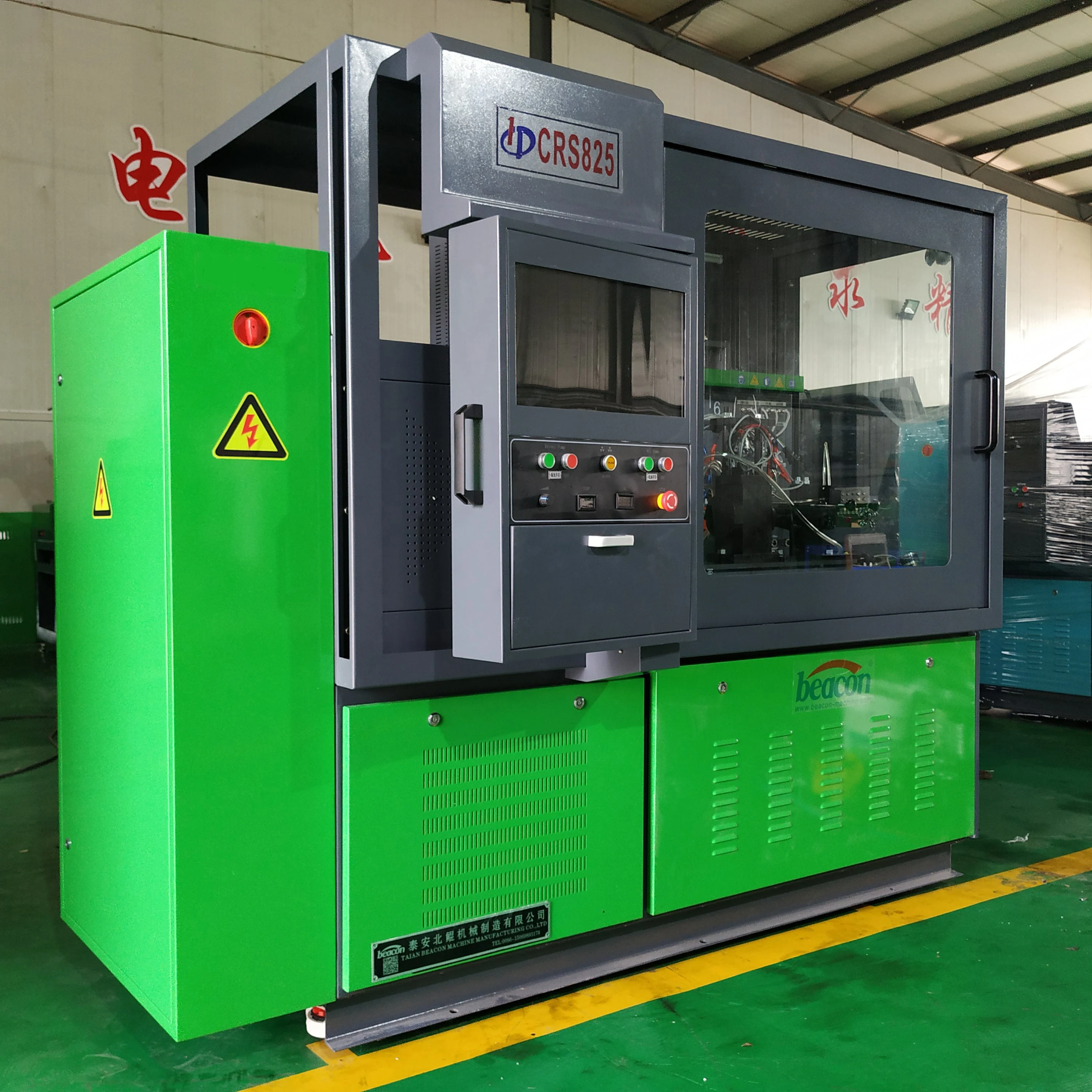

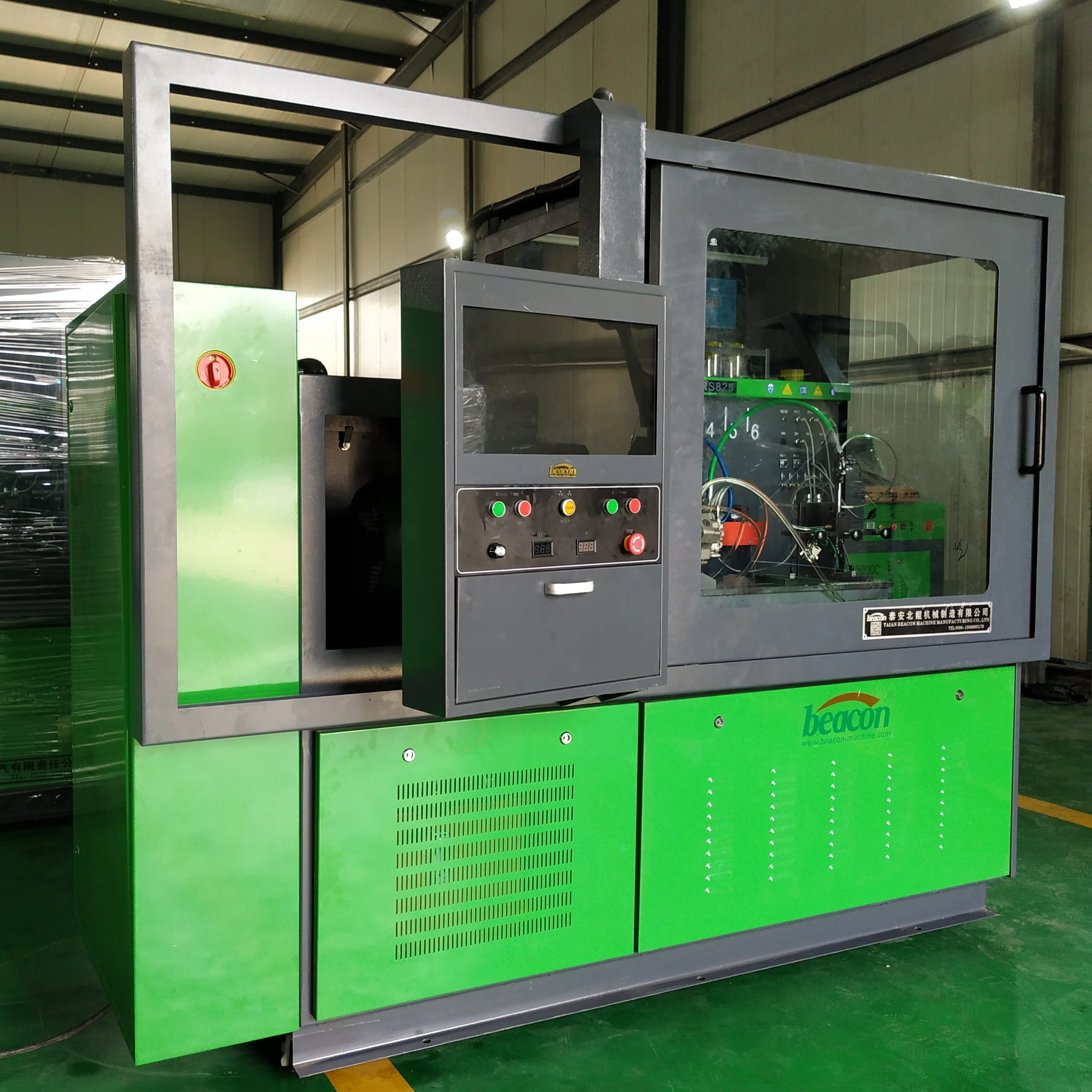

auto diagnostic machine of low prices CR825 multi function common rail diesel fuel injection pump test BENCH
- Category: >>>
- Supplier: Taian Beacon Machine Manufacturing Co. Ltd.
Share on (60874907266):
Product Overview
Description
Product Description
auto diagnostic machine of low prices
CR825 multi-function common rail diesel fuel injection pump test equipment
>>>Function Characteristic:
1.Test common rail injectors of all the manufacturers
2.Test piezo injectors of all the manufacturers
3.Test common rail pumps of all the manufacturers
4. Test DENSO HP0 pump
5.Test common rail (HEUI) injector
6.Test common rail (HEUI) engine oil pump
7.Test 320D common rail pump (the world’s first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump (optional function)
10.Test RED3 RED4 TICS ZEXEL electronic control pump (optional function)
11. Test mechanical spindle and electric parameters of solenoid valve efficiently, enhance, pull in and keep current and voltage time.
12.Accept stress wave ,sinusoid wave and encoder signal according to default setting, output 2 PWM drive signal and 2 solenoid valve drive signal. Among them, 1 PWM drive signal and 1 solenoid valve drive signal are programmable.
>>>Technical Parameter:
Main power | 380V AC / 220V AC(Optional) | Phase | Three / single(optional) |
| Frequency | 50Hz/60Hz | Current | 45A(MAX) |
| Main motor | 22KW | Main motor rotation | 0-4000 RPM/MIN |
| Oil motor HP/ Flow | 0.19KW / 13L/MIN | Diesel motor HP /Flow | 0.19KW / 13L/MIN |
| Control circuit voltage | DC12V/24V 350W | ECU internal voltage | 0-200V DC(MAX) |
| Oil tank volume | 30L | Diesel Tank volume | 52L |
| Temperature control | Heating/Forced cooling | Max rail pressure | 180MPa / 240MPa(Optional) |
| Flowmeter(injection) | 4—550ml/min 4—550ml/min | Flowmeter(fuel supplying) | 1—400L/H |
| Flowmeter(fuel flow back) | 1—400L/H | Flowmeter(Oil) | 5—600L/H |
| Center distance between motor and working bench | 125mm | Net Weight | 1100KG |
| Dimension | (L*W*H)2250*1260*1920mm | Wooden cage | (L*W*H)2350*1500*2100mm |

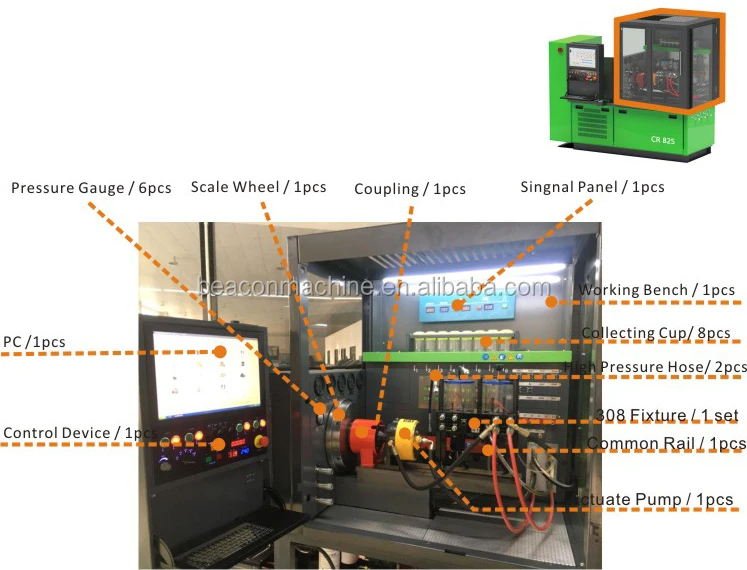

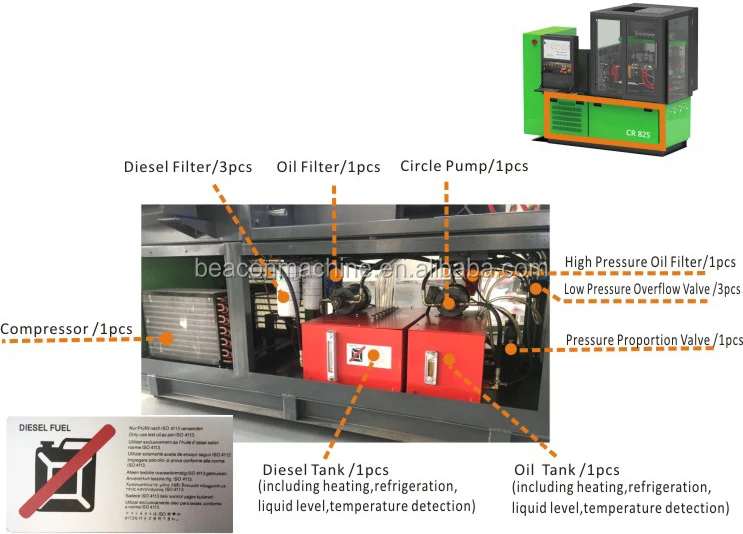

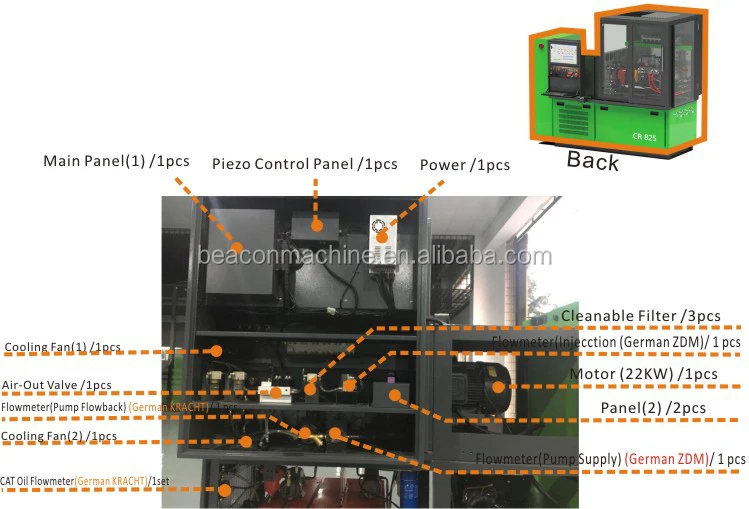

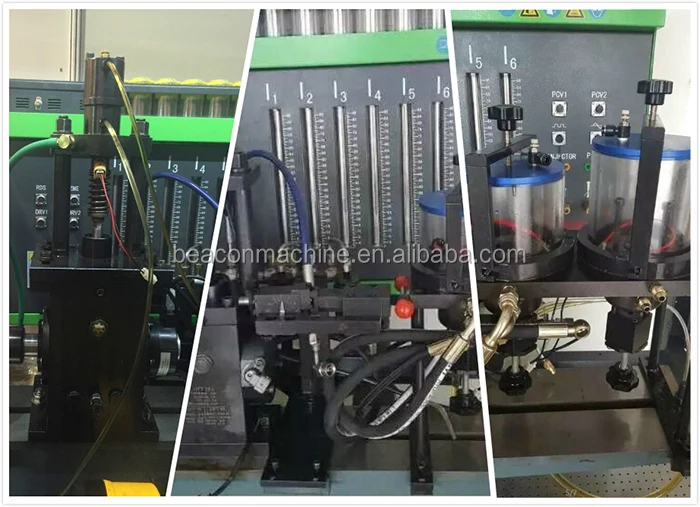

>>>Product Details:
Packaging & Shipping
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Information
Taian Beacon Machine Manufacturing Co., Ltd. is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
Common rail injector test bench
Common rail injector tester (CRDI)
Diesel injection pump test bench EUI/EUP tester cam box
Denso ECD-V3 ,V4, V5 pump tester
PT cummins pump and injector tester
Common rail tools and spare part
Welcome to visit our factory and cooperate in the future.
