Product Overview
Description

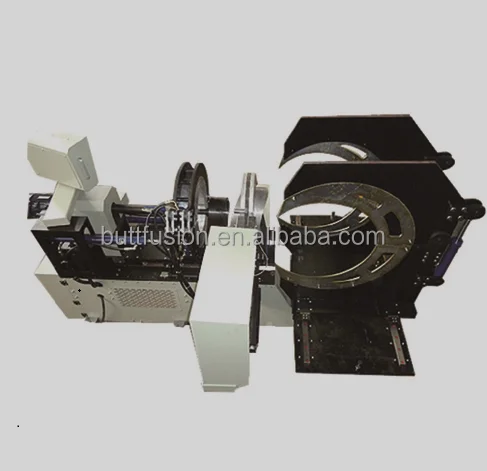

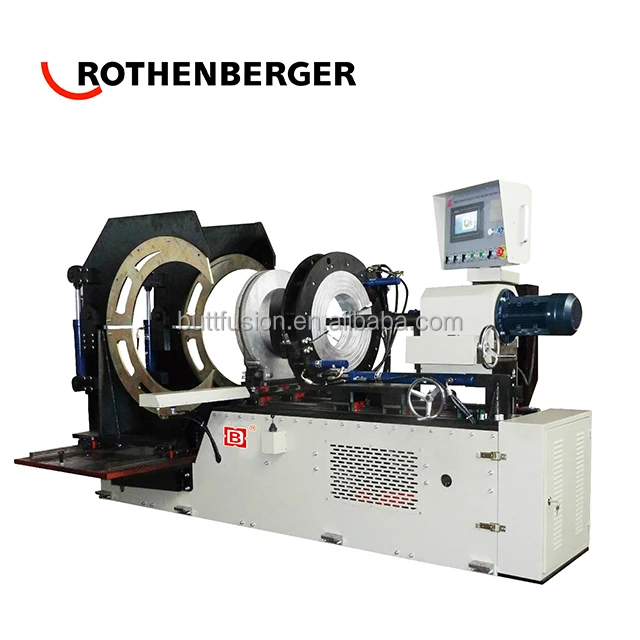

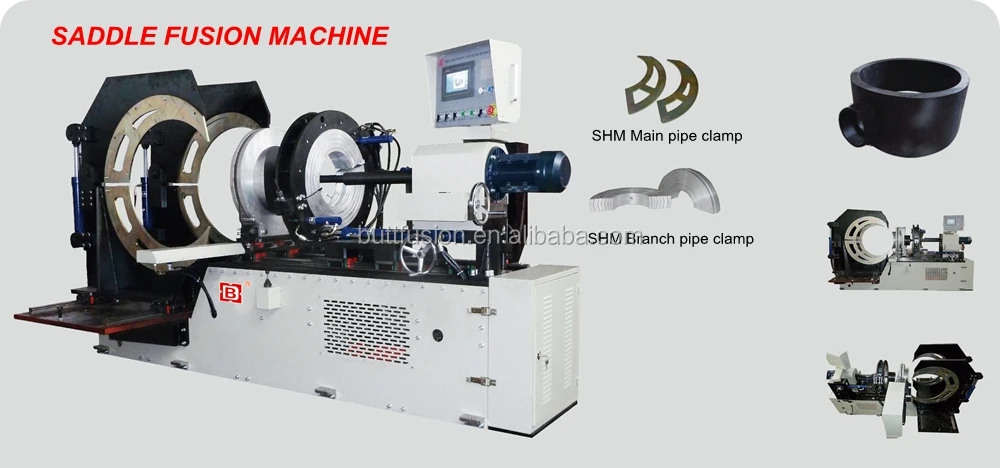

SHM Saddle fusion welding machine
Product Description
Application and Features:

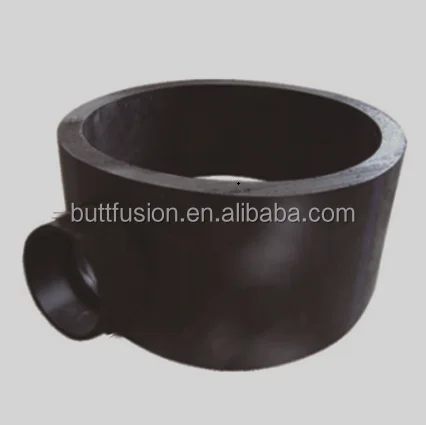

1. Suitable for fabricating PE reducing tee in a workshop. Integrated function of welding and taping enables to complete the whole fabricating process
2. Removable PTFE coated heating plate
3. Separate two-channel timer records times in soaking and cooling phases
4. Digital high-accurate pressure meter indicates clearer readings
5. Linear guide ways are equipped with heating plate and dragging plate
Technical parameters
| Model | SHM630/800/1000/1200 |
| Working ranges | Reducing tee |
| Main pipe max. dia. | 630mm/800mm/1000mm/1200mm |
| Branch pipe max. dia. | 315mm/400mm/500mm/560mm |
| Heating plate max. temp. | 270 centigrade degrees |
| System pressure ranges | 0~16MPa |
| Working voltage | 380V ± 10%, 50Hz |
| Heating plate power | 8~12Kw |
| Hydraulic uint power | 1.5Kw |
| Drill motor power | 1.5~3Kw |
| Total power | 11~16.5Kw |
| Weight | around 1900KGS |
Certificate
Company Information
More productions
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
