High grade 45# steel, quenched and tempered treatment, hard
chrome plated 0.05-0.07mm
Thickness of middle plate
16mm, 45# steel plate

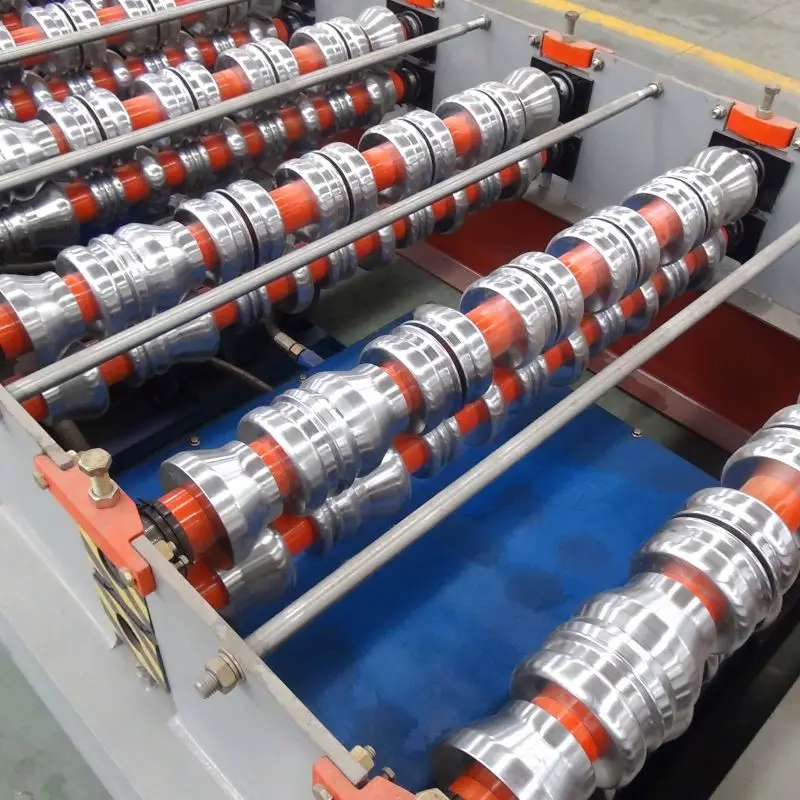

Forming roller station
15 rows
Drive type
By chain(1.0 inch), link bearing model 6210
Power of main motor
5.5 kw, servo motor
Sidewall connection bar
25mm, zinc plated
Forming speed
About 12-18m/min
Hydraulic pump station
5.5kw, 40# hydraulic oil
PLC
DELTA(TAIWAN)/Mitsubishi
Material of razor blades
Cr 12, quenching 58-62°C
Frequency converter
It has the advantage of slowing down before cutting,
to ensure the length accuracy ±1mm, far better than industrial
standard ±3mm.
Switch
CHNT
Frequency changer
SAJ
Operation Flow

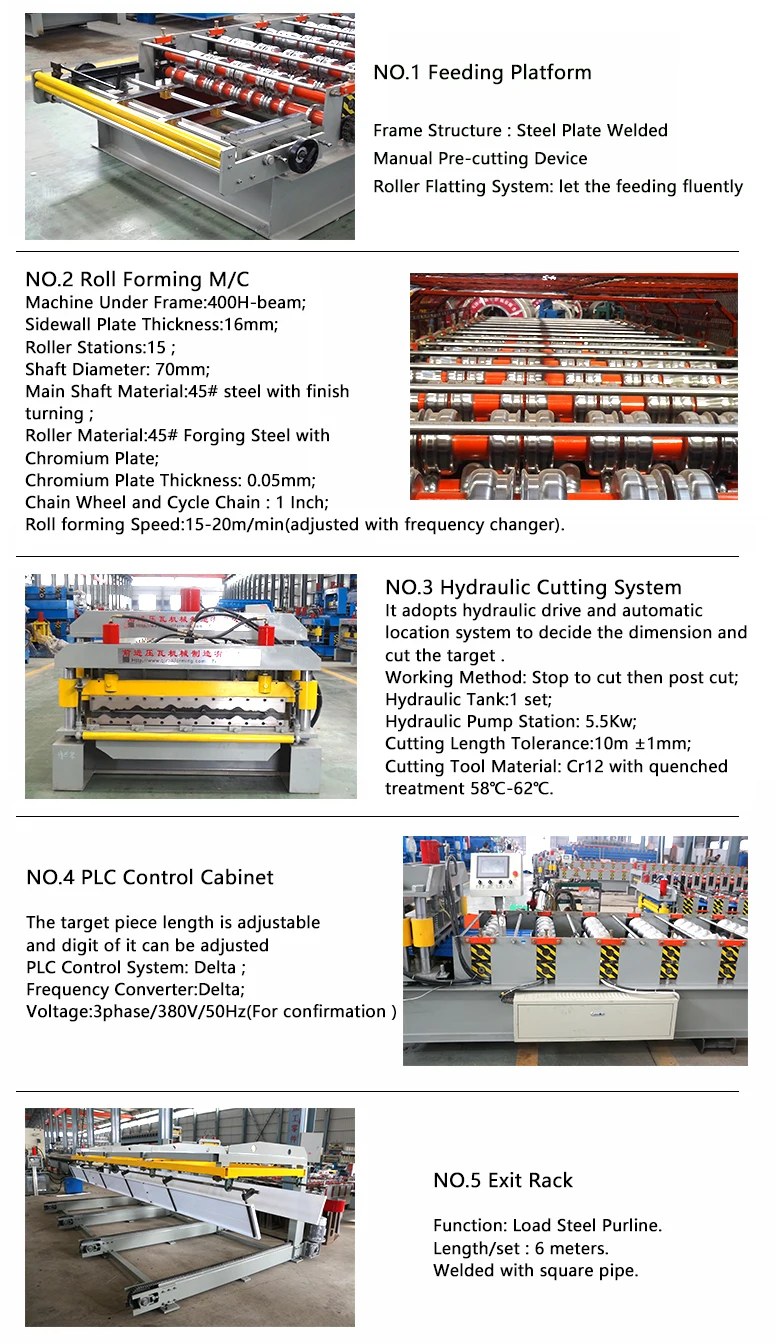

Main Components:

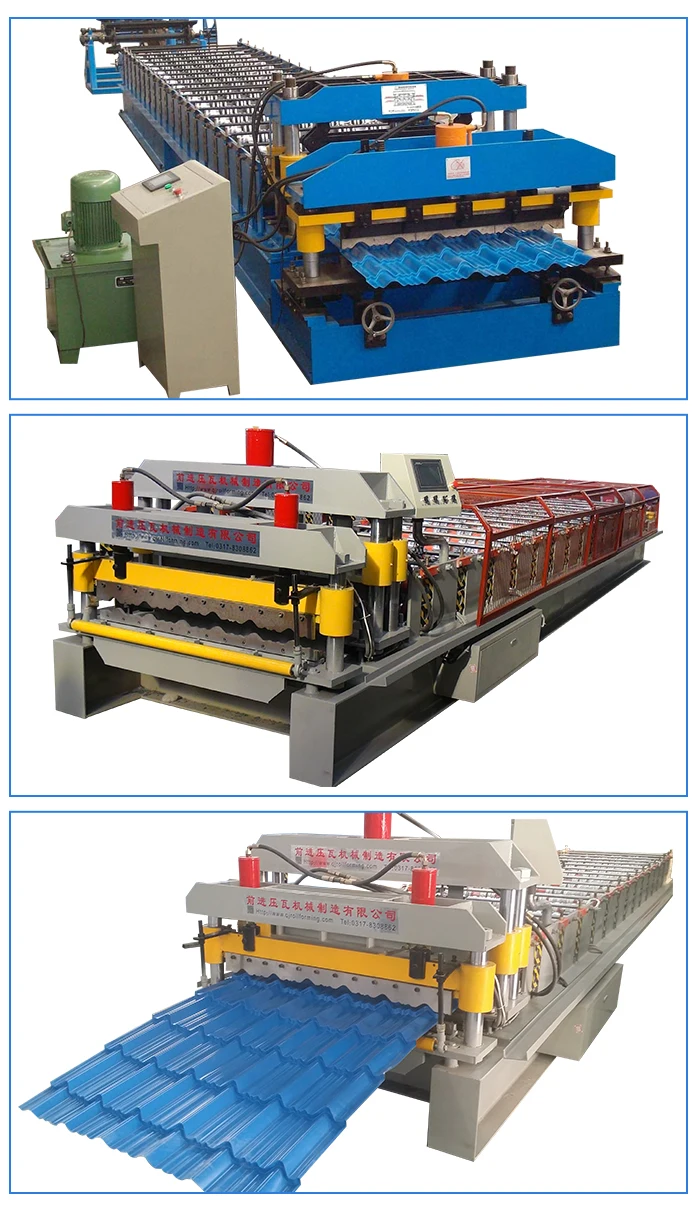

Product Categories
Production Flow
Company Information
Trade Shows
Sale Terms
Payment Method
30% as deposit ,balance payment after inspection while before delivery.
Production Period
30 days after the 30% deposit.
Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
Packaging & Shipping
FAQ
Q1. What's your payment terms and delivery time? A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support? A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines? A3: No, most of our machines are built according to customers specifications, using top brand components. Q4. What will you do if the machine is broken? A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport? A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company? A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
