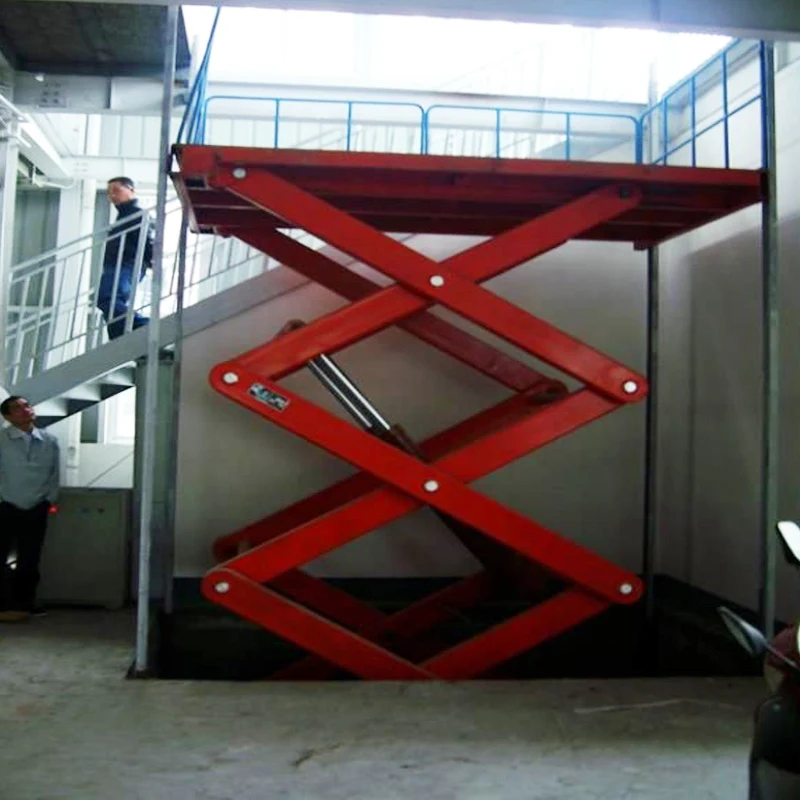

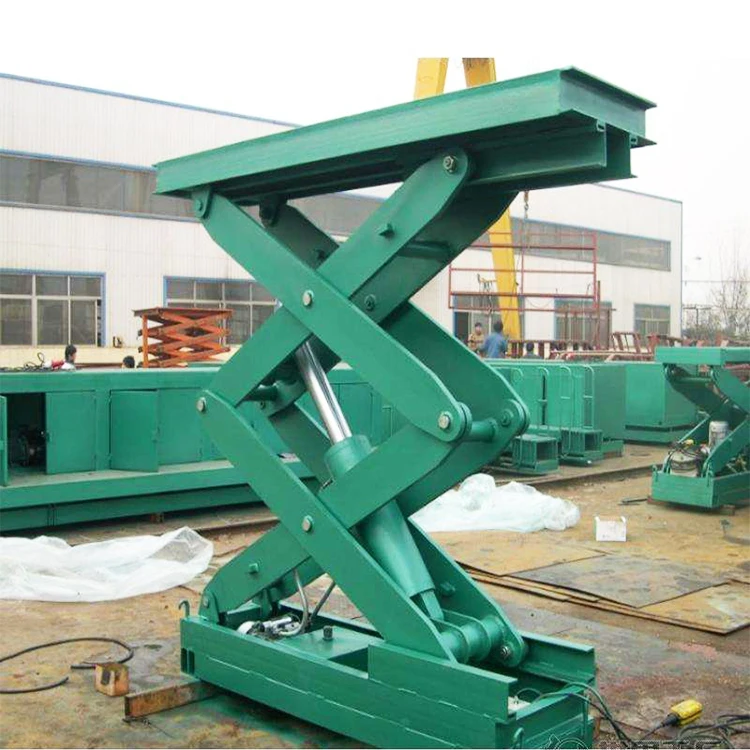

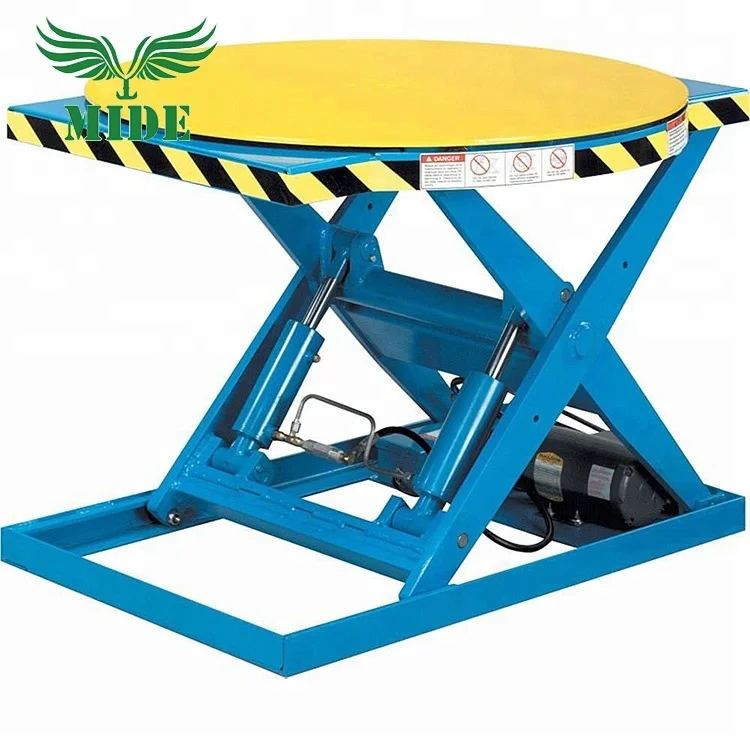

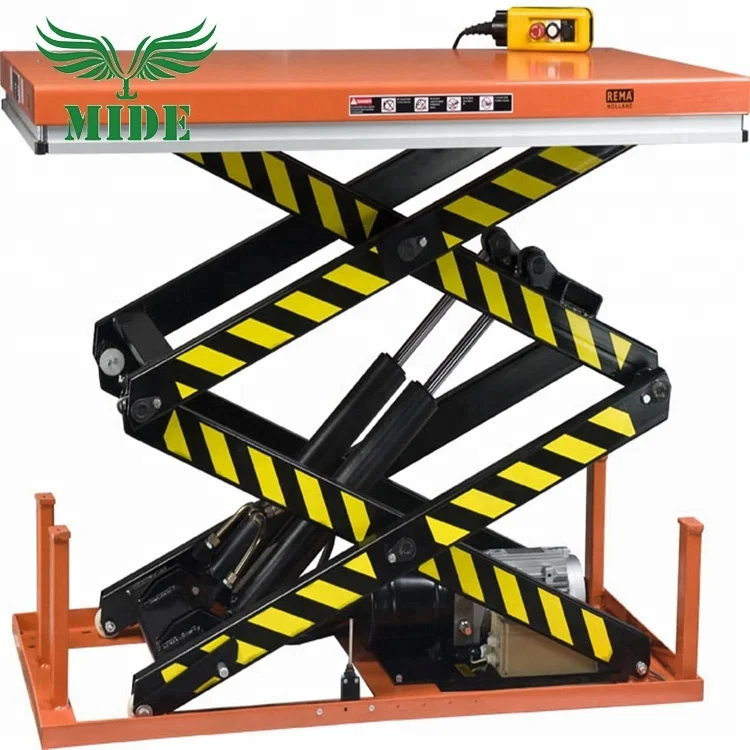

hydraulic cargo lift stationary scissor lift platform

Product Overview

Description



Main Body Structure

 1.Fence:  Usually 900mm. With Electricity protective device. and a door can easily open and close manual.

 2.Manual Switch: there is a manul in the table and another in the down, you can control them both on the table and ground.

 3.Handle: with a handle, you can press it if the power is off

 4.Distribution box:  with the "up","down" and "pause" button.

 5.Scissor lift structure:   with high strengthen rectangular tube. lifting and working   steady and safely.

 6.Table Material : with the pattern steel board against the slipper

 7:Organ Cover:  if need or your special requirement, we advice to install it to against the dust and damp

Model	Capacity(kg)	Min.Height(mm)	Lifting height(mm)	Platform size(mm)	Lifting time(s)	Motor power(kw)	Motor power(kw)	Weight(kg)
SJG0.8	800	300	1200	1200X1000	16	380V/50HZ	1.1	420
SJG1	1000	350	1700	1500X1000	28	380V/50HZ	1.5	600
SJG1.5	1500	350	1200	1500X1000	23	380V/50HZ	3	650
SJG1.5	1500	500	2400	2000x1000	25	380V/50HZ	3	900
SJG2	2000	500	1600	1500X1200	41	380V/50HZ	1.5	860
SJG2.5	2500	620	2000	2200X1200	40	380V/50HZ	3	1300
SJG3	3000	415	1200	1600X1600	30	380V/50HZ	3	1100
SJG4	4000	660	2300	2200X1000	53	380V/50HZ	5.5	1500
SJG5	5000	460	1500	1700X1000	50	380V/50HZ	4	1450
