DAZZLE sla lcd 3D resin dental clinic 3D printer L120 Pro denture 3D printing Clear Aligner/Bracket/ Retainer/temporary crown
- Category: Printing Machine >>>
- Supplier: Shenzhen Dazzle Laser Forming Technology Co. Ltd.
Share on (62004968158):
Product Overview
Description

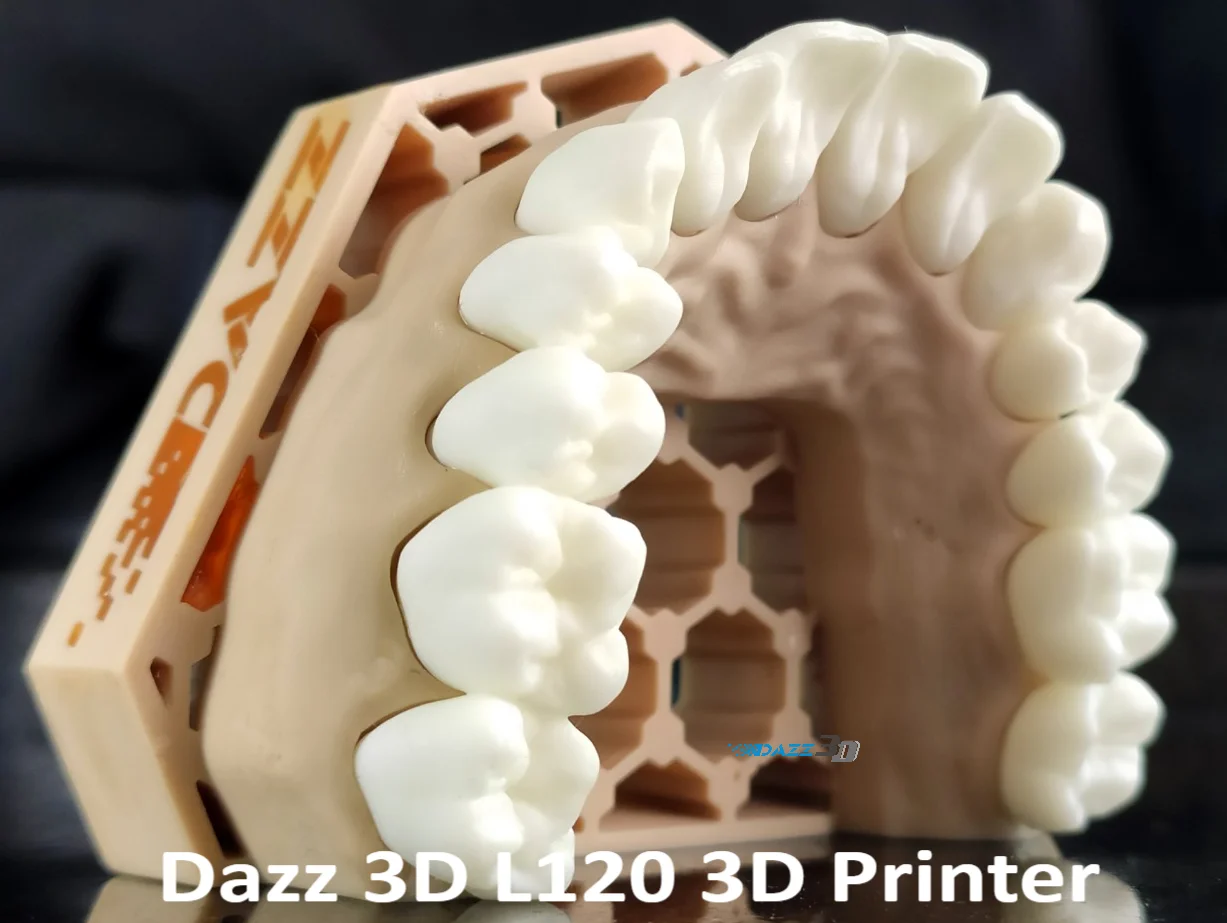

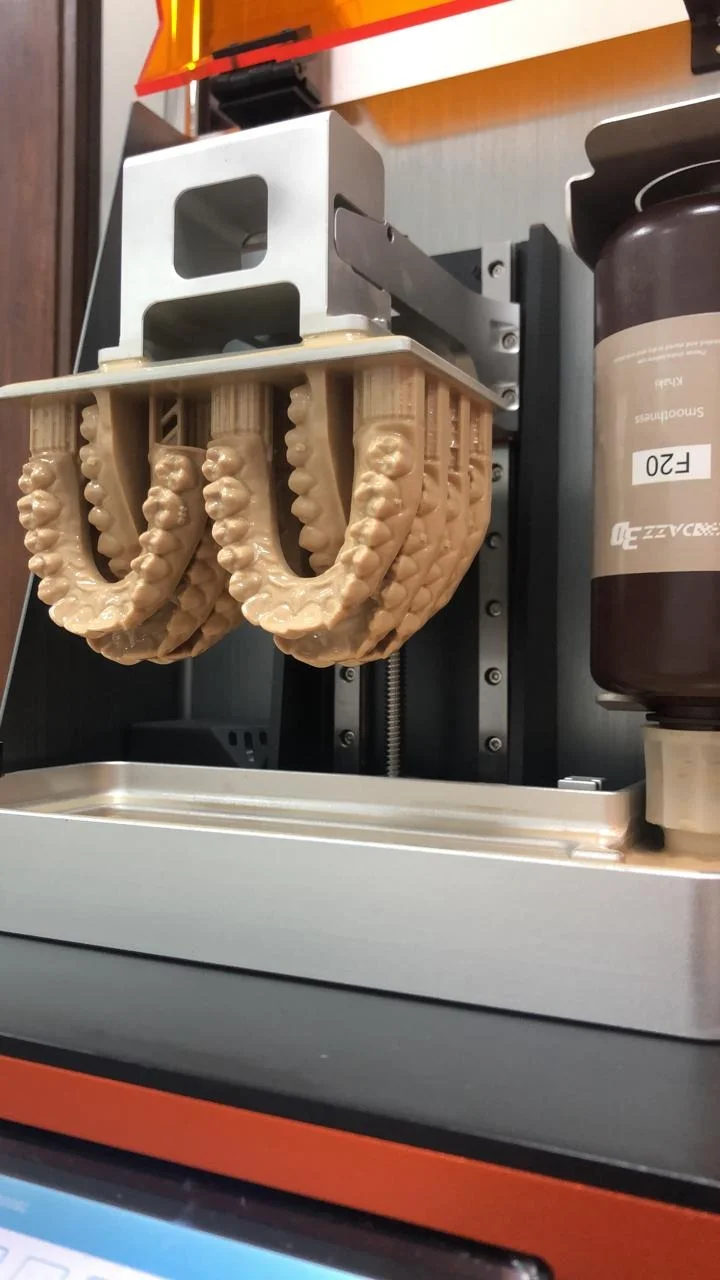

Printed Dental model
We released over 8 types of resins for different applications in dental area.
Print Size | 120*68*150 mm （4.72 × 2.68 × 5.91 inch） |
Technology Type | LCD （MSLA） |
Z Resolution | 10μm |
Printing Speed | 12-36mm/hr |
Input File | STL. / OBJ. / SLC. |
Connectivity | Wifi/ Ethernet/ USB |
Contact with us：
WhatsApp/ WeChat: +86 13922892458
Official Email：dazz@dazz-3d.com

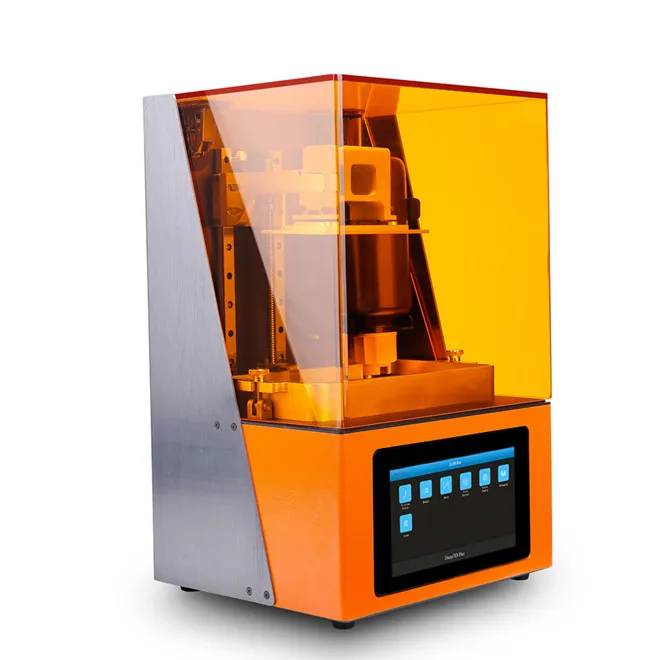

Larger Touch Screen！
7 Inches
Full-color
90° rotatable

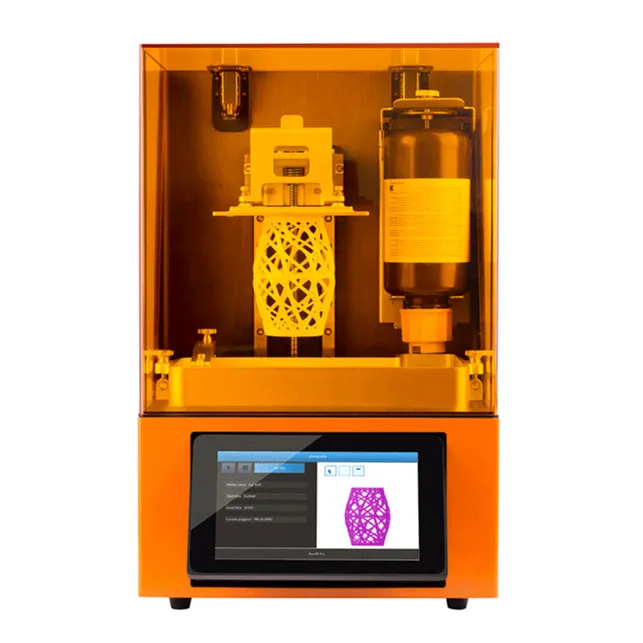

Automatic Resin Fill System
Automatic Resin Wiper
Air Purification System
----Water Cleanable Resin
Product Description

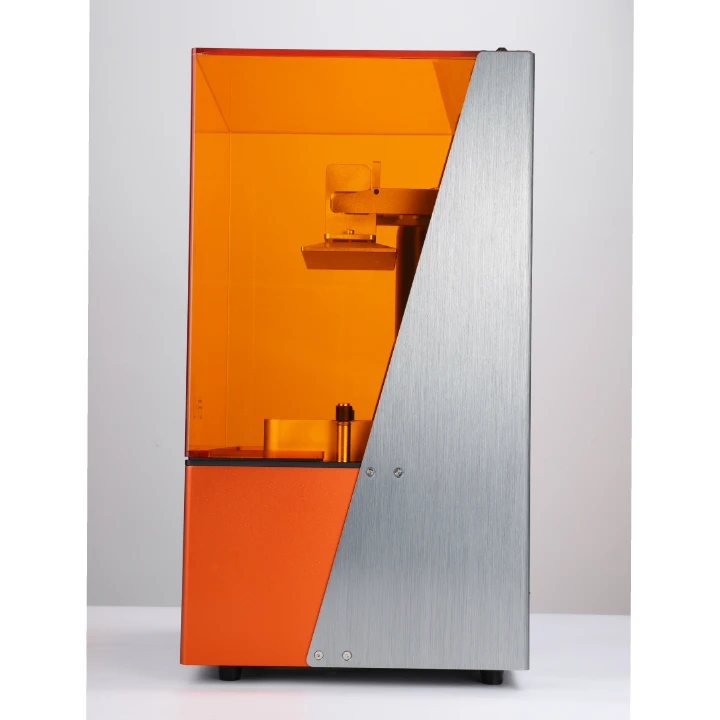

The L120 Pro is the jewelers fastest, most cost-effective tool for production of the detailed models for design verification or direct casting, it will create a safety and efficiency environment for all users.
Build Volume（X,Y, Z） | 120*68*150mm |
Z Resolution | 10μm |
Printing Speed | 12-36mm/hr （Adjustable） |
Input File | SLC./ STL. /OBJ. |
Connectivity | Wifi/ Ethernet/ USB |
Resin | Dazzle Dazz3D brand resin; 405nm wavelength 3rd party resin. |
Contact with us：
WhatsApp/ WeChat: +86 13922892458
Official Email：dazz@dazz-3d.com
DAZZLE 3D Exhibitions：
Device Parameters
The L120 Pro 3D Printer Parameters | ||
Model | Dazzle L120 Pro | |
Technology | LCD-SLA | |
Machine Size | 285*247*465mm | |
Build Volume | 120*68*150 mm /4.7×2.7×5.9 in | |
Net Weight | 12.5kg/25.6lb | |
XY Resolution | 0.047 mm | |
Z Resolution | 0.01 mm | |
Printing Speed | 12~36 mm/h | |
Light Source | 48W, 405nm, purple LED | |
Layer Thickness | 0.02/0.035/0.05/0.1 mm | |
Platform Leveling | self leveling | |
Resin Tank | FEP release film, aluminum alloy frame | |
Pattern Generation | 2K LCD panel/2560*1440px | |
Software | DDStarter customized(easy, with video) | |
Support | automatic and manual supports generation | |
Input File | STL./OBJ/SLC./DDEB/DDWP | |
Connectivity | WiFi, USB and Ethernet Muti-printers control | |
Offline Print | YES | |
System Requirement | Windows, Mac | |
Power | input:100-240V~ 50/60Hz 2.0A output: 24V DC 4.0A | |
Rated Power | 48 W | |
Printing Material | Dazzle resins, 3rd parts resin compatible | |
Touch Screen | 7'' touchscreen monitor | |
Resin Fill System | YES | |
Air-Purification | YES | |
Resin Wiper | YES | |
Related Products
Packing&Shipping
1. The L120 Pro 3D Printer Machine Overall Size：221*175*403mm
2. Packing size：420*380*640mm
After Sales Service
Company Introduction
Shenzhen Dazzle Laser Forming Technology Co.,Ltd. is a high-tech enterprise specializing in R&D, manufacturing and sales of 3D printers and resins, which was established in 2012, born with passion in 3D printing. Started by providing 3D printing services, including SLS, SLM, MJP, SLA, and have been serving over 9000 clients for multiple industries, such as dental, electric tools, automobile.
In 2014, SLA 3D printer program was started, after one year in 2015 we successful released the S130 SLA 3D printer. And then we started developing DLP 3D printer. Our driven is to make the excellent level products.
To improve the quality of our products, we have dedicated around 25% of our revenue back into R&D. In 2017, the D100 3D printer was launched in China. Quickly it become one of the most popular high-end DLP 3D printer in local Jewelry market.
In 2018, Dazzle focused on dental and jewelry by launching the Dazz 3D L120 LCD 3D printers , which have been sold to over 80 countries.
We have established 2 producing lines, expand production area to 2000 m², certificated by CE,FCC,RoHS,PSE and CSA .
Over the passed 8 years, we released 5 models of 3D printer and over 45 types of photosensitive resins for different applications. Most of our resins and 3D printers have been widely used in industries requiring high accuracy , such as dental and Jewelry.
We bring passion, reliability and innovation with the 3D Printers and resins we made. We believe 3D printing technology will change the world.
