Share on (62007063939):


Price:$180.00 - $250.00

Quantity:


Product Overview

Description


Product Description
>>Why choose Sesame Planetary Gear head Series?

Precision gear design and professional gear processing create low backlash operation,high efficiency,smooth running low noise and long life of the planetary gear with IP65 protection on most models.

*Multiple design configurations and performance leavels

*Adapters for all seavo moters

*Drop-ins for most industry standards

*Hardened and ground gearing

*One-piece planet carrier/output shaft on most models

*Planets with full needle bearing support

*IP65 protection on most models

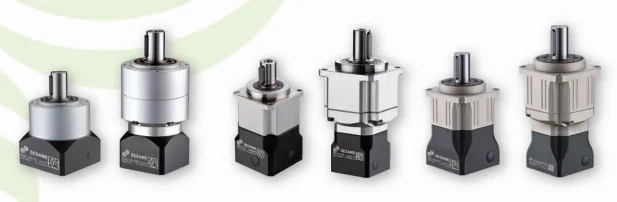

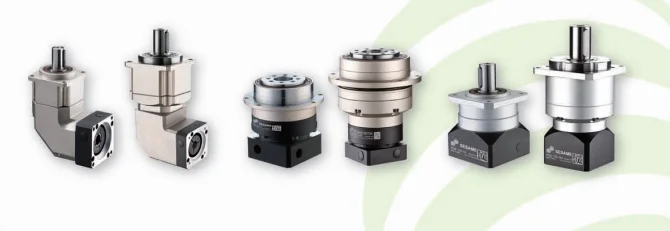

\t
PH Series

(Exactitude Helical Series Nickel-Plating)
\t
PHL

(Nickel-Plating)
\t
PHR

(Nickel-Plating)
\t
PHF

(Nickel-Plating)
\t


PG Series

(Precision Helical & Spur Series Nickel-Plating/
Baking Varnish)
\t
PGH

(Helical,
Nickel-Plating)
\t
PGRH

(Helical,
Nickel-Plating)
\t
PGF

(Helical,
Nickel-Plating)
\t
PGL

(Nickel-Plating)
\t
PGR

(Nickel-Plating)
\t
PGLH

(Helical,
Nickel-Plating)
\t
PGL

(Baking-Vamish)
\t
PGC

(Baking-Vamish)
\t
PGE

(Baking-Vamish)
\t
PE Series

(Standard Spur Series Baking-Vamish)
\t
PEL

(Baking-Vamish)
\t
PEC

(Baking-Vamish)
\t

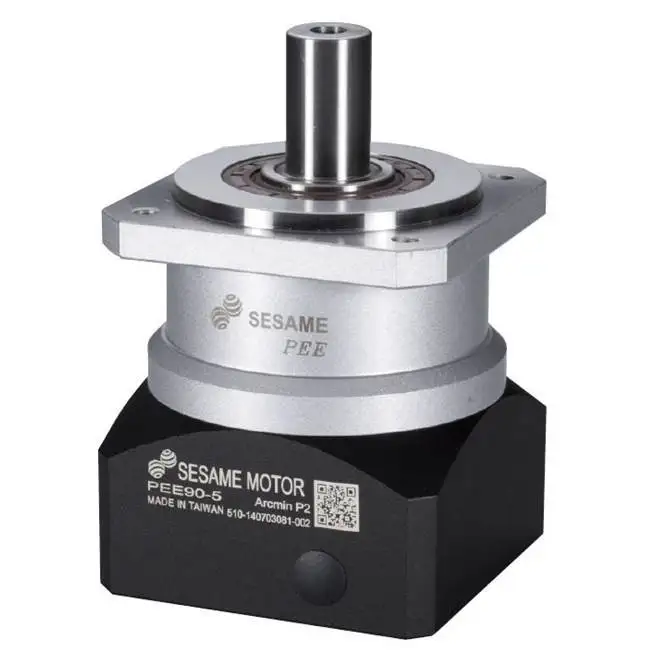

PEE

(Baking-Vamish)
\t
PC Series

(Primary Spur Series
Baking-Vamish)
\t
PCL

(Baking-Vamish)
\t
\t

>>How to choose our product?

Sesame planetary speed reducer coding system

\t
P
\t
Planetary
\t
\t
G
\t
(Grade)
\t
H: Exactitude Helical Series
\t
\t
\t
G: Precision Series
\t
\t
\t
E: Eifficient Series
\t
\t
\t
C: Primary Series
\t
\t
\t
U: Heavy Duty Series
\t
\t
\t
B: Muti-Ratio Series
\t
\t
\t
T: Muti-Shafted Series
\t
\t
\t
P: Light Load Series
\t
L
\t
(Connection)
\t
L: Square Housing with Flange
\t
\t
\t
C: Round Housing without Flange
\t
\t
\t
E: Round Housing with Flange
\t
\t
\t
R: Right Angle
\t
\t
\t
F: Plate Type
\t
\t
\t
H: Square Flange Helical Gear ( Square Flange Helical Gear for G Grade(Precision Series) only)
\t
60
\t
(Size)
\t
42:__42   60:__60  90:__90  115:__115
142:___142   180:____180  220:____220
\t
30
\t
(Speed Reduction Ratio)
\t
Single Stage:3,4,5,6,7,8,9,10
Double Stage: 12,15,20,25,30,35,40,45,50,60,70,80,90,100
Muti-Stage: 125~1000
\t
P1
\t
(Backlash)
\t
P0: Micro Backlash
P1: Precision Backlash
P2: Standard Backlash
\t
Y
\t
(Customer Specification)
\t
\t
Motor
\t
(Motor Model)
\t

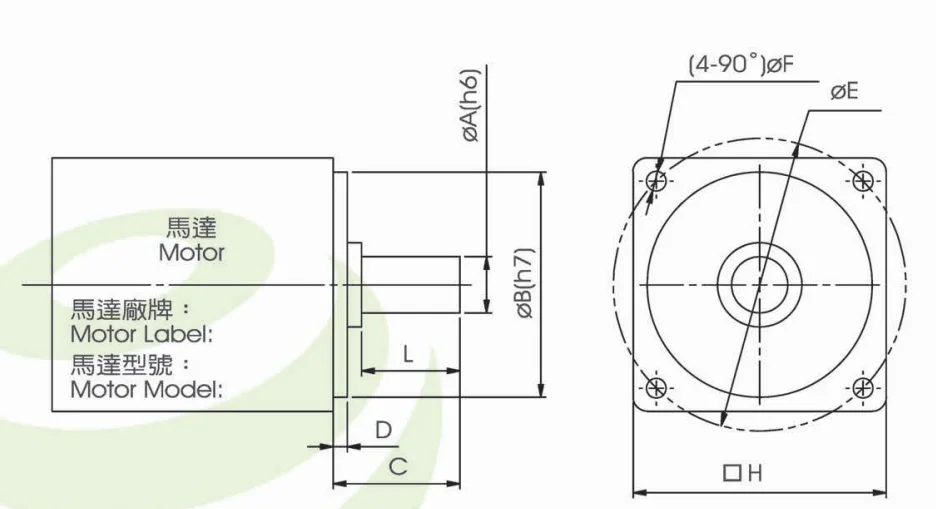

>>Fill in Data of Motor

Please send inquiry to us for discussing the customized products.


Sesame Planetary Gear heads are produced under strictly exclusive pairing process to ensure accuracy and lifespan.

\t
Motor
Shaft
Dia.
\t
Flange
Dia.
\t
Motor
Shaft
Length
\t
Flange
Height
\t
P.C.D
of
Bore
\t
Bore
Dia.
\t
Motor
Flange
Square
\t
Actual
Length
of
Motor
Shaft
\t
Backlash
\t
ØA
(h6)
\t
ØB
(h7)
\t
C
\t
D
\t
ØE
\t
ØF
\t
__H
\t
L
\t
P1/P1/
P2
\t
\t
\t
\t
\t
\t
\t
\t
\t

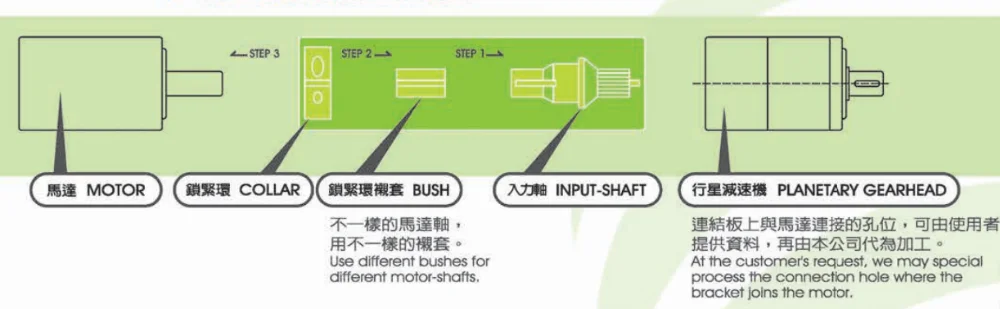

>>How to connection the motor and gearhead?

* After the collar, the bush, and the input-shaft are securely assembled with the motor, please join the parts with the planetary gear head cautiously with a slight clockwise and/ or counter-clockwise motion, until the planetary gear head engages the input-shaft.

*Under normal usage and loading, our products come with a one year or 20,000 hour limited warranty, whichever comes first.
