Overview According to the needs of the development of beverage filling equipment in our country, it is developed and developed in accordance with the requirements of the advanced technology in our country. The device is characterized in that, the bottle has high efficiency, less damage to the bottle, and is compared with other principles to be used for the equipment to be used in the beverage manufacturers at home and abroad.

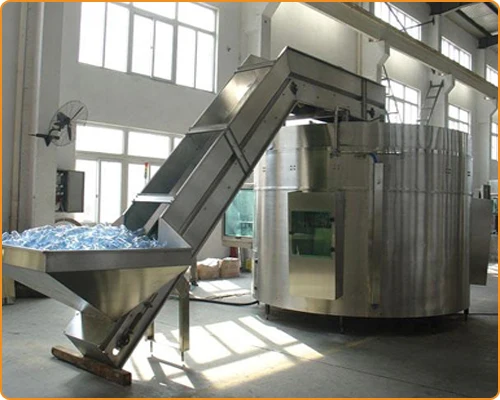

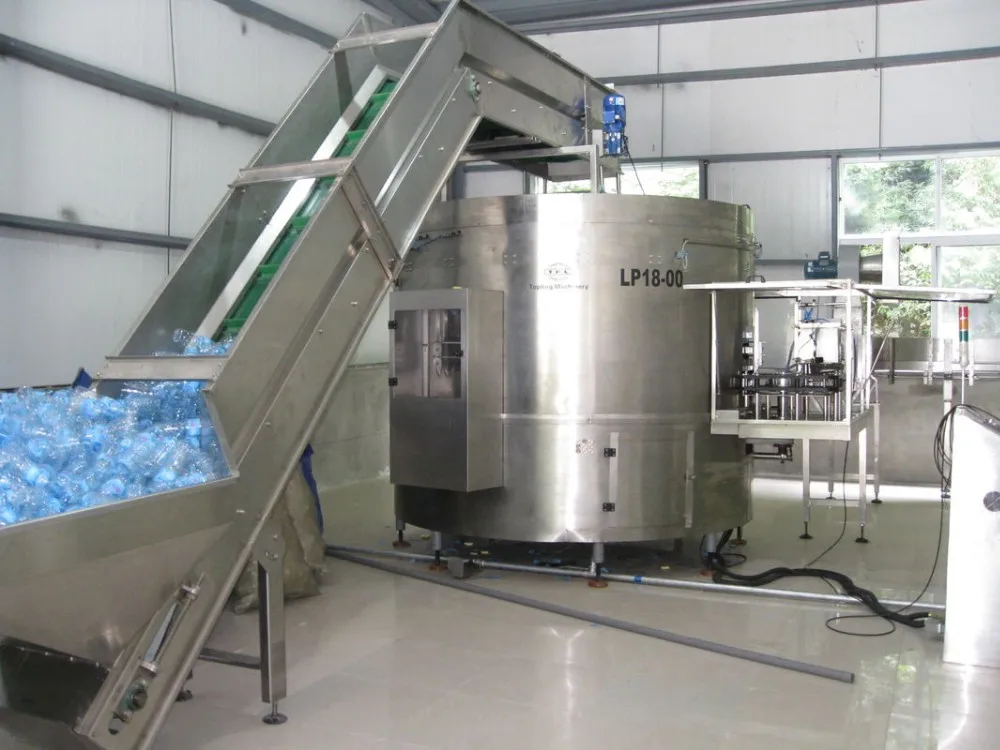

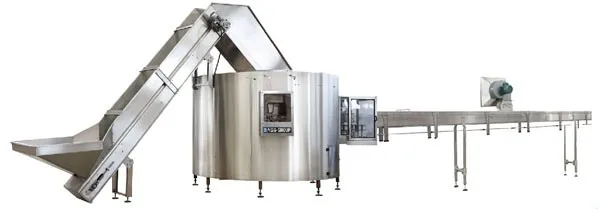

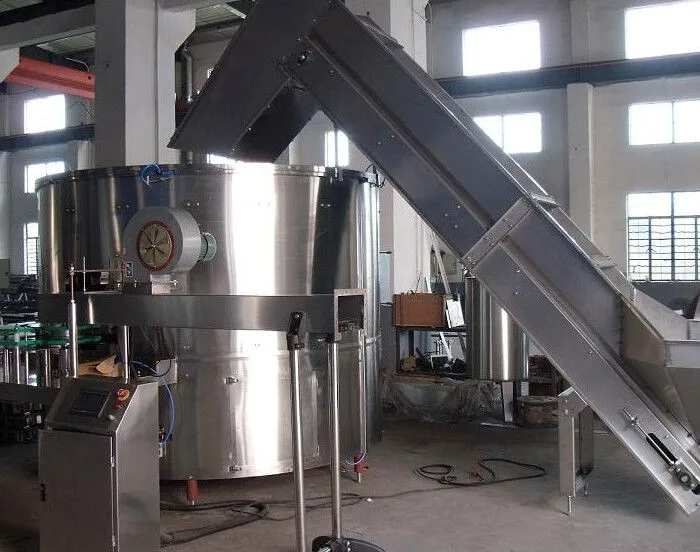

The device main body appearance is cylindrical, and the bottom of the outer barrel is provided with an adjustable supporting foot, which is used for adjusting the height and the level of the machine. The cylinder is provided with the inner and outer rotating cylinder are respectively arranged in each one, a double-toothed large plane bearing.

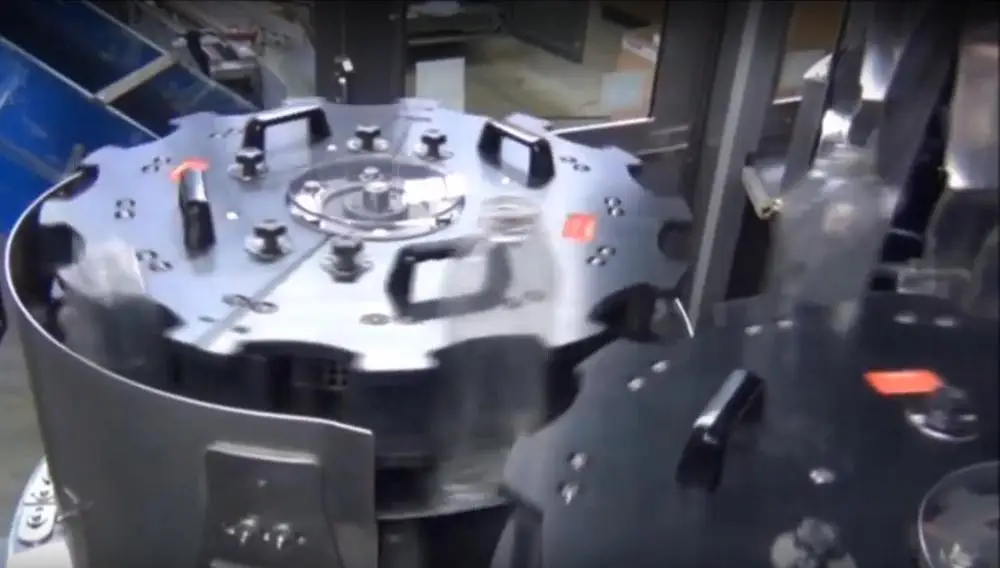

The outside of the inner rotary drum is provided with a bottle falling groove, and the inner side is provided with a lifting mechanism that is equal to the quantity of the bottle falling. The outer rotary drum is provided with a bottle dividing groove corresponding to the bottle falling groove. The machine is equipped with a central umbrella tower fixed. When the winder in the bottle detection device of the umbrella tower from the lack of a bottle start signal according to the bottle is from the center of the top of the machine fall on the umbrella tower and slid to the umbrella tower edge into the lifting mechanism. Lifting mechanism under the action of the cam to push the bottle into the bottle slot.
Each turn of the machine, the role of each lifting mechanism two times, that is, each bottle in the bottle at each turn, respectively, there are two bottles into the bottle on the outside of the cylinder, so that the running efficiency of the machine. In the bottle at the outlet is provided with a dial starwheel bottle, bottle into the air conveyor, bottle shifting wheel through the synchronous toothed belt is connected with the main shaft of the motor.
Product Name
BOTTLE UNSCRAMBLER MACHINE
Material
stainless steel
Color
nickel white
Motor power
5.5KW
Capacity
30000BPH
Item
Item 500ml30000BPH Line configuration
Products Show
Recommend Products
Our Service
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Customer Photo
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
