Машина для производства алюминиевых кровельных листов, машина для формовки рулонных листов
- Category: Tile Making Machinery >>>
- Supplier: Botou Shitong Cold Roll Forming Machinery Manufacturing Co. Ltd.
Share on (62010550355):
Product Overview
Description

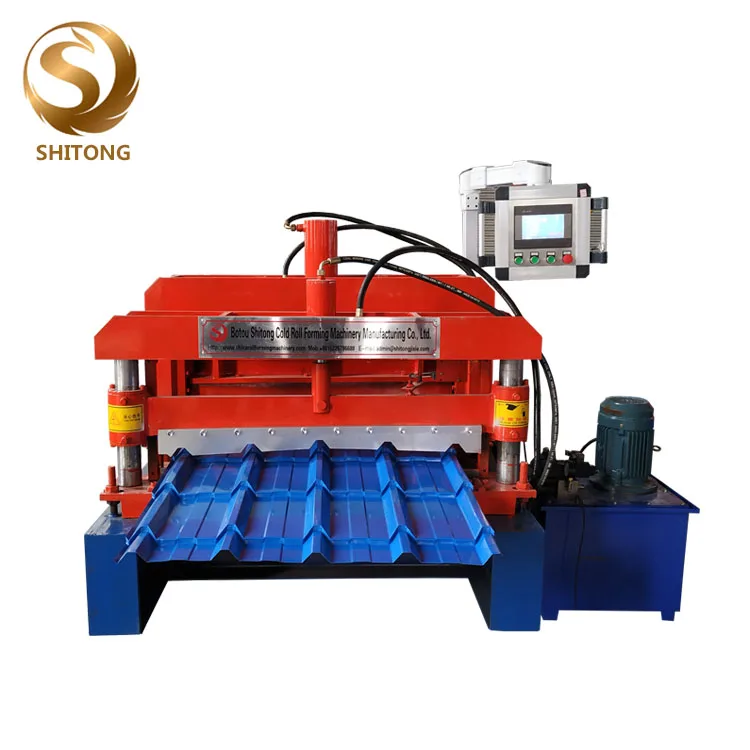

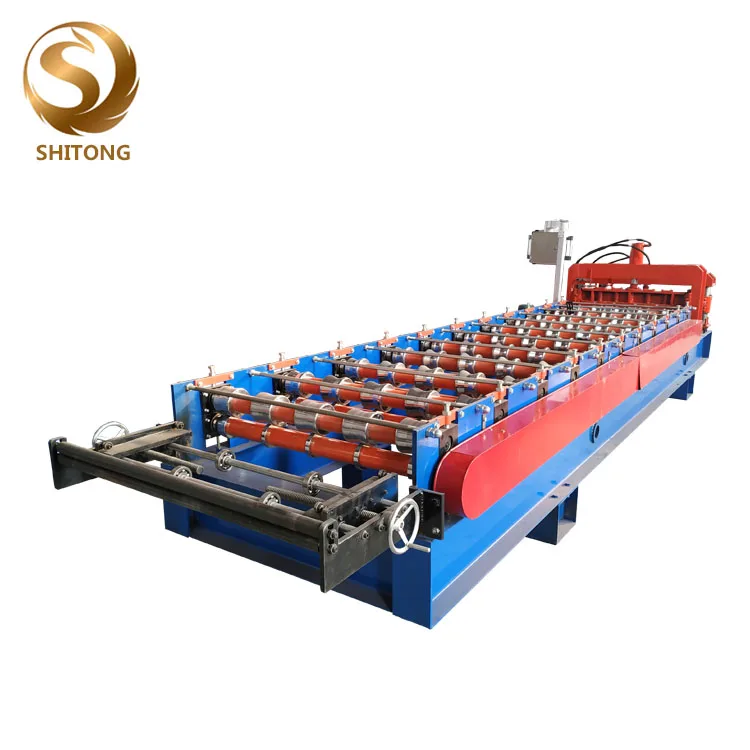

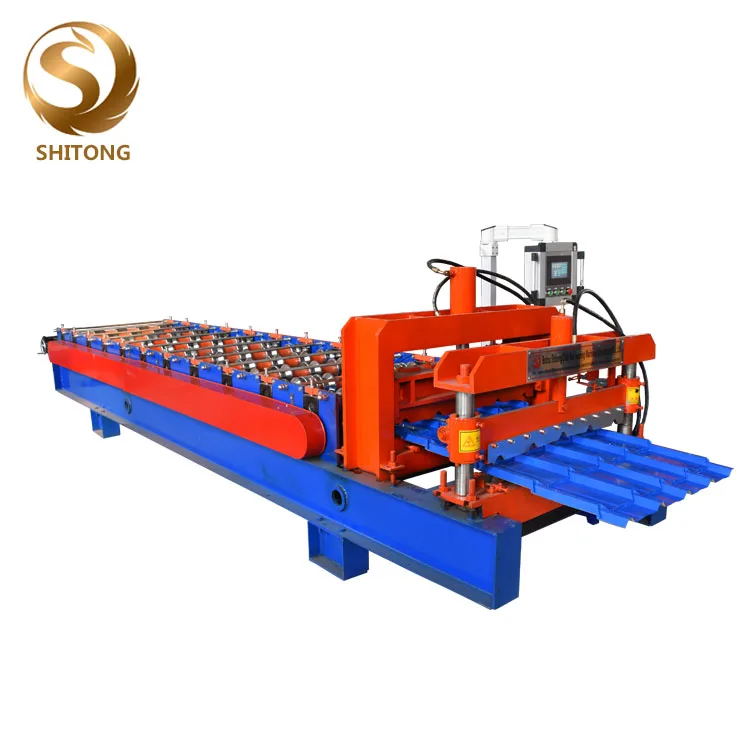

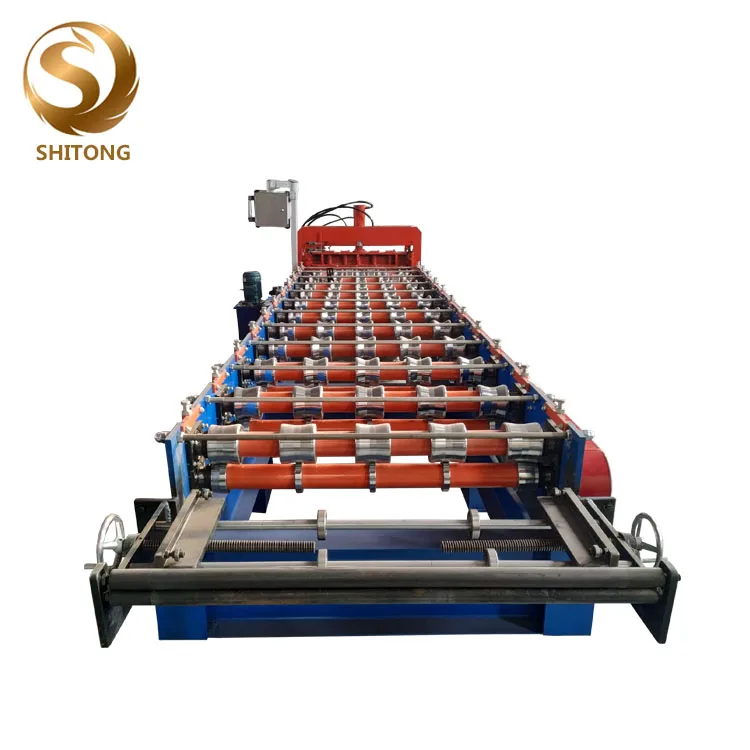

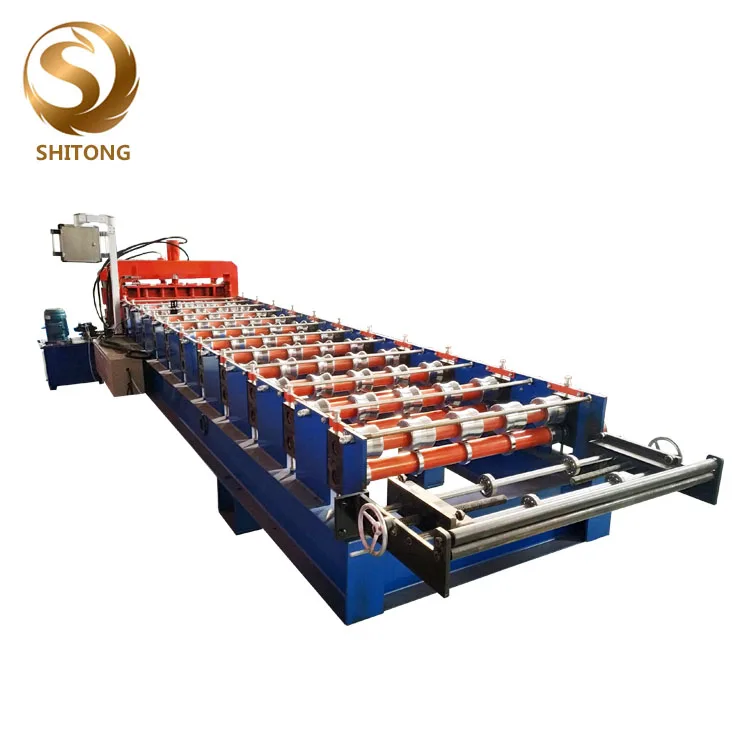

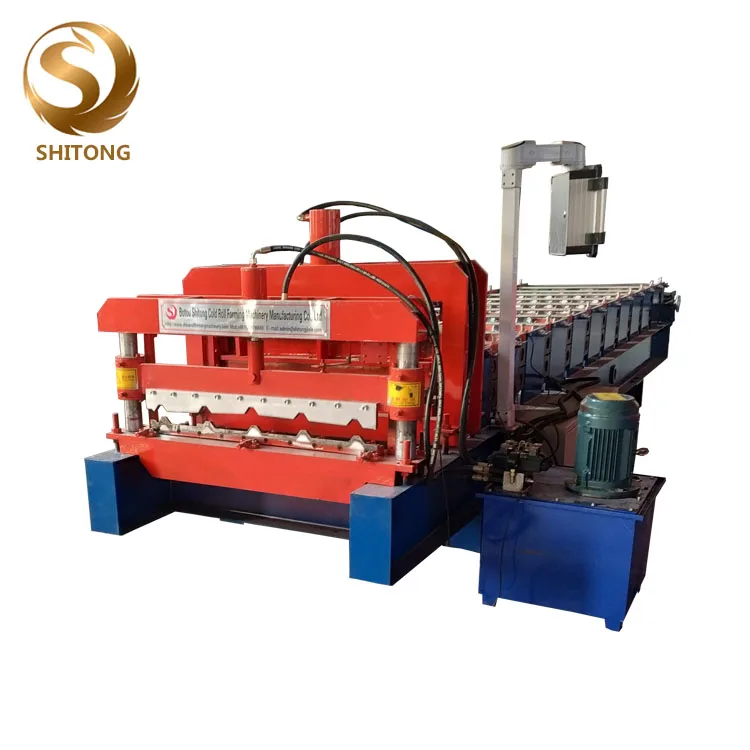

aluminium roofing sheet making machine roof step tile roll forming machine
Suitable Material | Material | GI, PPGI, PPGL |
Width | 1000mm | |
Thickness | 0.3-0.8mm | |
Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
Rows of rollers | 11 stations | |
Material of shafts | High grade 45# forged steel | |
Diameter of shafts | 70mm | |
Material of cutting blade | Cr12 Heat Treatment | |
Cutting Mode | Hydraulic Guide Column | |
Speed | 3-4 m/min | |
Side plate thickness | 16 mm | |
Chain size | 1 inch | |
Total power | 7.5 kw | |
Voltage | 380 V 50 HZ 3 Phase | |
Appearance size (About) | 6700mm*1500mm*1500mm | |
Weight(About) | 3.5 tons | |
Length measurement | Encoder | |
Control mode | PLC | |
Operating mode | Button + Touch screen | |
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
