BYHUBYENG Wireless Queuing Pager System Support 99 Channel CE FCC Distance 200m Calling System Clinic Queue Calling System
Products Summary

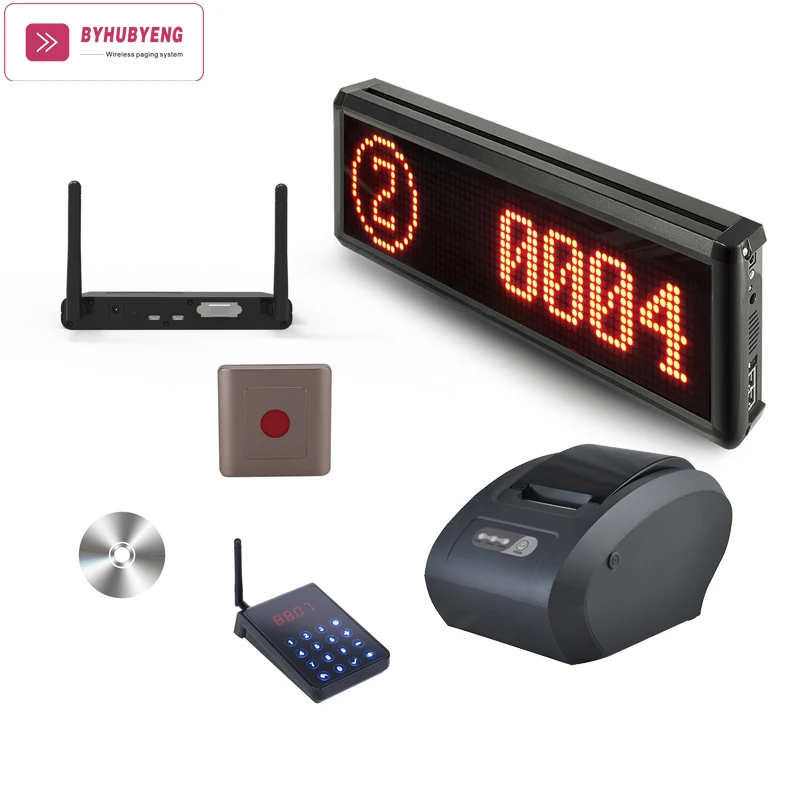

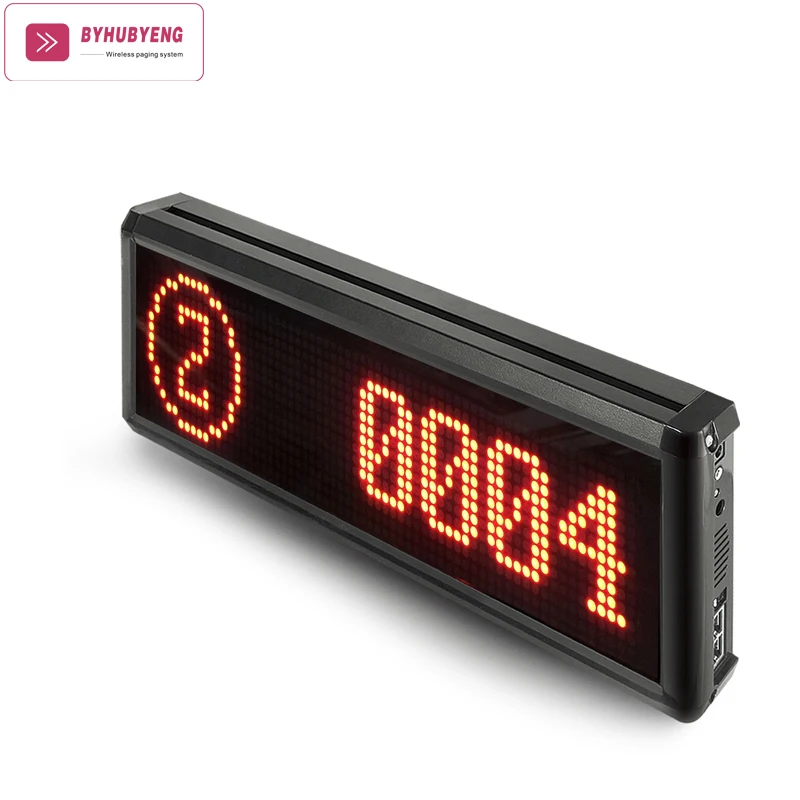

The system perfect for clinic ,dental clinic,medical center,government office ,bank with long line and helping with flow of customers. The system mainly composed of the wireless receiving display screen,ticket button,wireless transceiver controller and ticket printer , set to take number,print,queue and broadcast at a suit.
The System used FM technology ,long difference receive ,Anti -interference , management center remove control,two way communication ,functionality ,stable and reliable,Simple operation,easy usage,beautiful and fashionable appearance,high-grade,generous and well-made.
FRIENDLY REMINDER.
The price is the price of a single product, if you are interested, please contact us.Weight and volume are only estimates, not accurate,Your shipping costs may be overcharged.You can put it in the shopping cart first, don't pay, and then pay after we change the price.
HOW TO USE
1,Customer go to the Service station and take a number ticket by ticket printer. 2,Customer wait for their service. 3,When it is their turn, the counter worker will press the corresponding number on the keyboard transmitter to call. 4,The number will show on the display screen with counter number and customer's number, so that customer know which counter they should attend.
PRODUCT DETAILS

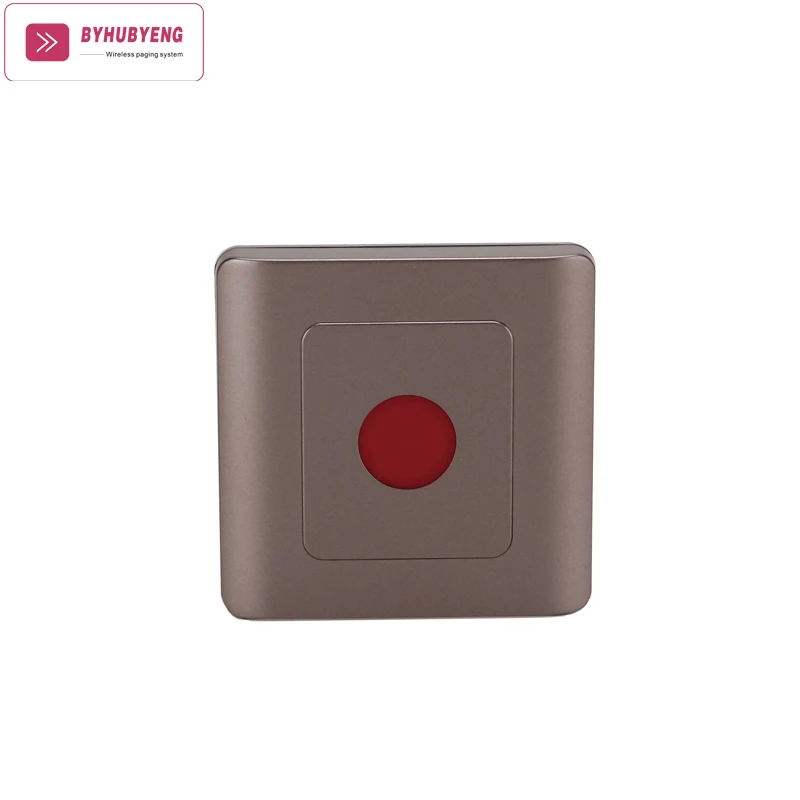

Name
Ticket Button
Model
CS-5N
Battery
2pcs2032
Color
Gold
Shell material
ABS
Frequency
433.92MHz
Launch distance
10 meters
Size(mm)
86*86*15
Function
Transmitting signals to the management machine
Name
Management
Model
CS-5Q
Color
Black
Shell material
Aluminum alloy
Power supply
5V1A
Frequency
433.92MHz
Size(mm)
156*106*23
Working mode
two-way
Function
System control center;Receiving signals of 5N,5D and 5T;Send signals to 5D and 5T;Control the printer;Accept computer software settings.

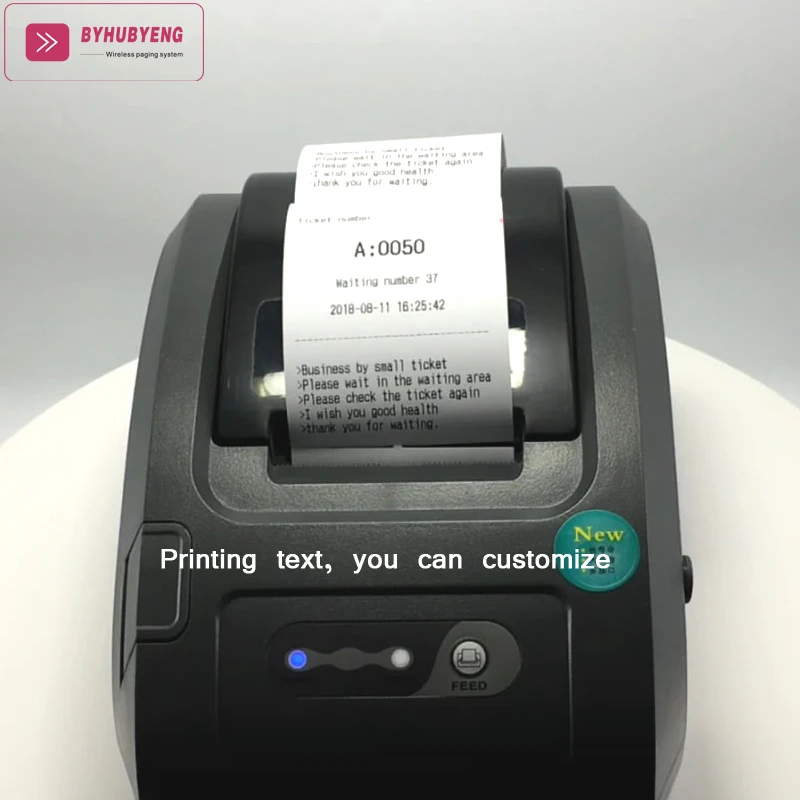

Name
Ticket printer
Model
CS-5P
Color
gray
Shell material
ABS
Power supply
12V3A
Size(mm)
201*141*100
Print content
set by computer
Function
Receive management control, print small ticket
Name
Setting software
Model
CS-5S
Function
Function: Set the network ID, display type, auto-zero, synchronous restart, synchronous clock and print content of the management.

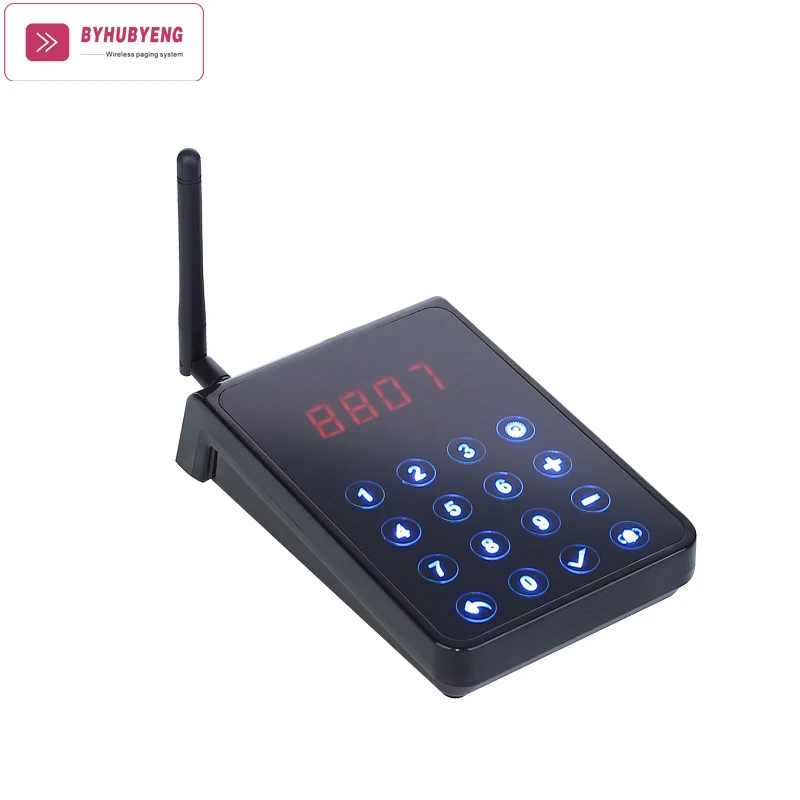

Name
Transmitter
Model
CS-5T
Color
Black
Shell material
ABS+PC
Power supply
5V1A
Size(mm)
150*97*36
Launch distance
>200m
Number display
4-digit LED,0001-9999
Working mode
two-way
Operation
Touch
Function
Number call, automatically add 1 call, automatically reduce 1 call, control 5D volume, etc.
Our Advantage: 1. Low MOQ: It can meet your promotional business very well. 2. OEM Accepted: We can produce any your design. 3. Good Service: We treat clients as our best friend. 4. Good Quality: We have strict quality control system. Offer ISO 90001;2008Good reputation in the market. 5. Fast & Cheap Delivery: We have big discount from forwarder (Long time Contract).
Accept inquiry for requesting sample and any technical problem. Well-educated sales and RD department respond with various solutions in a short time. Provide essential documents, instruction or hands-on videos if necessary. Sell products with best architecture and endurance compare to anyone else. 18-month warranty is provided to every our customer.
FAQ
FAQ.
Q: Are you a factory or trading company? A: We are factory which have many years of valuable experience in pager system, call bottom ect. We accepet OEM/ ODEM order and package.
Q: Do you accept the small order? For example we just buy one mobile receiver and one button? A: Yes, you can contact with us.
Q: Can we put our logo on your products A: Yes, we can customized your logo. But the quantity of the items have special requirements.
Q: What certifications do your products have? A: CE, FCC .
Q: How long is the guarantee? A: Our items enjoy one year warranty and maintenance for life.
Q: Do you provide technical support? A: Yes, technical support is available after sales.
Q: What is the delivery time ? A:Normally, it is shipped with a week after payment received.
Q: How about if I do not know much about this item, and could not install it? A: This item has full function but easy to operate, the only thing you need to do is to set this item as the instructions sent to you, and if you still feel confused, you could leave a message to us, and we are willing to help you solve any kinds of questions.
