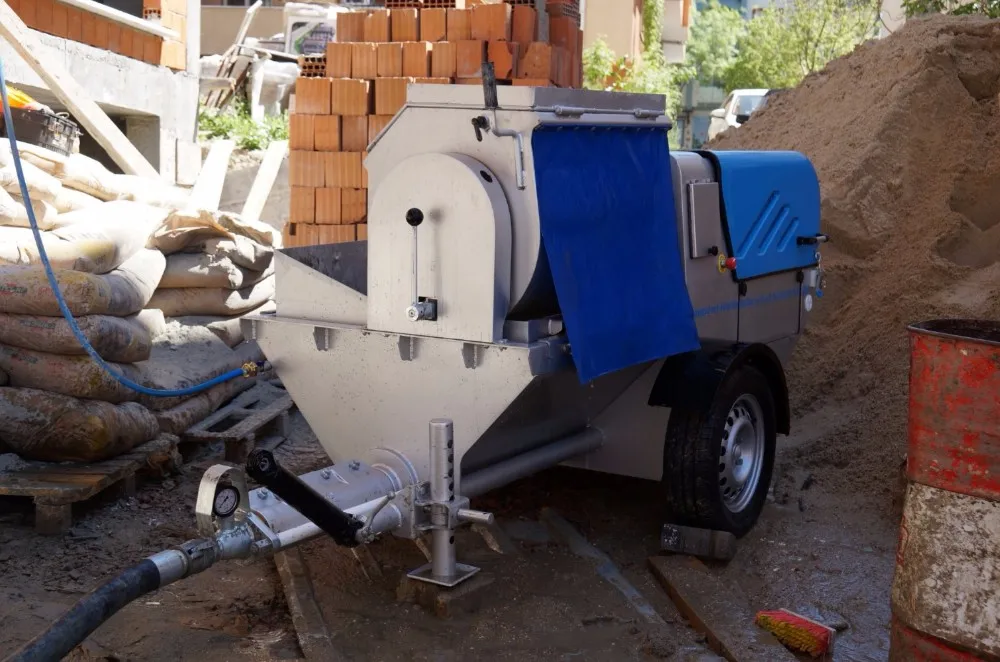

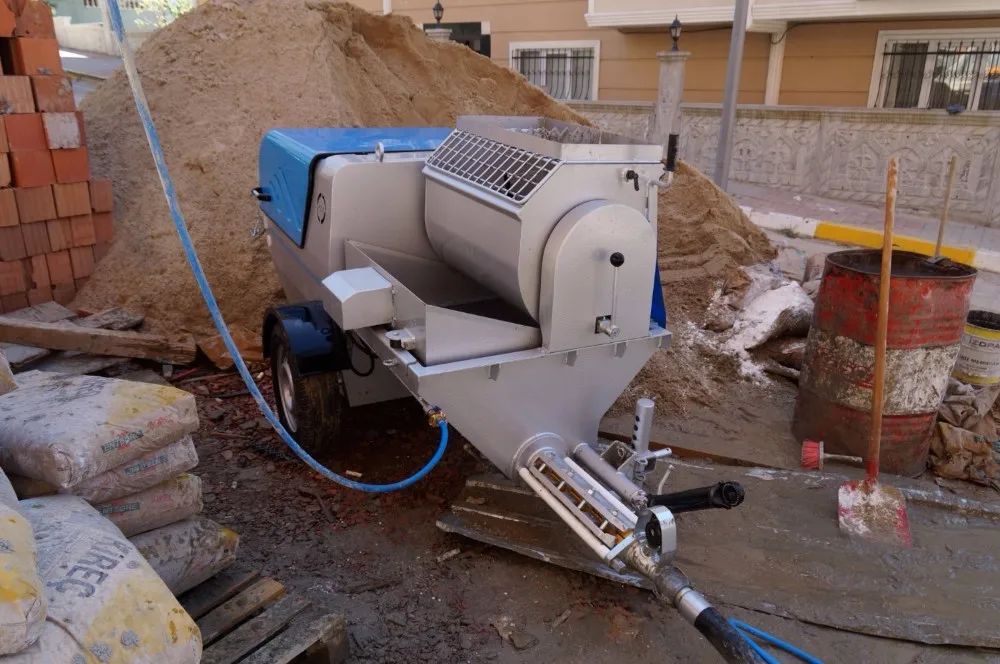

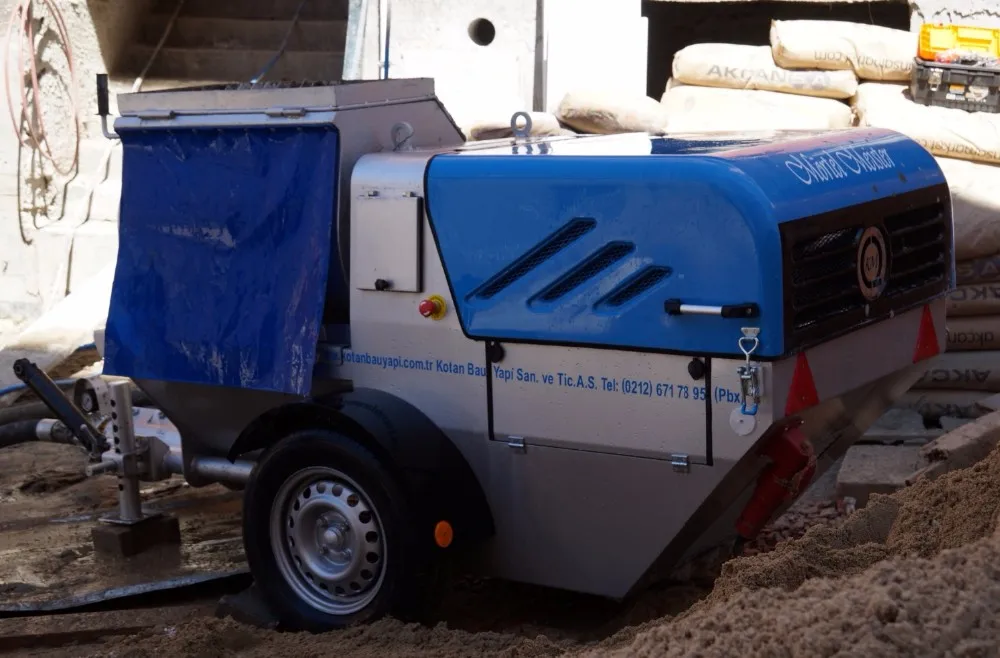

Mortel Meister DH 40 Plastering / Mortar Spray Machine Diesel / Hydraulic

Product Overview

Description

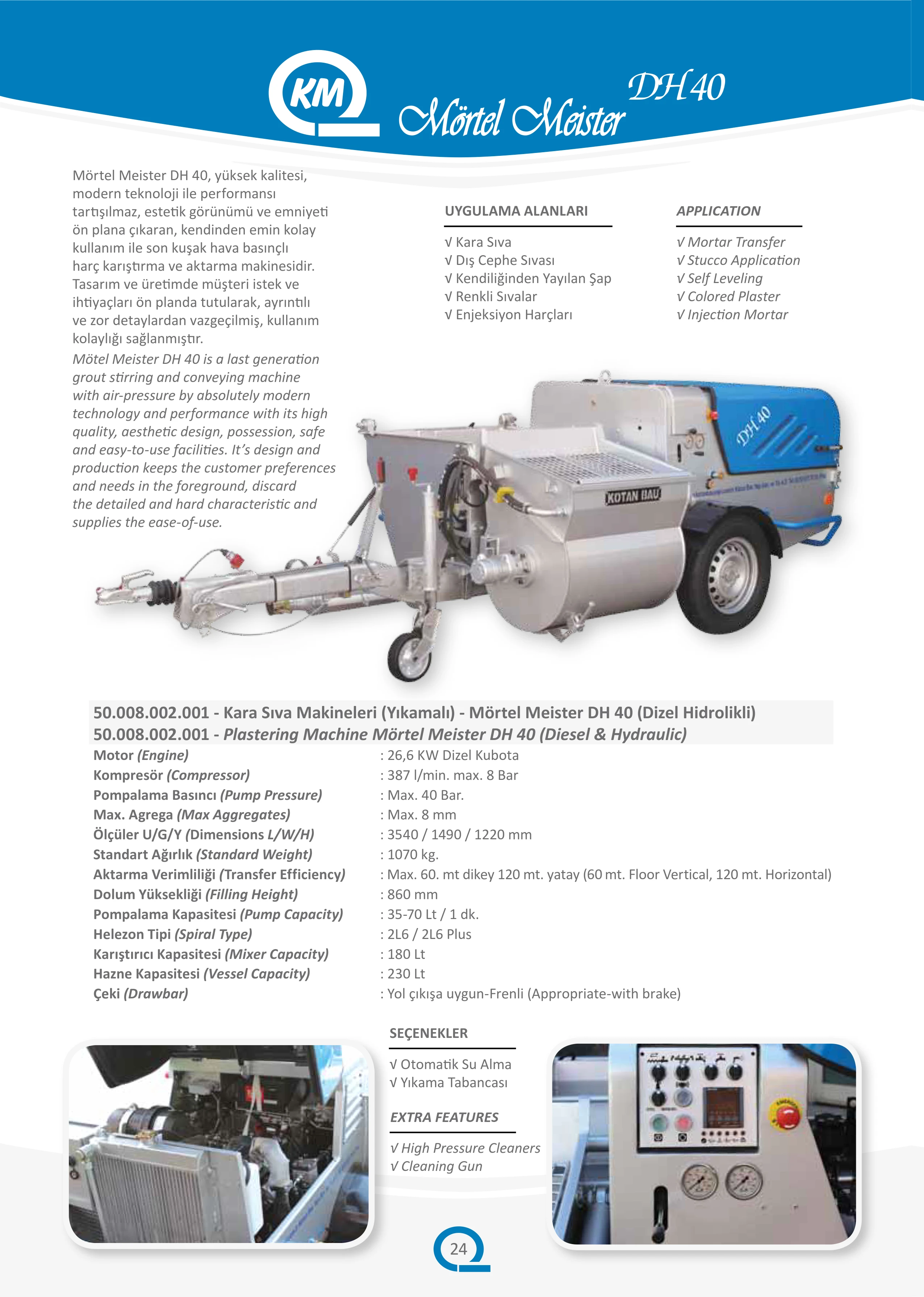

Plastering Machine Mortel Meister DH 40 Diesel / Hydraulic



Engine : 26,6 KW Diesel Kubota
Compressor : 387 l/min. max. 8 Bar
Pump Pressure : Max. 40 Bar.
Max Aggregates : Max. 8 mm
Dimensions L/W/H : 3540 / 1490 / 1220 mm
Standard Weight : 1070 kg.
Transfer Efficiency : 60 mt. Vertical, 120 mt. Horizontal
Loading Height : 860 mm
Pumping Capacity : 35-70 Lt / 1 dk.
Spiral Type : 2L6 / 2L6 Plus
Mixer Volume : 180 Lt
Vessel Voulme : 230 Lt
Lubricating : Automatic Lubrication

Adjustable Speed : Available
High Pressure Washing Feature : Available

Mixer Discharge Operation: Hydraulic
Drawbar : Suitable for Road Nagivation - with brakes
