Multi Energy Small Szie X ray Hand Baggage and Parcel Scanner with 500*300mm Tunnel Size
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen Unisec Technology Co. Ltd.
Share on (62012155641):
Product Overview
Description

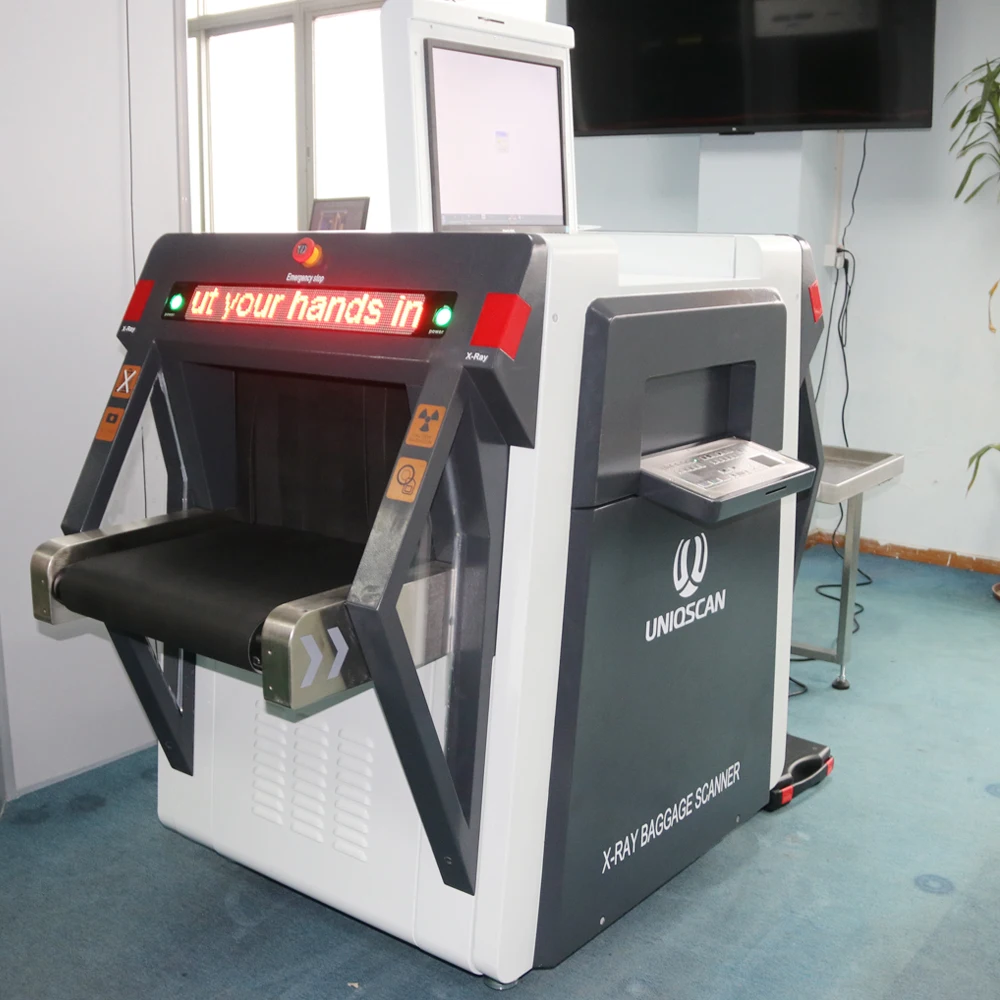

Multi Energy Small Szie X-ray Hand Baggage and Parcel Scanner with 500*300mm Tunnel Size
33 Zones Security Walk Through Metal Detector Gate with CCTV Camera and DVR
General Specifications:
| Tunnel Size : | 500 (W) ×300 (H) mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 150 kg |
| Single inspection dosage: | <1.01μG |
| Film Safety: | Guarantee ISO1600 Film |
| Leakage radiation: | <0.1µGy/h |
| Steel Penetration: | 40mm |
| Spatial Resolution: | 1.0mm Horizontal and Vertical |
| Wire Resolution: | 40AWG |
| Power Requirement: | 220V AC (±10%) 50±3Hz |
X-RAY GENERATOR:
| Orientation: | Upward |
| Tube Current: | 0.4-1.25mA(adjustable) |
| Anode Voltage: | 80-160KV(adjustable) |
| Angle: | 80° |
| Generator cooling/working periods: | Sealed oil bath with forced air/100% |
OPERATING ENVIRONMENT:
| Storage Temperature: | -20oC to 60oC |
| Operating Temperature: | 0oC to 45oC |
| Relative Humidity: | 20 to 95% non-condensing |
| System Power: | 220 VAC (±10%) 50±3HZ |
| Power wastage: | 1.0 KW (Max) |
| Noise: | <55DB |
Computer Specification:
| Processor: | I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W |
| Memory: | 4GDDR3 Loptop Memory |
| Hard Disk : | 1T |
Image Display:
| Display: | 19'' High Resolution LCD Monitor |
| Display Resolution: | 1280*1024;24 bit/pixel Color |
| Contrast Sensitivity: | 24 Visible Levels, 4096 Gray Level |
| Image storage: | 100,000 pictures in real time (can be customized) |
| Zoom: | 64 Times Enlarge, Whole screen continuous observation |

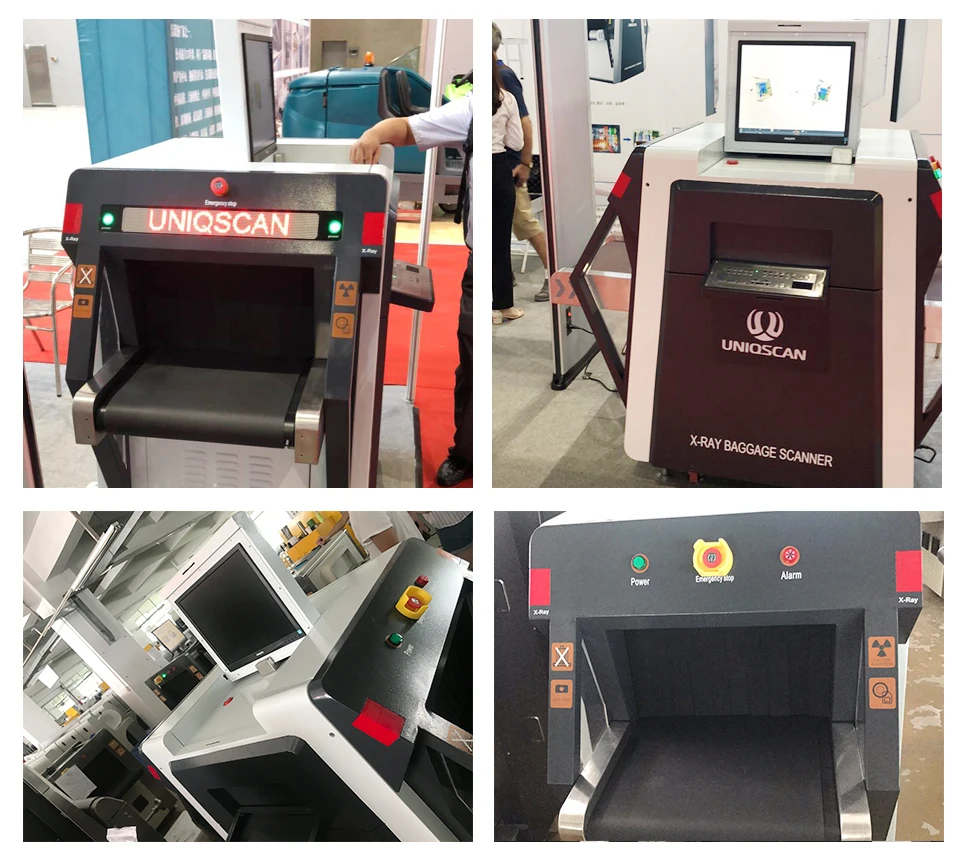

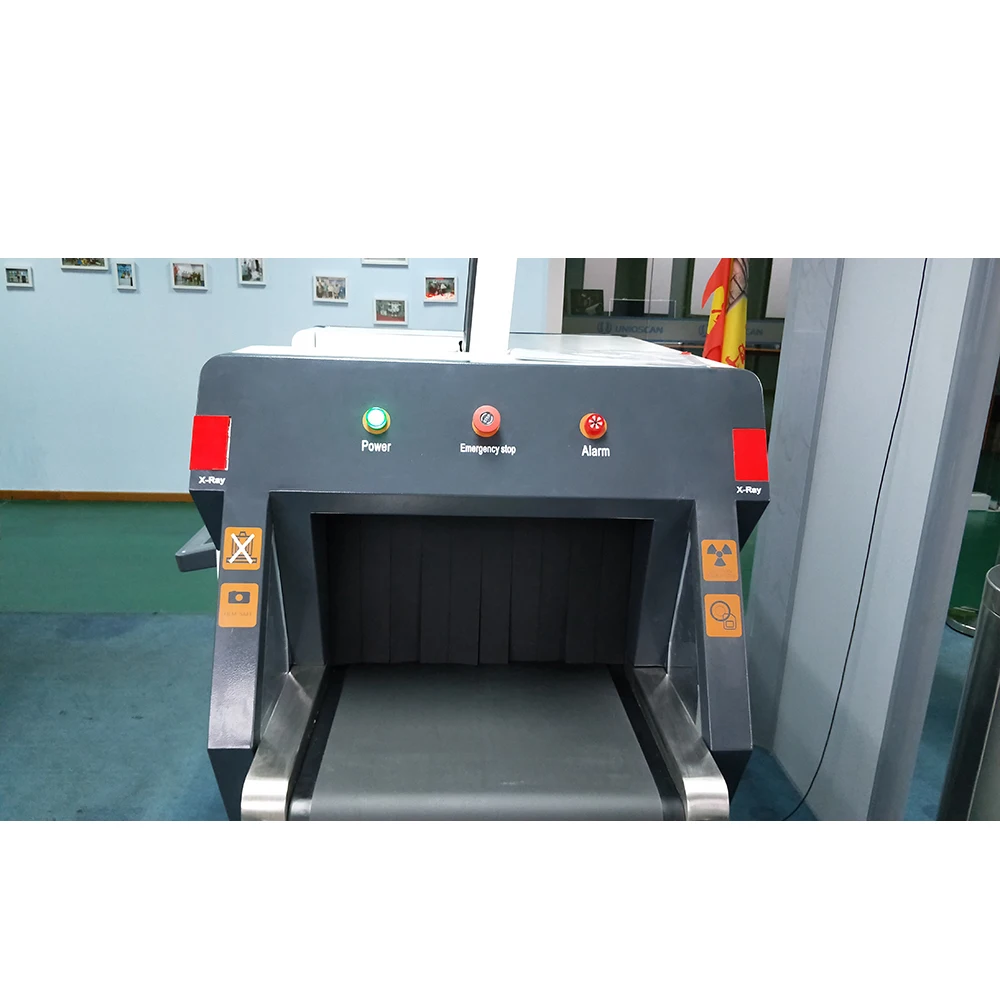

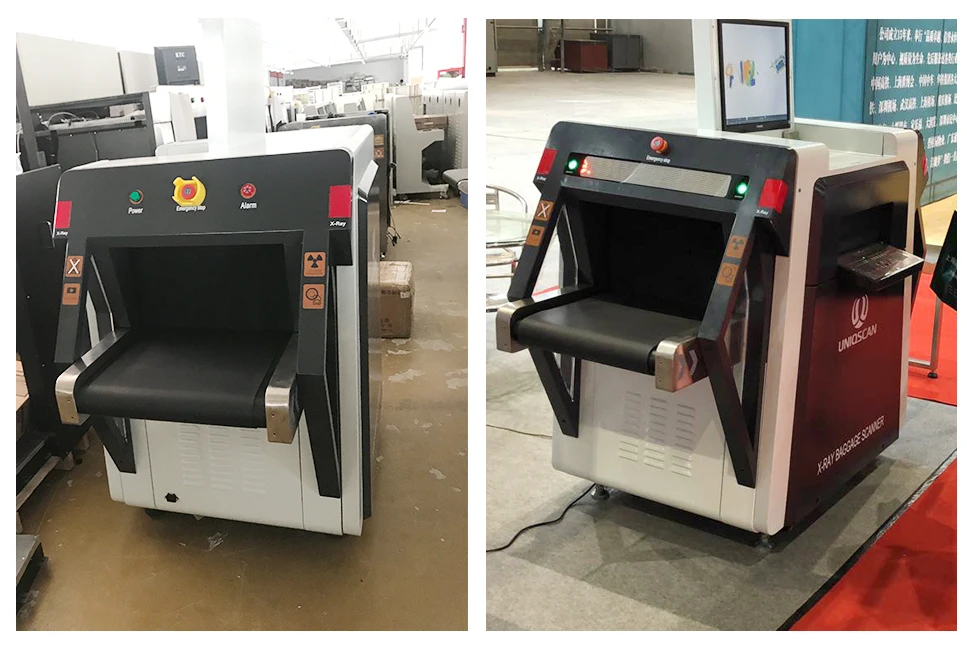

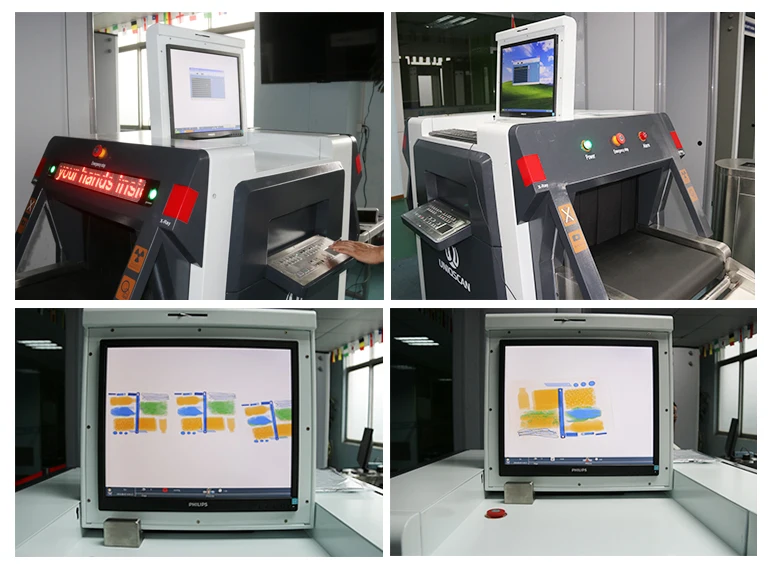

Detail Photo :
Installation Case :
Factory :
Certification :
