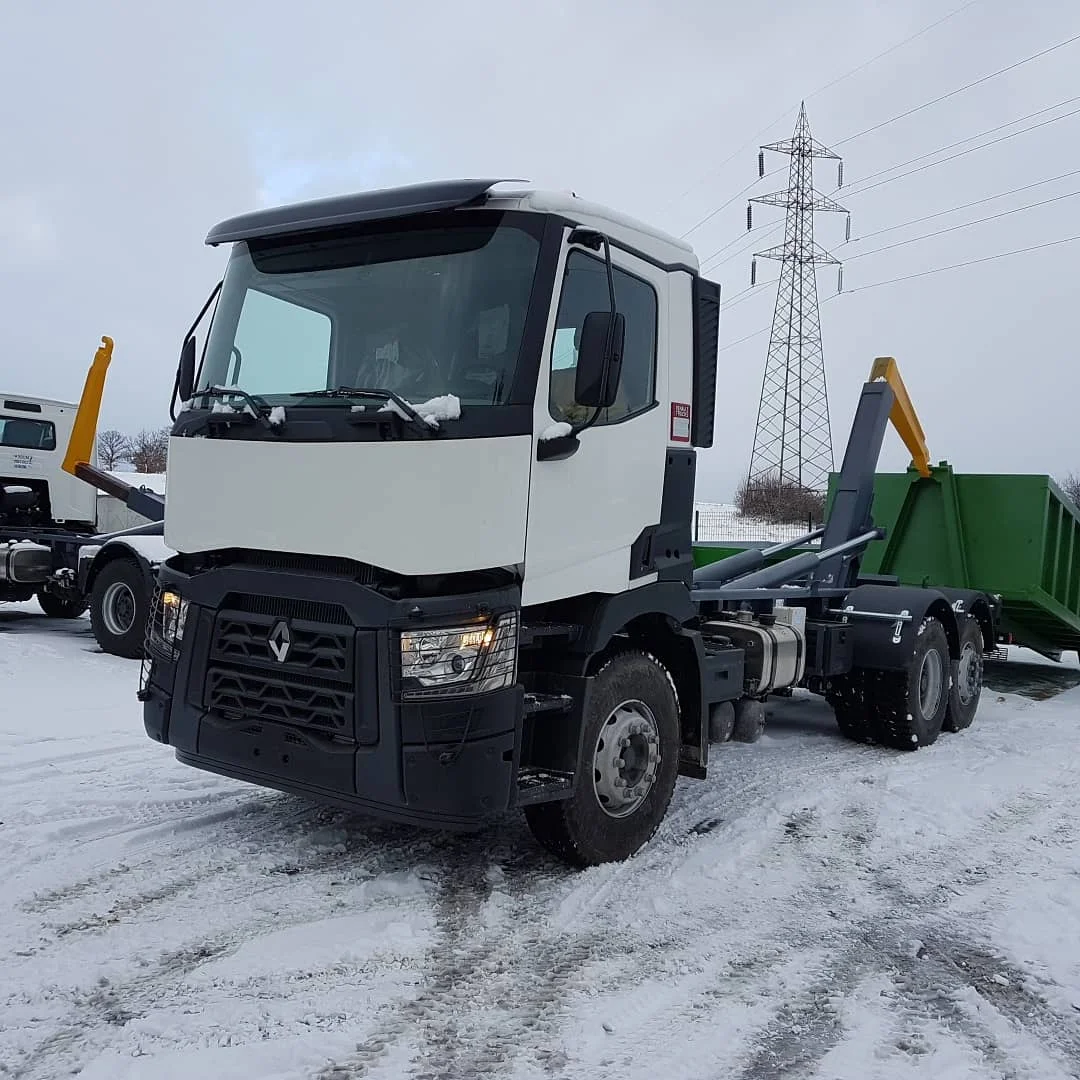

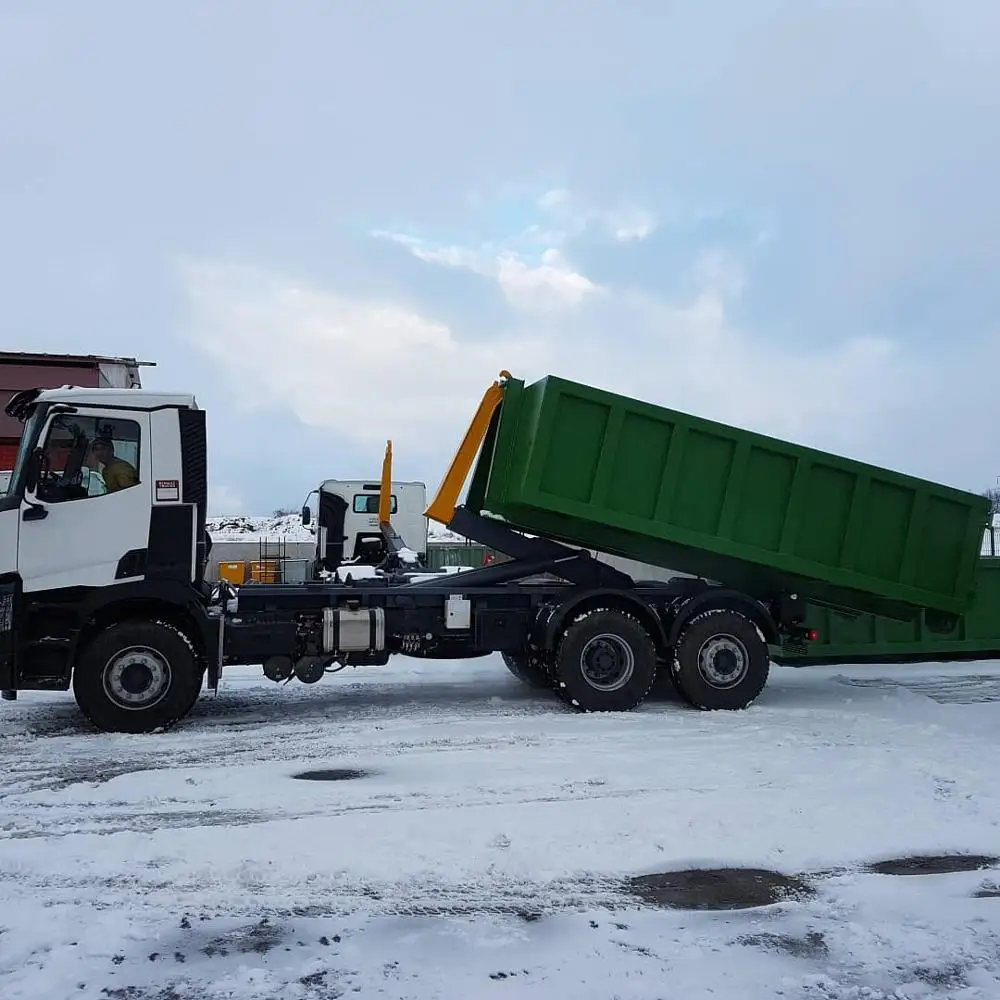

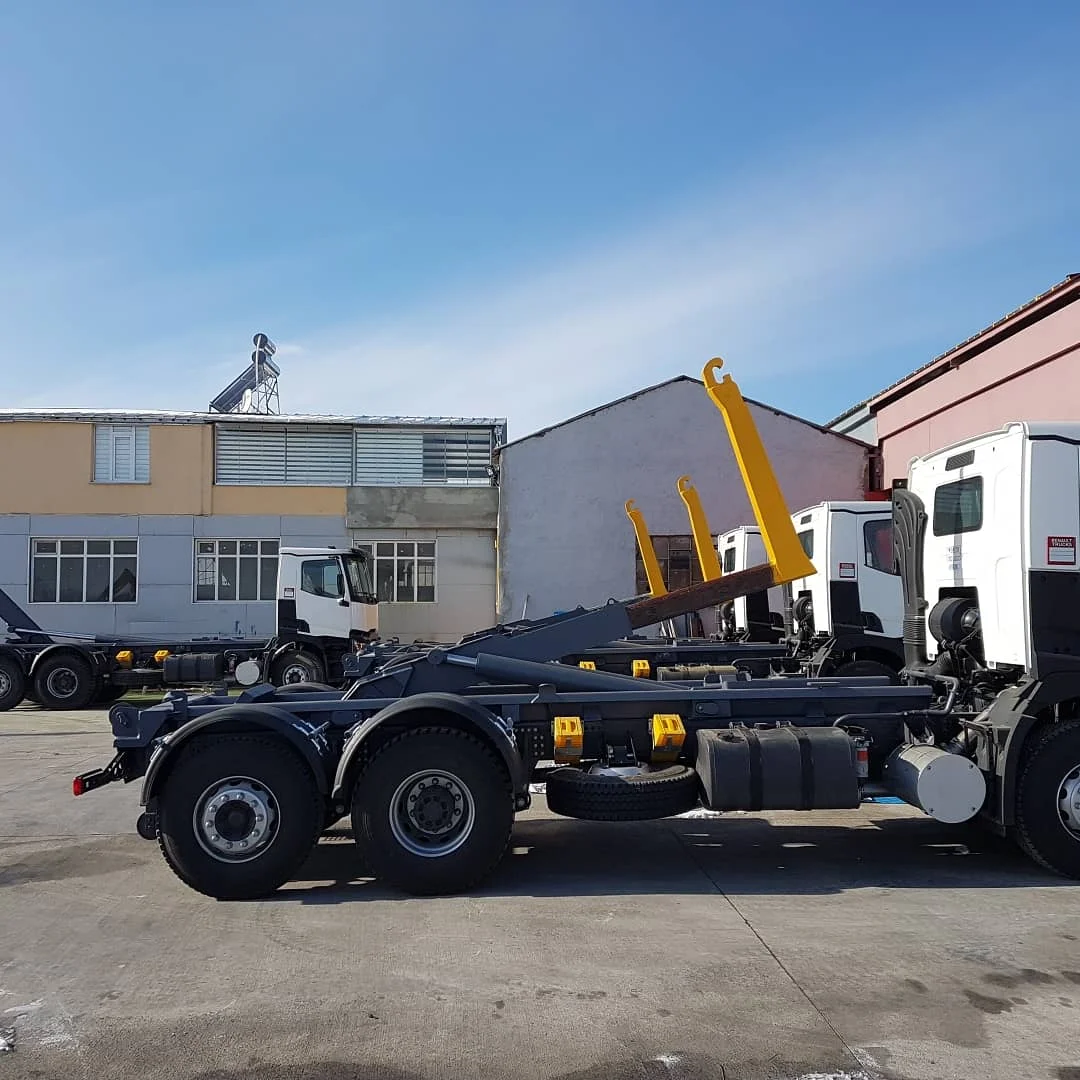

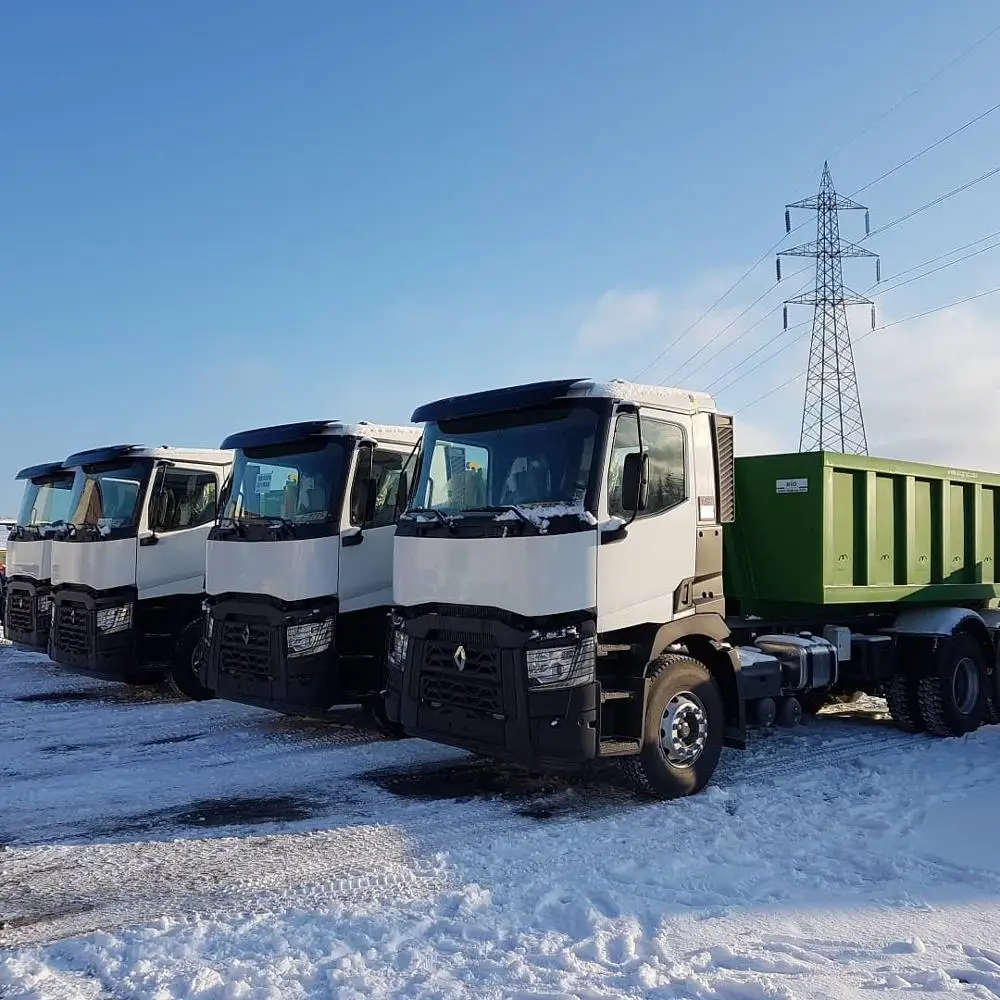

armlift truck

Product Overview

Description

We proivde hooklift and hooktrucks with trucks from 5 tons to 30 tons capacity.

Please ask us your enquiry. We could send our goods unassembly for your trucks.

Mounting Service Manuels and drawings will given. Or we can make assembly in your country with experience mounting service.

Hooklift hook height   : 1570mm Optional: 1420mm

Hooklift Chassis width: 1060mm



.: Item: HOOKLIFT KL25T Technical Specifications:                 Chassis: 6x2/ 6x4 / 8x4 Truck Chassis



To use Roll Containers  with Hooklift Truck for solid waste disposal in and around sub-urban centres where ambient temperature is around 40°c and high humidity.



1. General Dimensions are;

1.1. Interior Chassis Length: 6300                        Outrior : 6700 mm Approx.

1.2. Interior Chassis Width: 1060 mm                 Outrior : 1080 mm Approx.

1.3. Interior Chassis Height: 220 mm                 Outrior : 250 mm Approx.

1.4. Carry Container Volume: between 10 and 30 m3.

2. Capacity: The KioHooklift can load 25 tons.

3. Chassis: Z bending steel And/Or Closed Profile

4. Container Locking Mechanically Lock pins. Optional : Hydraulic locking pins.

5. Control Valf ¾” - 80 lt and 400 bar Piston Pump 80lt are European origin.

6. Cyclinders: Manufactured with Cold Drawn High Quality Pipes and Pistons.

Quantity : 2 pcs Main cyclinders, 1 pc Hook Jib Cyclinder, Rear Roller Cyclinder

7. Stainless Steel Oil Tank 100 lt.

8. DIN Standarts 30722 Chassis width: 1060 mm

9. DIN Standarts 30722 Hook Height : 1570 mm

10. Hook Booms manufactured with Sweden MC700 Steel

11.Outrior valve control and Remote Control with 10 mt cable and buttons.

12. Before painting will make special phosphate chemical cleaning inside and outside of the container.

13. Paint: After two times primer undercoat painting,2 coats of last coat painting (Customer request Ral code)  on the outside.

14.Accessorias : Plastic Mudguards, Tool Box, Water Tank with soap dish, Spare Tyre Wire Lift.
