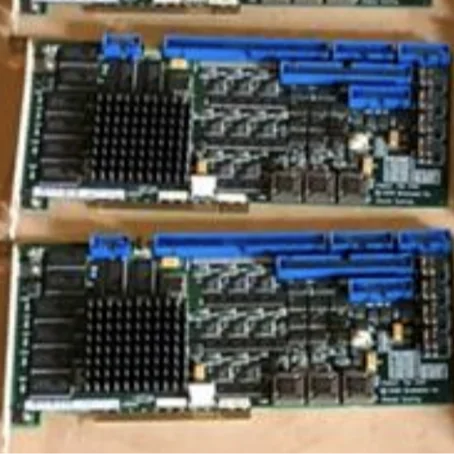

Bowling Brunswick scoring Vector Video 3 PCB Used

Index No.

Part No.

Description

1

57-863481-402

57-863480-402

Scoring Computer Complete - Keypad only Sconng

Computer Complete - Lower LCD Touchscreen

2

57-500268-800

57-500269-800

Mother Board PCB Only (Brunswick Rapid Exchange)

Mother Board PCB Assembly (Brunswick Rapid Exchange)

3

57-500295-810

Hard Drive w/Mounting Bracket (Brunswick Rapid Exchange)

4

57-500234-800

Scoring Computer Power Supply (Brunswick Rapid Exchange)

5

57-500283-800

Video 3 PCB (Brunswick Rapid Exchange)

6

57-500329-800

Primary Patch Panel PCB (Brunswick Rapd Exchange)

7

57-500229-800

Ethernet PCB (Brunswick Rapid Exchange)

8

57-500248-800

LCD Interface. LCD Touch Screen only (Brunswick Rapid Exchange)

9

57-500309-800

LCD Patch Panel PCB (rear). LCD Touchscreen onfy (Brunswick Rapid Exchange)
