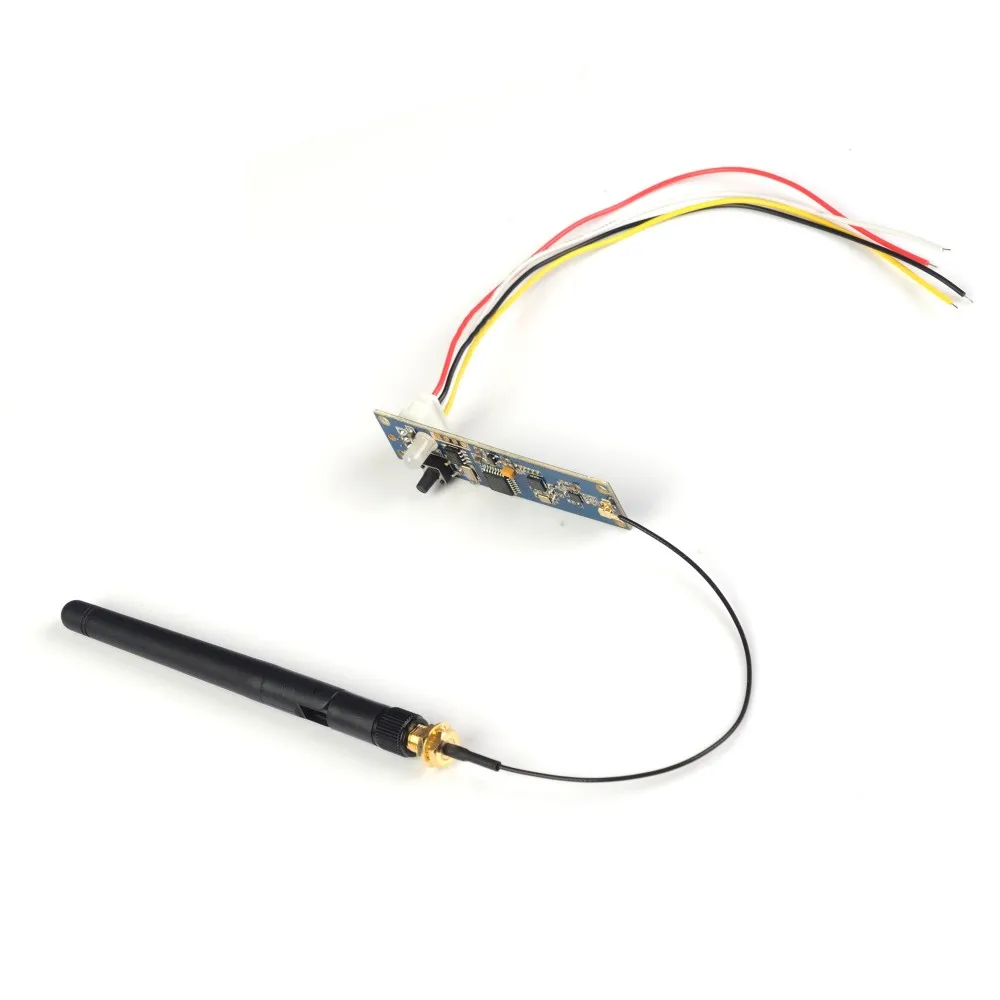

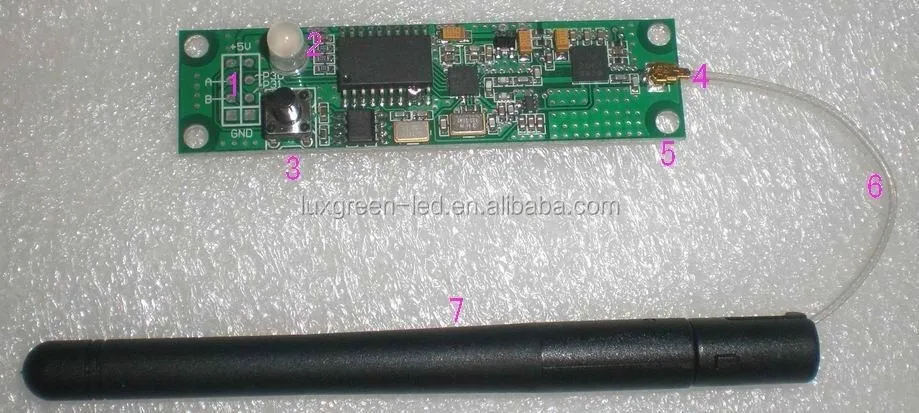

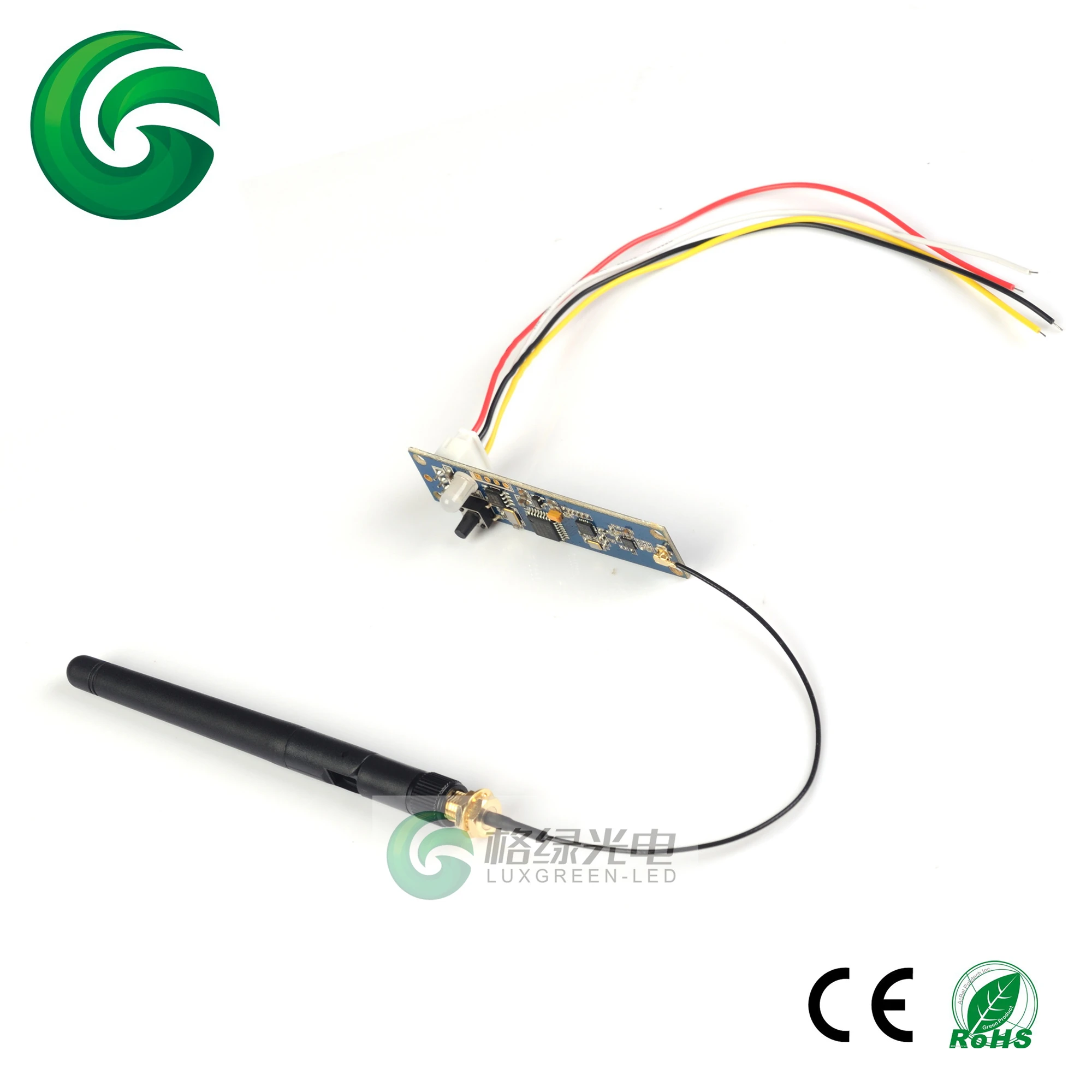

Wifi controller PCB board, wireless dmx 512 transmitter and receiver

Brief Introduction:

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by
console )by wireless way, which solves lighting control issues of wireless transmitting completely between
console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely
And also can ensure without any time delay when signal data is transmitting, signal data is real time and
reliably.

This product adopt 2.4G ISM frequency section( global opening section) without permission limited
High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly,high
anti-jamming ability.

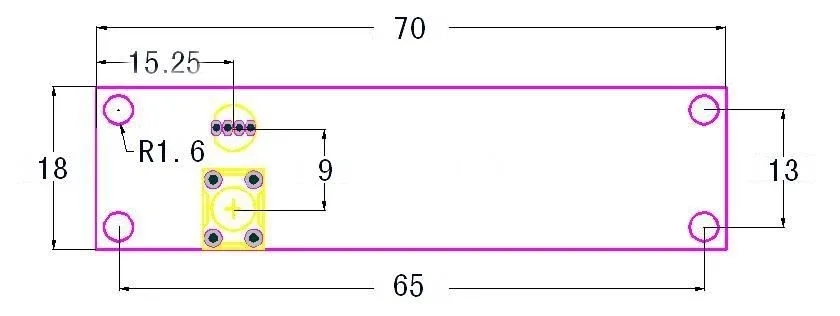

2. Small size,Esay to suit for interior of accessed lighting
3. Single key to operate,tricolor LED displaying
4. Transmitting standard DMX512 protocol data of console,also can transmitting lighting and lighting DMX512 protocol data.
5. 126 channels jumping frenquecy automaticly,high anti-jamming ability. to ensure works reliability
6. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place..
7. Input voltage: 5VDC
8. Work frequency section; 2.4G ISM,126 channels.frequency section
9. Max transmitting power rate: 20dBm
10. Receiver sensitive: -94dBm

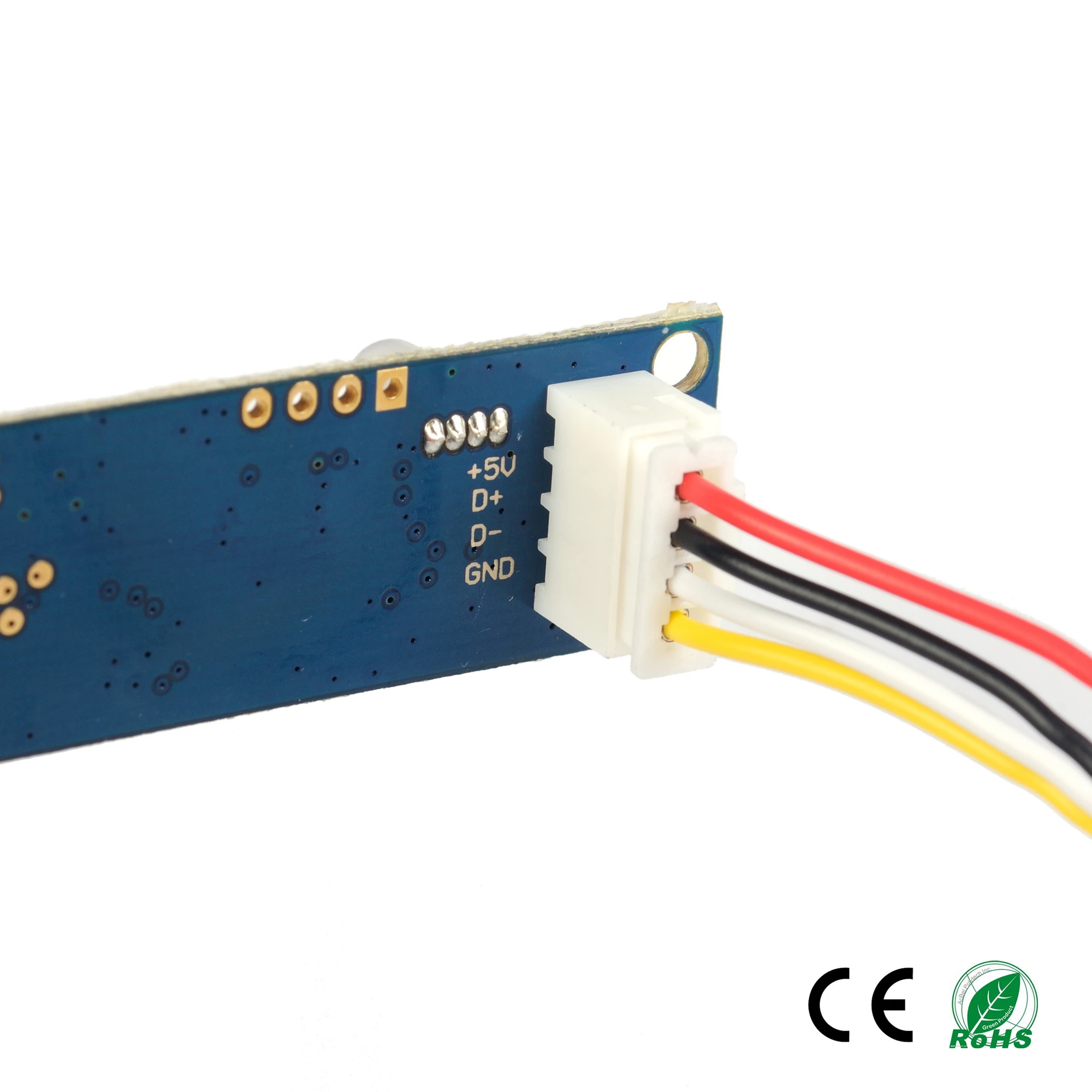

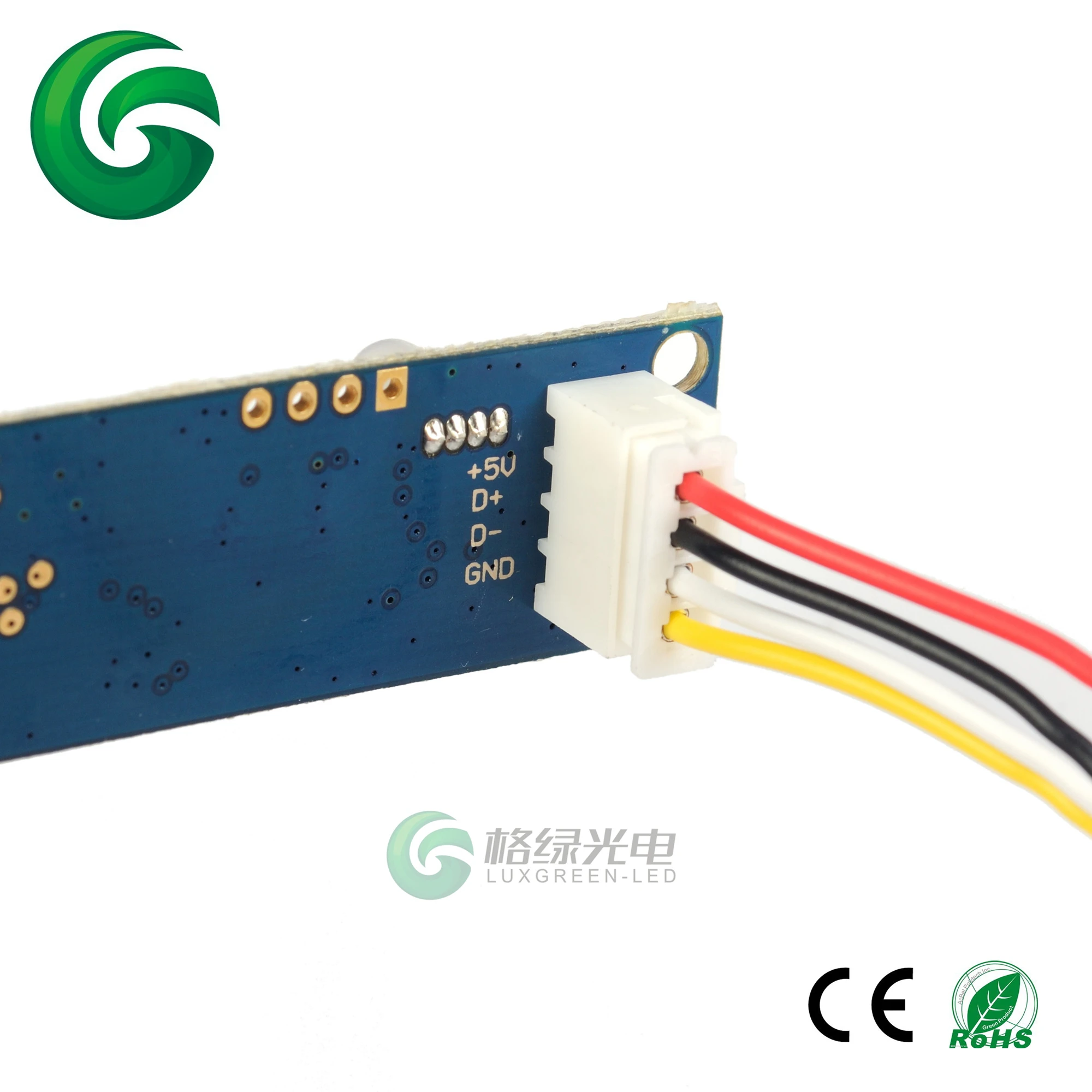

11. Signal port: RS485 or CPU series port AURT

Stage lighting,Disco hall,Large literature performance,Gymnasium lighting,Temporary stage

performance ,City lighting system ,TV station ,Conference center , professional showplace,Topic

park ,Bar lighting and so on.
