Building Material Aluminum Roof corrugated Tile Roll Forming Machine Hot Sale

Product Overview

Description

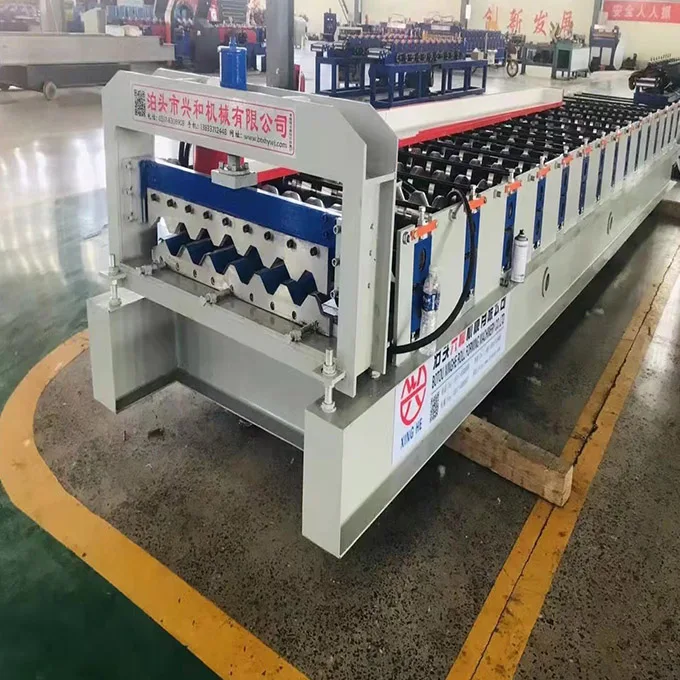

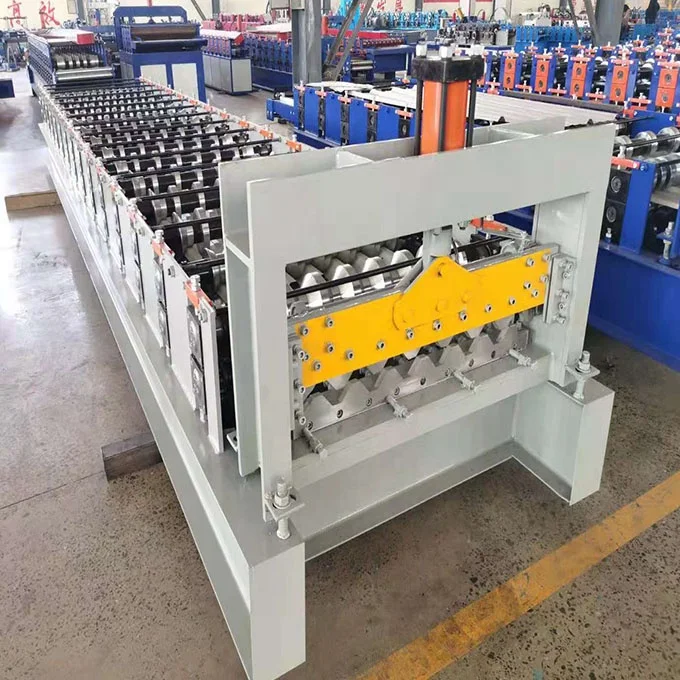

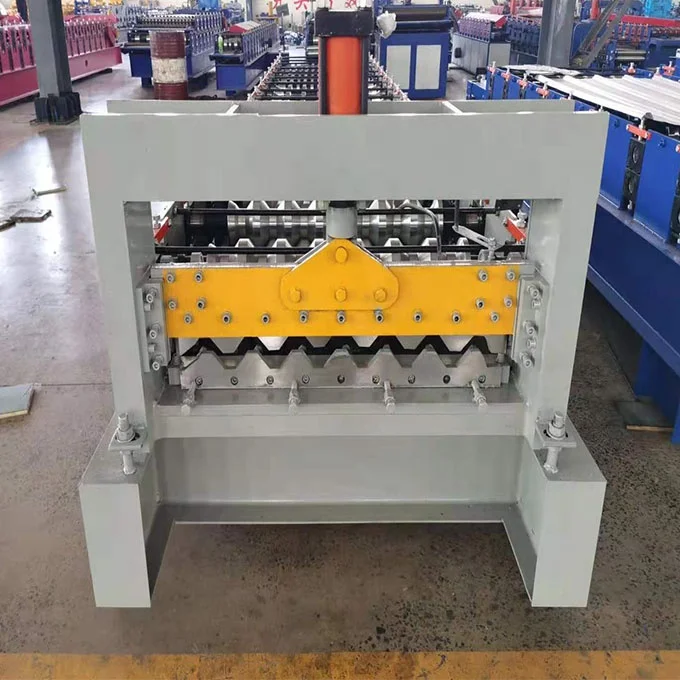

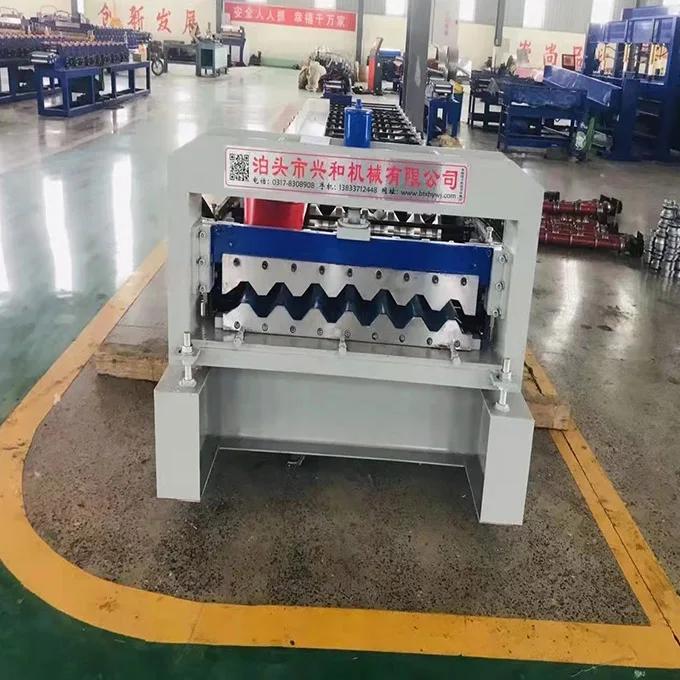

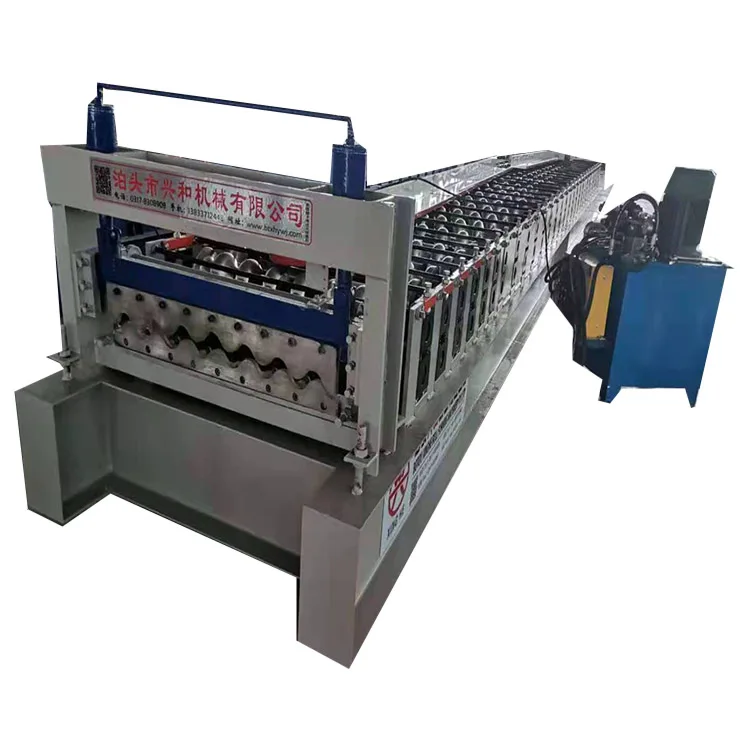

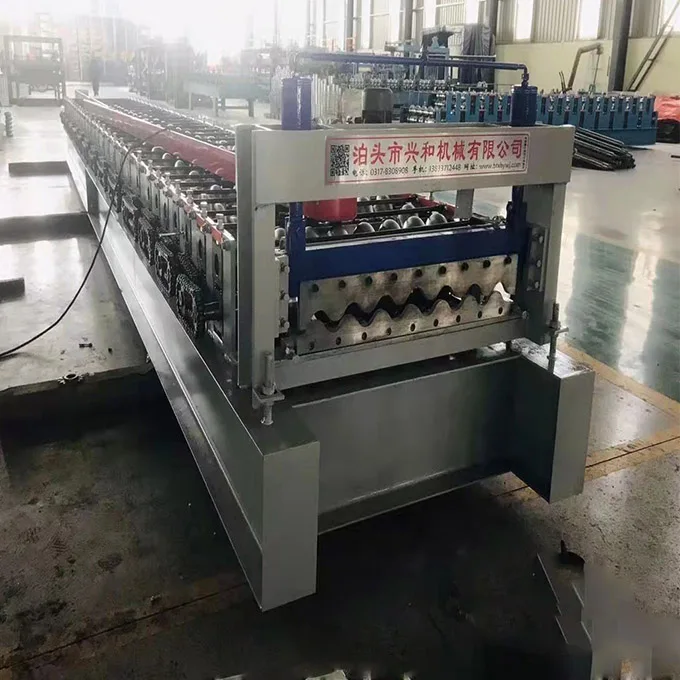

Building Material Aluminum Roof corrugated Tile Roll Forming Machine

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

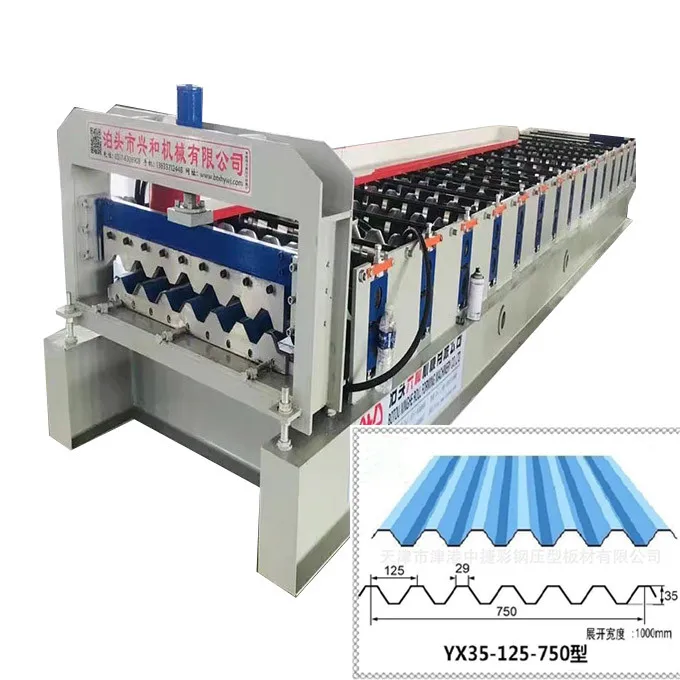

Panel drawing

For quotation with detail specification,please send us drawing of tile type.

We can make machine according to your profile.

Product Applications

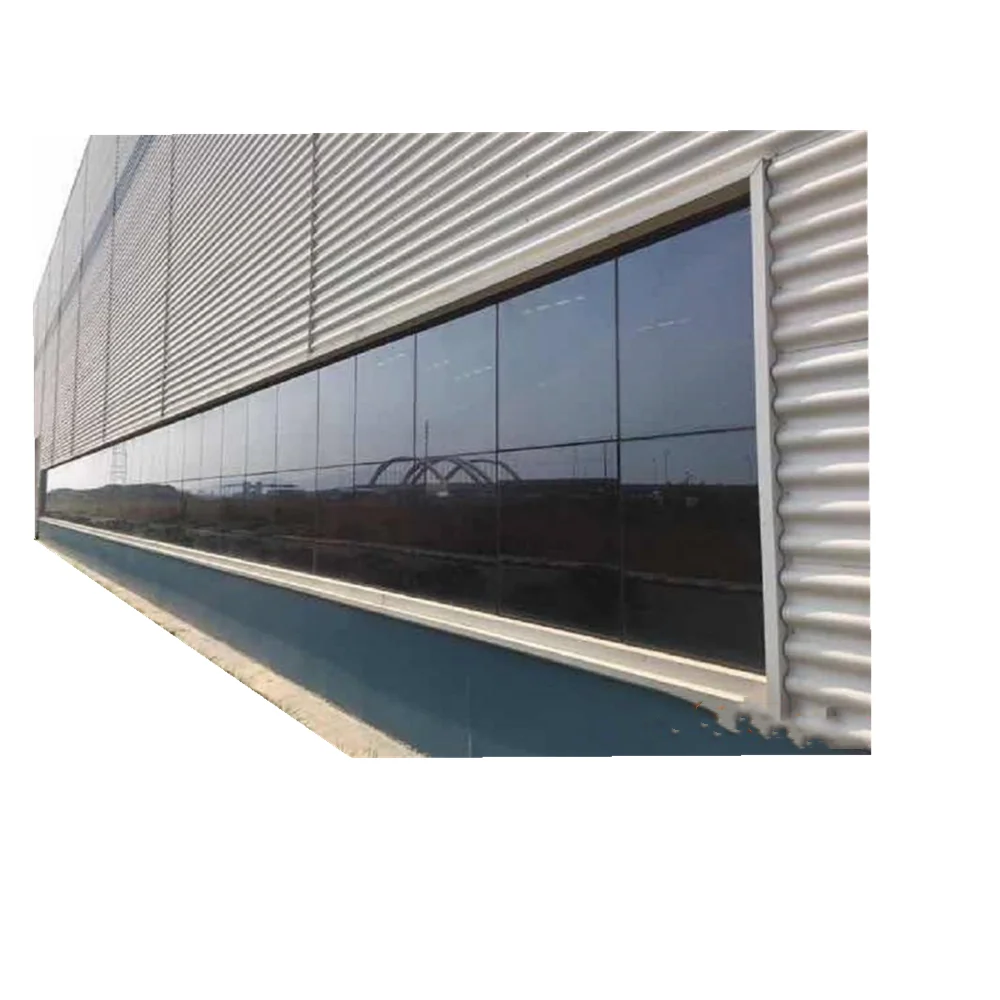

The products color sheet trapezoidal metal roofing machine produce are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences and different kinds of greenhouses.

Technical Parameters:

No.	Item	Specification
1	Can Formed Material	PPGI,GI,AI
2	Equipment operation	Automatic
3	Voltage	380V 60Hz 3Phase or as your requirement
4	Thickness of sheet (mm)	0.3-0.8mm
5	Material width(mm)	As your requirement
6	Cover Width of the sheet after formed	as your drawing
7	The size of the roll forming machine	8800mmx1600mmx1500mm
8	Speed	8-15m/min
9	Diameter of shaft	75mm
10	Weight of the Machine	3000-3500KGS
11	Material of rollers	C45 steel quenched and chromed
12	Motor brand	Siemens or Guomao
13	PLC	Siemens or Delta or Mitsubushi
14	Total power (kw)	8kw
15	Power of hydraulic system	4kw
16	Power of main molding core	4kw
