100 200л/ч Емкость тонкопленочный испаритель для удаления этанола

100-200L/Hr Capacity Thin Film Evaporator for ethanol removal

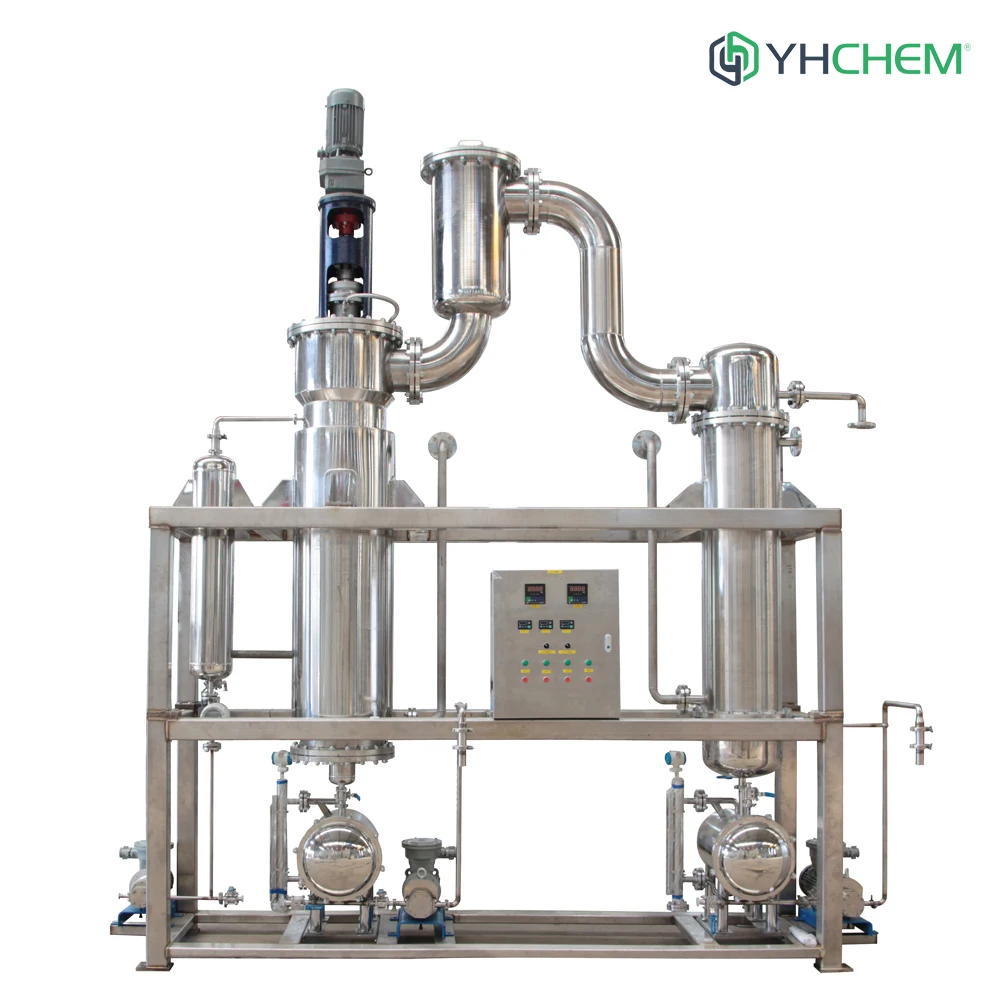

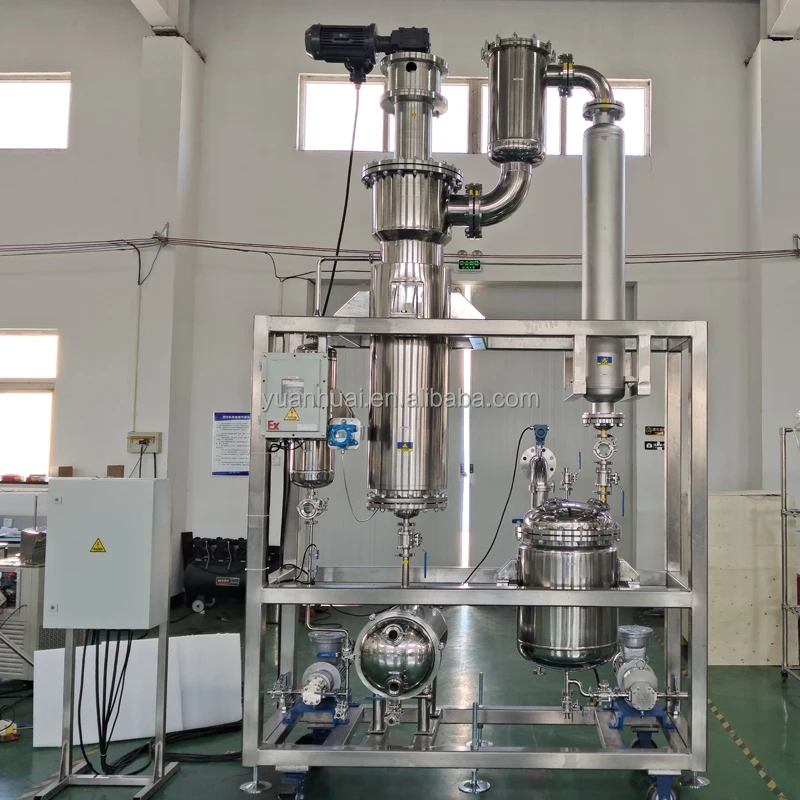

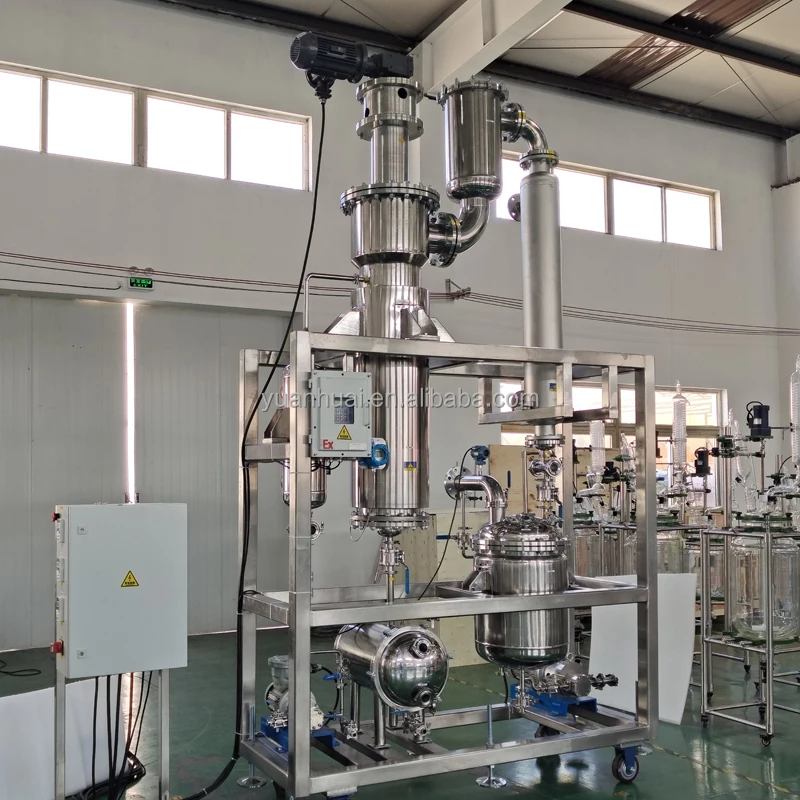

Introduction of thin film evaporator

1. Jacketed thin film distillation body
Material: 316L stainless steel
Effective evaporation area: 2m²
Processing rate:100-200L/hour
Heating medium for evaporation: heating oil
Operation temperature of jacketed barrel: up to 300 °C
Film scraping system: active centrifugal scraper

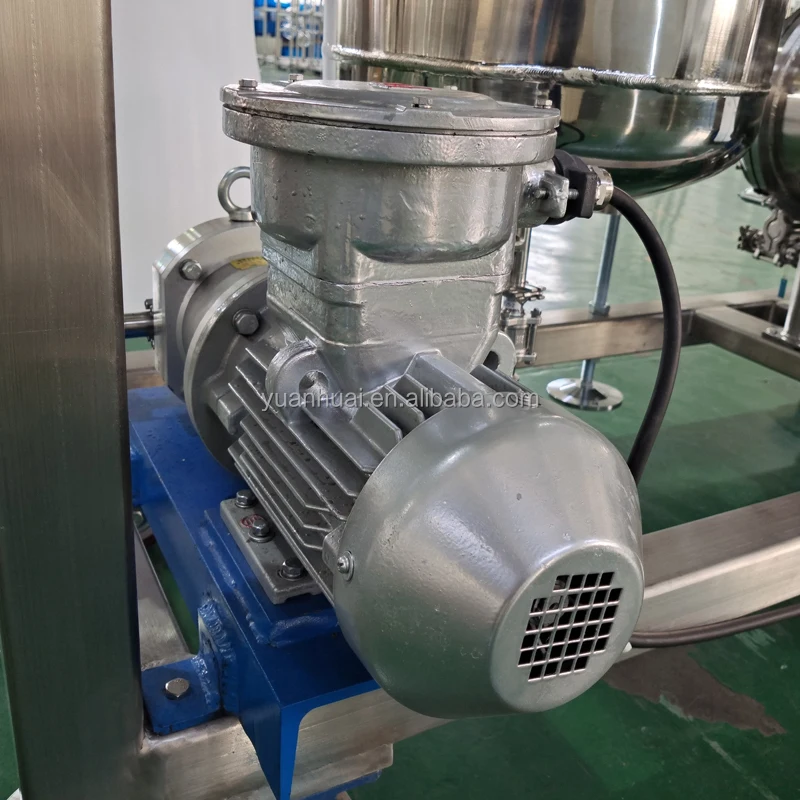

Motor and reducer: gear reducer, variable frequency motor, 3KW
Sealing system: mechanical sealing (Optional: magenetic sealing)

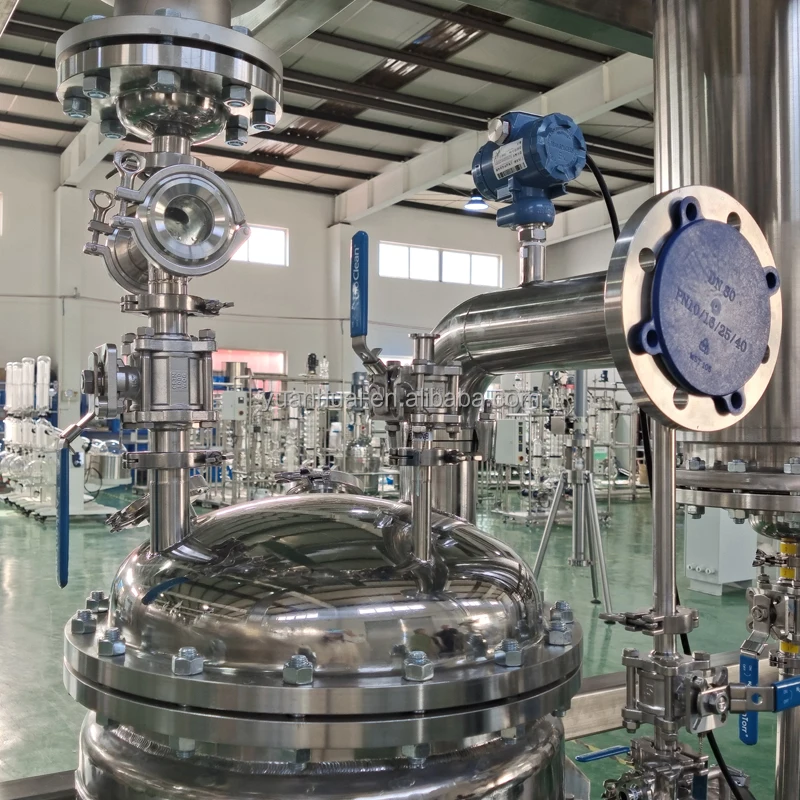

2. Feeding jacketed tanks
Volume: 30L, With sight glass and insulation ball valve

3. Feeding system
One high precision gear pump for continuous feeding, the flow range is 30-260L/h

4. Discharge system
Two high precision gear pumps for continuous discharging, the flow range is 30-260L/h

5. Cooling coils condenser with sight glass: 5m²

6. Others: I. Control valves 1 set II. Vacuum meter 1 set III. Support rack: 1 set (stainless steel)

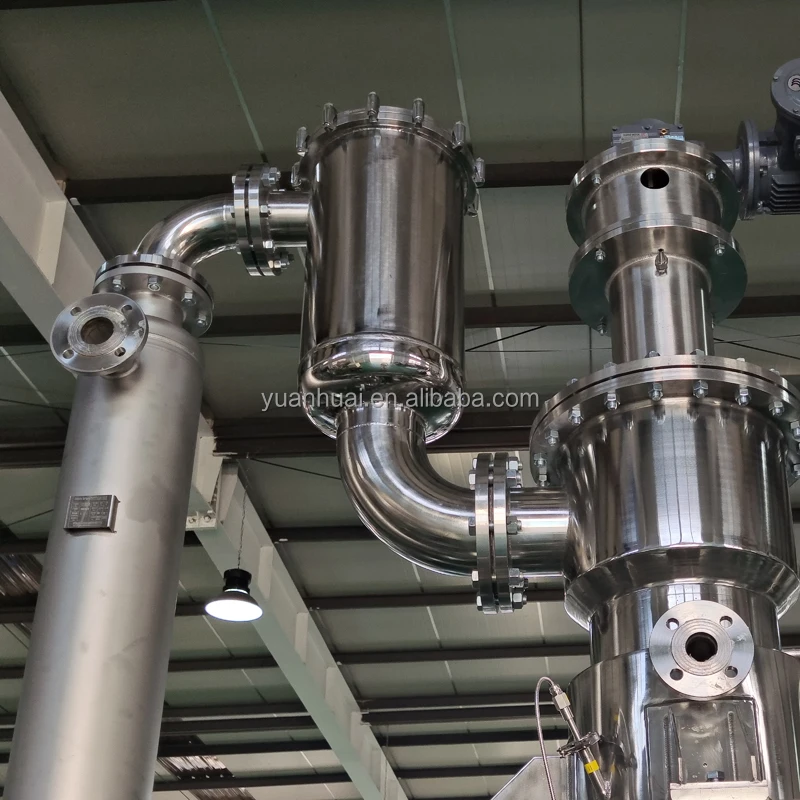

IV. Connection pipeline: 1 set (full jaketed stainless steel pipe with full insulation)

Typical application fileds:

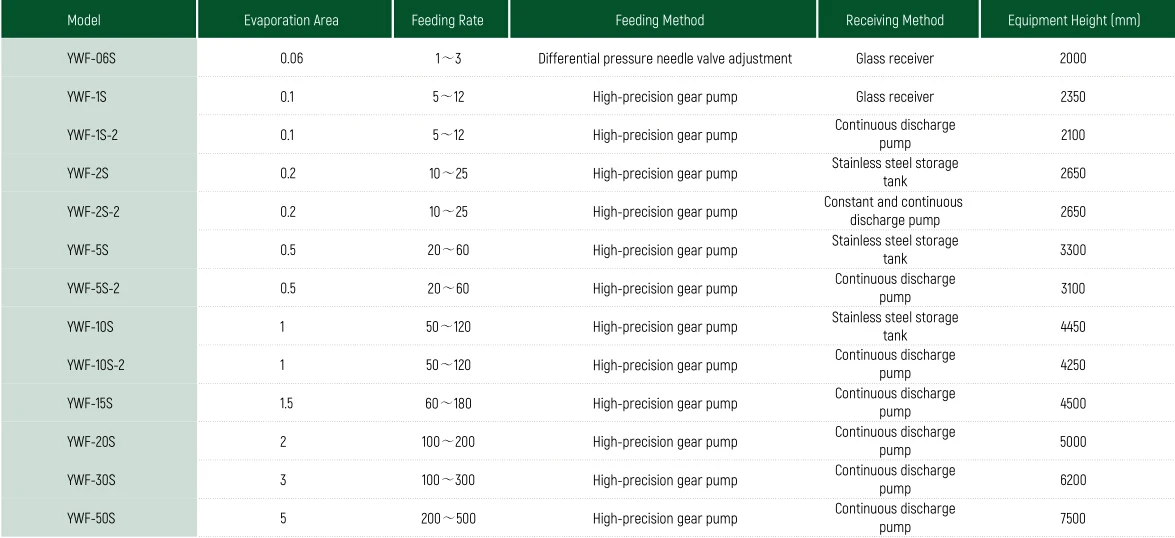

Technical specifications:

Our team and our clients
