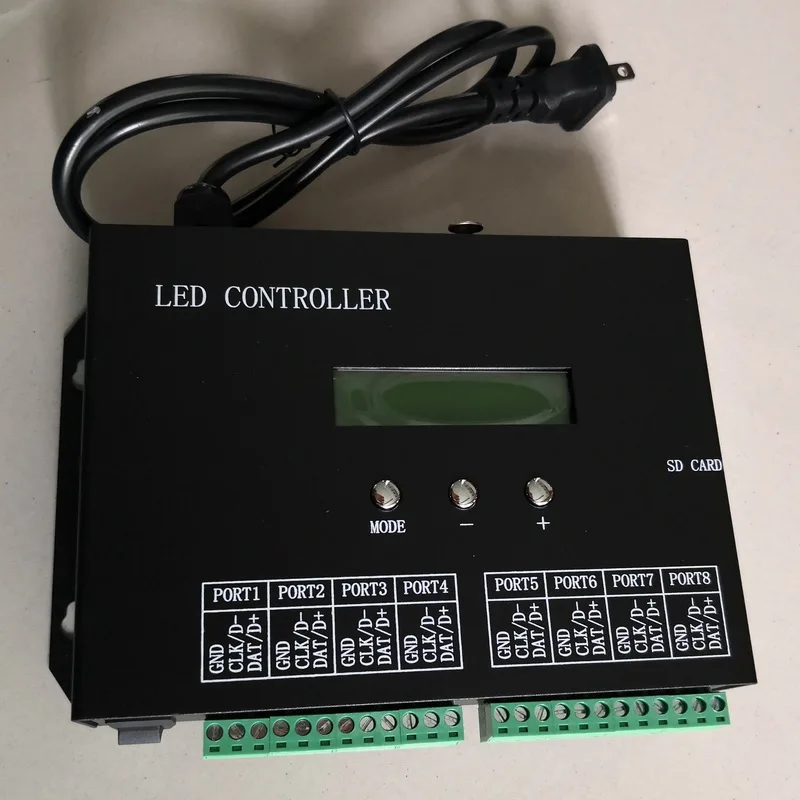

DMX Console dmx led controller can control 8x1024 pixel High quality SPI led controller with 8 outputs

Product Overview

Description





DMX LED controller , High quality SPI led controller with 8 outputs,
Can connect to DMX console,
8*1024ixels max



Introduction:
   YM-H803SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights.
   YM-H803SA can be connected to DMX console. Customer can adjust it via DMX console.



System Composition:

     This led control system is composed of two parts:
   1. YM-H803SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights. Under our own software LEDBuild, customers can realize many display effects, can play text, picture and video.

    2. LEDBuild—Installed on computer, program display effects of lights and transfer data to SD card then to put in master controller to playback to led pixel lights. The software only support Windows OS, not support MAC.



Specification and Parameter:

Item number	YM-H803SA
Working Voltage	AC110 / AC220V
Power Consumption	4W
Load Capacity	8,192 pixels/pc
Grayscale	R, G, B each 65,536 levels
Temperature	-30 – 70  ℃
Unit Size	L188x W135 x H40mm
Drive IC	LPD6803,LPD8806,LPD6812,LPD6813,LPD1882,LPD1889,LPD1883, LPD1886
	DMX512,HDMX,APA102,APA104,P9813,P9823,LD1510, LD1512,LD1530,LD1532,
	UCS6909,UCS6912,UCS1903,UCS1909, UCS1912,WS2801,WS2803,WS2811,
	DZ2809,SM16716,TLS3001, TLS3002,TM1812,TM1809,TM1804,TM1803, TM1914,
	TM1926,TM1829, TM1829,TM1906,INK1003,DM412,BS0825,BS0815,BS0901,
	LY6620, DM412,DM413,DM114,DM115,DM13C,DM134,DM135,DM136,74HC595,
	6B595,MBI6023,MBI6024,MBI5001,MBI5168,MBI5016,MBI5026, MBI5027,TB62726,
	TB62706, ST2221A,ST2221C,XLT5026,ZQL9712,ZQL9712HV etc.





 Features:

1. Perfect compatible with DMX512(1990) international standard protocol, and can be connected to DMX console.
2. YM-H803SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights.  With our own software LEDBuild, customers can realize many display effects, can play text, picture and video.
3. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
4. High speed photoelectric isolated signal input and output, to ensure the control system safety.
5. Control system realize RGB 65,536 grayscales each channel.
6. Project setting agility: realize adjust the brightness and speed separately.
7. Support SD card max to 32GB, and can play 64 files of DAT format max.
8. Playing speed is adjustable from 1 to 100 frames/s, and Brightness from 0 to 16.
9. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.
