CE 3000L/5000L большая многослойная машина для производства резервуара для воды на продажу
- Category: Extrusion Blow Molding Machines >>>
- Supplier: Ningbo Kinggle Machinery Co. Ltd.
Share on (62019453654):
Product Overview
Description
Product Description

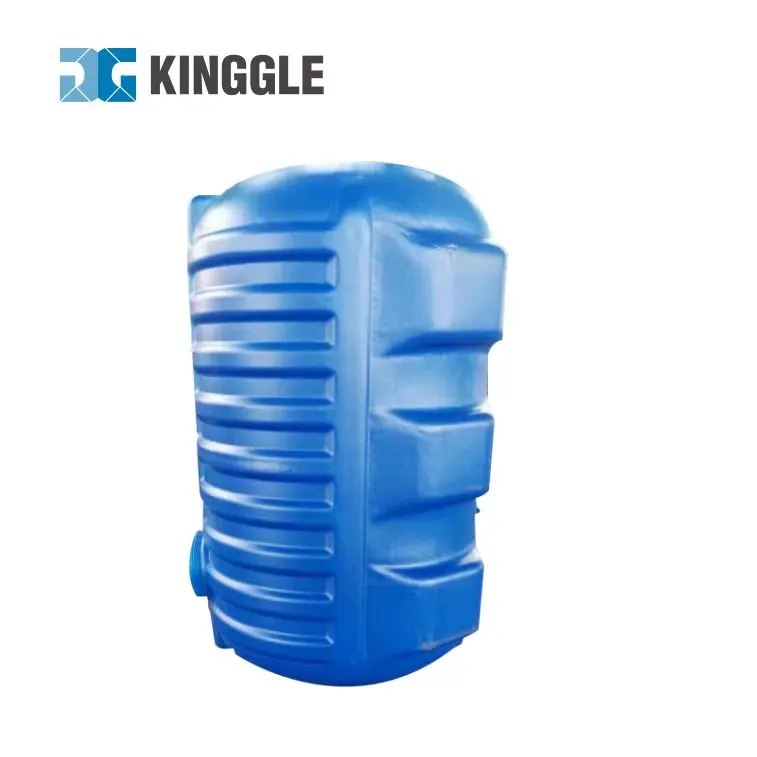

This model is fixed open-closing and accumulator die head series which adopts oblique arm double drawbar synchronous clamping mechanism, large space for the mold, clamping stable, durable mold platen, mold clamping by oil cylinder pressure directly. Accumulator die head can match with single layer and multi-layers. It can make 3000-10000L containers, special for large civil barrel, water tank, large outdoor toys and so on. Technical characteristics: Lock the mold by the center of the oblique arm, stable clamping force. The mold is not easy to deform.

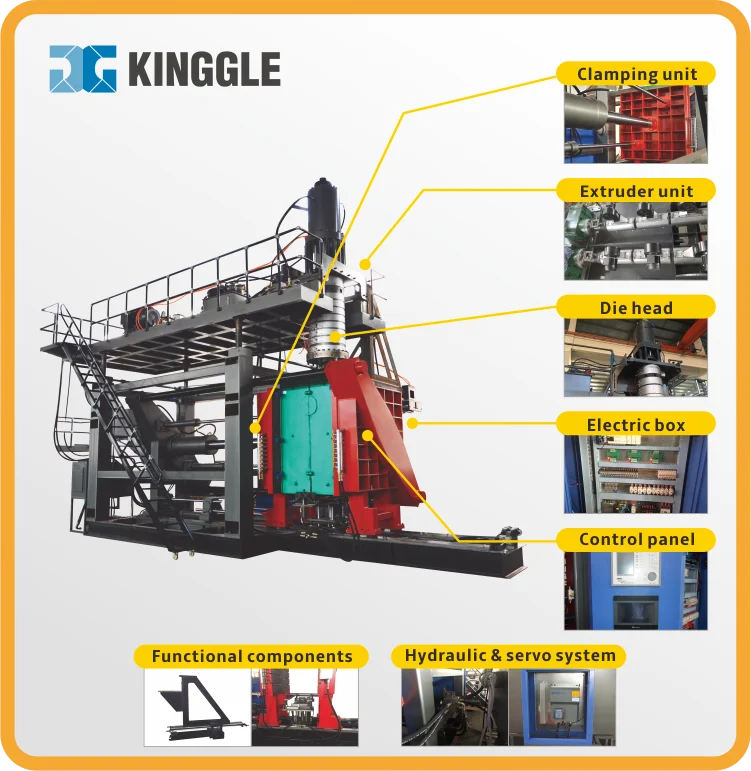

Main component brand
Technology
| Specifications | Unit | Special machine for bucket storang | |||
| Machiner model | PXB1000L | PXB3000L | PXB5000L | PXB10000L | |
| Material | PE,PP,ABS etc. | ||||
| Max container capacity | L | 1000 | 3000 | 5000 | 10000 |
| Machine dimension ( L×W×H ) | M | 9.5×5.1×6.5 | 9.5×5.8×7.5 | 11.0×6.5×8.5 | 14.0×8.0×12 |
| Machine Weight | T | 55 | 65 | 85 | 200 |
| Clamping unit | |||||
| Mold platen size ( W×H ) | MM | 1400×1600 | 1950×1950 | 2200×2400 | 3200×3000 |
| Max mold size ( W×H ) | MM | 1200×1500 | 1700×2200 | 2000×2600 | 3000×3200 |
| Power | |||||
| Servo oil pump motor power | KW | 37 | 37 | 45 | 45×2 |
| Average energy consumption | KW | 80-100 | 100-120 | 180-200 | 240-260 |
| Blow pressure | Mpa | 1 | |||
| Extruder unit | |||||
| Screw diameter | MM | 120 | 120×2 | ||
| Screw L/D ratio | L/D | 25:1 | 30:1 | ||
| Melting capacit for HDPE | KG/HR | 300-400 | 500-600 | 700-800 | 800-900 |
| Extruder power | KW | 90 | 110 | 90×2 | 132×2 |

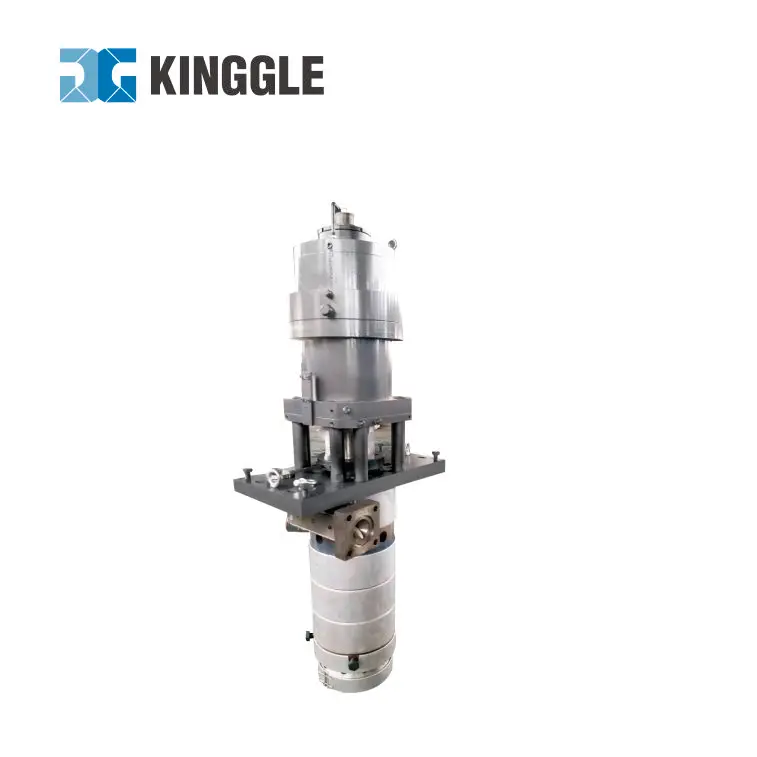

| Die head | |||||
| Max die-pin diameter | MM | 550 | 850 | 900 | 1200 |
| Accumulator capacity | L | 45 | 80 | 200 | 600 |
| Accumulator weight ( HDPE ) | KG | 33 | 60 | 150 | 450 |
Other Product types
 |  |  |
|  |  |
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours; |
2. 100% Quality inspection before the shipment; |
3. Can trainning clients operator for free in seller`s factory |
4. Engineer overseas is avilable |
5. Blowing mould and injection mould made orginal |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
8. Introduce our engineer come to customer’s factory working! |
Packaging & Shipping
Customer/ Exhibiton
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Kinggle machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods
is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service

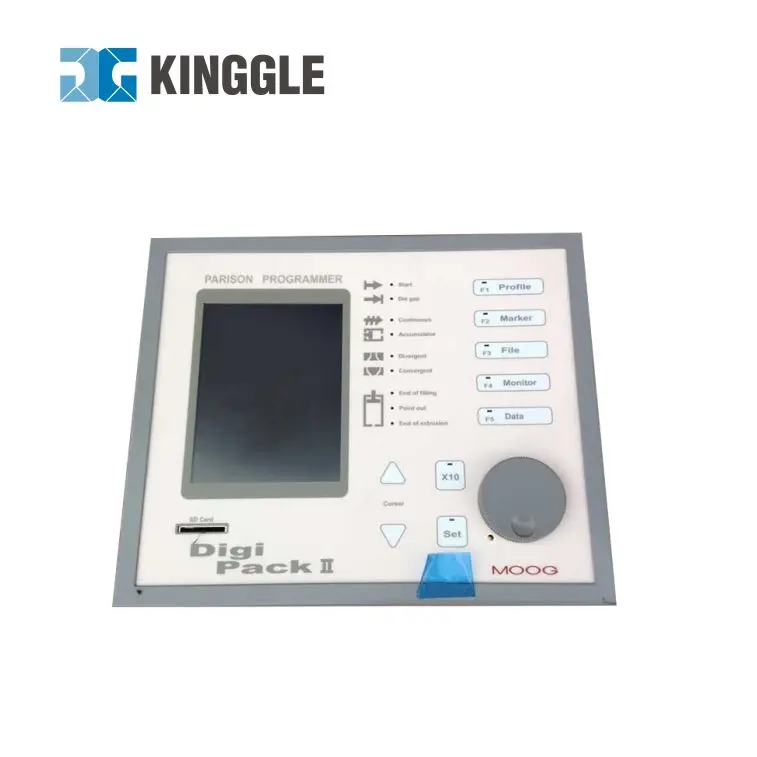

[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
