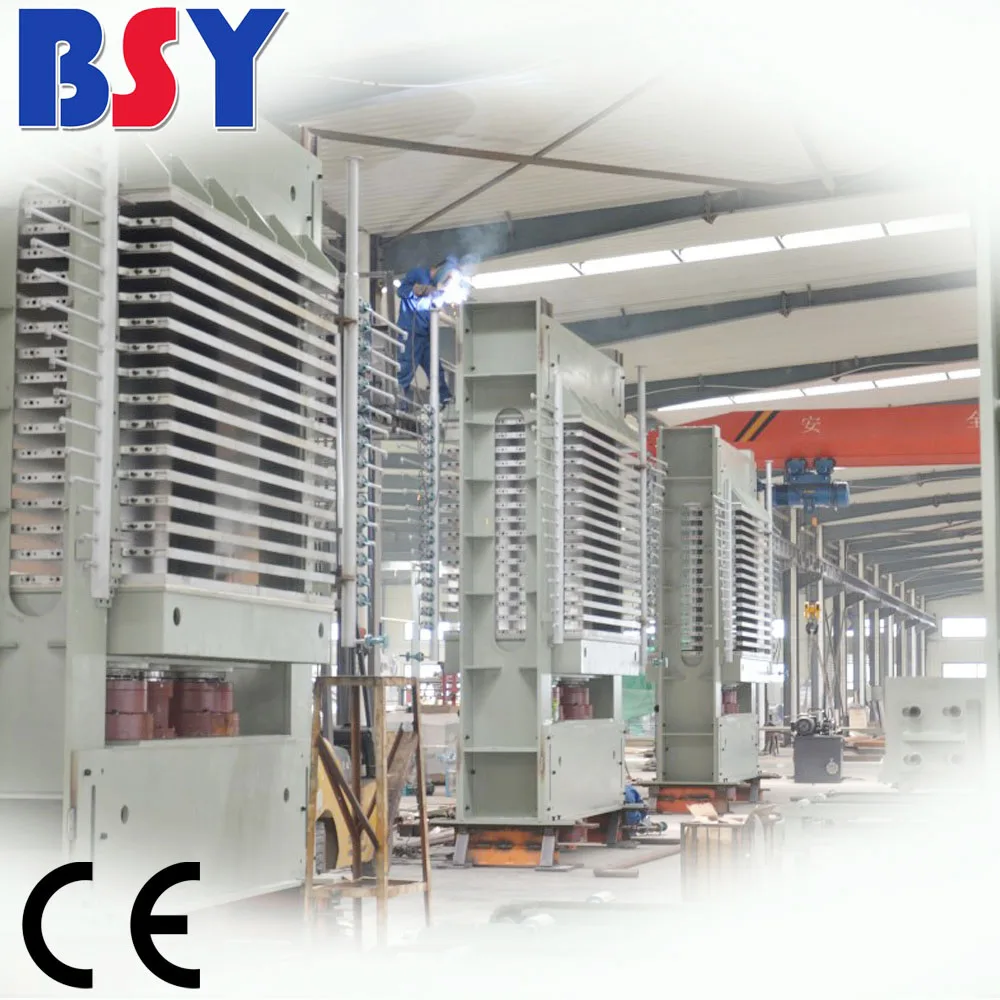

Hydraulic hot press for plywood
- Category: Wood Based Panels Machinery >>>
- Supplier: WEIHAI BAISHENGYUAN INDUSTRY CO. LTD.
Share on (62019650579):
Product Overview
Description
Product Description

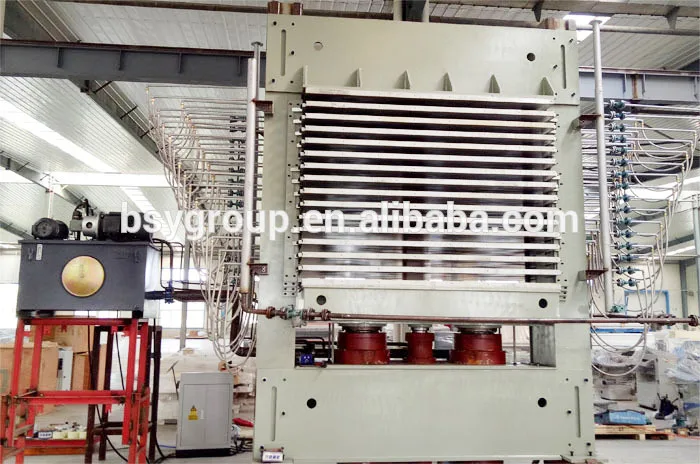

Hydraulic hot press for plywood
BSY Brand Hydraulic hot press for plywood is specially designed for plywood production industry.
The Hydraulic hot press for plywood use high quality steel plate for frame building, high quality cylinder and platen bought from professional manufacturer.
The Hydraulic hot press for plywood use SIEMENS operation system for press course controlling, greatly increase the success of board pressing.
Advantages:
1. High Tech: Machine use SIEMENS operation system for work controlling, easy operation and high working efficiency;
2. High quality: cylinder and platen supplied by professional supplier in China
3. Heavy duty: high quality steel plate used for frame building, whole machine wrights 38 ton;
4. High working efficiency: the use of high quality spare part and high tech operation system, greatly increase the success of board press;
5. Long working life
Detailed Images
SIEMENS Operation System with Touching Screen for Hydraulic hot press for plywood

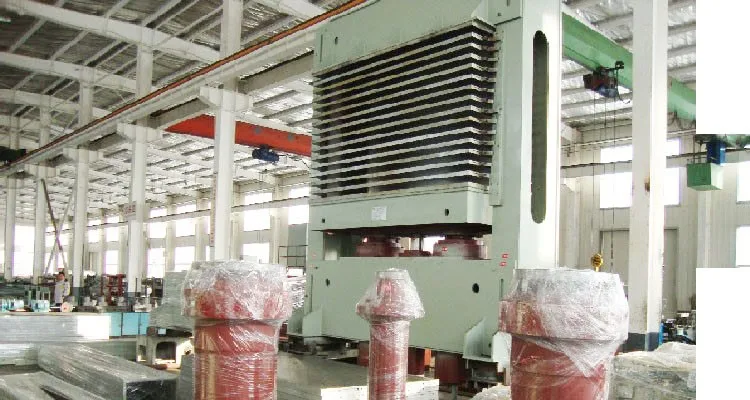

Cylinder from Wuxi, Alloyed material , scratch proof. Condensing cast iron solid plunger, Thick seamless steel pipe for cylinder body, Forged cylinder head.
Platen by Q345B Steel plate CNC machined,equal thickness 0.5mm, flatness 0.1mm, fineness 1.6. Double inlet & double outlet for oil circuit, each oil circuit has four controlling valves.

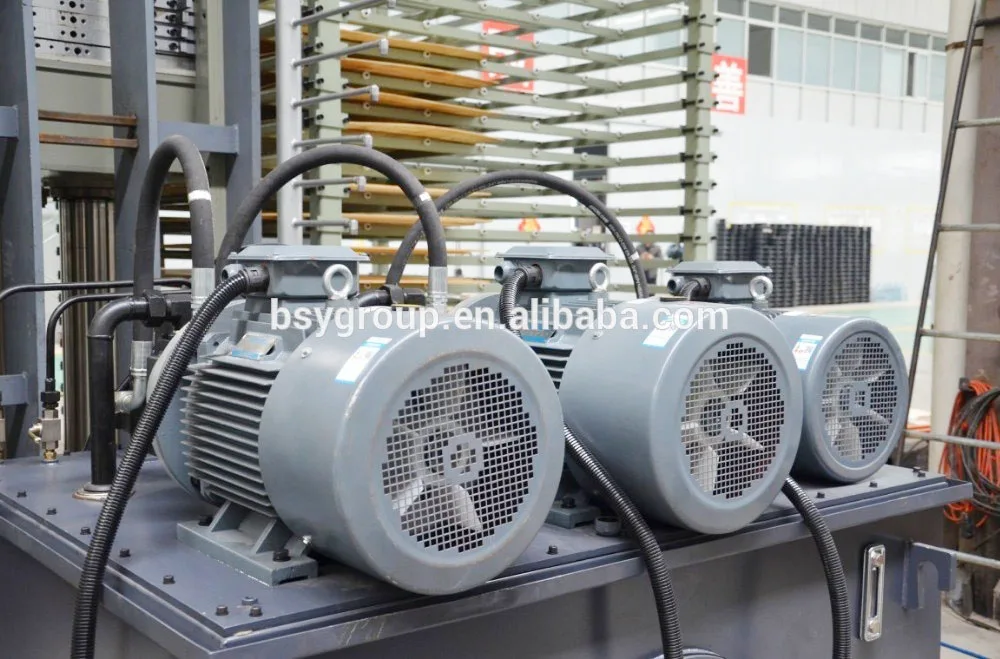

Japan YUKEN low pressure pump, Taiwan hydraulic valve group. for Hydraulic Unit
Frame & Basis also by Q345B Steel Plate welded for all parts, the angle adjustment is within ±2mm, the verticality of the four corners in the frame is within ± 1mm.

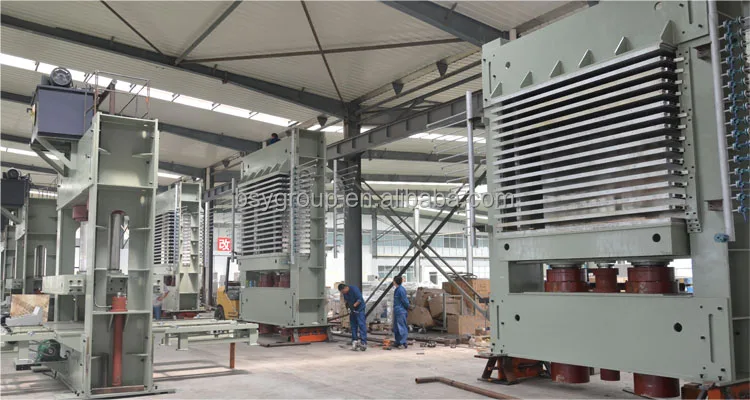

Double Frame Model for optional

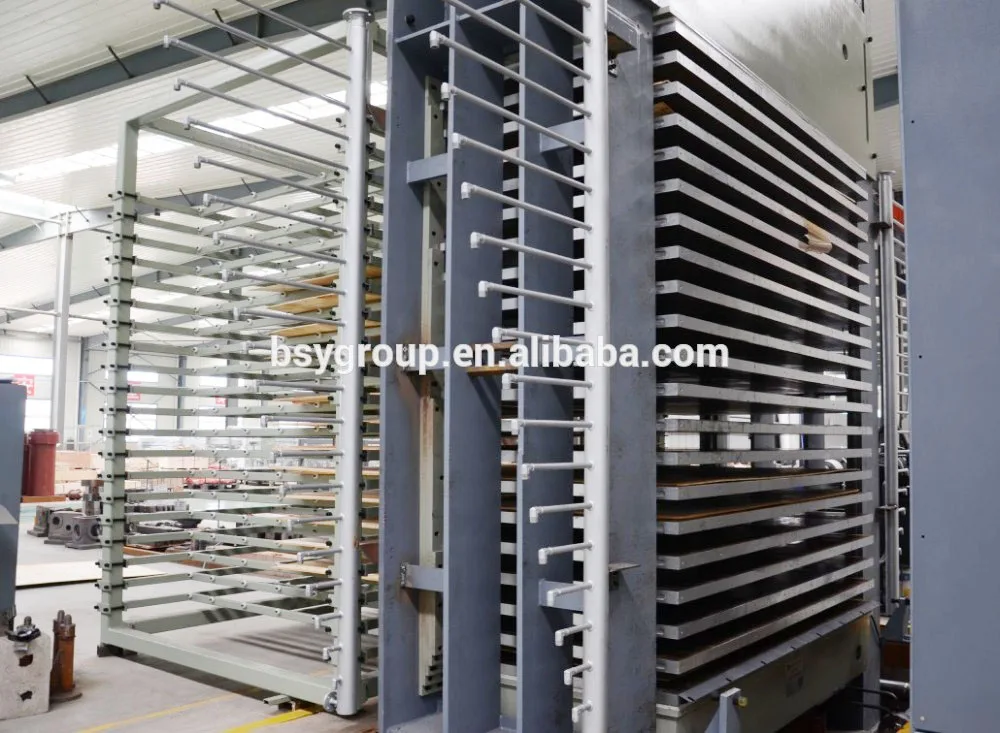

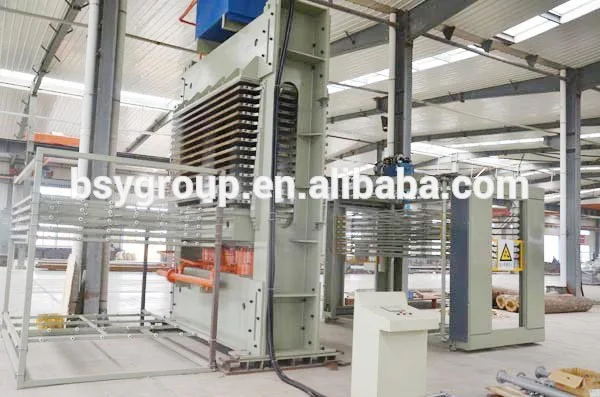

Semi auto loader for Hydraulic hot press for plywood optional
Full auto loader for Hydraulic hot press for plywood optional
Specification
Model | BY214x8/6A-15 | BY214x8/8B-10 |
Pressure: | 600ton | 800ton |
Platen size: | 2700*1370*42mm | 2700*1370*52mm |
Opening: | 70mm | 100mm |
Daylights: | 15 | 10 |
Cylinder: | 380mm*2pcs/180mm*1pc | 300mm*4pcs/190mm*1pc |
Working stroke: | 1050mm | 1000mm |
Max working pressure: | 25Mpa | 25Mpa |
Power: | 26kw | 33kw |
Closing speed: | 4m/min | 4m/min |
Weight: | 38000kg | 38000kg |
Dimension: | 5000*1446*5400mm | 5450*1850*4415mm |
Packing & Delivery
Packing & Delivery of Hydraulic hot press for plywood

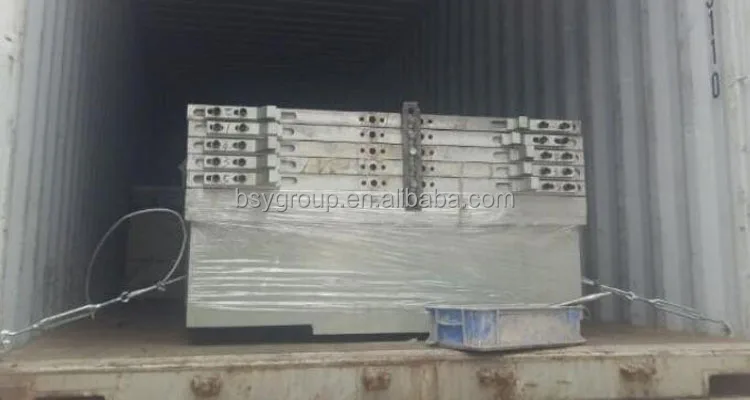

1. Machine will be dismantled for container loading, spare parts are fixed by cable inside container or packed by wood box
2. Delivery time: commonly about 40-60 working days
Our Company
Weihai Baishengyuan Industry Co.,Ltd
Professional Plywood Machine Manufacturer
Found in 1956;
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;

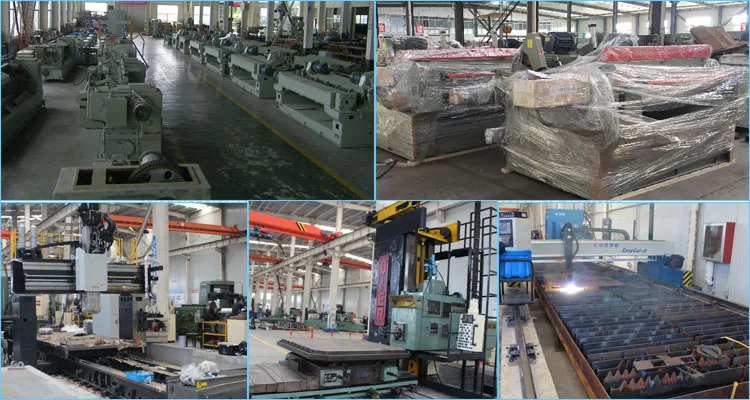

Production facilities: more than 80 sets;
Main Products:
Log debarker machine, Single-Chuck veneer rotary lathe, CNC Spindle less veneer peeling machine, Veneer Rotary Clipper, Automatic Veneer Stacker, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press for plywood, plywood Trimming Saw, plywood Sander etc.
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
Log debarker machine, Single-Chuck veneer rotary lathe, CNC Spindle less veneer peeling machine, Veneer Rotary Clipper, Automatic Veneer Stacker, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press for plywood, plywood Trimming Saw, plywood Sander etc.
Other Auxiliary machines for plywood production line.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own.
service technicians.
Welcome visit us for win-win cooperation.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own.
service technicians.
Welcome visit us for win-win cooperation.
FAQ
Who are we?
We are Leader manufacturer for plywood & wood veneer machine located in Shandong, China. Start selling abroad from 2006, has our own technical team, Production teams, Sales teams, and after-sales service teams.
What can you buy from us?
The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less Veneer Peeling machine, veneer rotary clipper, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
BSY Veneer & Plywood Machine Manufacturing since 1956. High quality, high auto level, high working performance, long working life and good after-sales service
What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
We are Leader manufacturer for plywood & wood veneer machine located in Shandong, China. Start selling abroad from 2006, has our own technical team, Production teams, Sales teams, and after-sales service teams.
What can you buy from us?
The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less Veneer Peeling machine, veneer rotary clipper, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
BSY Veneer & Plywood Machine Manufacturing since 1956. High quality, high auto level, high working performance, long working life and good after-sales service
What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
