K power DMC808 3kg torque metal gear coreless digital micro rc robot servo
- Category: >>>
- Supplier: Dongguan K-Power Technology Co. Ltd.
Share on (62019770489):
Product Overview
Description
Product Description

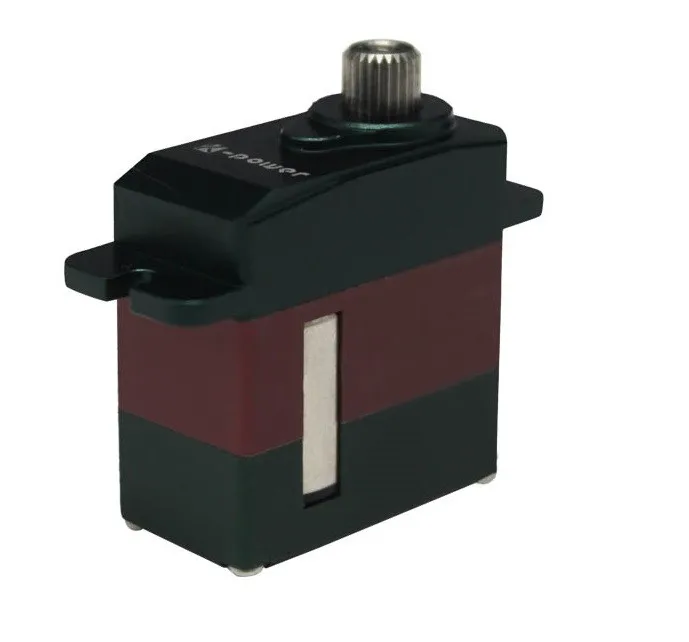

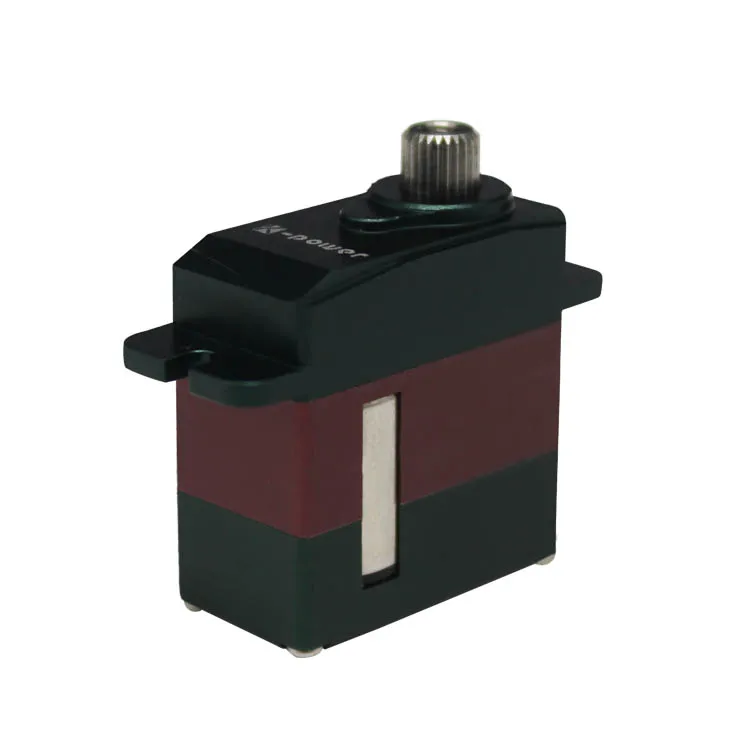

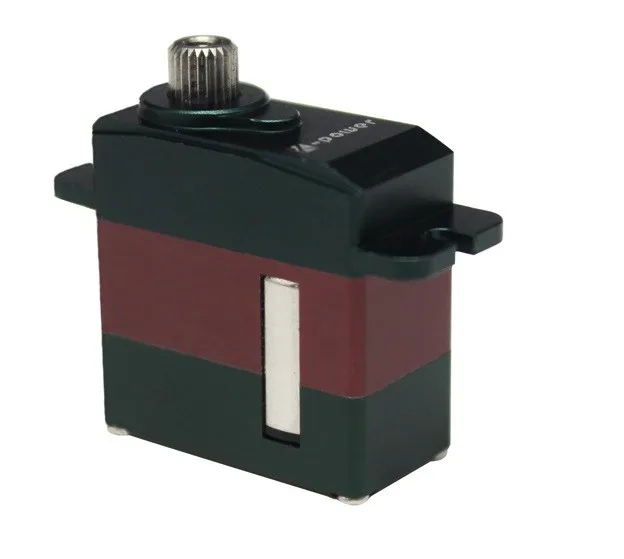

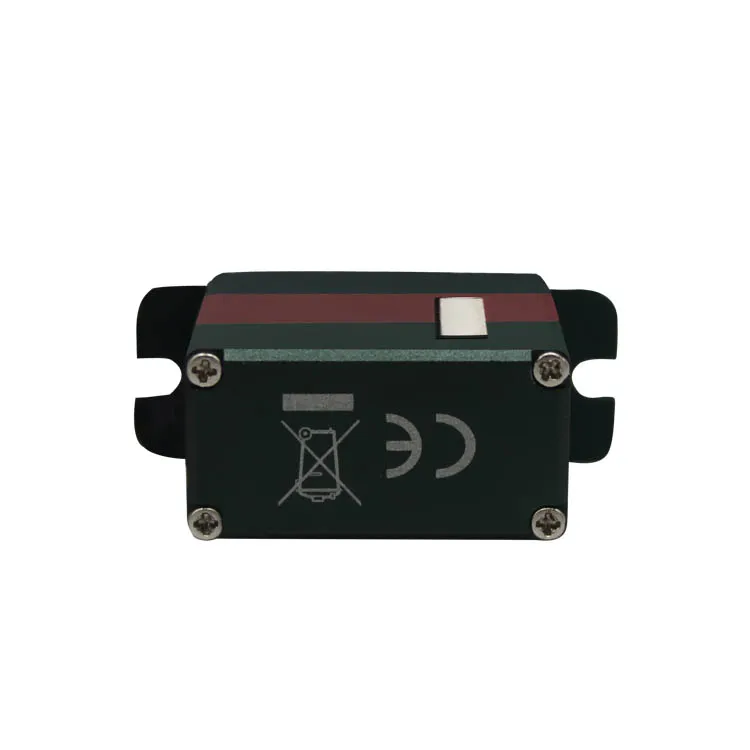

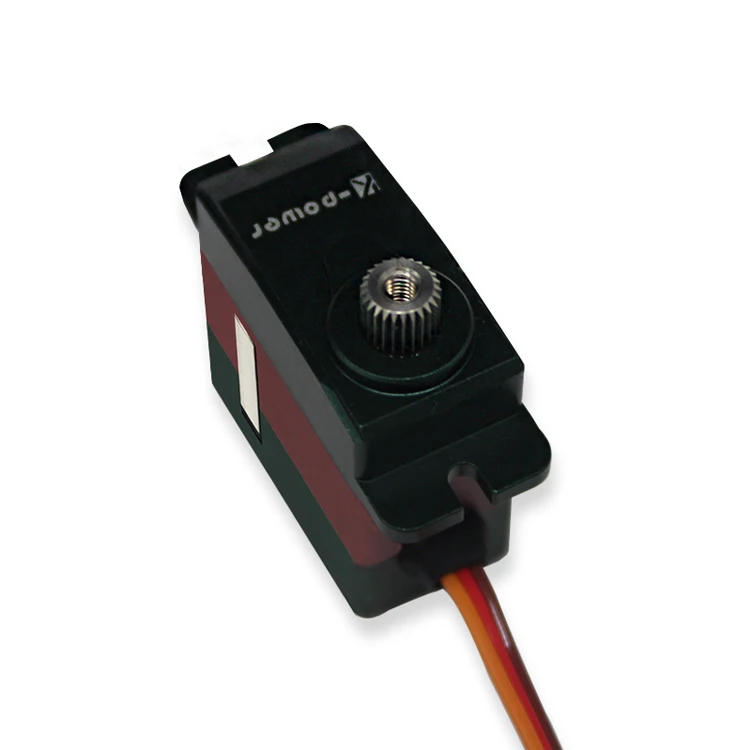

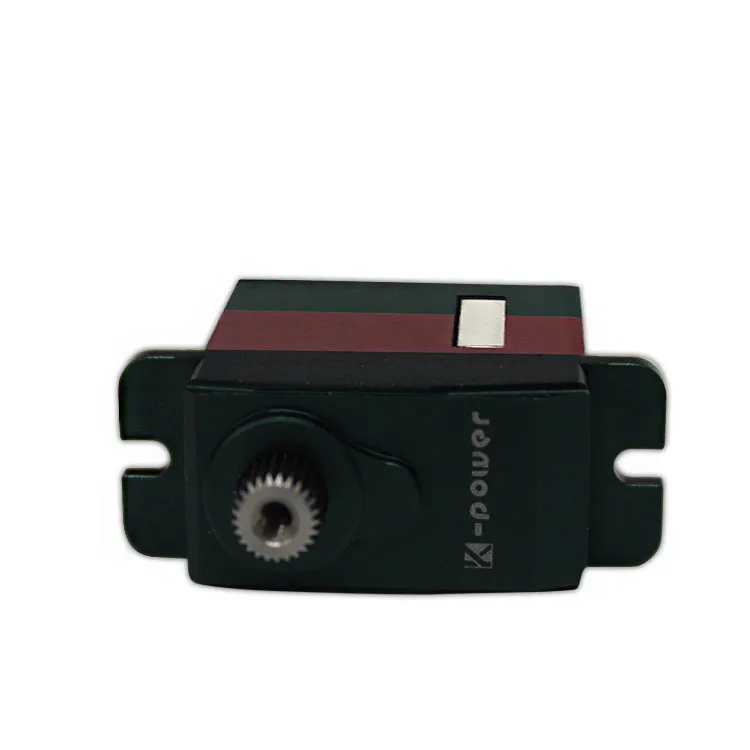

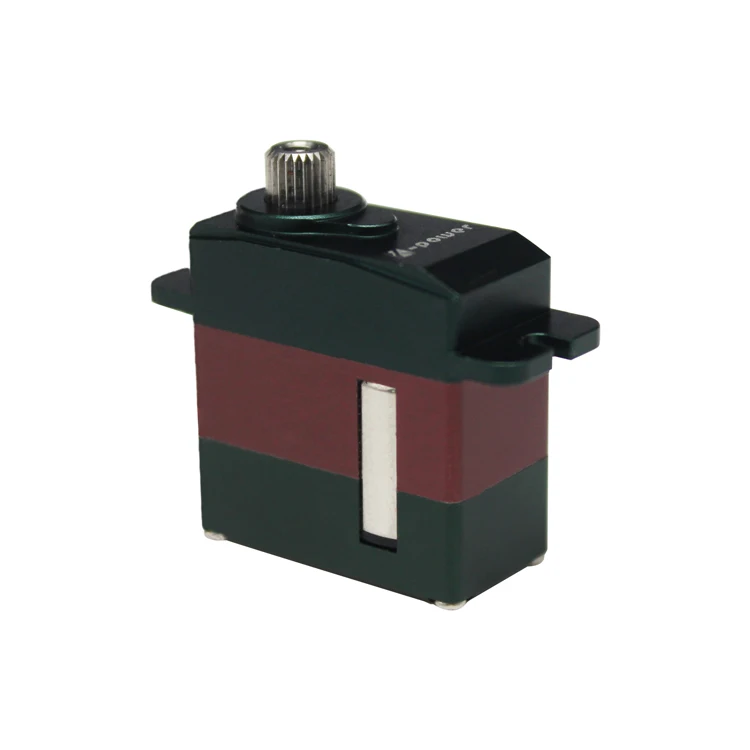

K-power DMC808 3kg torque metal gear coreless digital micro rc robot servo
Specifications:
Motor Type:Coreless
Case material:Aluminum Whole Case
Gear material:Titanium Alloy
Bearing Type:2BB
Weight:18g / 0.63oz
Dimension:23.2*12.0*23.6mm
Operation Voltage:4.8-6V
Torque:3.0kg-cm/4.8V; 3.8kg-cm/6.0V;41oz-in/4.8V; 52oz-in/6.0V
Speed:0.12sec/60 degree/4.8V; 0.09sec/60 degree/6.0V
Pulse Width:900-2100μsec
Dead band width:2μsec
Interface Type:JR / FT / JST1.5 / JST2.0 / Other
Operating Temperature:-20 to 60 centigrade
Splining:20T

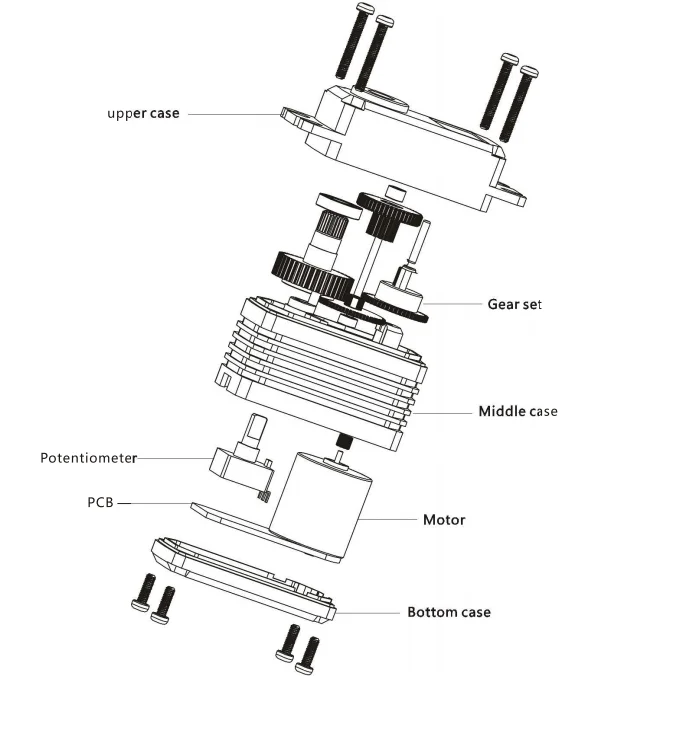

Detailed Image

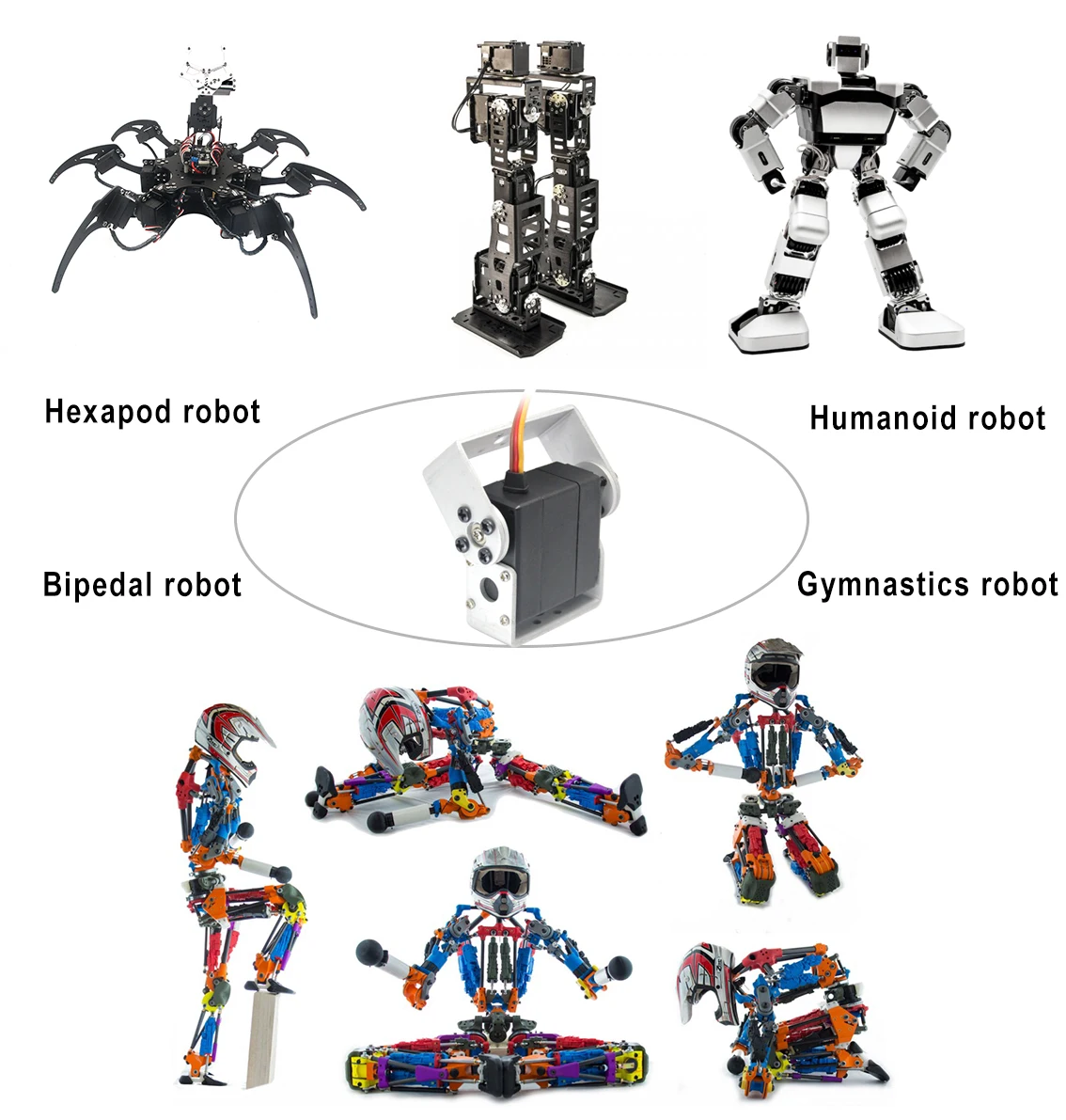

Servo applications
RC servo has a comprehensive application:
1) RC model, like RC plane, rc car;RC boat; RC helicopter
2) RC robots, like DIY STEM robot, robot arm, bio-robot, closestool cleaning robot, swimming pool cleaning robot, Desk robot,Robot Arm,
3) Smart home, like E-lock, smart lamp switch, intelligent thermostatic faucet, water valve controller,camera gimbal controller,smart bike, smart cabinet, floor mopping robot,
4)Agricultural equipment, like hay mover, seeding machine, Automatic fruit picker
5)Service Robot, like food delivery robot, Welcome robot, Intelligent electric car,
6)Industrial robot, like industrial robot arm, industrial vacuum cleaner
7)Automation equipment, like smart logistics site, Hand held automatic baler
1) RC model, like RC plane, rc car;RC boat; RC helicopter
2) RC robots, like DIY STEM robot, robot arm, bio-robot, closestool cleaning robot, swimming pool cleaning robot, Desk robot,Robot Arm,
3) Smart home, like E-lock, smart lamp switch, intelligent thermostatic faucet, water valve controller,camera gimbal controller,smart bike, smart cabinet, floor mopping robot,
4)Agricultural equipment, like hay mover, seeding machine, Automatic fruit picker
5)Service Robot, like food delivery robot, Welcome robot, Intelligent electric car,
6)Industrial robot, like industrial robot arm, industrial vacuum cleaner
7)Automation equipment, like smart logistics site, Hand held automatic baler
Servo Certifications
Our Company
KPower Technology Co., Ltd. established in 2005, is located in Hengli Town, Dongguan City, Guangdong Prov.. It is a smart modeling enterprise integrating R&D, production and sales of precision transmission systems, motor control systems and robot steering gears. The company has a R&D center in Nanshan, Shenzhen, with 12000㎡ manufacturing site in Dongguan. The square production site provides customers with customized solutions for transmission design and production assembly. It also cooperates with many well-known engineering college laboratories and research institutes at home and abroad in production & research and talent training exchanges.
As a High Tech Enterprise, we have strong and excellent R&D team, skilled and experienced workers in manufacture. After years of hard R&D and innovation, we have obtained more than 100 patents. By now, we have developed thousands of relevant servos for different industries, to meet the various application requirements of customers.
Our workshop
CNC DEPT.
GEAR PROCESSING DEPT.
WELDING DEPT.
ASSEMBLY DEPT.
QC DEPT.
WAREHOUSE

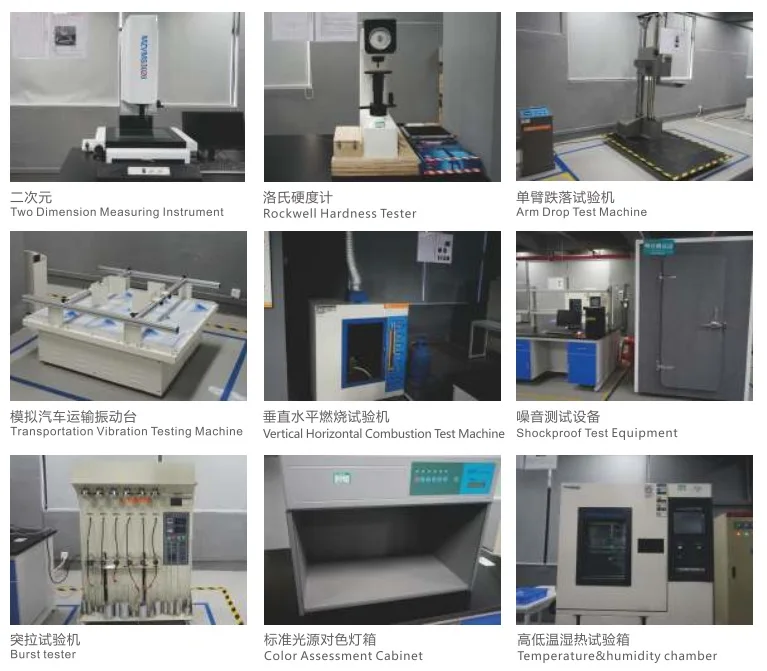

COMPREHENSIVE TEST LABORATORY

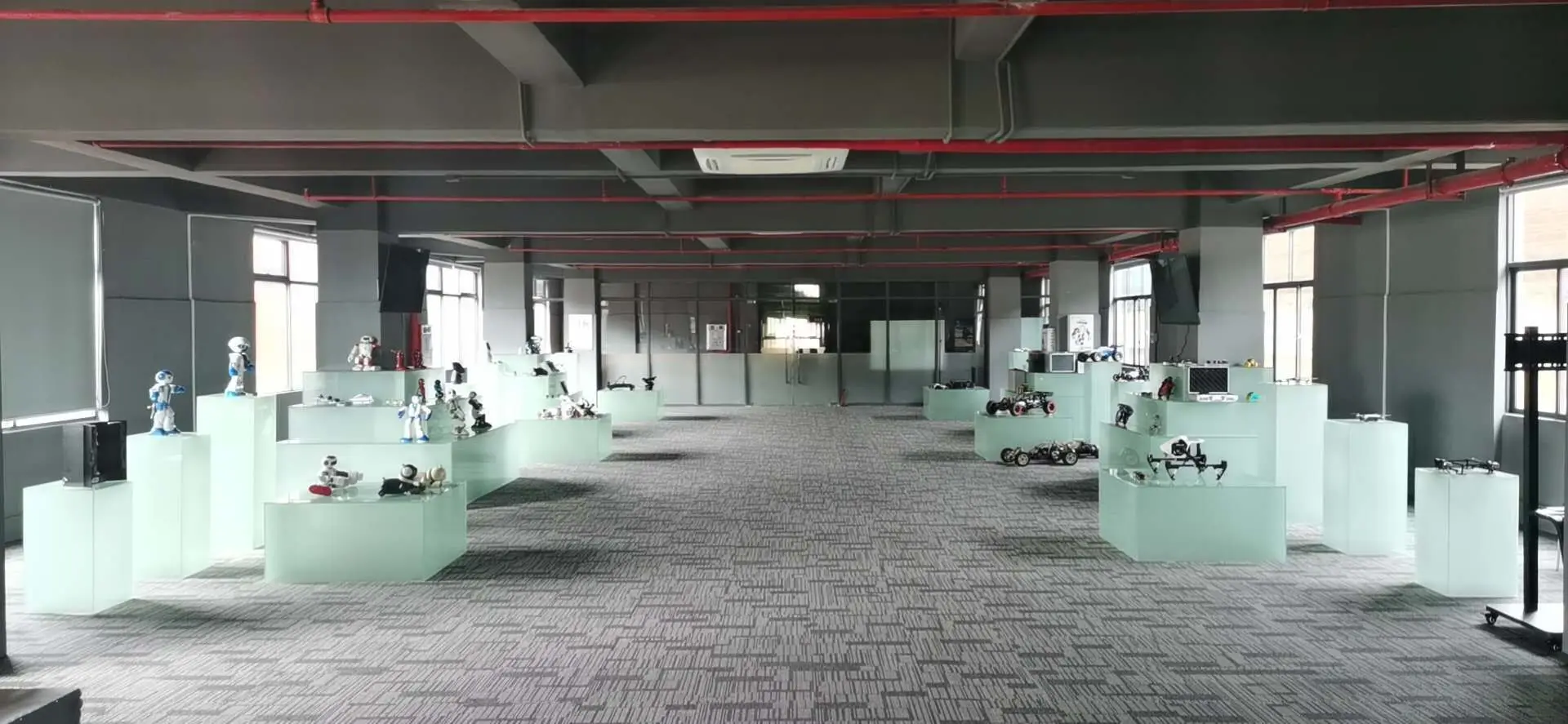

SHOW ROOM
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Customized servo, and offer sample testing support.
* View our Factory.
After-Sales Service
* Guarantee repair in one year.
* Engineers available to service operation.
FAQ
1.Are you a trading company or manufacturer?
-We are a manufacturer in China.
2. Can I OEM and print my own logo on the products?
-Yes, you can. Just provide us your design files, we will do all the rest for you.
3. How do I know if your products are of good quality?
-Sample order is acceptable for testing your market and checking our quality. And we have strict quality control systems from raw material incoming till finished product delivery out.
4. what is your mass production lead time?
Our production lead time is only around 7-15 days (according to the order QTY) .
5. Can I get a free sample?
-Some servos support free sample. Please contact us for more detailed information.
