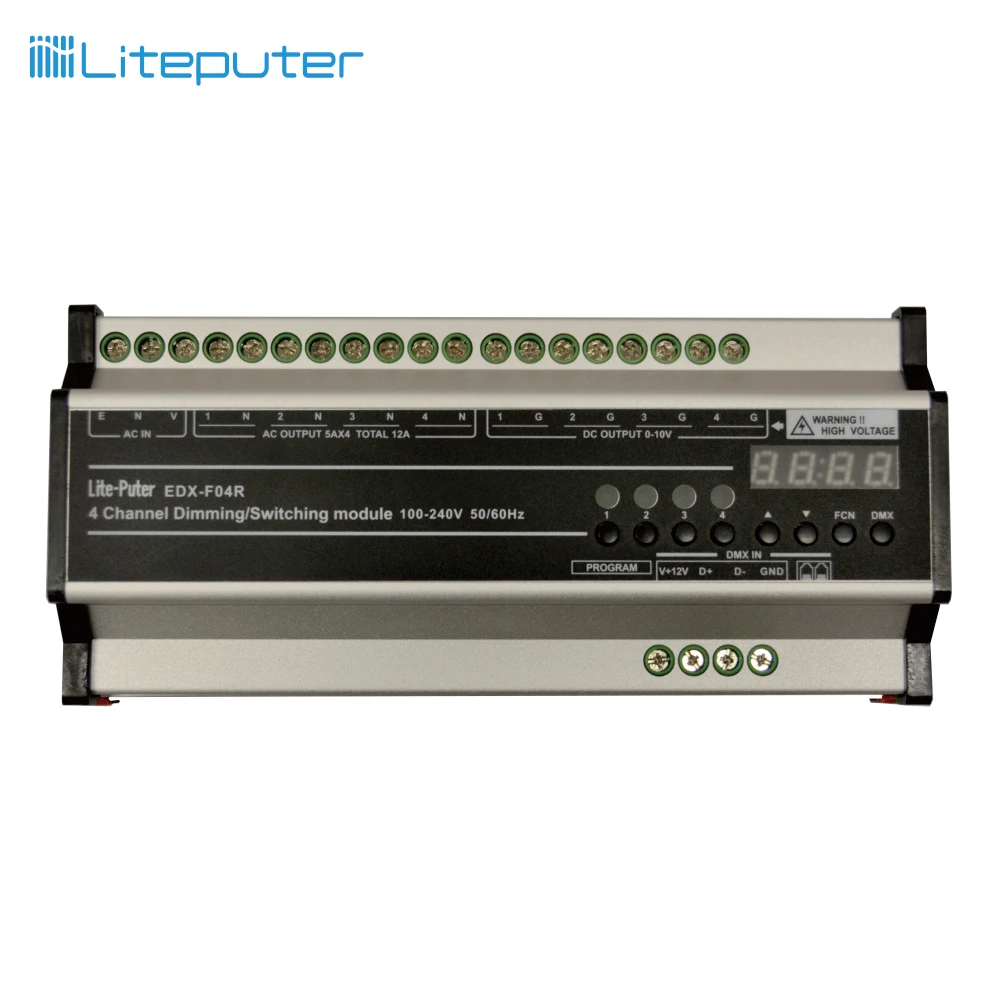

4 channel DMX 0 10V leading edge dimmer

Features

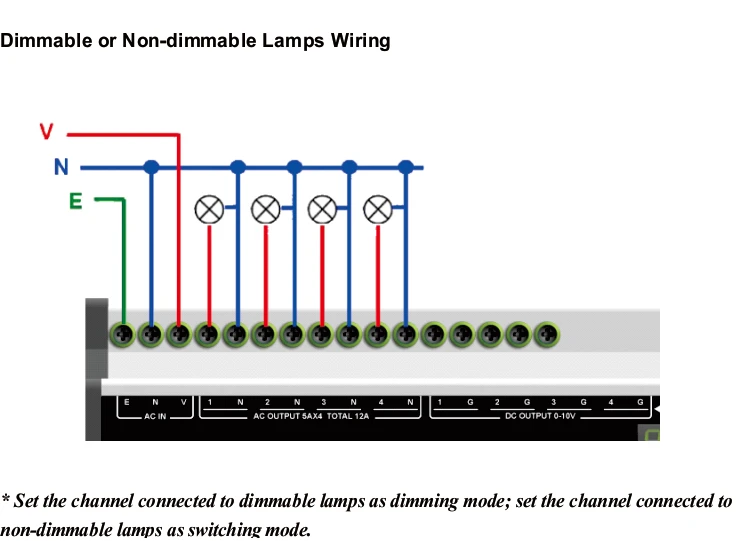

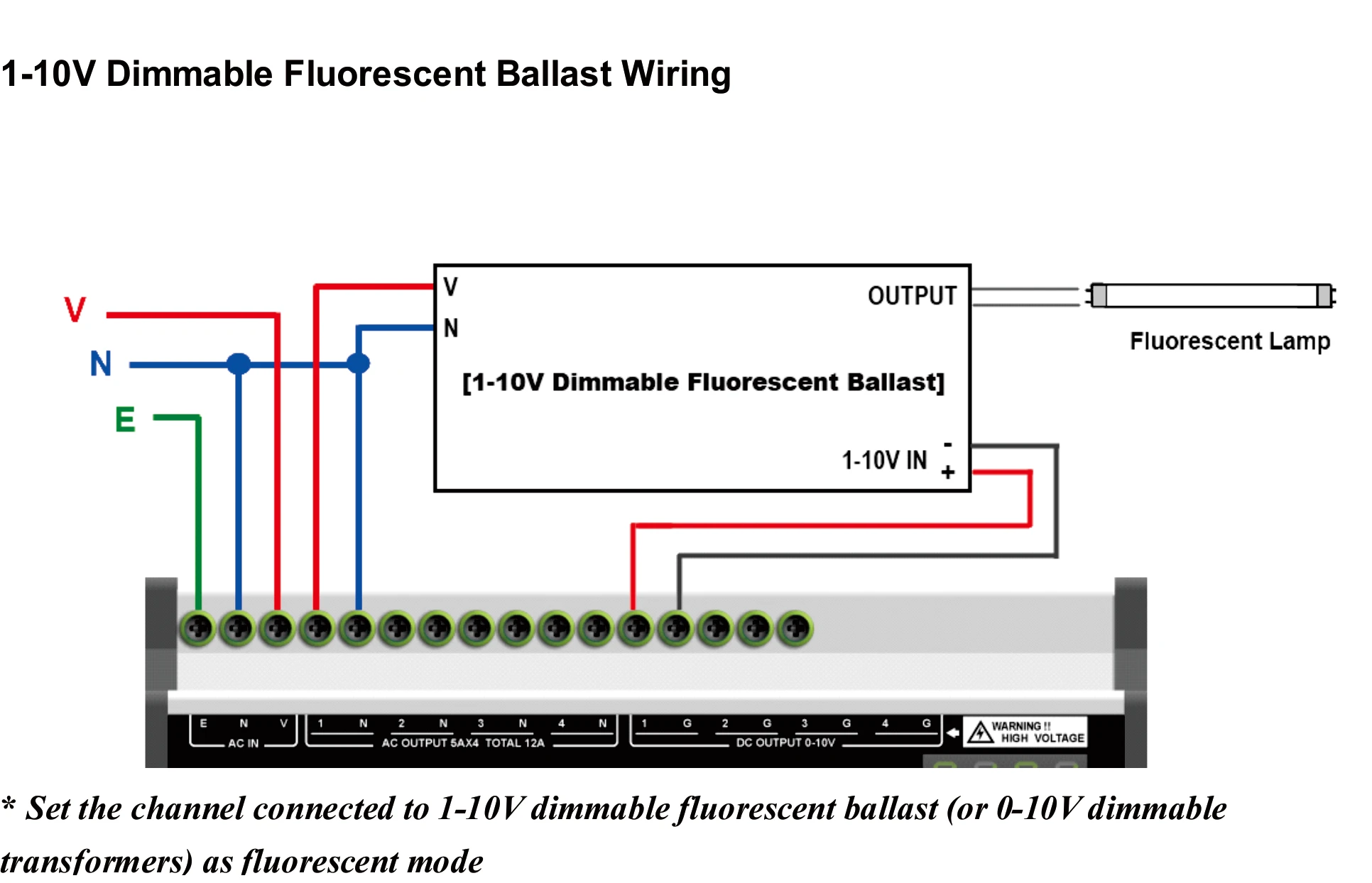

²  4 channels output. Each channel includes one AC OUT power supply for fluorescent lamp and one DC 0-10V for fluorescent/LED dimming. It also can be the dimmer pack for conventional (incandescent) lamps.

²  Can set the OFF time for AC OUT power from 1 second to 99 seconds.

²  Can set the fade time for each scene.

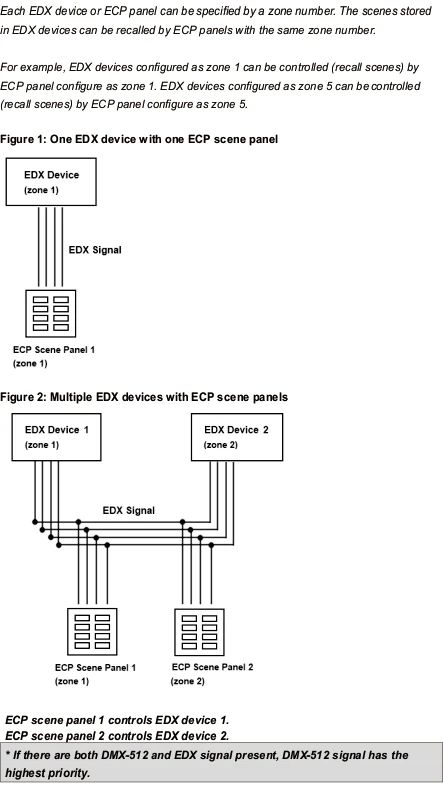

²  Up to 99 zones and 6 scenes.

Specifications

²  Power supply: AC 100-240V

²  Output: 4 channel leading-edge or DC 0-10V dimming outputs

²  Protocol: DMX512/ EDX

²  Capacity: 4 channels, 5A per channel, total 12A max.

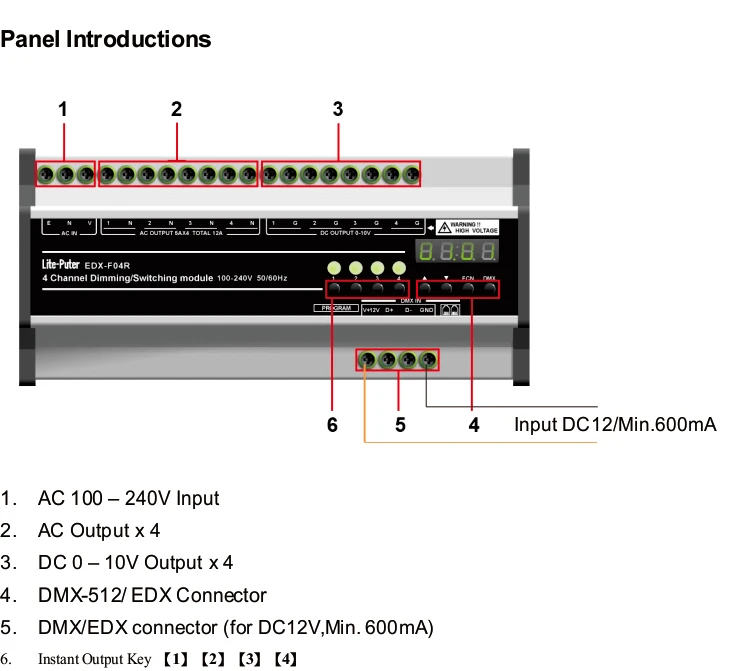

²  Digital signal connector: 4-pin terminal/ RJ-12

²  Dimension: 190(W) x 88(H) x 57(D)mm

²  Weight: 590g

Lite-Puter designs various lighting controller, driver and dimmer pack for you.

With cutting-edged technology, R&D team and 40-year knowhow in professional stage and architectural lighting control field, Lite-Puter can meet your special order request in the most efficient way.

We can provide the following services:

n  System design

n  Customized circuit diagrams planning

n  PCB layout

n  Software design

n  Small-scale production

n  Reliable test for all manufactured item

n  Mass production

Lite-Puter has served 5-star hotel brands for 40 years, including Marriott, Starwood, Hyatt, Hilton, Shangri-La, Banyan Tree, Lalu Hotel, and etc. With Lite-Puter’s whole house solution, you can enjoy the same exquisite lighting atmosphere at home with affordable price.

Long-term Commitment and Innovation

Lite-Puter has been famous in international lighting control field since 1978. Our customers can get the latest news and fastafter-sales service easily from our worldwide network. We constantly launch new products and pioneers in the lighting controlmarket.

Prizes and Awards

Lite-Puter won many prizes, including Rising Star Award, Taiwan Symbol of Excellence, PLASA Award for Product Excellence, Innovation Research Award and Good Design Award.

Q1: Do you have design and development capabilities, and accept customized orders?

A: Yes, we have professional R&D team with more than 40 years experience and we make customized products. Please contact us for more details.

Q2: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers.

Q3: How is the lead time?

A: For standard product, it usually takes 3-5 days. For OEM/ODM product, it takes about 4-6 weeks depends on the item series.

Q4: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, TNT, FedEx, and takes about 3-5 days by air. Sea shipping is also optional but will take longer.

Q5: If I want to visit you to learn about the lighting system, where should I go?

A: We have two offices in Taipei and Shanghai and both owns full team in service. We also regularly exhibit in various events. Please check our website for updated information.

Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Can I get a sample to check ?

A: We are glad to offer you samples for test. Please leave us your message and we will have sales representative to contact with you.
