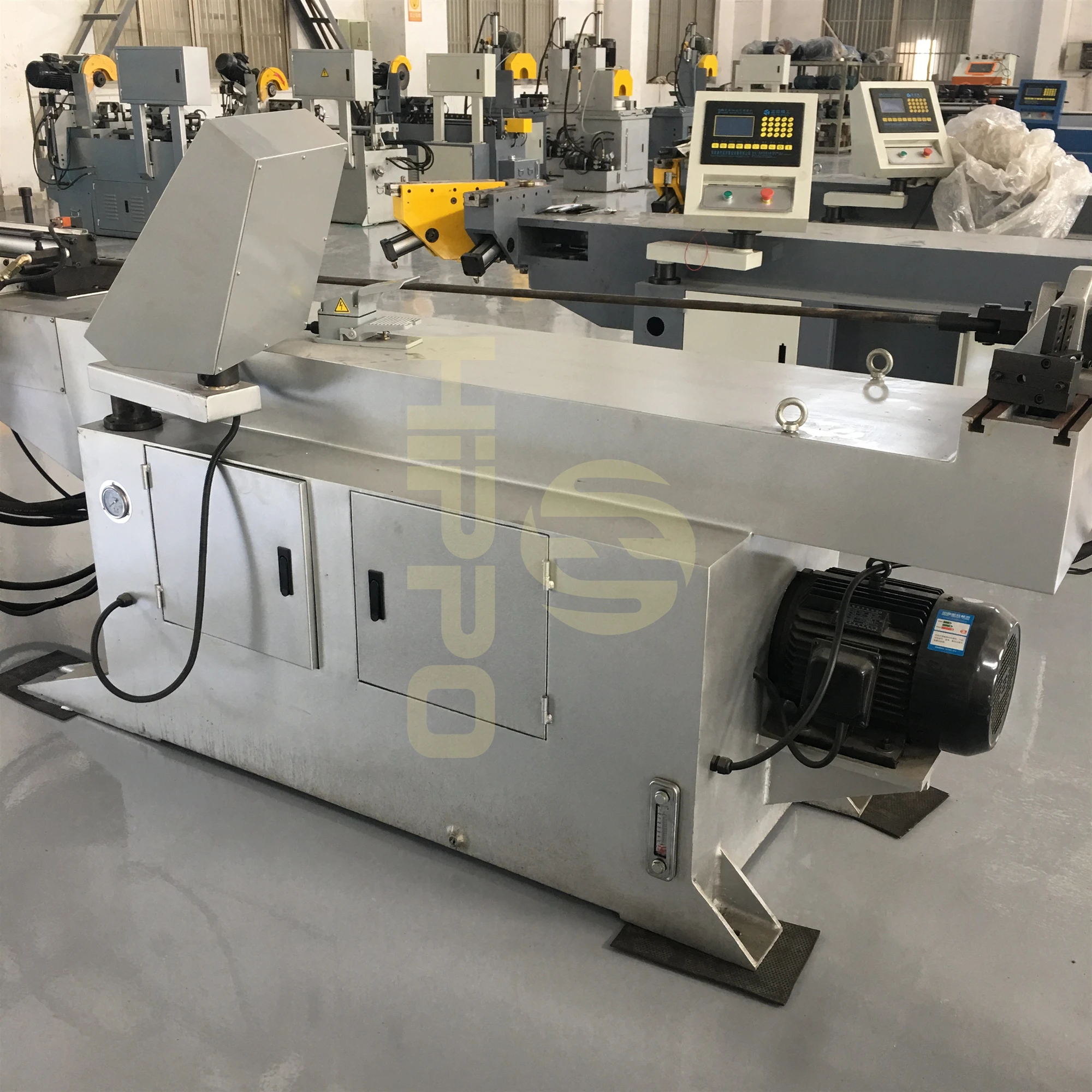

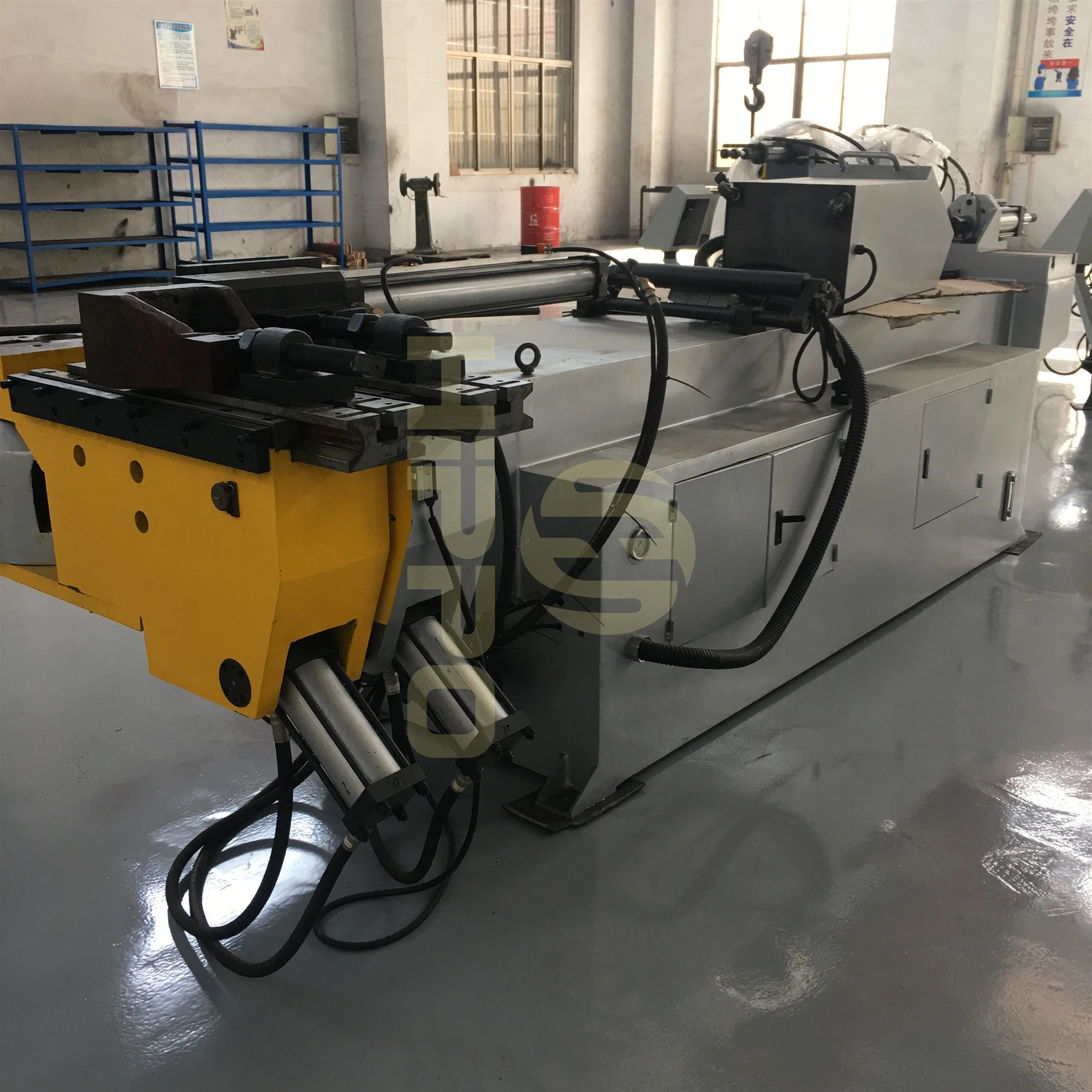

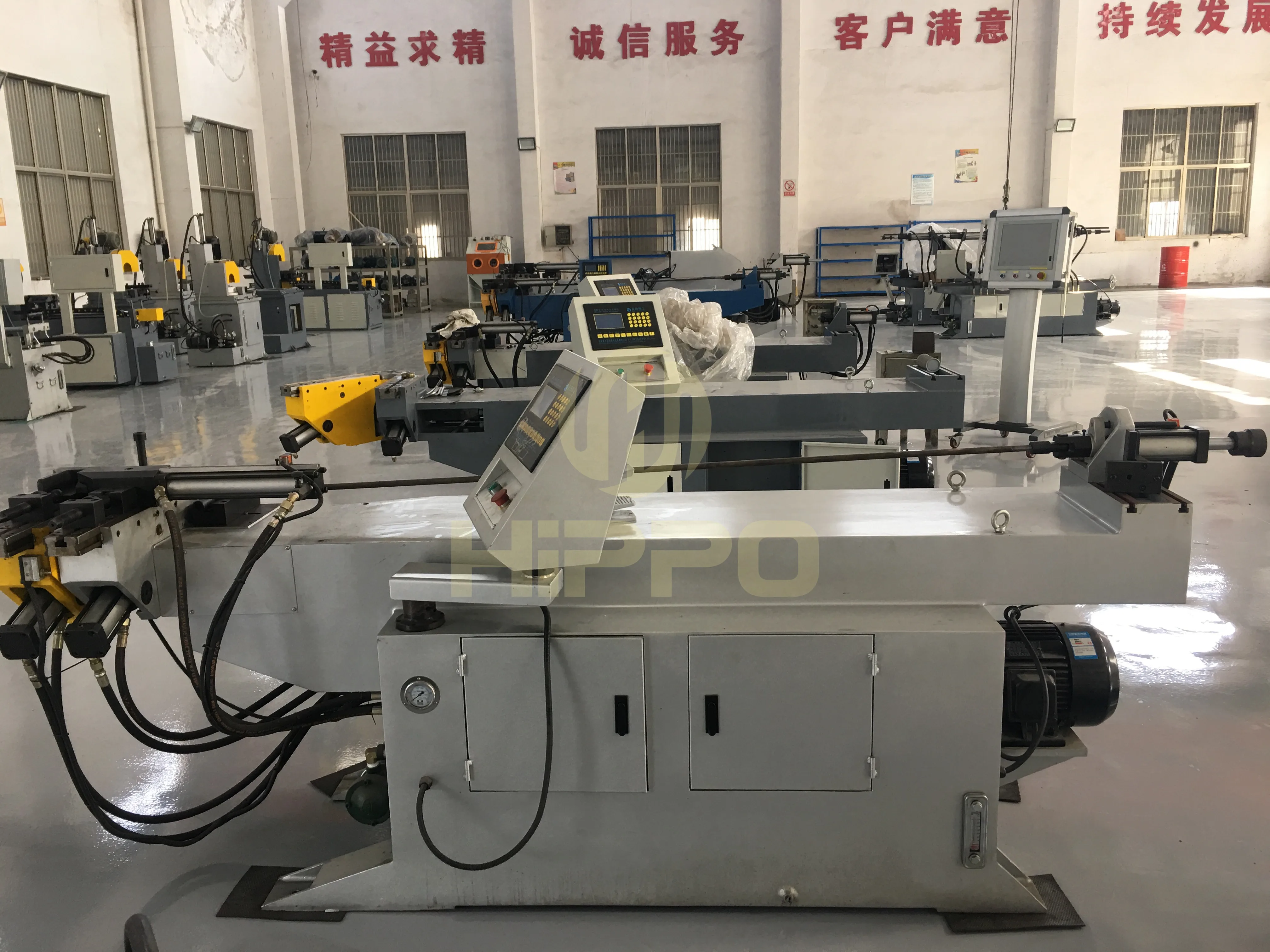

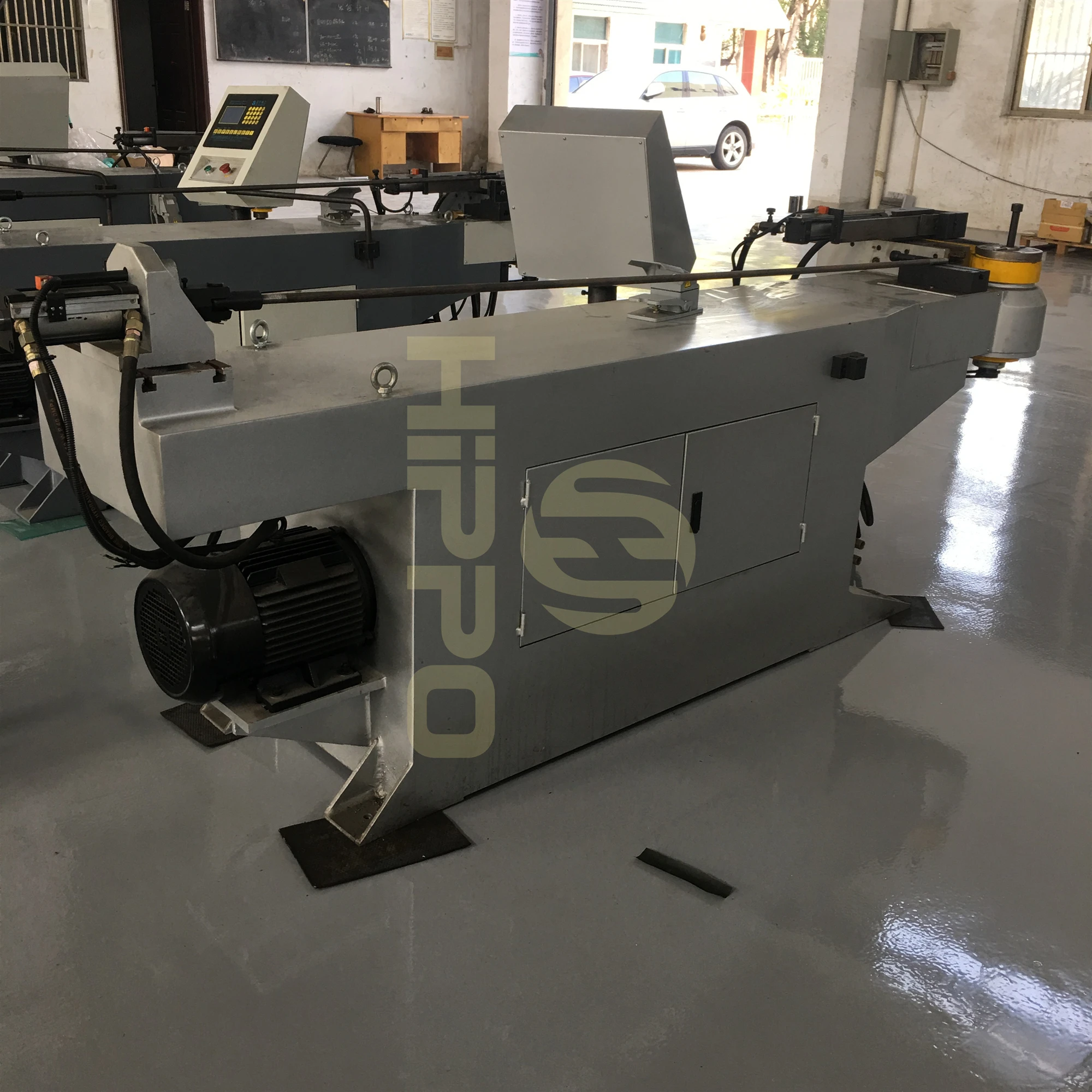

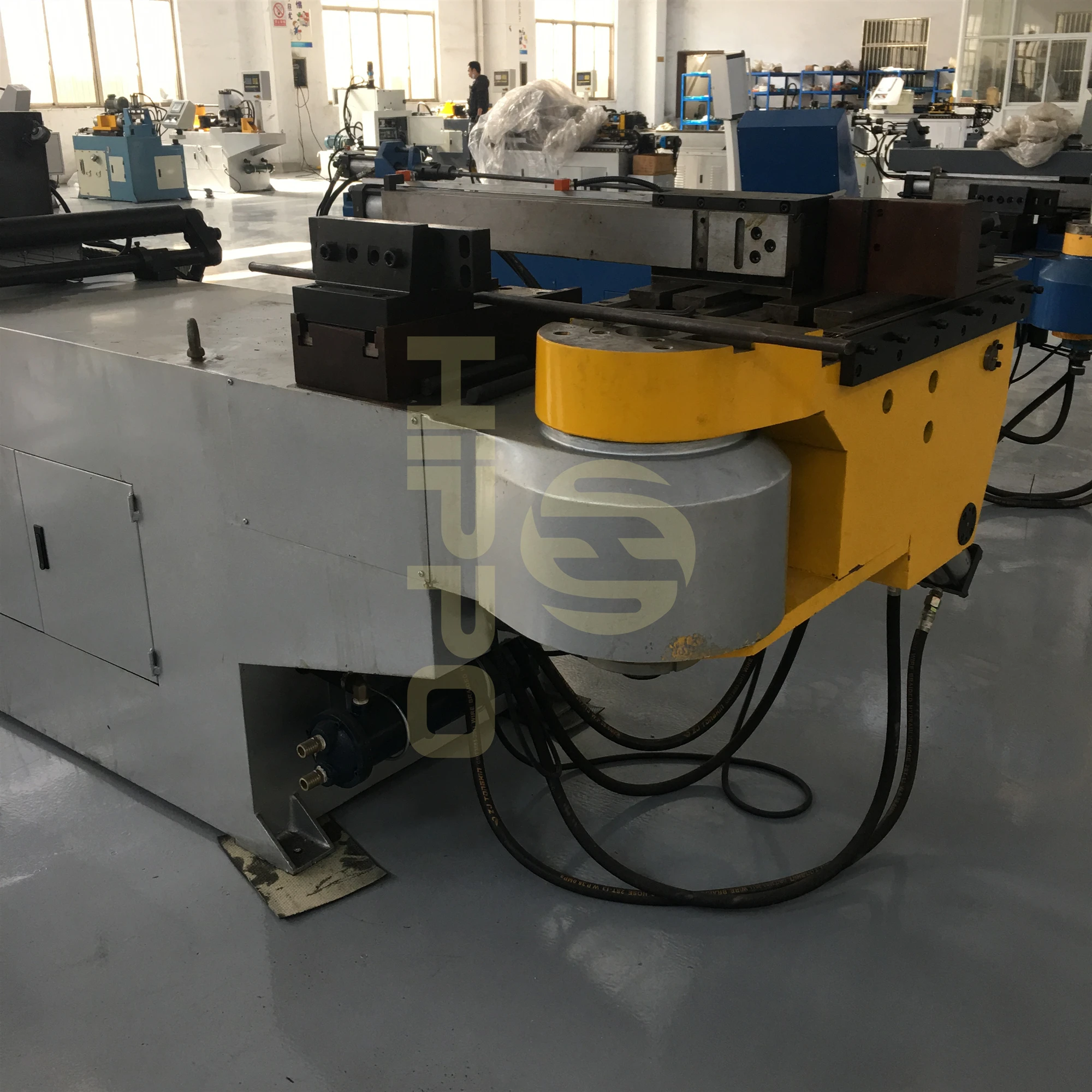

single-head hydraulic pipe bender is controlled by microcomputer and driven by hydraulic pressure.
It is easy to operate and can bend automatically. It has high bending accuracy and cost efficiency.
It is a practical semi-automatic solution for small and medium-sized products.
It can be used for various specifications of thick-walled or thin-walled pipes (stainless steel pipes, carbon steel pipes, copper pipes, aluminum pipes, galvanized pipes, titanium pipes, lead pipes, etc.)
Applications：
1）furniture/chair/school desk
2）car engine oil tube/ car seat frame/ car headrest/ car exhaust muffler pipe/ car bumper /car turbo horse/ car towbars
/car hood support rod/ car air conditioning pipe/ car door lock lever/car brake pipe
3）heat exchanger/ condenser/boiler
4）baby stroller/wheelbarrow/bicycle handlebar/ luggage case frame/fitness gym equipment
etc.
FEATURES
* Integrated body, welded with high-strength steel plate, sturdy structure, providing maximum operating space

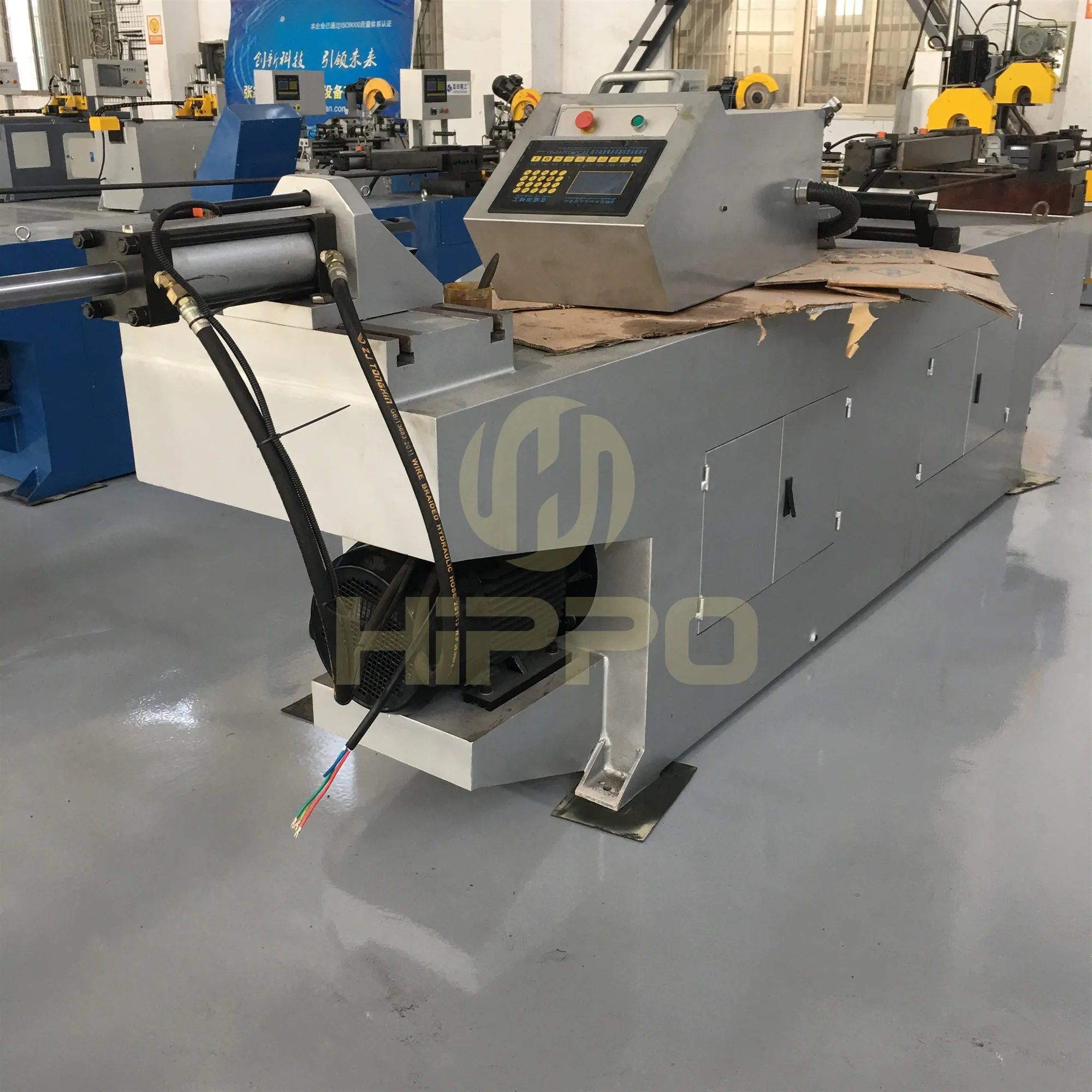

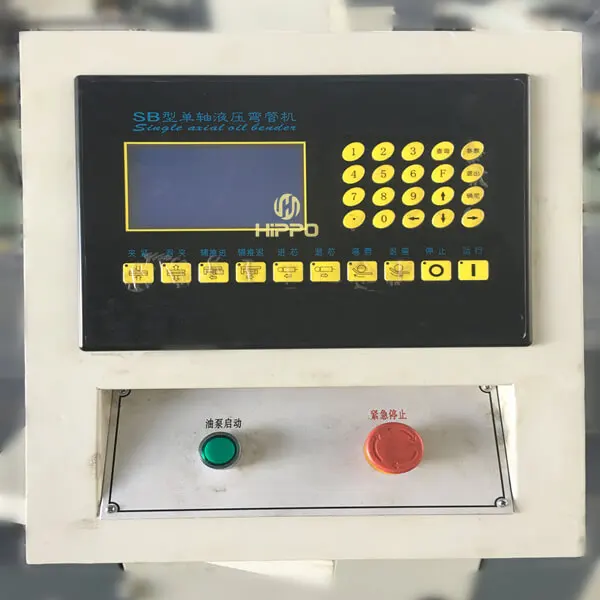

* Equipped with single-chip microcomputer control system, English display on screen, easy and convenient operation, flexible setting
* Bending angle uses encoder to track and feedback information, high bending angle accuracy

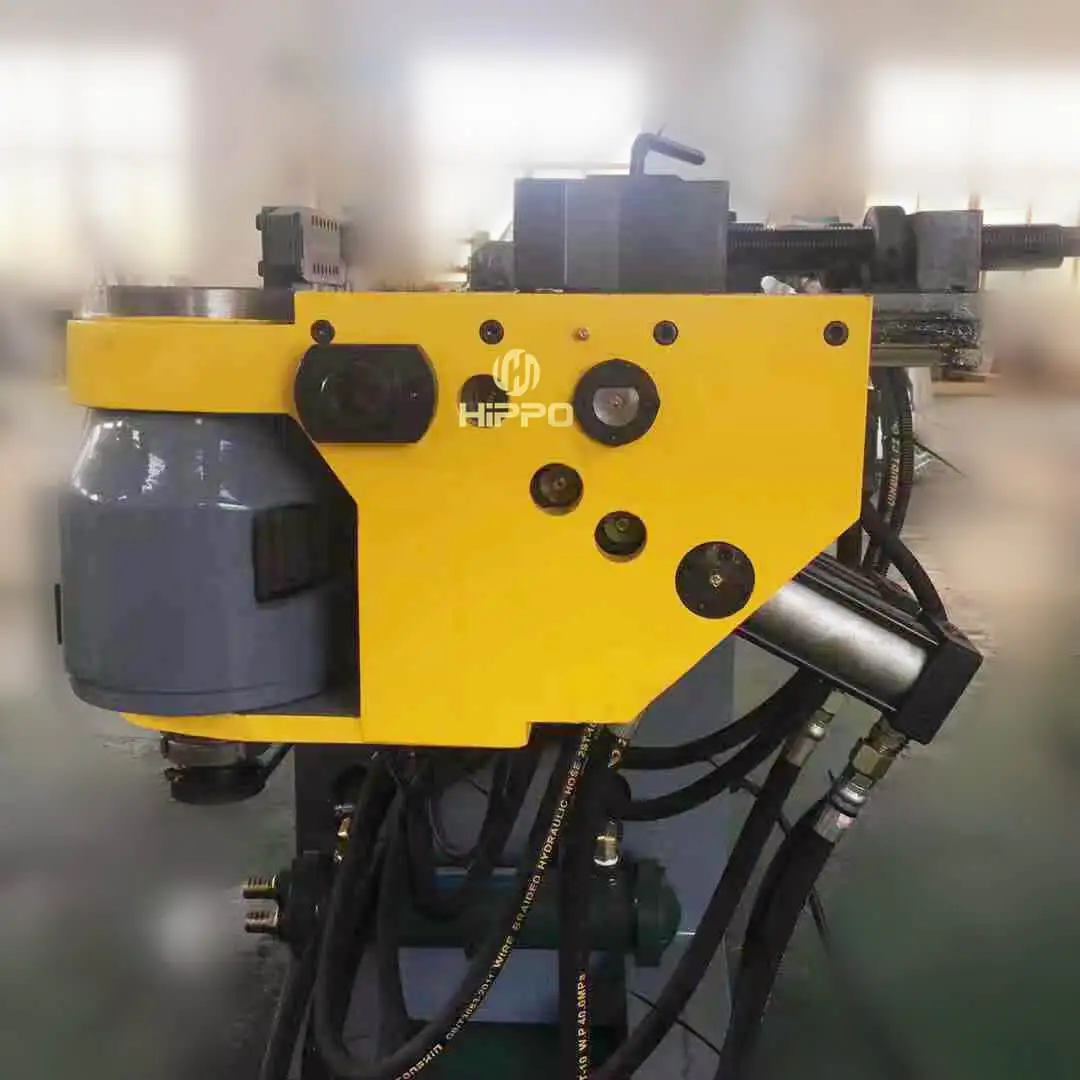

* The bending arm adopts imported silent high-intensity rack and pinion transmission

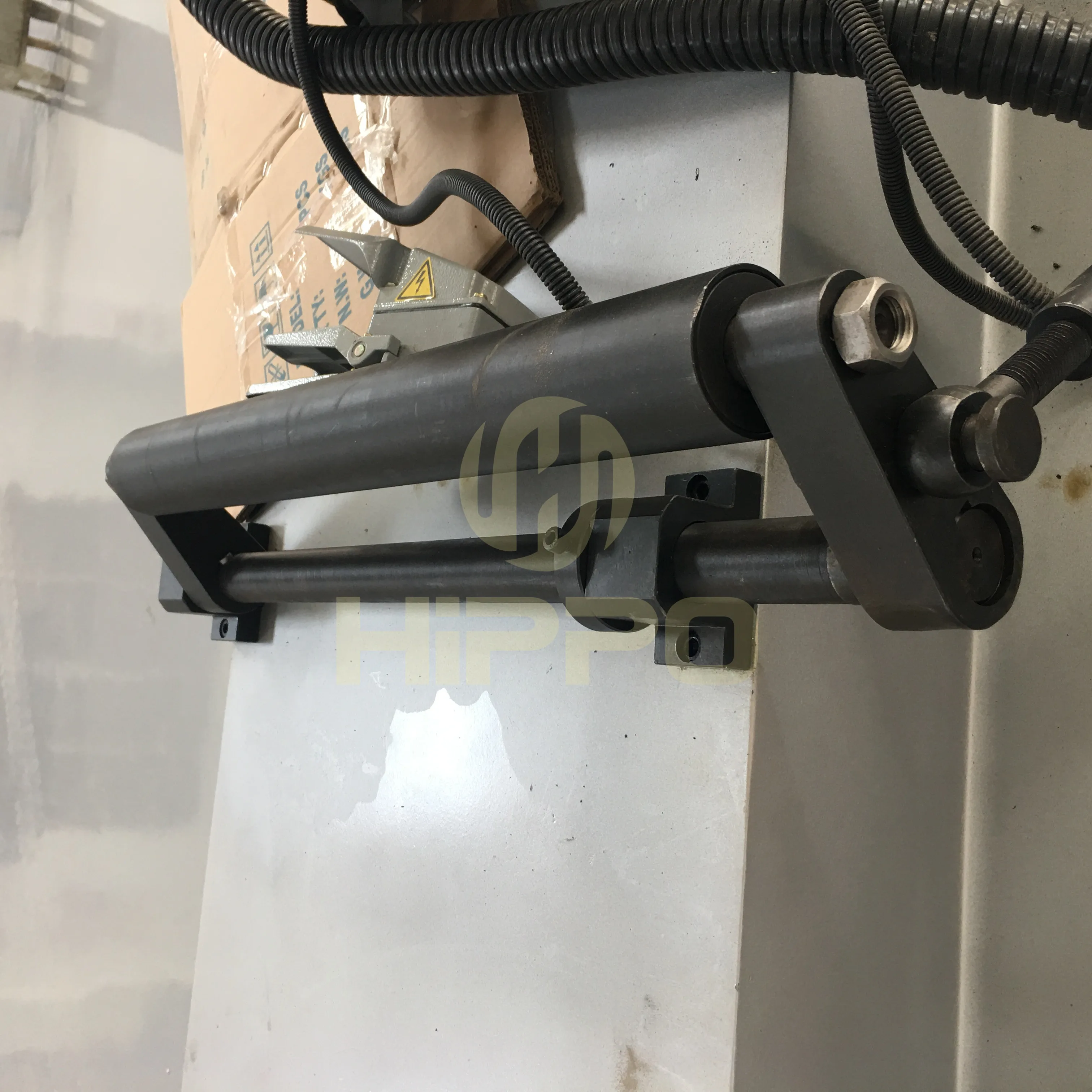

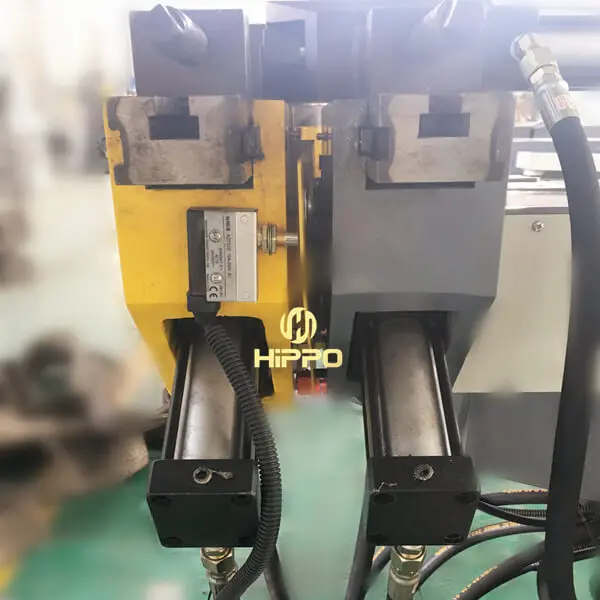

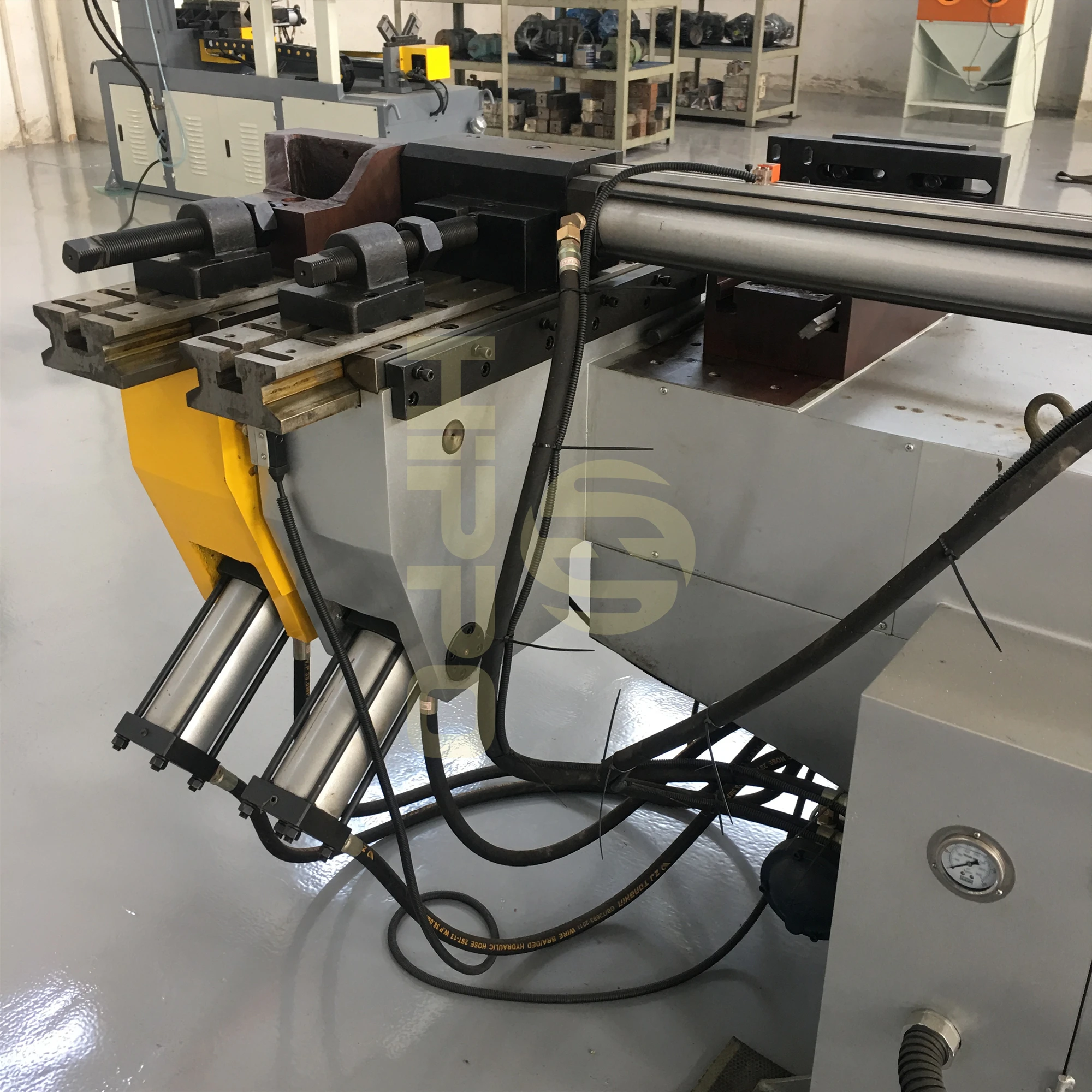

* Adopting floating arm pinch structure and hydraulic clamping molds to ensure that the bending and clamping are firm enough

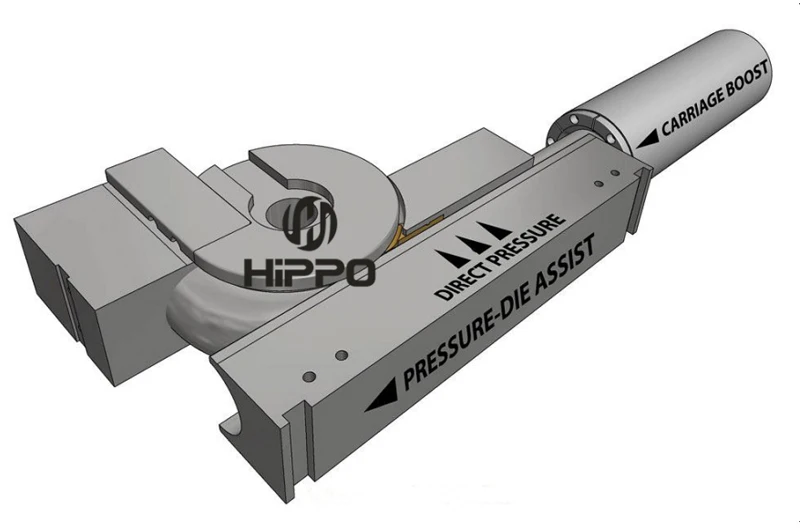

* Adopting hydraulic guide plate to assist pushing structure

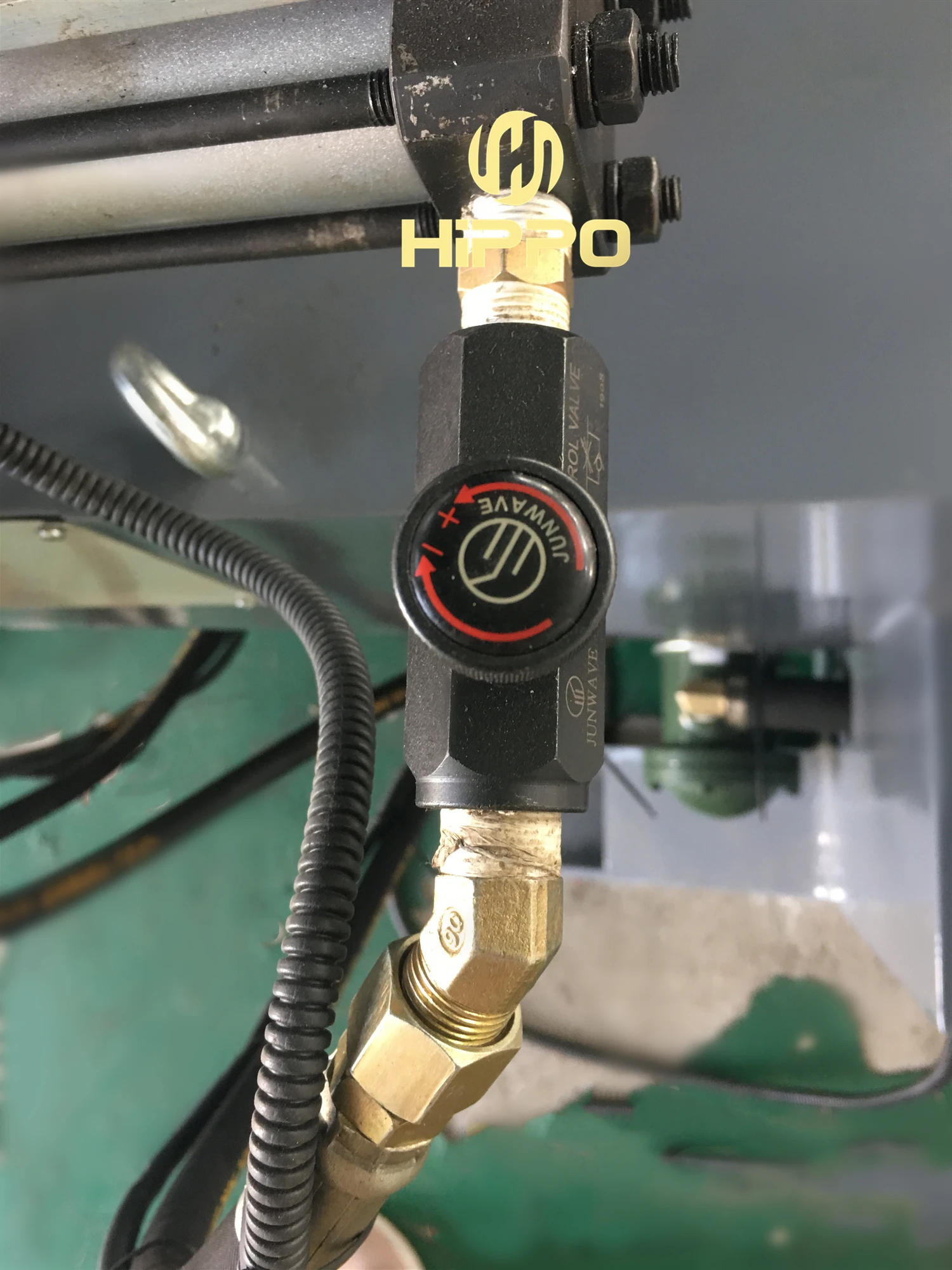

* The hydraulic system is equipped with an inlet throttle valve, which makes the pipe speed adjustable, the liquid supply is uniform, the working speed is stable, and there is no impact.

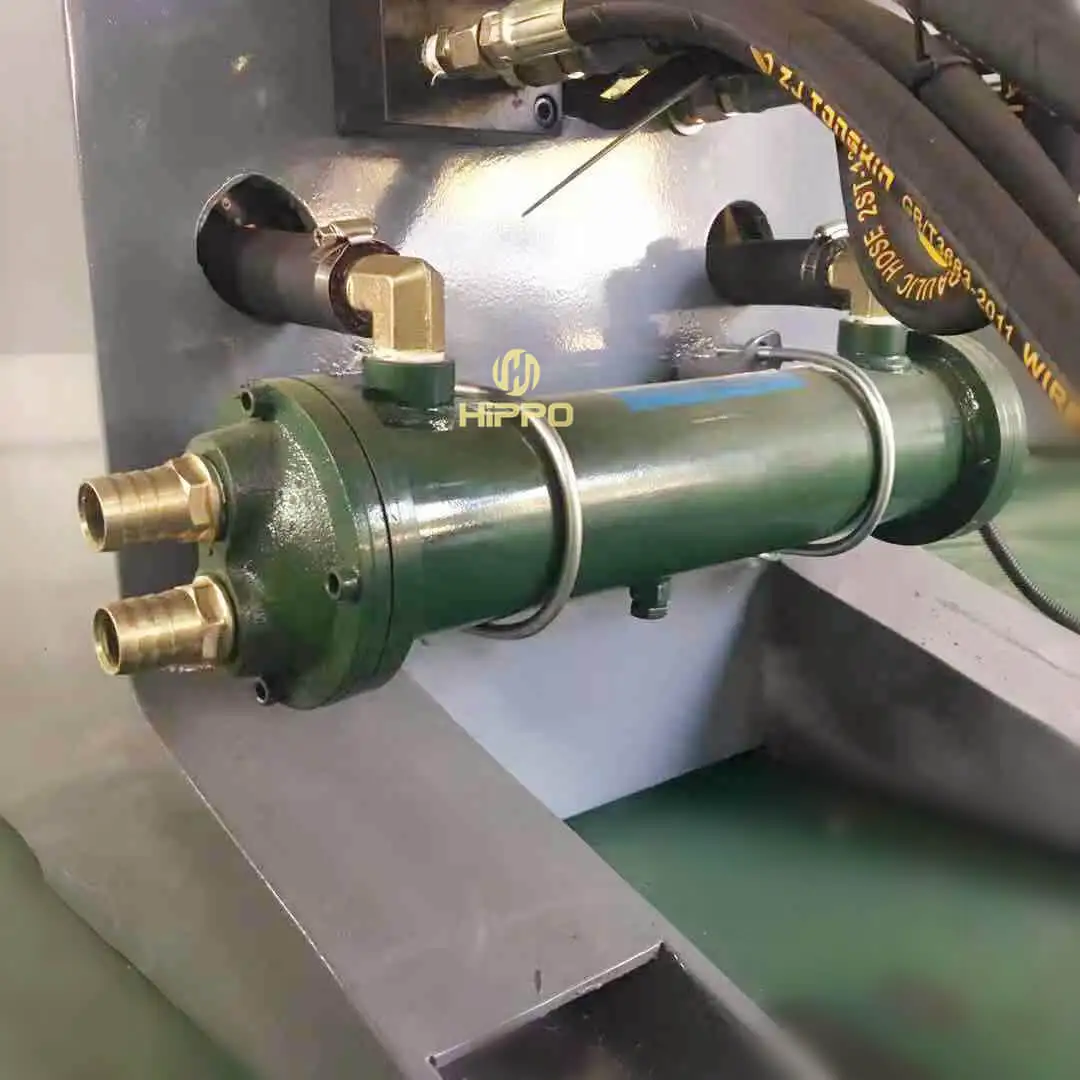

* Water cooling system, quickly cool down, ensure the equipment to work stably under high temperature for a long time

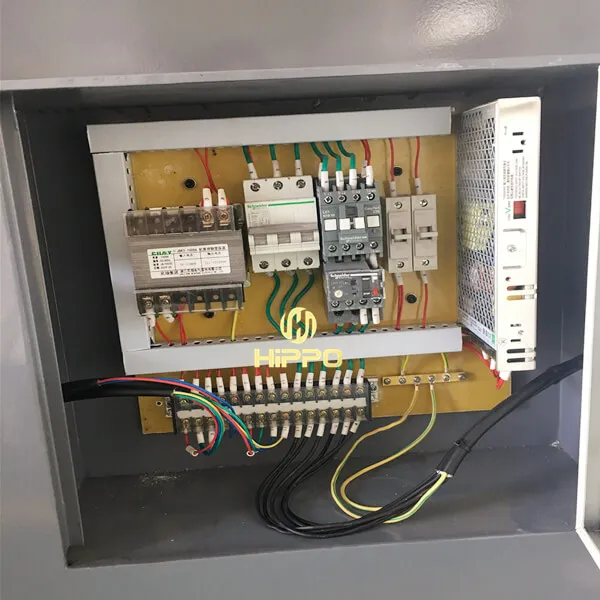

* Electrical components adopt Schneider of France, strong performance, good stability and long service life

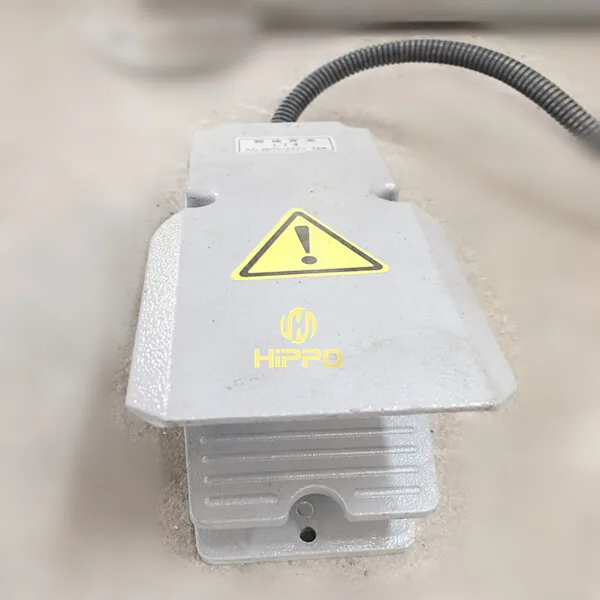

* Mobile foot switch with start and emergency stop functions for more protection

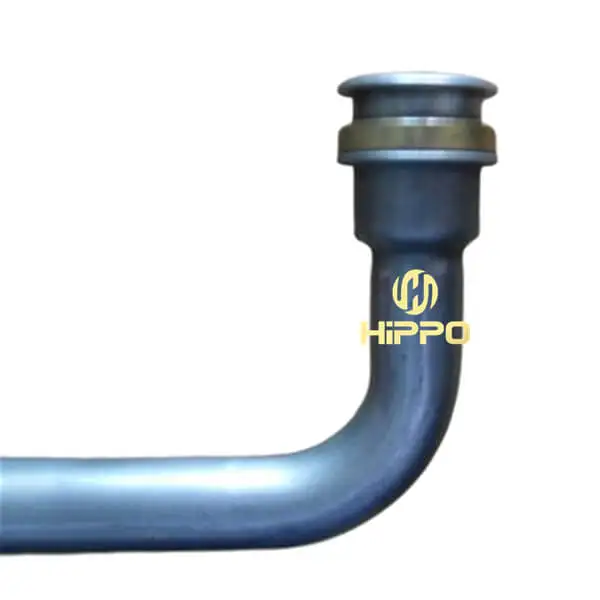

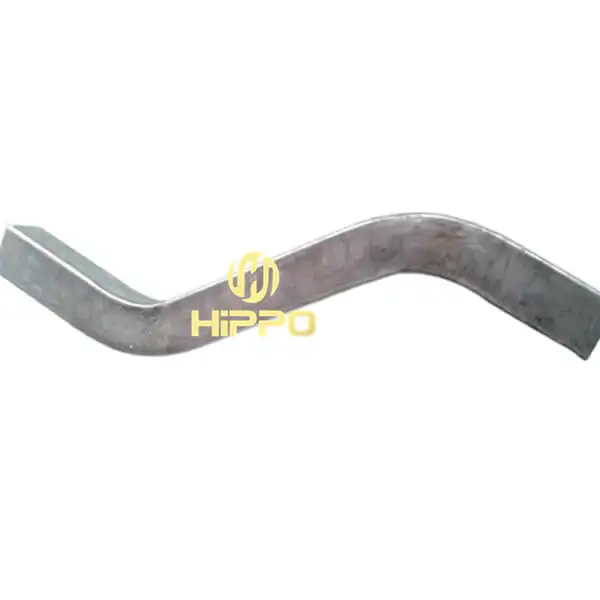

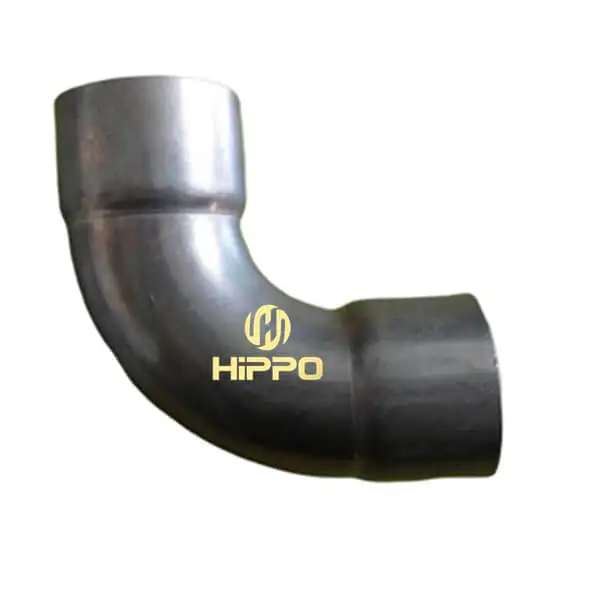

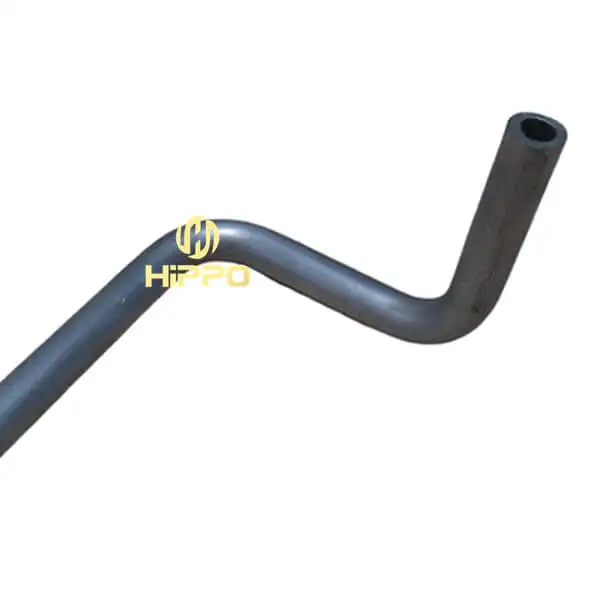

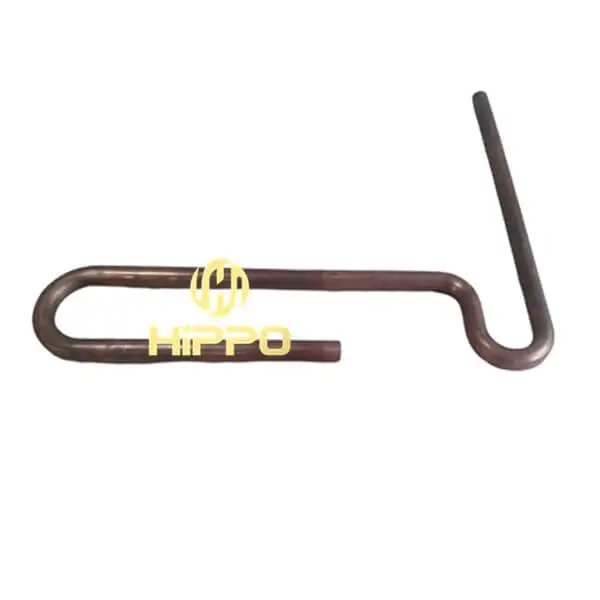

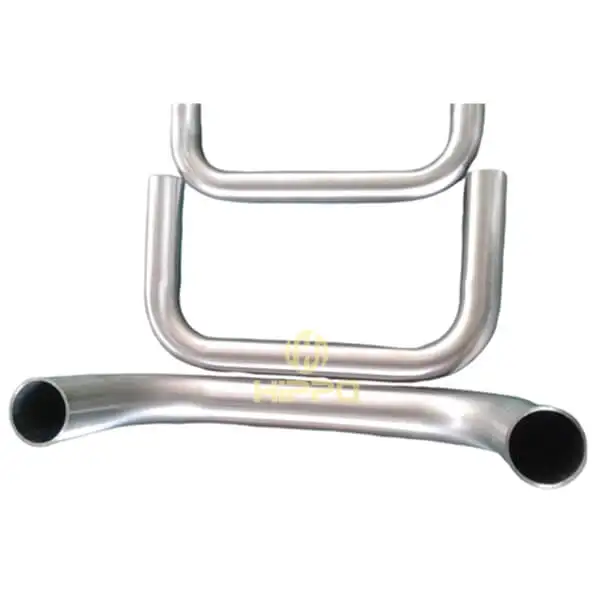

Sample Display

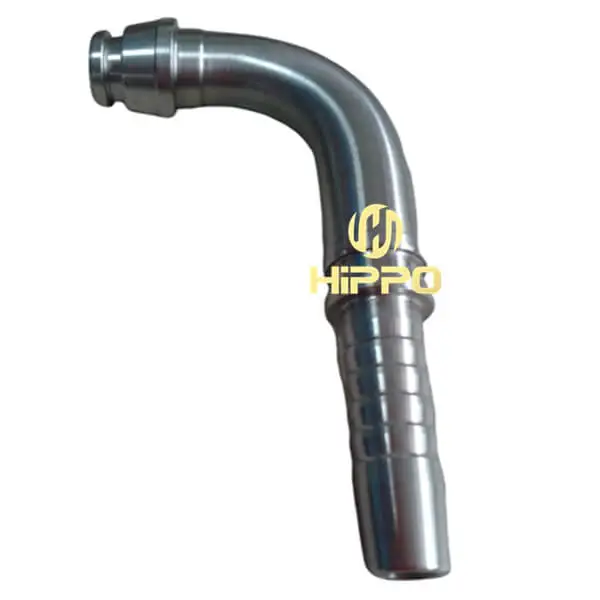

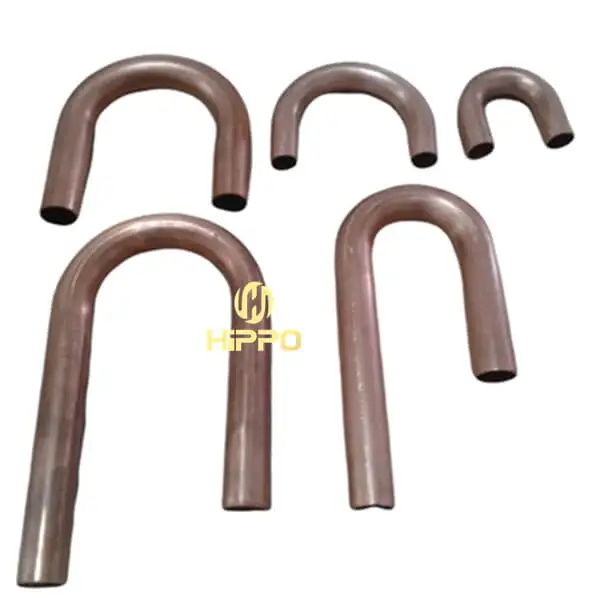

What We Can Bend
Our Service

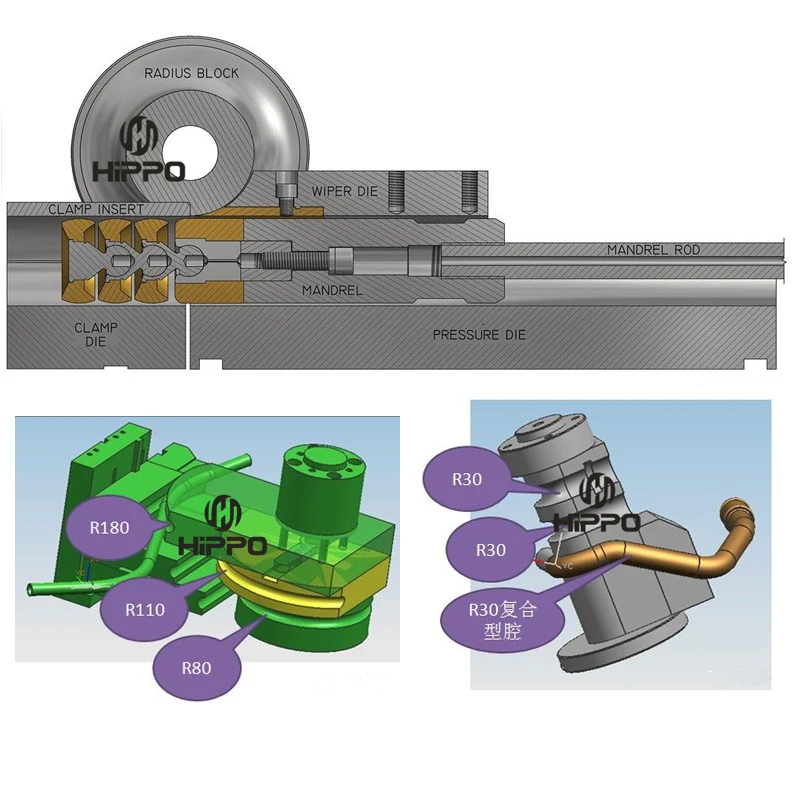

Standard tools: bending die, clamping die, pressure die.
We can provide optional tools: wiper die, mandrel. Effectively control the deformation and wrinkling of the processed pipe during bending
Tools material: mainly selected according to the pipe material and the bending difficulty. Common materials are 45#, Cr12, industrial nylon, 42MrMo, copper. Generally, we use 42MrMo,it’s vacuum quenched, the surface is nitrided, and the hardness of the mold surface is not less than HRC55 to ensure the wear resistance of the mold.
Tools size: customized according to the bending radius of different pipes. Multiple layers of molds can be installed to achieve multiple bends with different bending radii on one pipe.
We will debug all the bending tools, and the customers can use them directly, just need to change different tools by themselves, and the change is simple and convenient.
Optional device: 1. Push bending function, punching hole function, pipe cutting function 2. Automatic loading and unloading device. 3. IPC industrial computer type built-in WINDOWS operating system 4. Safety cover and safety mat to improve safety factor
Company Profile
Our Factory
FAQ
Q: How can I trust your quality? A: 1. All of the machines will be tested successfully in the HIPPO workshop before shipment. 2. We supply a 2-year warranty for all equipment. 3. We can test your pipe/tube in our equipment before place the order, to ensure our equipment is suitable for your project. 4. Our engineers will go to your factory to install and debug the equipment, they will not be back until this equipment can produce qualified products.
Q: Where is your factory located? How can I visit there? A: Our factory is located in Zhangjiagang city (1.5hours by car from Shanghai). You can fly to PVG airport. We warmly welcome your visit.
Q: What are your payment terms? A: T/T or L/C, 30% as deposit, the balance should be paid before delivery but after inspection.
Q: What kind of after-sales service does HIPPO provide? A: HIPPO will offer you all necessary documents, e.g. manual book, detailed machine installation, commissioning video to help you correctly operate the machine. Technicians can be sent to your factory if necessary. Technicians will be responsible for guide on-site installation and testing machines involved. Meanwhile, free training will be provided to the workers in your factory.
Q: Does HIPPO provide any warranties on its products? A: Yes! HIPPO offers a 24-month warranty on all of our products. This warranty covers all manufacturing faults or defects. It does not cover the malfunctions or failures caused by your incorrect operations. The warranty is valid from the date of installation finish and machine normal working and is available to the original purchaser of the product only.
Q: Can I join in and become a distributor of HIPPO? A: HIPPO is currently seeking to expand its global distribution network by providing simple, efficient, and robust solutions to meet clients’ needs worldwide.
Products Related Questions Q: What does HIPPO need to know to help me select a machine? A: There are many factors that lead to the correct technology, below are primary factors that help us get going:
Material: carbon steel tube, iron tube, copper tube, stainless steel tube, aluminum tube, lead tube or others? Diameter: Max.outside pipe diameter Wall thickness: how many millimeters? The drawings Q: How long is your delivery? A: We need 30 working days for production. If you cannot wait, please contact us freely, we will make any arrangements we can to meet your requirements.
Q: How is the machine packed? A: Wrap by film, wood pallet, fumigation-free wooden box, iron case, or as per your request. All packagings ensure 100% safety in delivery.
Q: How does your company do regarding quality control? A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Once the project is ready, we test it to confirm it works to the established parameters of the project before it leaves our factory. HIPPO has gained ISO and CE certificates.
Q: Can I custom my machine and print my own logo to the machine? A: Yes, of course. Whether it’s a stand-alone machine or a complete system, HIPPO can customize our machines to fit your specific application. We can customize robotic pick/place arms, automated loaders, and platforms to fit seamlessly into your production.
Q: How can I get replacement parts for my machine? A: In the event of a machinery failure or fault, we can have the necessary part ready to ship on a 7-day basis if required, including all kinds of toolings, such as bend die, clamp die, pressure die, mandrel, wiper die, saw blade and so on.
