AC90 240V (50Hz/60Hz) RF Wireless 0 10V dimmer led dimmer 0 10v RF remote led controller

Product Overview

Description

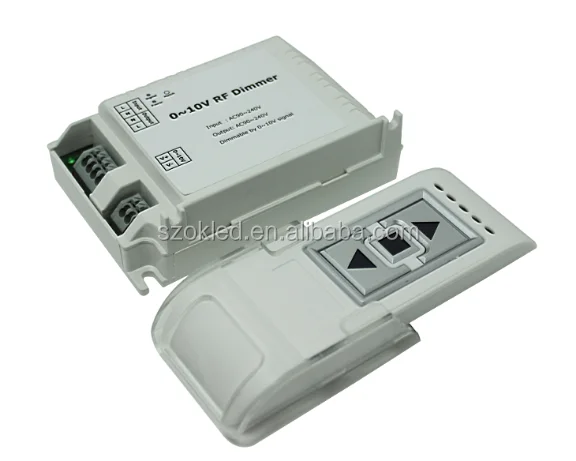

Wireless remote control 0-10V dimmer

DM015

Summarization

DM015 dimmer is a 0-10V dimmer with wireless remote control which independent developed by our company, DM015 inherited the advantages of low voltage controller, adopt wireless remote control, easy to control, use good quality white plastic shell,the color unify with remote control,pay attention to appearance design aesthetic feeling;Through hardware and software optimized the light adjusting effect, to provide you more comfortable than traditional lighting controller, safe and convenient intelligent lighting control, thus to the user in a fresh, comfortable lighting environment.



Main technical parameters

1. Working temperature: -20-60°C

2. Remote control distance: <20m

3. Power supply voltage: 90~240VAC,50~60Hz

4. Output voltage: 90~240VAC,50~60Hz

5. Output: 1 channel

6. Output signal: 0-10V

7. Net weight: 145g

8. Gross weight: 199g

9. External dimension: L104×W68×H30mm

10. Packing size: L120×W35×H130mm

11. Static power consumption: <3W

12. Relay output power: < 200W

13.. 0-10V output current: <15mA

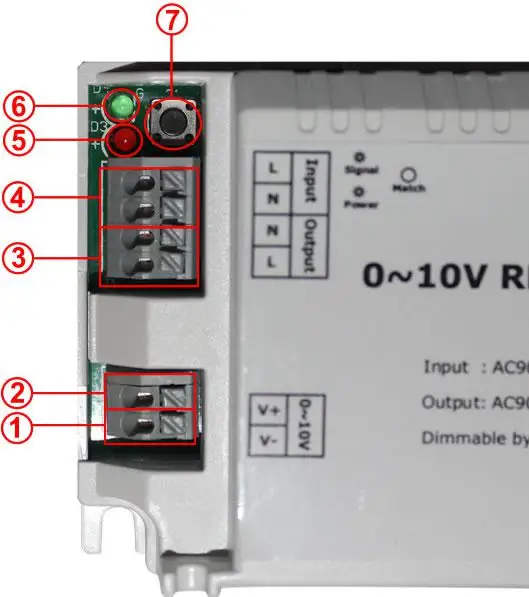

Interface instruction



1: V-, output 0-10V signal negative pole;

2: V+, output 0-10V signal positive pole;

3: Output, relay output interface(0-10V dimmer power supply input interface), output voltage is 90~240VAC, 50~60Hz;

4: Input, power supply input interface, input voltage is 90~240VAC, 50~60Hz;

5: Power red light, when the controller power supply is normal, power supply red indicator light always bright;

6: Signal green light, When the controller in dealing with a remote control signal, signal green indicator light flicker;

7: Match, remote control match code key. This controller can match 2 remote control to common control. Use sharp non-conducting objects to press the match key on controller, and at the same time long press the on/off

key on controller more than 3s, then finished the match code, after match code successful, the load light will

flicker. When match the first remote control, the load light will flicker 3 times, when match the second remote

control, the load light will flicker 6 times, Since then every time match code will replace the earlier match code

remote control.



Operating instruction

Remote control has 3 buttons,and the functions as follows:



ON/OFF key, you can turn on/off dimmer at any power on state; Regardless of the controller is switched on or off,long press this key and controller match code key at the same time, it can match code.

Add brightness key, when power on, every time short press this key, the brightness add 1 level, thebrightness will increase rapidly with long press,until 255;

Minus brightness key, when power on, every time short press this key, the brightness minus 1 level, the brightness will reduce rapidly with long press,until 1;



Match code operate instruction: This controller can match 2 remote control to common control. Long press the

on/off key on remote and match code key on controller more than 3s, then finish match code, after match code

successful, the load light will flicker. When match the first remote control, the load light will flicker 3 times, when

match the second remote control, the load light will flicker 6 times, Since then every time match code will

replace the earlier match code remote control.

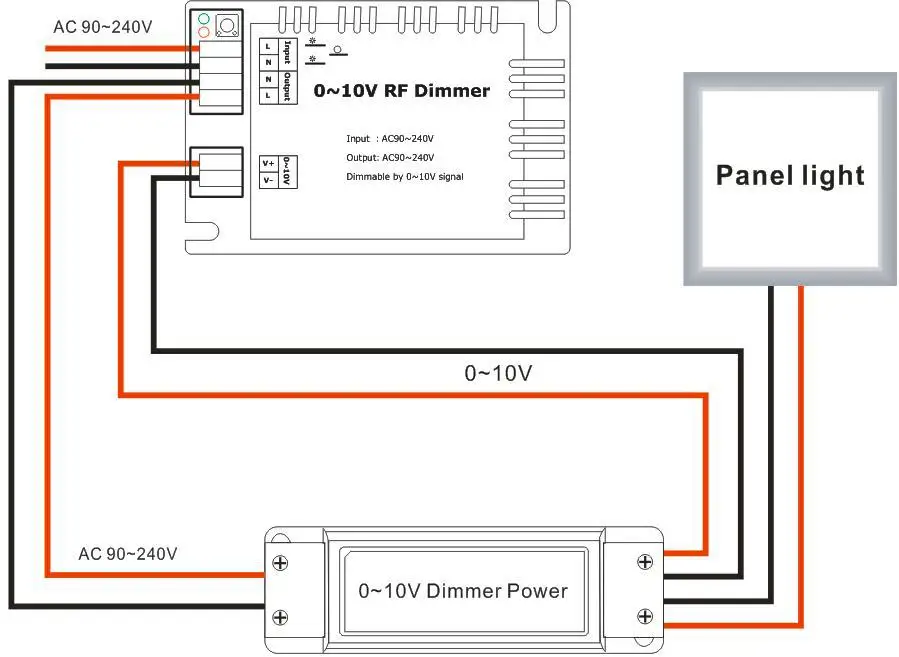

Typical Applications



Remarks

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2. Power supply voltage range is AC90~240V, more than voltage range maybe will burnout the controller.





Packing: 1pc/carboard box and put in carton

Shipping: DHL, FED EX, UPS, EMS, China Post, etc,.



Trade terms/Services:

1.Paypal and western union for small orders and T/T 30% deposit 70%payment for big orders

2.No MOQ set for sample order.

3.Lead time: 3-7 days for sample order,10 to 15 days after large order

4.Shipping methods: by international express.

5.Shipping freight are quoted under your requests.

6.Shipping Port: Shenzhen, China

7.Discounts are offered based on order quantities

8. Your inquiy related to our products or prices will be replied in 24hrs

9. Protection of your sales area, ideas of design and all you provide information

10. Good before and after sales service.

11. A large stock at least 500pcs





About us:

1. Expertise: High quality LED and EL products.

2. Competent R&D team and quality control.

3. Accomodate large order quantity.

4. OEM accepted.

3. Markets: Europe,USA and Asia.

4. Certificates: CE and RoHS
