ISY Model Huawei Steel Pipe Tube bevellers
- Category: Pipe Cutting Machines >>>
- Supplier: Shanghai Huawei Welding & Cutting Machine Sales Co. Ltd.
Share on (62022597879):
Product Overview
Description
Pipe bevellers
ISY Model Huawei
Product Description

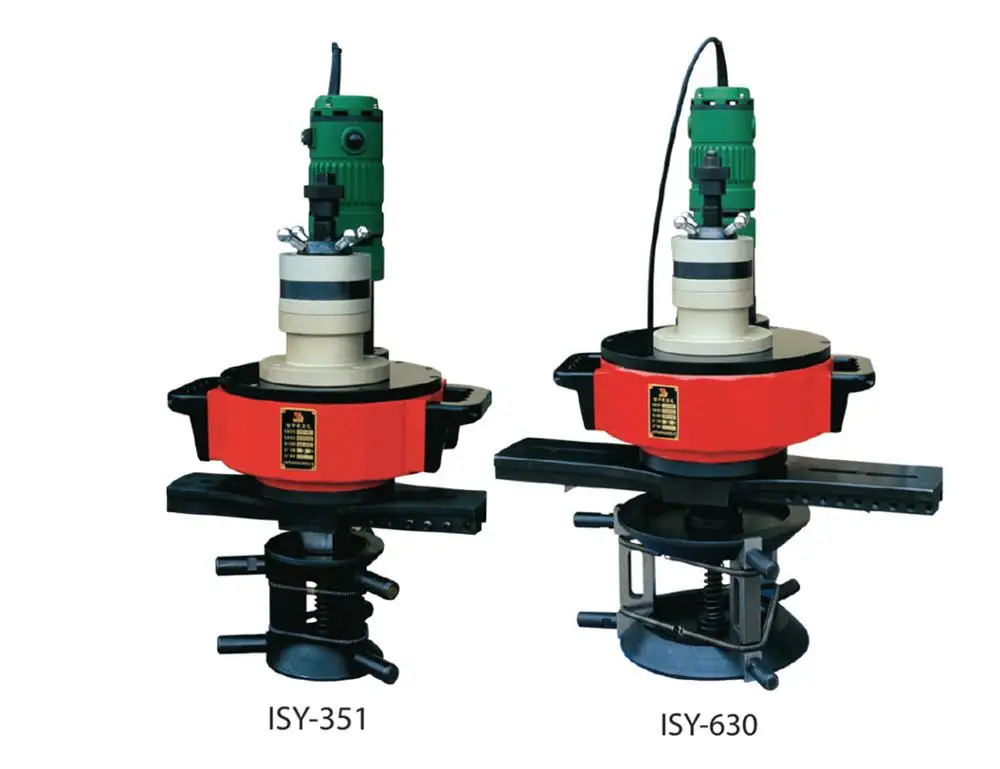

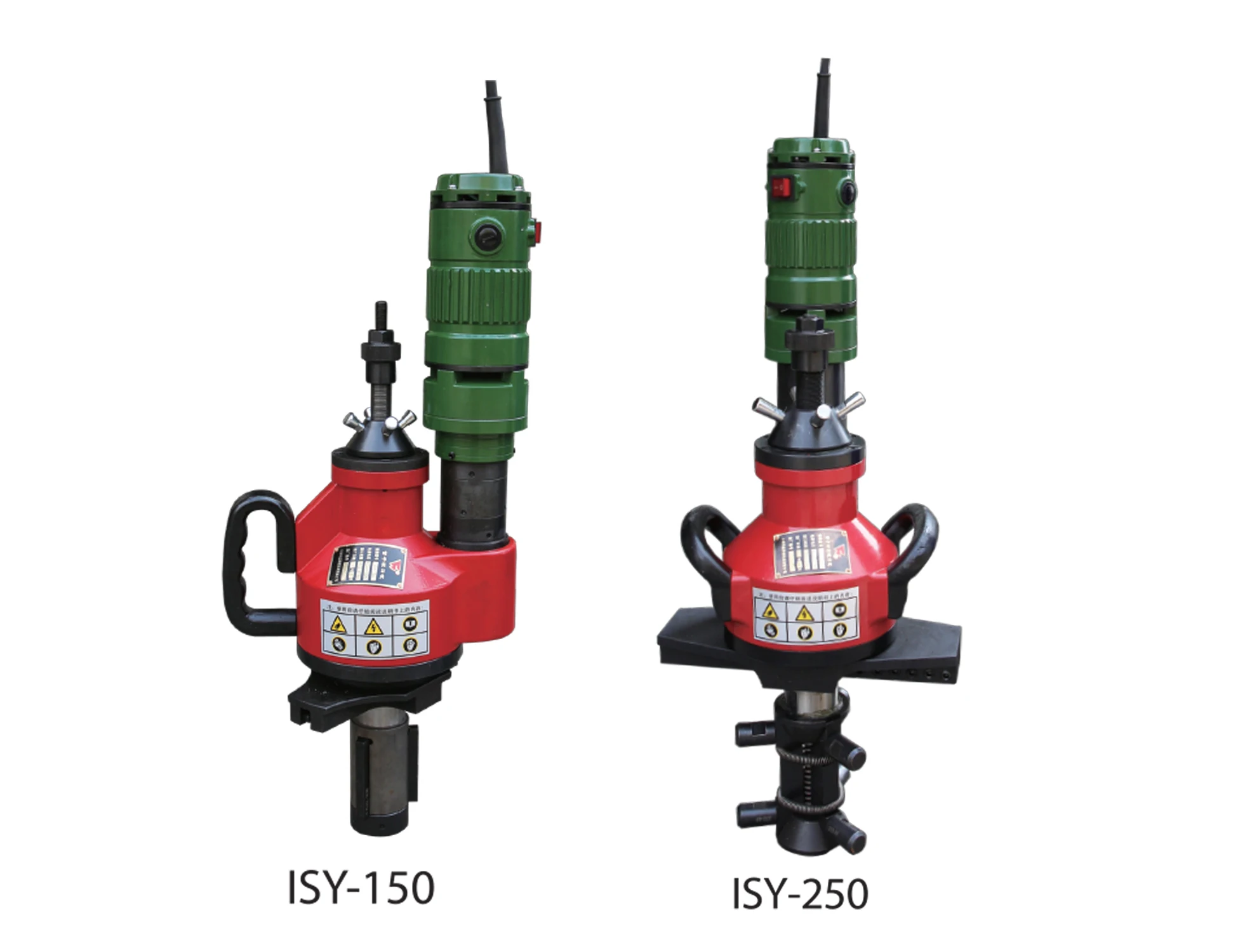

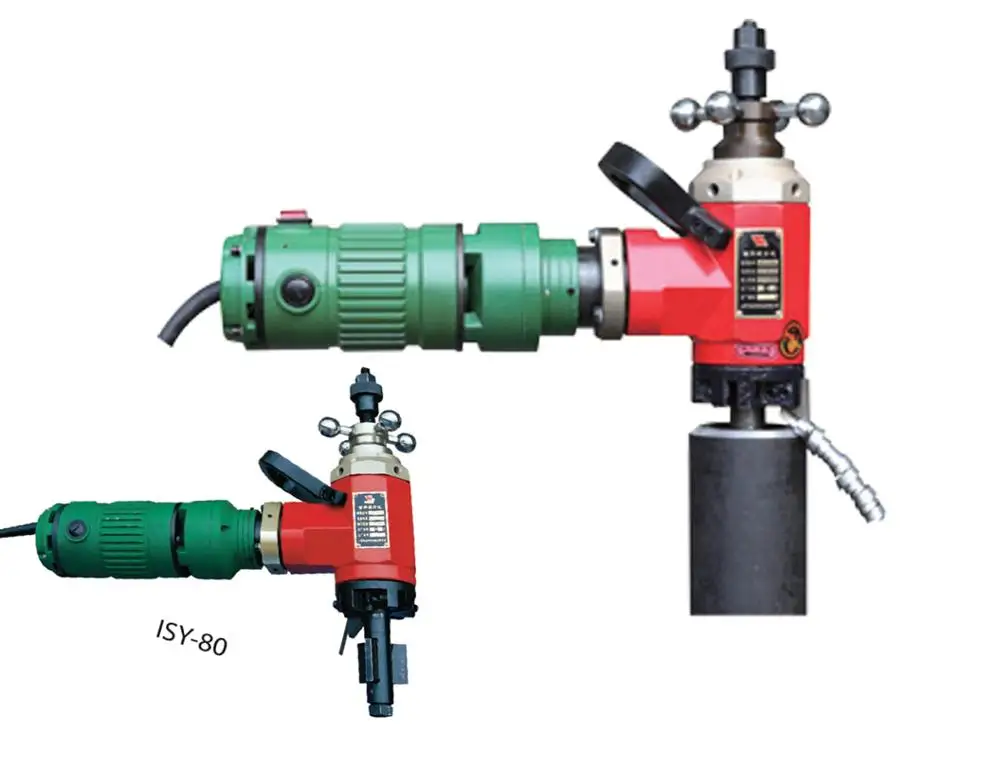

Pipe bevellers ISY Model series machine powered by 220 Voltage, features internal expanding structure and easy for operating. It is mainly applied in the beveling process for different requirements.
| Model No. | I.D of Beleling Pipe | O.D of Beveling | Width of Beveling | MAX.Thickness | Range of Feeding | Weight (kg) |
| ISY-28 | 16-28mm | 18-32mm | ≤8mm | 25mm | 0.15 | 8.5 |
| ISY-80 | 28-76mm | 32-80mm | ≤15mm | 35mm | 0.15 | 16.6 |
| ISY-150 | 65-159mm | 73-180mm | ≤15mm | 50mm | 0.15 | 33.8 |
| ISY-250 | 80-240mm | 90-270mm | ≤15mm | 50mm | 0.15 | 51.2 |
| ISY-250-II | 80-240mm | 90-270mm | ≤50mm | 50mm | 0.15 | 60.2 |
| ISY-351 | 150-330mm | 163-351mm | ≤15mm | 55mm | 0.15 | 61.3 |
| ISY-351-II | 150-330mm | 163-351mm | ≤75mm | 55mm | 0.15 | 69.4 |
| ISY-630 | 280-600mm | 300-630mm | ≤15mm | 55mm | 0.15 | 122.3 |
| ISY-630-II | 280-600mm | 300-630mm | ≤75mm | 55mm | 0.15 | 118.3 |
| ISY-850-II | 610-820mm | 630-850mm | ≤15mm | 54mm | 0.175 | 162 |
Auto beveling feeding device
