bulb punching machine LED bulb mid plate punching and gluing machine with high capacity eight station bulb glue dispenser

Product Overview

Description

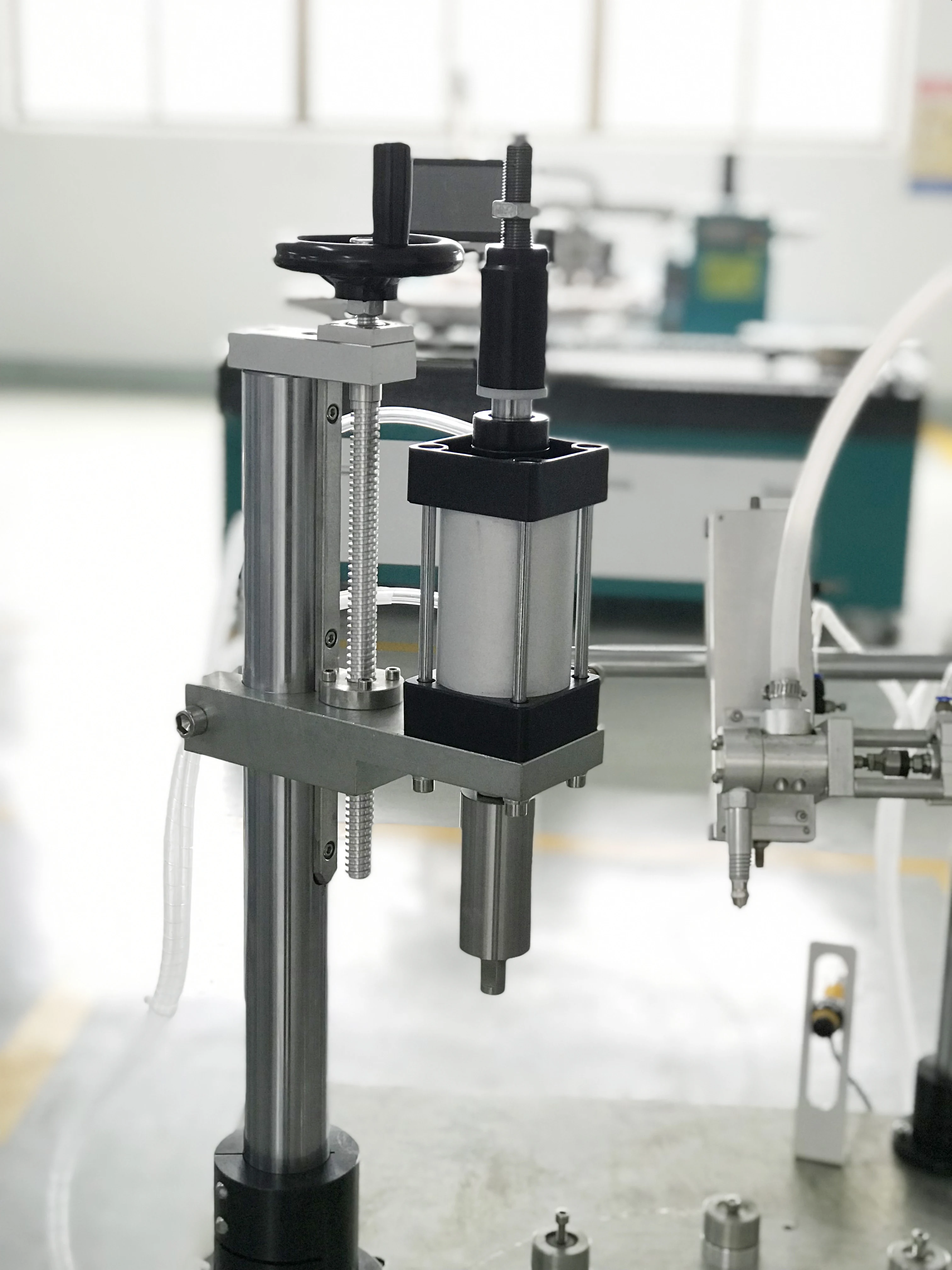

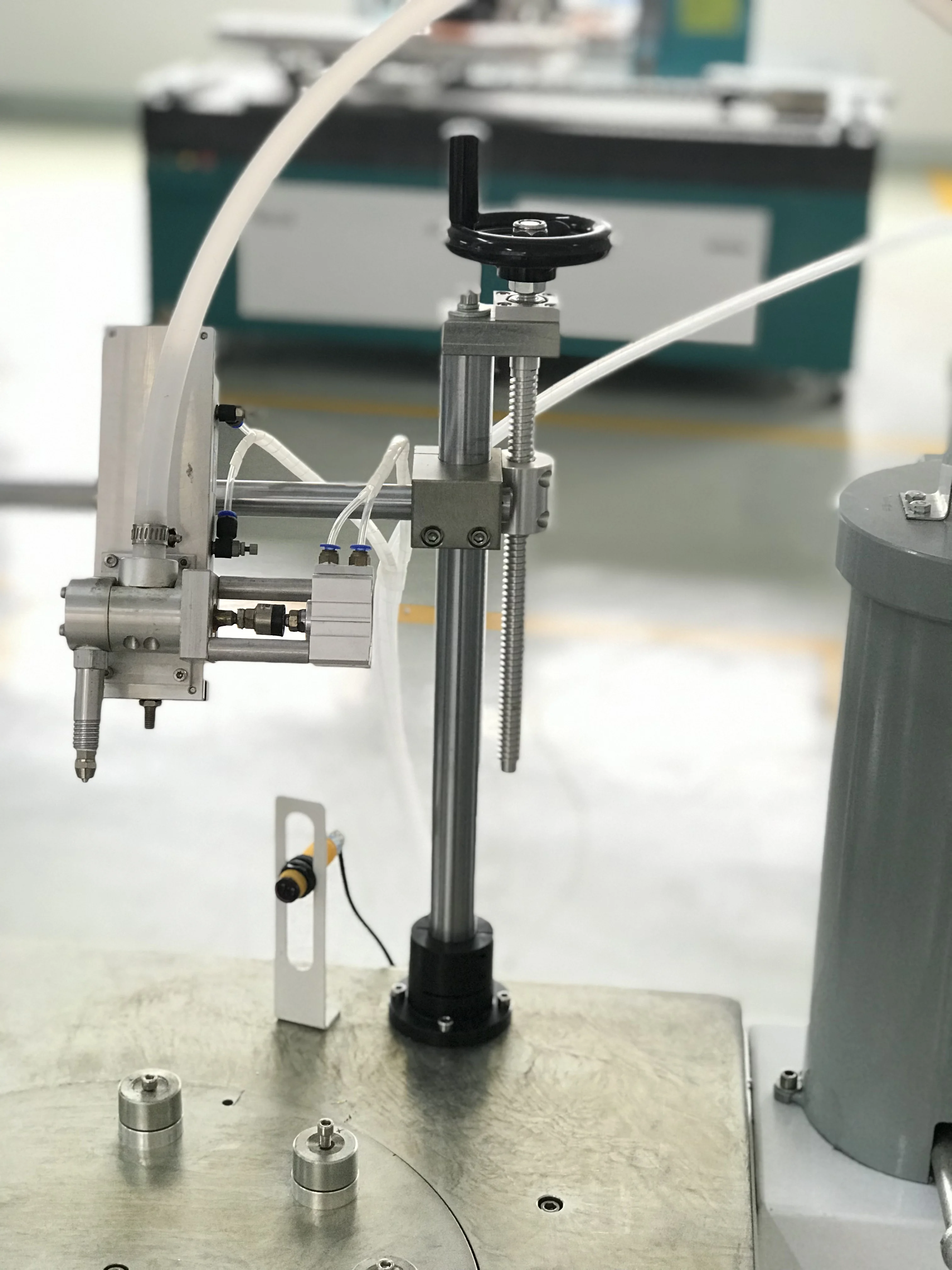

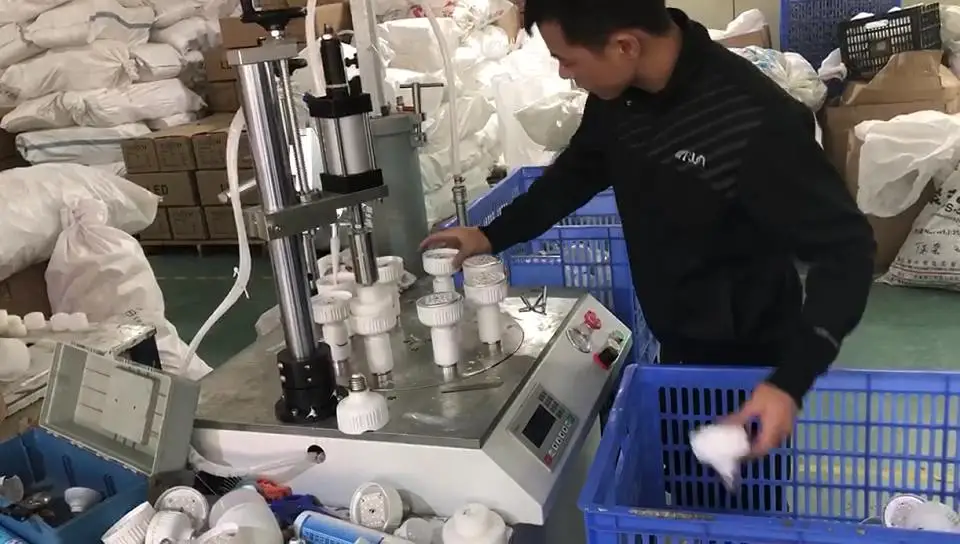

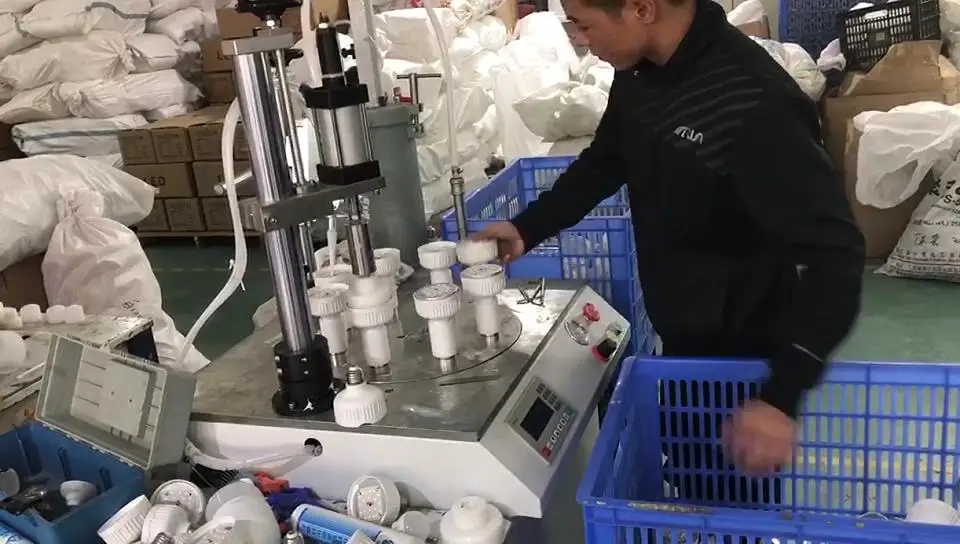

Eight stations are distributed on the revolution disc by 45 degree. The revolution motor rotates 45 degree each time to bring two work-pieces to the punching station and gluing station. After punching, the work-piece will be brought to gluing station. Auto-revolution motor drives the work-piece rotating in average speed to achieve evenly glue coating. LED bulb mid-plate punching and gluing machine can perfectly replace manual operation to get better product quality and improve work efficiency.

Machine Features

u Floor stand design with caster, the machine is stable and easy to move;

u Integrate punching and gluing process, work in cycle, the designed capacity is 1000pcs/h;

u Equipped with work piece detector to decide working or skipping

u Gluing track can be set as full circle, single point or segmented arc etc.

u Working mode can be two-station, four-station or eight-station;

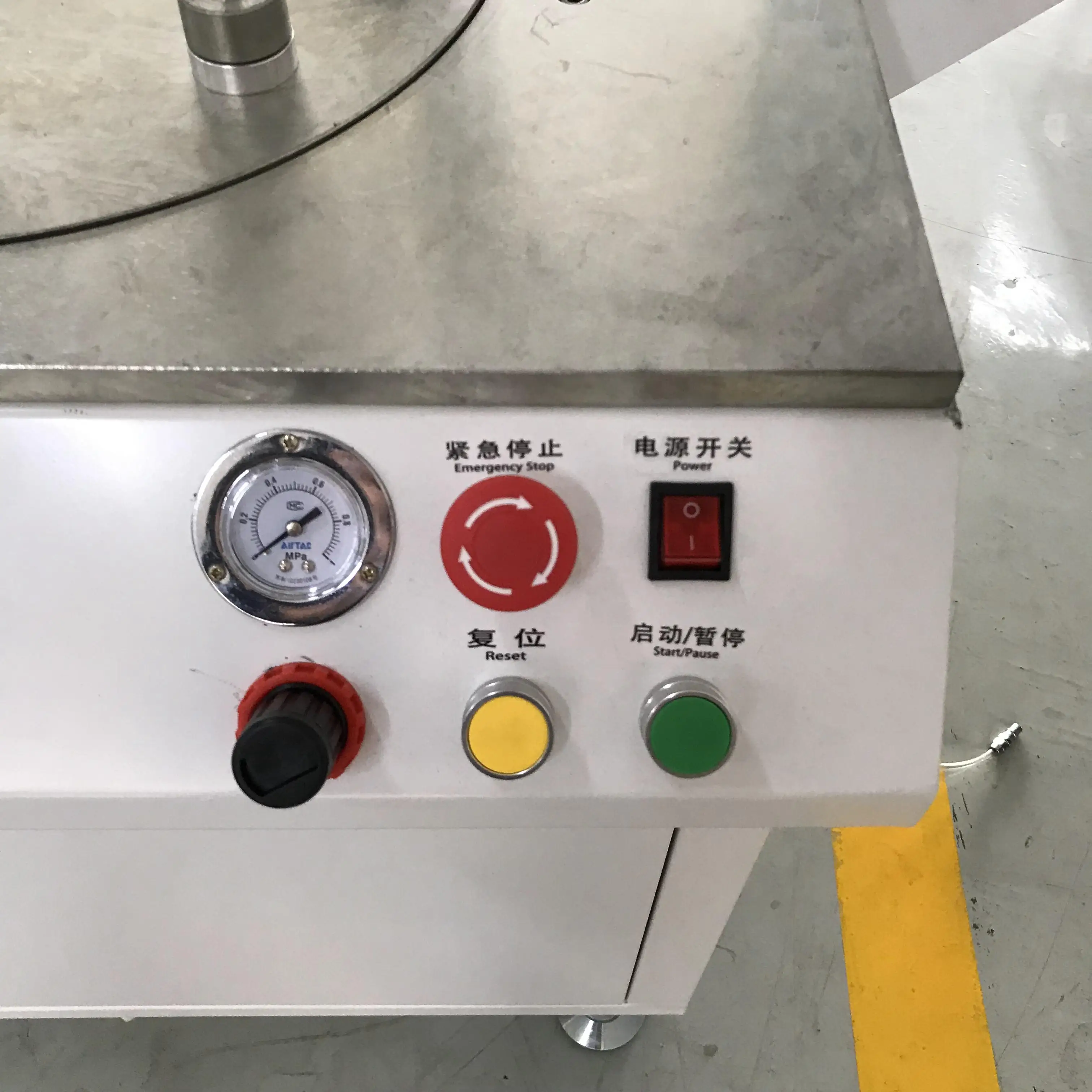

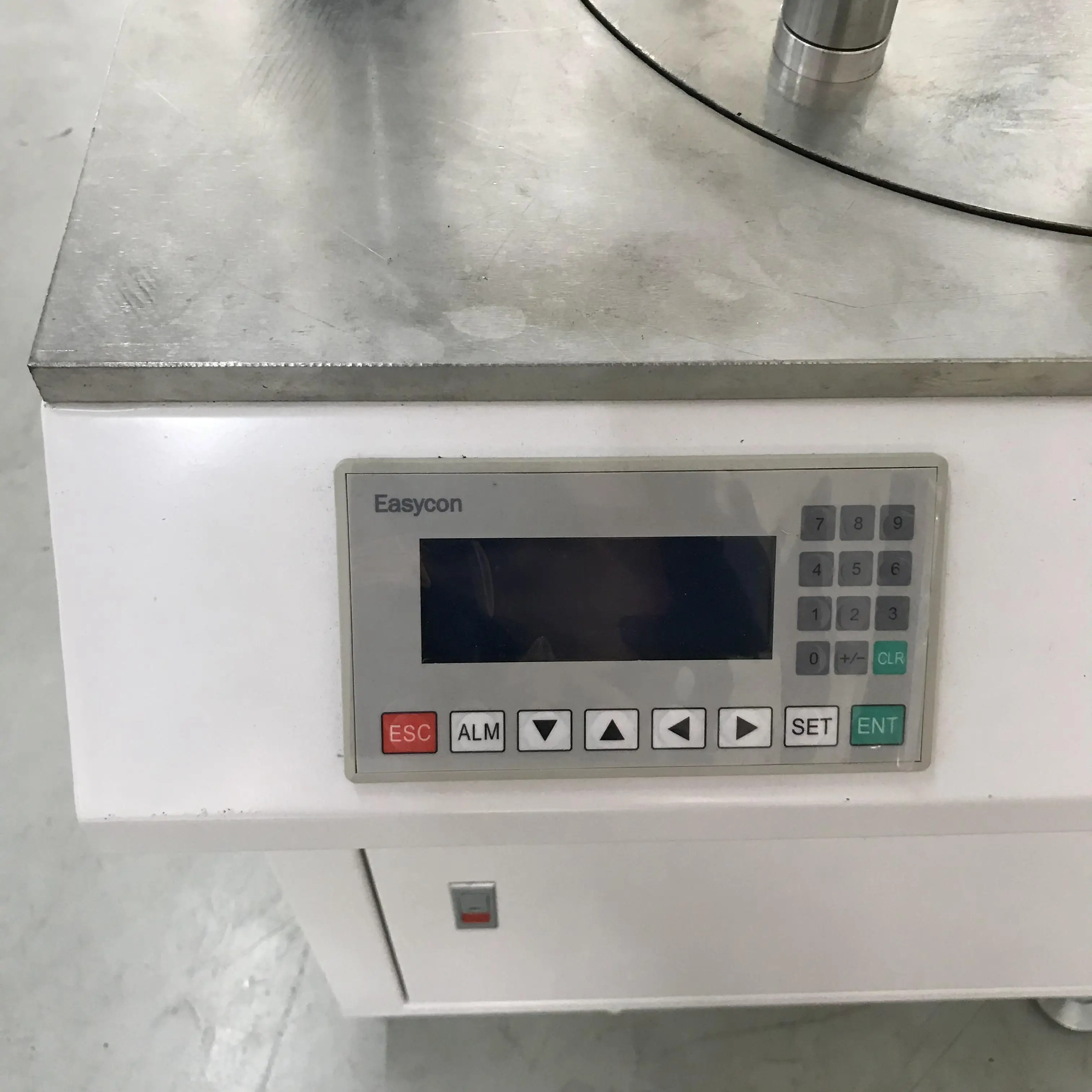

u It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.



Technical Parameters

Model	JCD-80
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	280mm(two-station), 200mm(four -station), 110mm(eight-station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (L*W*H)	L680mm*W700mm*H1520mm
Weight	190Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃ Humidity: 20~90%

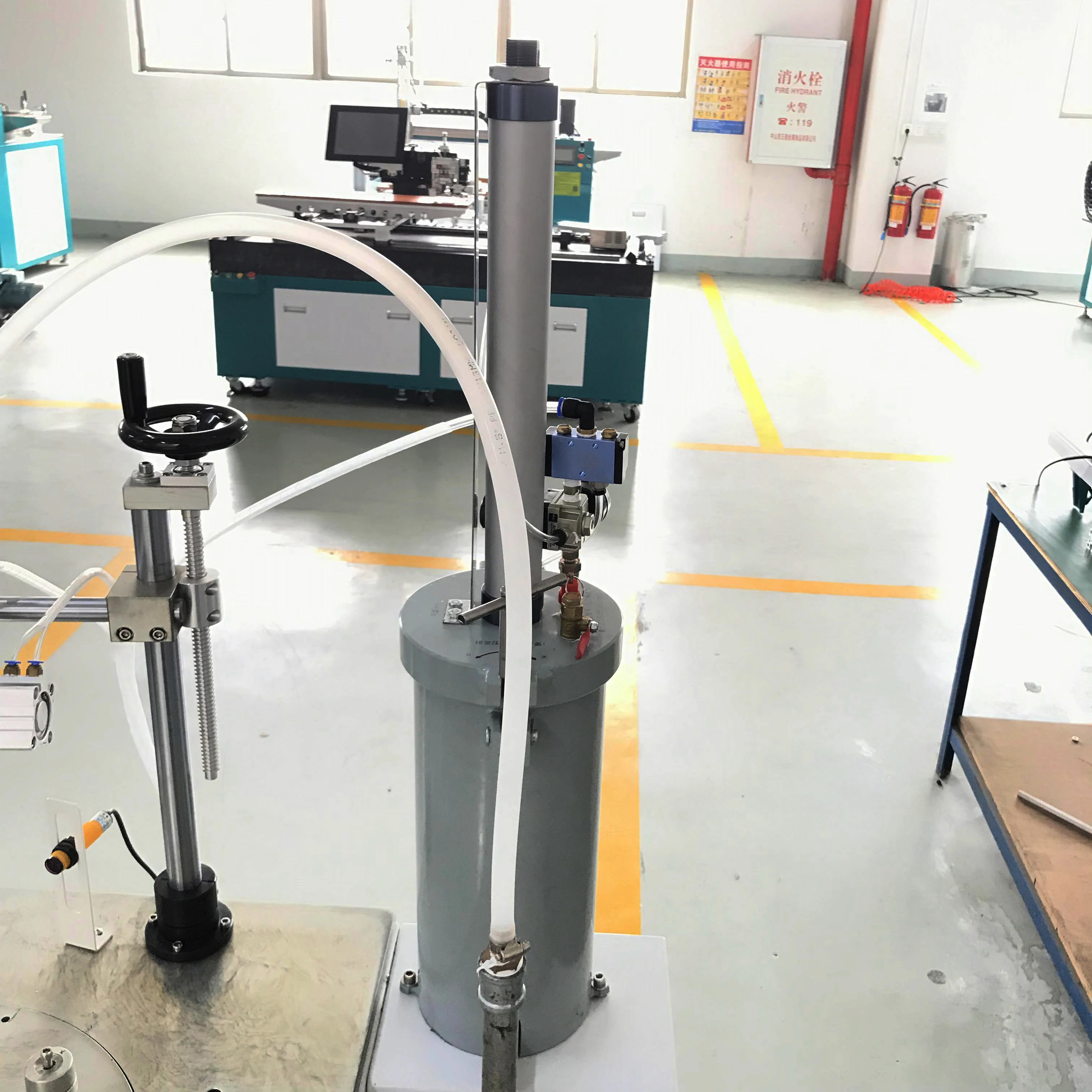

Suitable Glue: 300ml/2600ml single-component package for silicone

Applications: LED bulb
