TiMOTION TA20 24V Compact Inline Linear Actuator
TiMOTION TA20 24V Compact Inline Linear Actuator

TiMOTION TA20 24V Compact Inline Linear Actuator

Share on (62023916051):


Price:

Quantity:


Product Overview

Description




The TA20 is a 3 stage inline actuator which combines long stroke length with minimum installation dimension. This actuator is suitable for various customized lifting columns in height adjustable furniture, particularly with the need for a slim and neat structure.


General Features




  • Maximum load: 700N in push




  • Maximum speed at full load: 45mm/s (with 600N in a push condition)




  • Stroke: 50~800mm




  • Minimum installation dimension: ≥ (Stroke/2) + 177mm




  • Operational temperature range: +5°C~+45°C




  • Options: Hall sensors

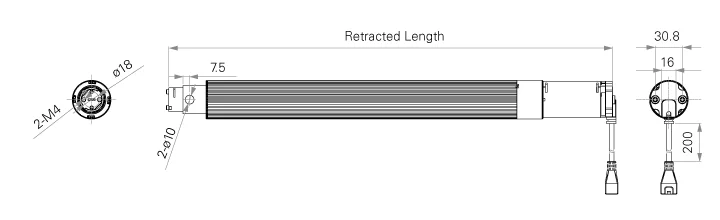

Standard Dimension (mm)
