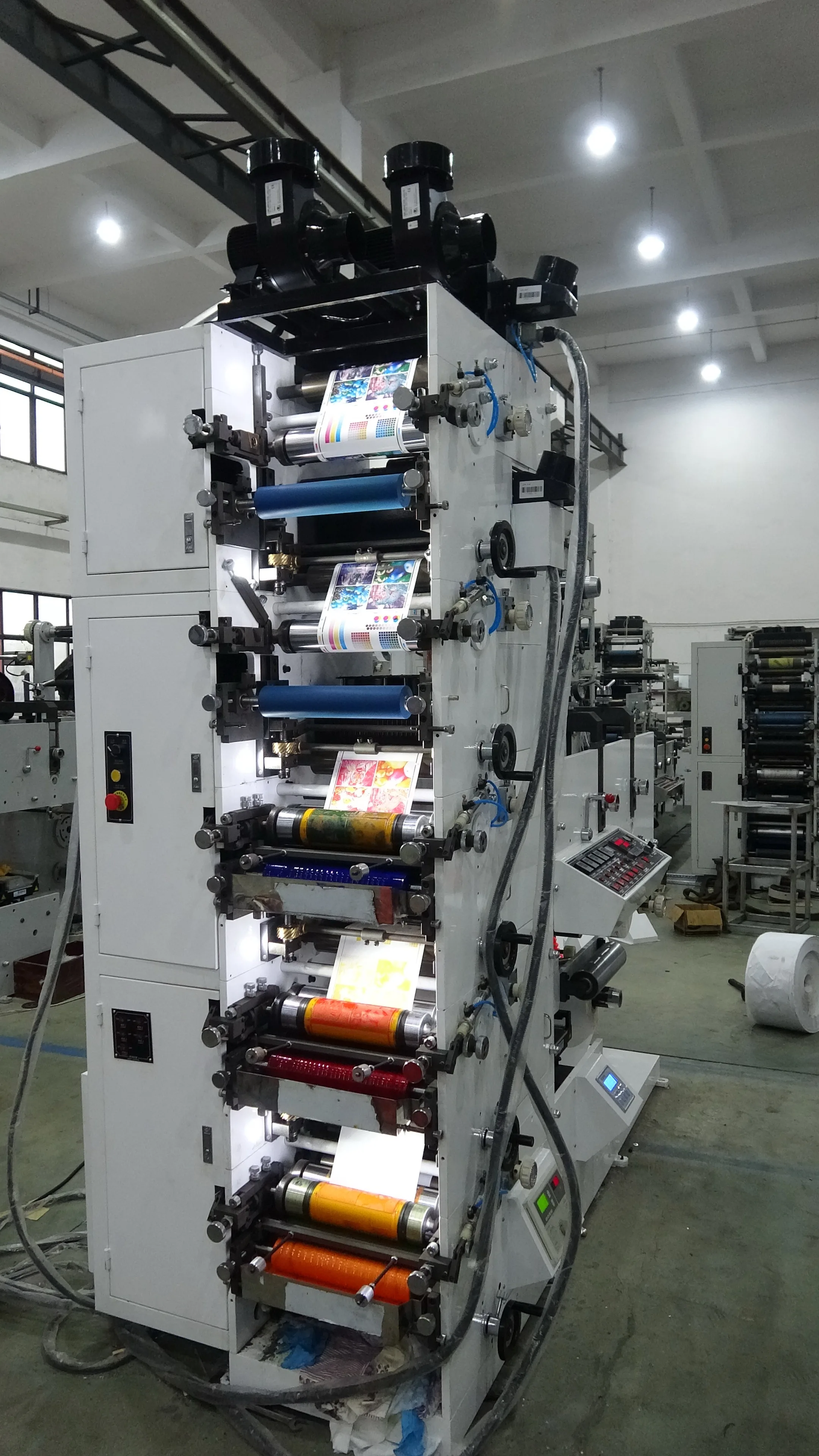

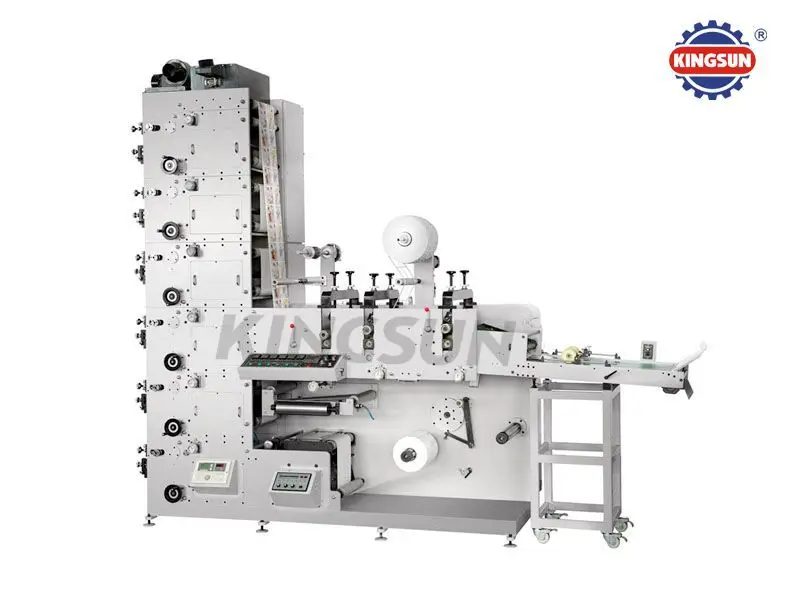

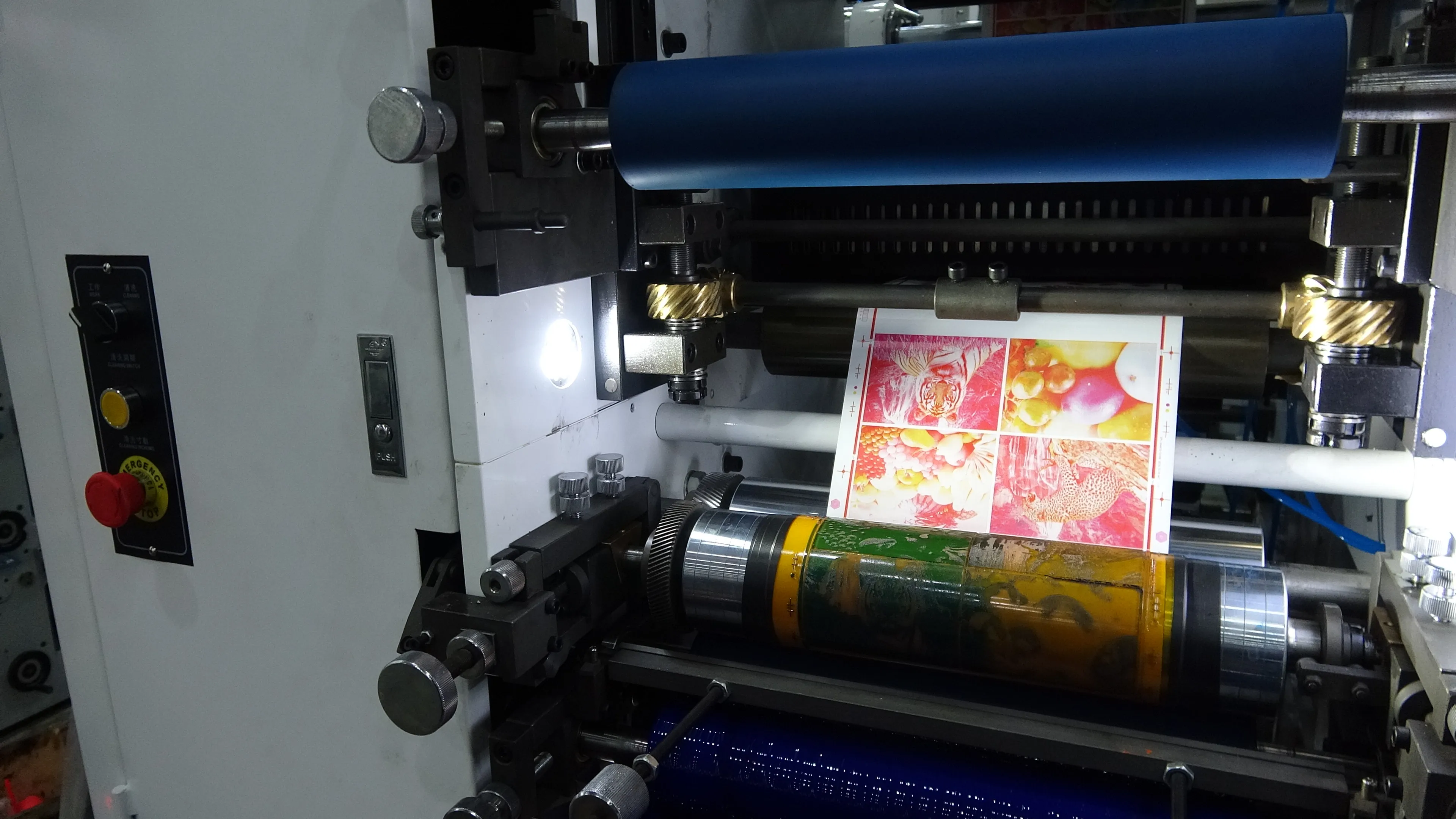

KINGSUN FP 320G Model 4 color self adhesive paper flexo label printing machine

Product Overview

Description

KINGSUN FP-320G Model  4 color self adhesive paper flexo label printing machine



The FP-320G series flexo label printing machines mainly for label paper or plastic film printing for printing & packaging industries. Compact stack type design and multi combination of various functions, it can do all kind of label printing and converting at one process. Low cost investment and quality printing can improve your ROI, especially in this fast change market nowadays, it is your ideal choice equipment for label production. Kingsun flexo printing press can custom-made according to your actual requirement, so this series flexo label printing  machines are one of most fit for your label converting.



Features:



1.ceramic anilox cylinder for ink transfer

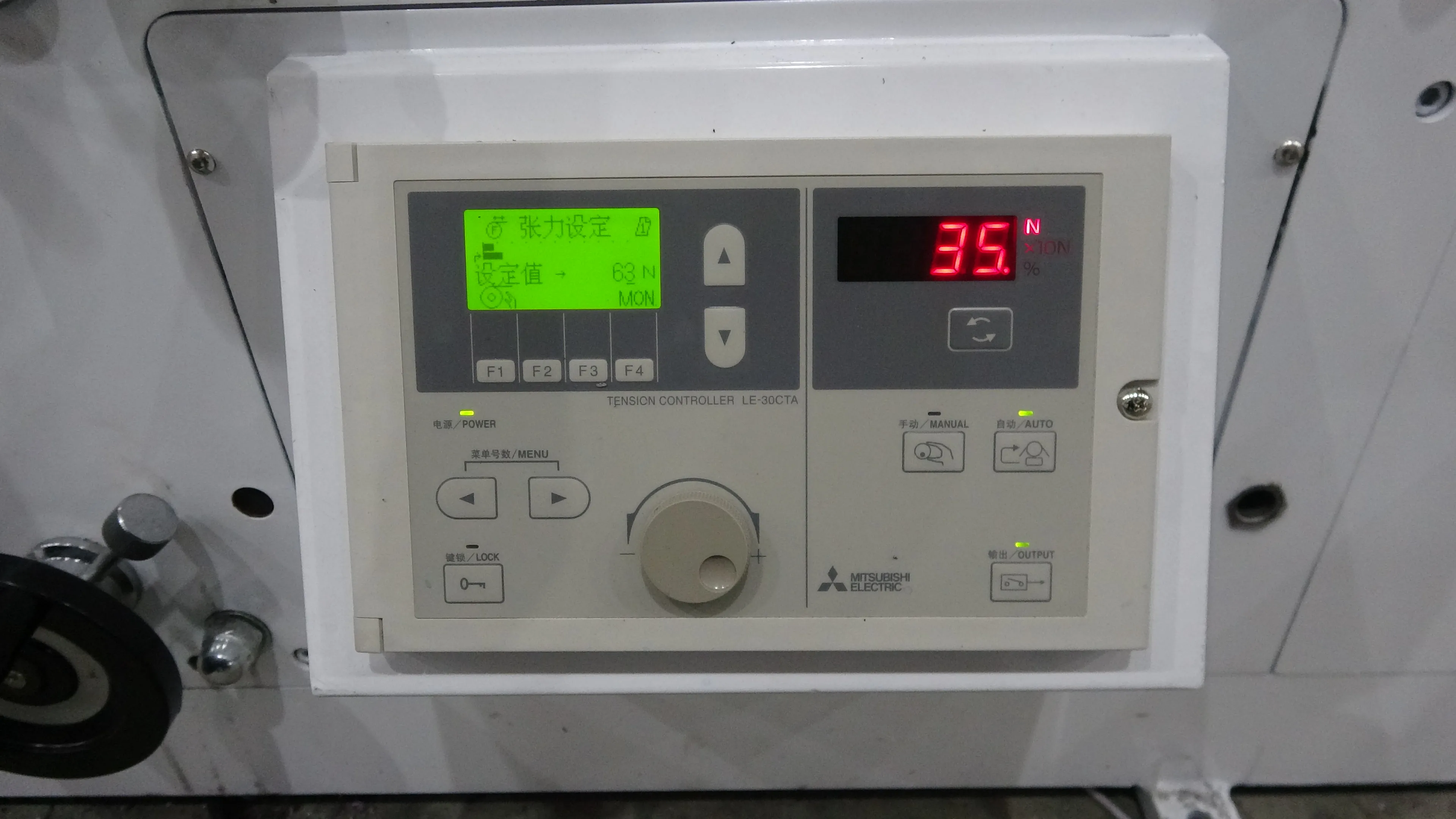

2.unwinding adopts Mitsubishi tension controller

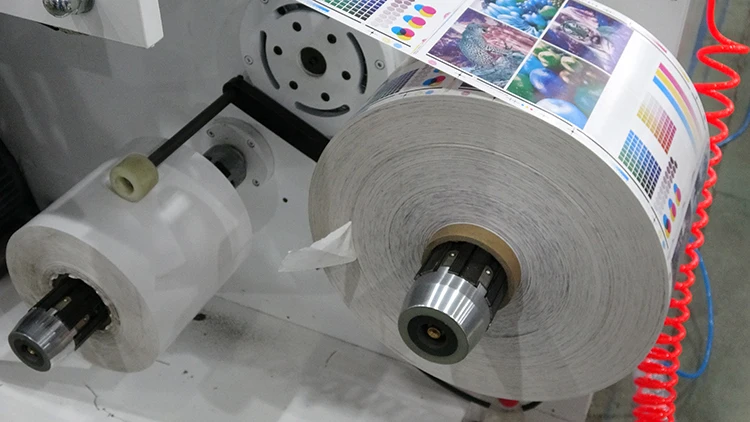

3.rewinding adopts Mitsubishi tension controller

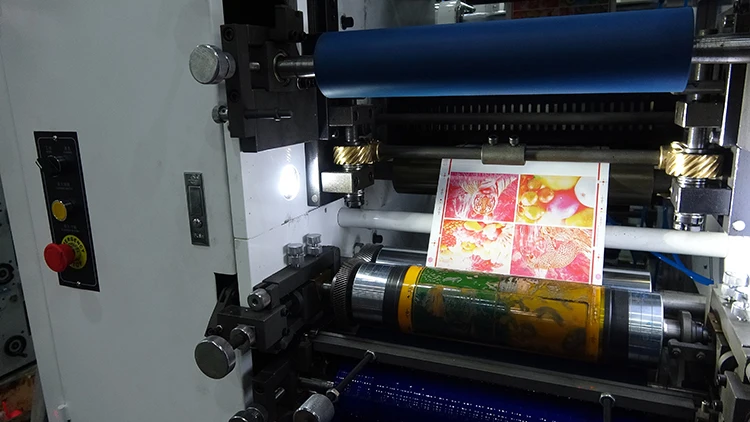

4.printing unit with 360°plate register adjustment

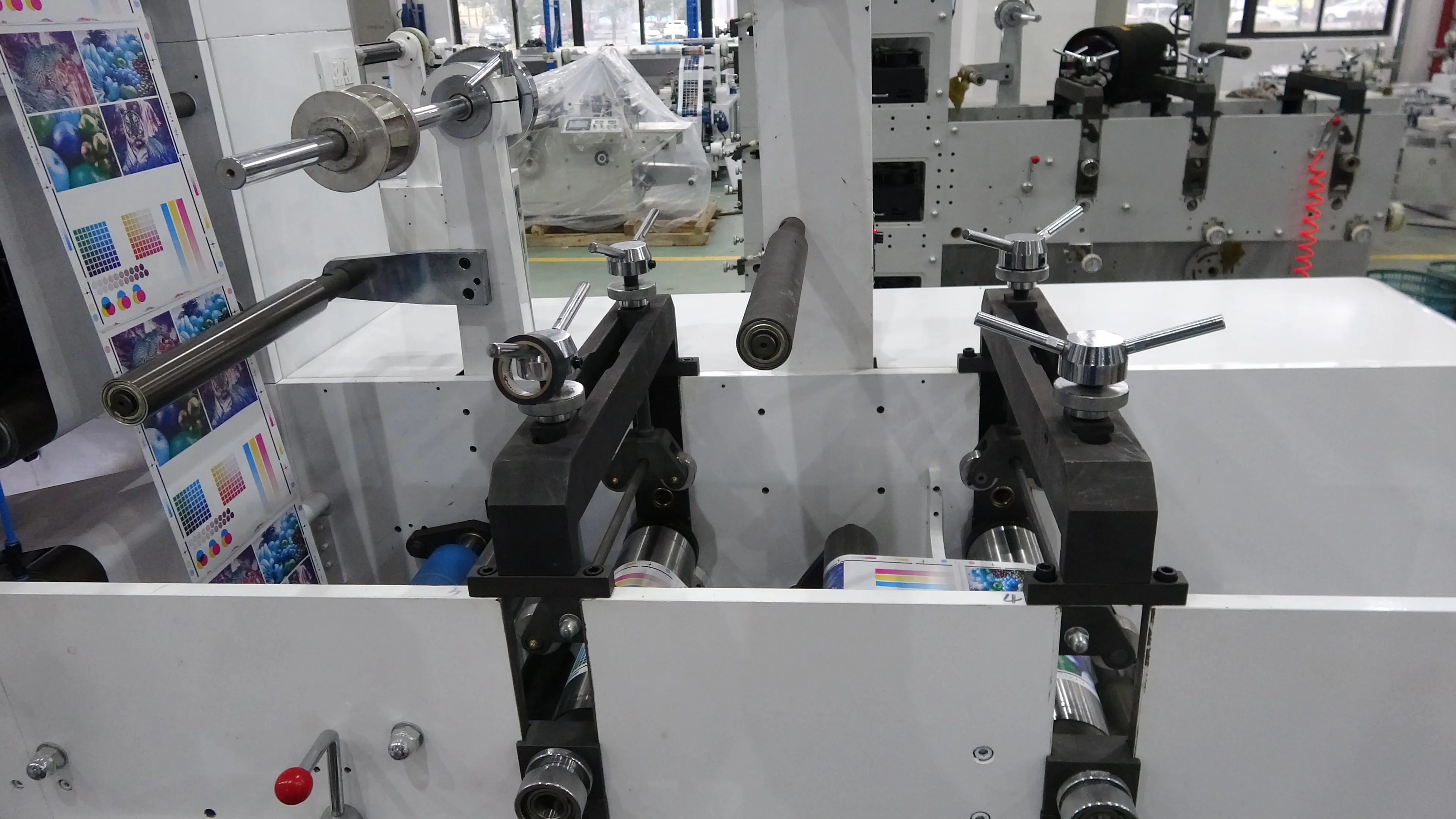

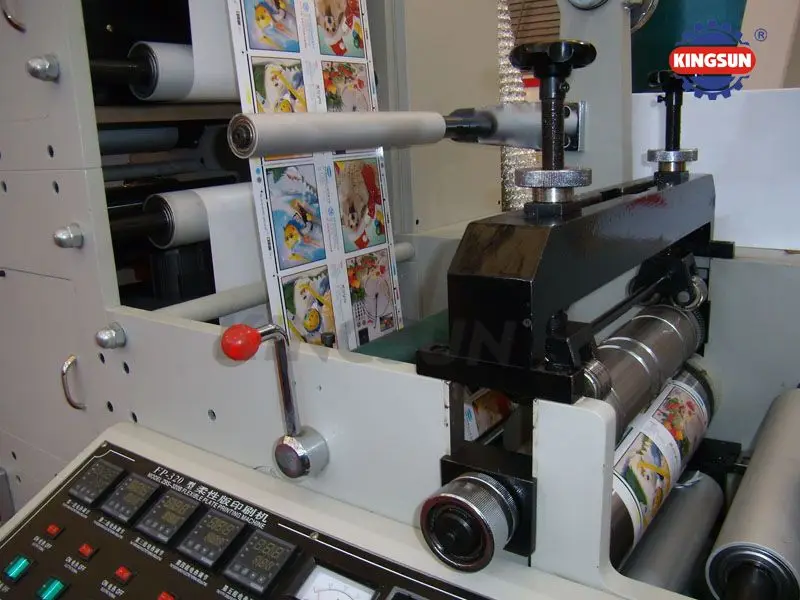

5.three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used as sheeter



6.computerized web-guiding system is installed in the front of printing unit,it unsures the material always in the right position



7.IR dryer for each printing unit or choose uv dryer system (extra to pay)



8.the anilox roller will be separated with plate roller and still keeping low speed running after machine stopped



9.imported frequency inverter for speed control



10.with laminating unit and rotary die cutting units



11.Optional parts:UV dryer,sheeter and conveyer belt,video system



12.this machine can finish material-feeding,printing ,varnishing,drying,laminating,die-cutting, rewinding and sheeter in a lump.



Main specifications:



Model	FP-320G
Printing speed	80m/min
Printing color number	1, 2, 3, 4, 5, 6, 8 colors
Max. web width	320mm
Max. printing width	310mm
Max. unwinding diameter	600mm
Max. rewinding diameter	600mm
Printing repeat length	175-355mm
Precision of color register	±0.1mm
Overall dimensions	2 X 1.1 X 2.7M
Weight	About 2800kg
