CF 85 Continuous compounding PE With Tio2 master batch mixer and pelletizer system
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Dongguan C Fine Machinery Technology Co. Ltd.
Share on (62029587080):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProducts Description \t\t\t\t\t\t\t

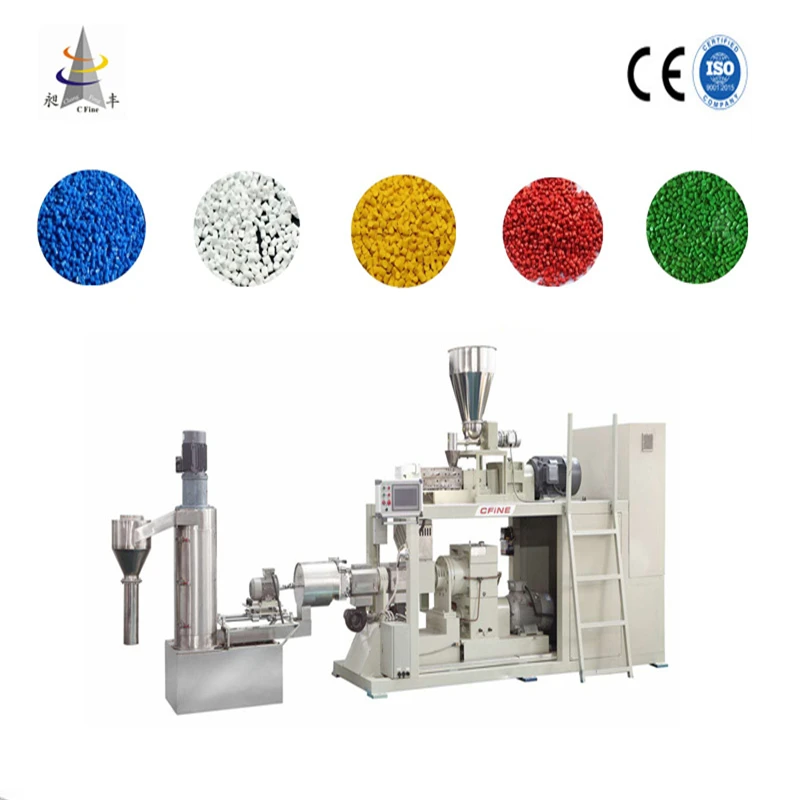

High filled materials compounding and granulating system
The CF-LXS series compact processor is a high productive compounder designed specifically for top-quality dispersion of highly filled,highly pigmented materials.The CF-LXS offers a complete one stop solution for all your processing needs.It is an integrated continuous mixer and extruder system mounted on a unitized frame.
The CF-LXS is capable of accepting feed from a wide range of raw material. It is designed to accept blended materials in the form of pellets,powder,flakes and liquids.
Working Principle
Compounding System
Materials entering the mixing chamber are conveyed by the screw where they are softened and subsequently melted. The two-lobe counter-rotating non-inter meshing rotors with forward and reverse pumping wings facilitate distributive mixing through longitudinal forward and backward flow patterns.The rotating lobes also push materials side to side between the rotors .Effective incorporation and dispersion of the pigments and fillers are achieved by the intensive shear imparted as the materials flow multiple times through the gap between the rotor tips and housing. The combined result is a compounder capable for producing a highly dispersed and homogeneous mixture.
Granulating System
With a residence time much shorter than any other type of processor.This keeps the overall material temperature and energy consumption low and produces compounds with low heat history and minimal material degradation.The residence time can be controlled by an adjustable orifice at the exit of the mixer.
The mixing chamber has provisions for heating and cooling to facilitate heat transfer in order to maintain the melt viscosity for effective mixing. Materials from the mixer is gravity-fed to the CF-LXS' hot feed extruder through an enclosed connecting chute. The extruder feed screw is specially designed for pumping only resulting in minimal temperature rise of the compounded material.
\t\t\t\t\t\t\t\t\tApplications \t\t\t\t\t\t\t
Materials suitable for:
The CF-LXS is a proven solution to produce color or additive,master batches,PVC,polyolefin based compounds,copolymers , polystyrenics & thermoplastic elastomers. The CF-LXS has the ability to process highly filled materials out-performing other processors(Calcium carbonate,Titanium Dioxide ,TALC,Carbon black).
\t\t\t\t\t\t\t\t\tTrade Shows \t\t\t\t\t\t\t
CHINA INTERNATIONAL OPTOELECTRONIC
EXPO.
Year 2018 in Shenzhen
CHINAPLAS2018.
Year 2018 in Shanghai.
Rubber-plas Malaysia 2016.
Year 2016 in Kuala Lumpur.
The18th CIOE .
Year 2016 in Shenzhen.
The 29th CHINAPLAS.
Year 2015 in Guangzhou.
\t\t\t\t\t\t\t\t\tAbout Us \t\t\t\t\t\t\t
Picture of our company
Dongguan Cfine Machinery Technology Co.,Ltd. is a professional feedstock mixing and granulating equipment manufacturer that specializes in making Banbury mixer and pellets granulating extrusion machine .
Our high-quality products have gained international recognition and acceptance not only by worldwide rubber market, even also for Industries like Electrical, Ceramic,Metal Industries etc...and also have been exported to global customers including USA,Korea,Kazakhstan ,India,Malaysia,England and many European Countries.
Over the past decade our products have rapidly built a reputation for Honesty and Reliability.
The Company has strongly believe that producing excellent quality products is the best method of Advertising. Even more by understanding more about our customers and the industry, we are able to improve our products in all aspects, whilst attempting to achieve International Accreditation.
You are welcome to visit our company and test the formula,make sample in our independent laboratory.
Our Team
We aim to provide Total Customer Satisfaction in terms of Quality, On-Time Delivery, Competitive Costing and yet with First Class Services that Meet and Exceed customer requirements.
Workshop
Our Manufacturing experience and Modern Technology has given us the edge in delivering high quality service to all our customers.
\t\t\t\t\t\t\t\t\tCertificates \t\t\t\t\t\t\t
CE Certificate
ISO 9001:2015
Patent
\t\t\t\t\t\t\t\t\tRFQ \t\t\t\t\t\t\t
Q1:Why choose Us?
1. More than 10 years history in producing compounding and granulating machines for plastic and rubber industries..
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 10 countries .
2. ISO:9001,CE, certification
3. Service timely, Promise to give solution within 16 hours.
4. Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date ?
1.Payment term:50% of deposit,50% before shipment.\t
2,Delivery term: FOB or Ex-work.
3,Delivery time:45 days after receipt of the deposit.
Q3:What's the warranty statement?
Free warranty for normal use for one year.
Q4:What about CFine After-Sales Service ?
1. We arrange engineer to install the machinery and training the workers for client abroad if clients required.
2. We have 24 hours team to solve problems after sales.
3. We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
4. We always update the new technology to every customer.
