Wastewater evaporators price
US $7800
Stainless steel short path wiped film evaporator molecular distillation
- Category: Evaporator >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (62029812567):
Product Overview
Description
Product Description
Lab1st Stainless Steel Molecular Distillation Unit
Lab1st pilot stainless steel wiped fimshort path molecular distillation units are available in various sizes (from 1.1sqft to 5.4sqft ), with processing speed up to 50kg/h. (For industrial-scale, it can be up to 500kg/h)
Details Images
Technical datas
SMD-01 | SMD-03 | SMD-05 | |||
Feeding Rates（kg/h） | 1 - 10 | 5 - 25 | 10 - 50 | ||
CBD Throughput (kg/h) | 3.5~7 | 10 ~20 | 18~35 | ||
Degree | Better than 10 Pa | ||||
Evaporation Area (㎡/sqft) | 0.1㎡/ 1.1sqft | 0.3 ㎡ / 3.2 sqft | 0.5 ㎡ / 5.4 sqft | ||
Diameter | 125mm / 4.9" | 210mm / 8.3" | 300mm / 11.8" | ||
Wiper Style | Scaper | ||||
Material | SS316L / PTFE (wiper blade) | ||||
Vacuum Seal | Magnetic Sealing | ||||
Scraper Motor Power (w) | 370 | 750 | 1500 | ||
Speed Regulation Mode | Variable Frequency Drive | ||||
Max.Scraping Speed (rmp) | 450 | ||||
Max. temperature | 250℃ | ||||
Jacket Volume(L) | 1.1 | 7.1 | 17.3 | ||
Volume(L) | 0.23 | 1.24 | 3.9 | ||
Heat Exchanging Area (㎡） | 0.18 | 0.55 | 1.7 | ||
Volume(L) | 20 | 30 | 50 | ||
Jacket Volume(L) | 10 | 14 | 20 | ||
Standard Feeding Rate (L/h) | 1.5-12 | 2.5-24 | 2.5-24 | ||
Drive Motor Power （w） | 200 | 200 | 200 | ||

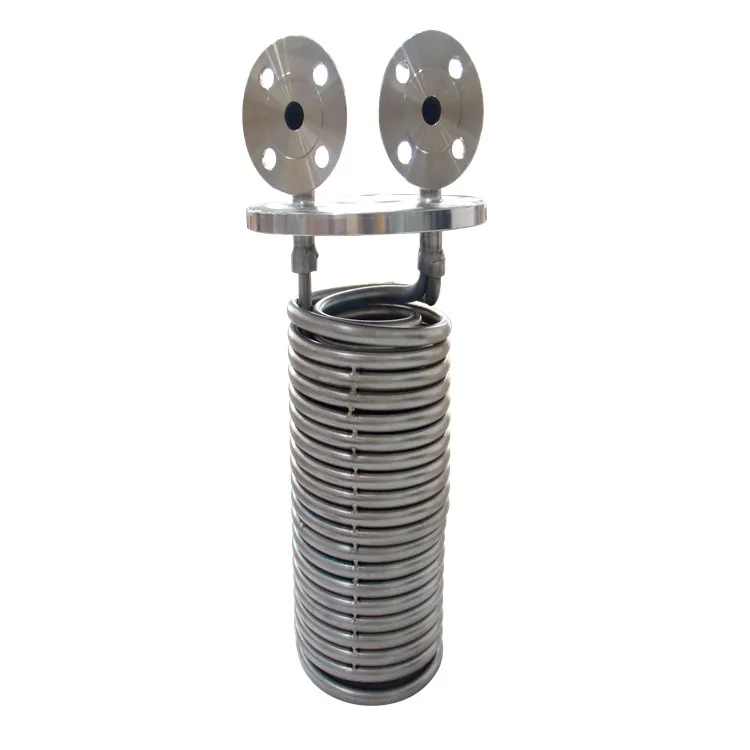

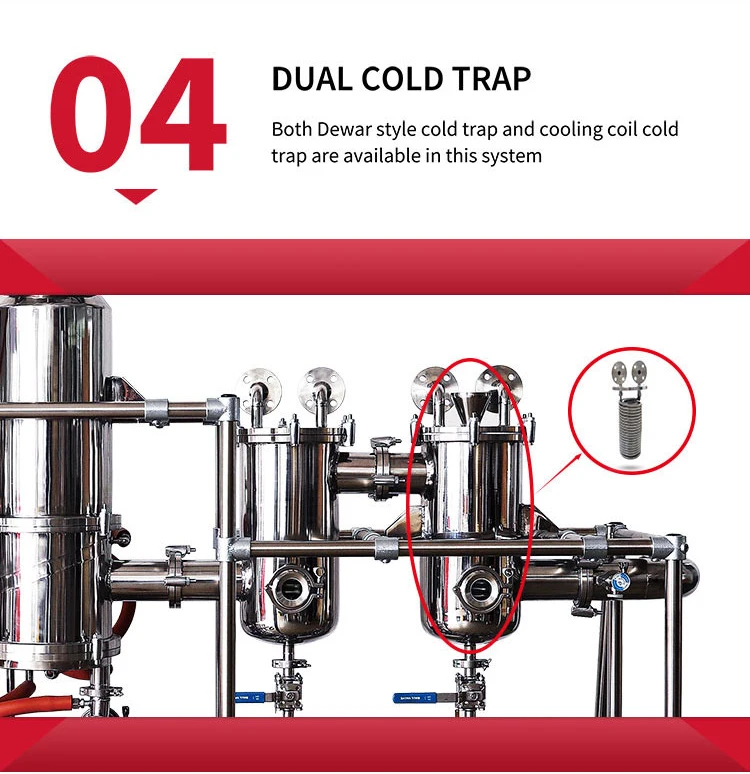

Type | Cooling Coil Style | ||||
Receiving Flask (L) | 2 | 2 | 5 | ||
Type | Dewar Style | ||||
Receiving Flask (L) | 2 | 2 | 5 | ||

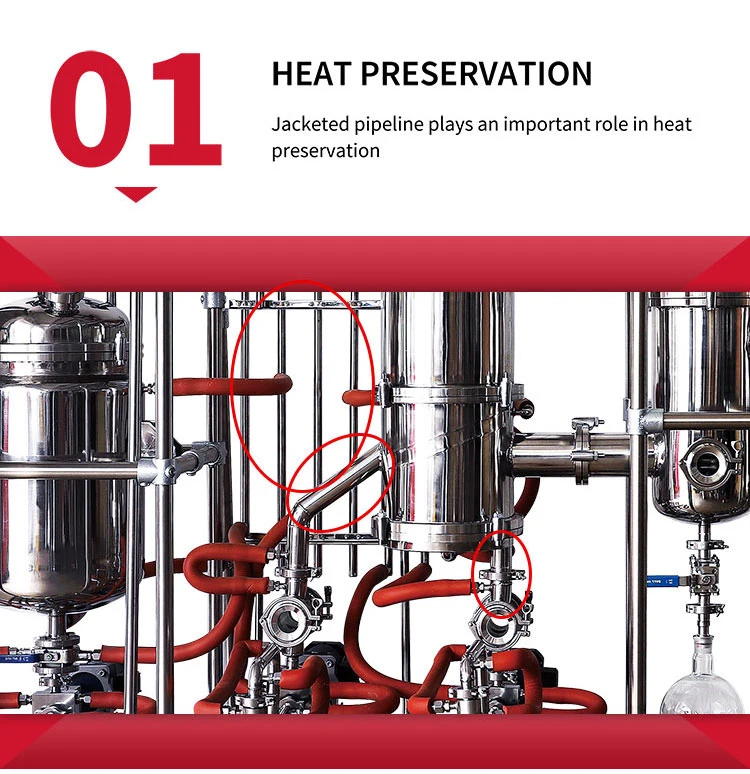

Heat Preservation Method | Jacketed Insulation | ||||
Material | 304 Stainless Steel | ||||
Power | 220V-Single Phase / Customizable | ||||
