CG2-11 magnetic automatic Pipe Gas cutting machine tube cutter easy use fast delivery Huawei quality



Product Description


1. The main body is made of aluminum alloy, light, and portable.
2. It adopts permanent magnet wheel to crawl on the pipe while cutting.
3.Can be used for parallel, upright and face upward cutting.
4.Especially for pipe cutting, convenient in operation.


5..Beveling range: I.Y.V 45°
6. Widely applied to oil production, chemical pipe project.





Remark: If the dia>600mm should use an optional guide band.



































Order
NO.		 Model
NO.		L*W*HSupply VoltageMin Dia Pipe(mm)Cutting thicknessCutting SpeedWeight
HW1211CG2-11350*310*180AC220/50>Φ108
     6-505-75020
HW121

CG2-11-II


450*230*210AC220/50>Φ110



     6-50


5-75020.5

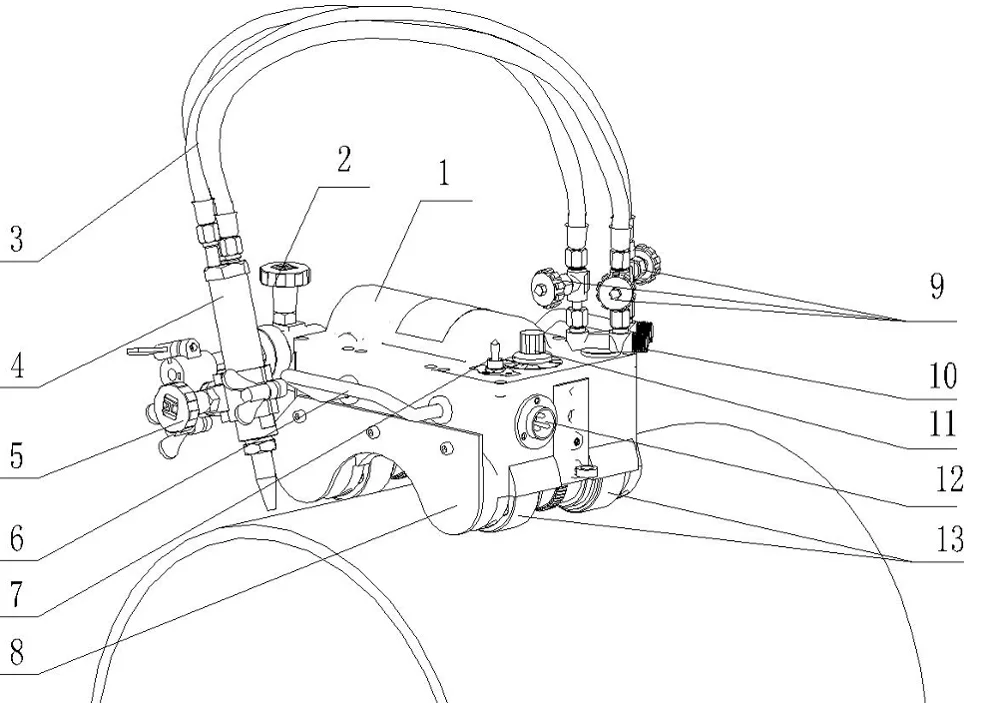

CG2-11 L.jpg








































1. Body



8.Thermal baffle:To prevent heat to diffuse into the inner of machine.



2 .Cross feeding hand wheel


   To adjust horizontal position of torch.



9.Two-port valve:To adjust the flow.



3. Hoses:Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose.



10.Gas distributor:Gases are: preheating oxygen, fuel gas and cutting oxygen.



11 Speed regulating knob:Decrease the speed along “10” toward “0” anti-clockwise.



4.Torch



5. Adjusting hand wheel of torch



12.Plug seat



6.Handlebar



13.Magnetic roller wheel:The two magnetic roller wheels can make the machine walk along pipe wall smoothly.



7.Reversing switch:To change the direction of machine. “STOP” position is in the middle.








For the portable pipe CNC cutting machine, we will recommend the PNC model below.


This model could cut with flame and plasma for any shape on the pipe.
