DC12V~24V 300W single color dimmer warranty Push control 0 10V dimming controller
- Category: >>>
- Supplier: Shenzhen Hoion Lighting Co. Limited
Share on (62030808207):
Product Overview
Description
0-10v single color led dimmer, led controller dimmer, single color dimmer DC12V~24V 6A*3CH 384W warranty CE Rohs
We are manufacturer and specialized in led control field from 2010 years.
Our main products include:
Constant voltage controllers for DIM/CCT/RGB/RGBW/RGBWW:
RGB controller Wireless RF controller IR remote controller LED dimmer,
RGB amplifier SPI controller LED Audio Controller DMX512 decoder
Constant current RF dimming driver for DIM/CCT:
RF 2.4G SYNC dimming driver (DIM) RF 2.4G SYNC dimming driver(CCT)
RF 2.4G remote control RF 2.4G multiple-zone remote control
Our advantage:
1.Stable quality---3 years warranty
2.Reliable cooperation based on ISO9001 quality control system and delivery time control.
3.Experienced on the OEM/ODM work.
Product Description

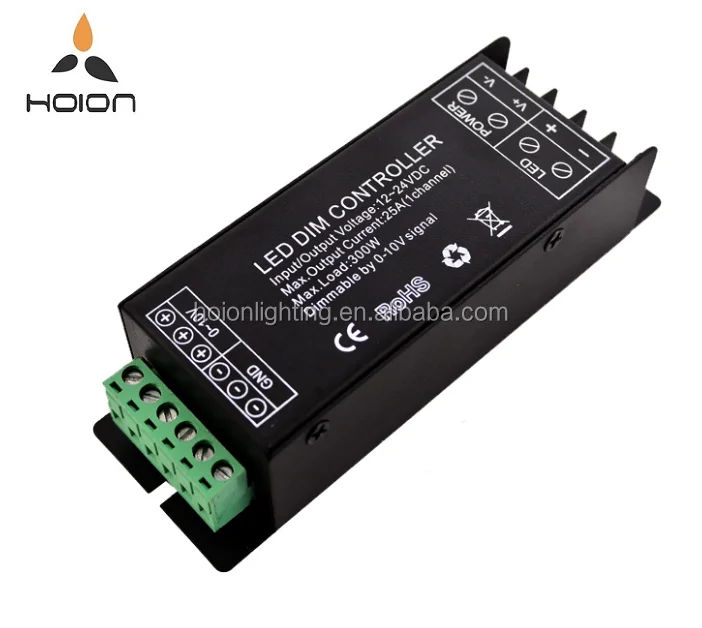

HX-SZ200-0-10V
LED dimmer
0-10V led dimmer controller adopts the advanced micro control unit, It can receive the 0-10V analog control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. Dimming range from 0-100%, stable and soft.
Product Feature
l Adopt the advanced micro unit.
l Receive the 0-10V analog control signal which is internationally widely used.
l PWM control signal to actuate the LED lamp, dimming from 0-100%,stable and soft.
l PWM signal frequency:2KHz.
l Output gray,4096 levels.
l 3-year warranty.
Technical Parameters
Working temperature | -20-60℃ |
Supply voltage | 12V~24V |
Output | 1 channel |
External dimension | L127*W42*H33 (mm) |
Packing size | L135*W55*H40 (mm) |
Net weight | 150g |
Gross weight | 170g |
Output gray | 4096 levels |
Max. Output current | <25A |
Control standard | 0-10V analog signal |
0-10V signal consumption | <0.1mA |
Dimming range | 0-100% |
PWM frequency | 2KHz |

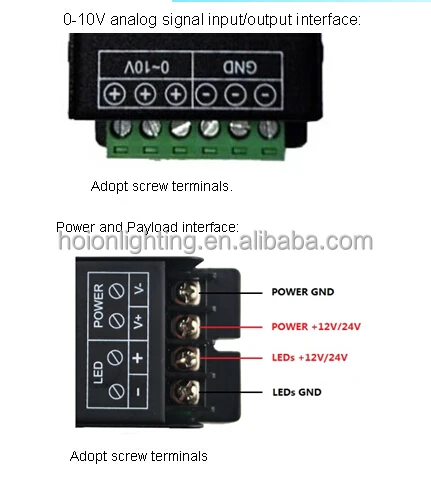

Interface Specifications
DMX input/output interface:
Product information for placing order
Product name | Item number |
0-10v led dimmer | HX-SZ200-0-10V |
