WRC28VM новый вертикальный токарный станок для ремонта ободов
- Category: CNC Lathe >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (62030928759):
Product Overview
Description
Product Description

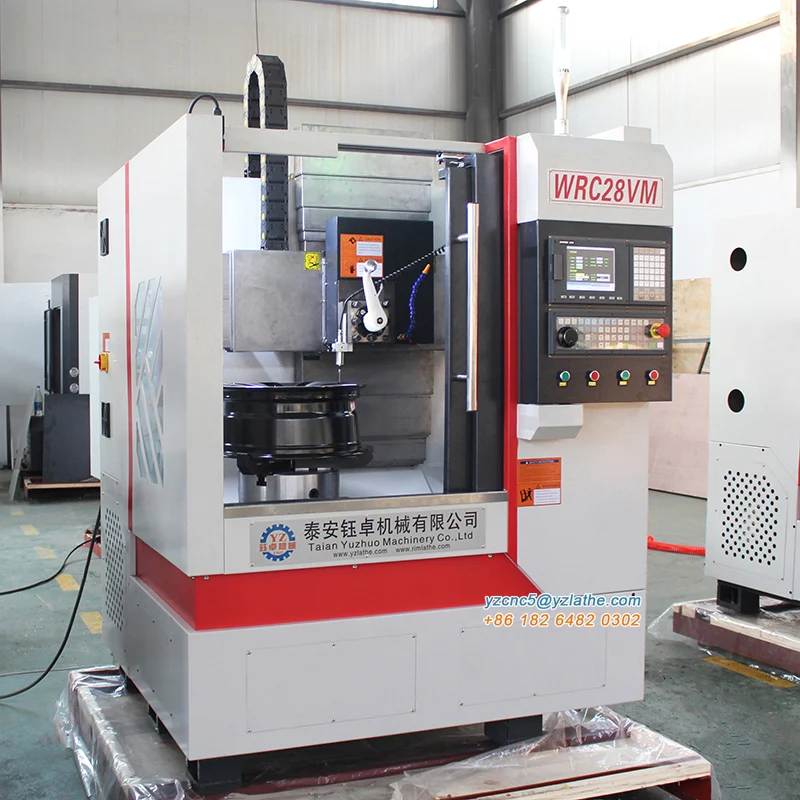

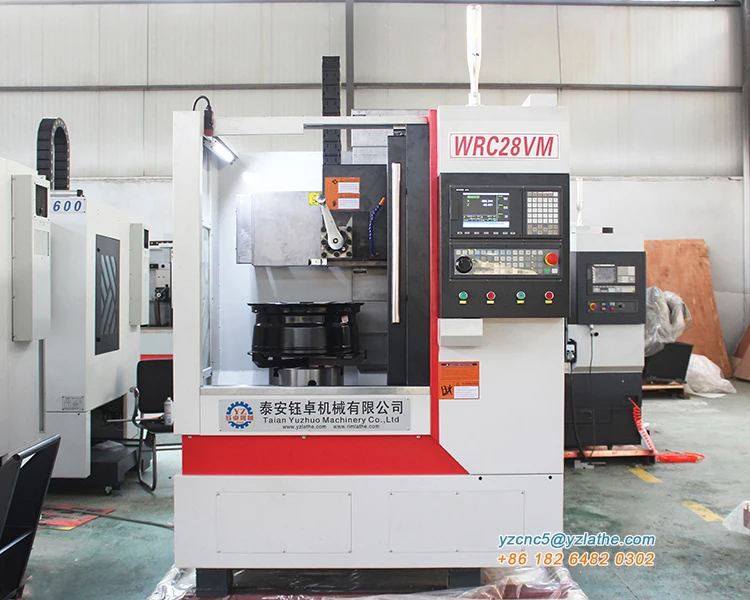

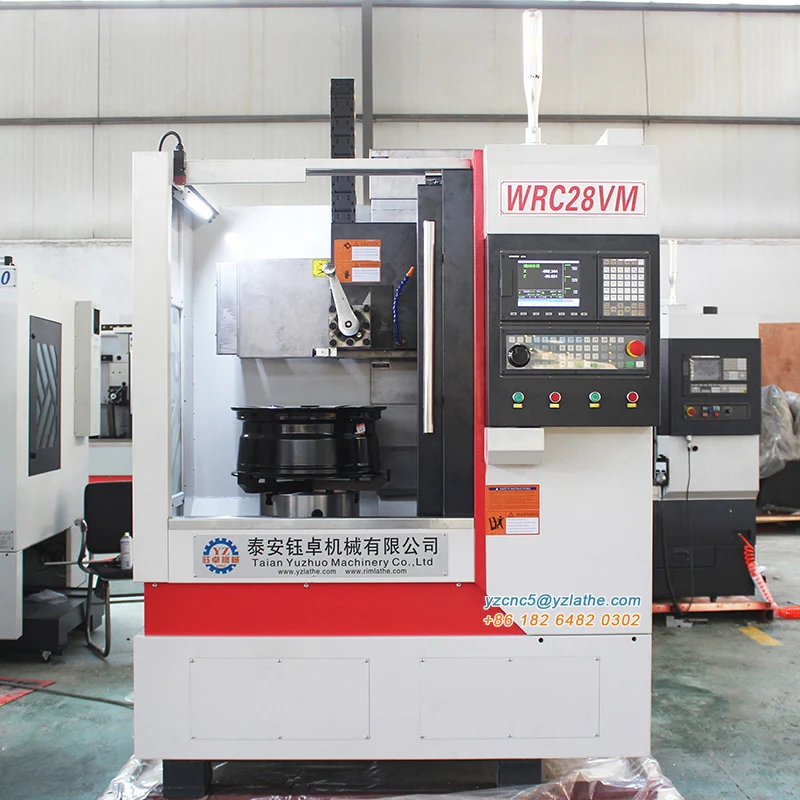

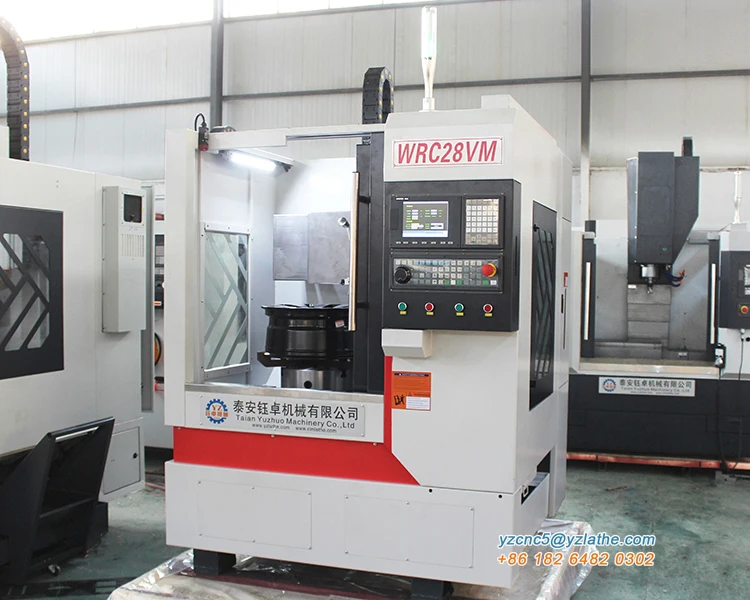

WRC28VM New Vertical Wheel Lathe Rim Repair Machine
Model | WRC28VM | ||||
1 | Max. swing over bed | mm | 820 | ||
2 | Max. process diameter | mm | 780 | ||
3 | Max. size of wheel repair | inch | 30 | ||
4 | Chuck diameter | mm | 325 | ||
5 | Spindle speed | rpm | 50-1500 | ||
6 | Cutting speed | mm/min | 0.1-1000 | ||
7 | Tool post | 4 Station tool post | |||
8 | Main motor power | kw | 5.5 | ||
9 | Size | mm | 1460x1570x2030 | ||
10 | Weight | kg | 1500 | ||
Standard Configuration:

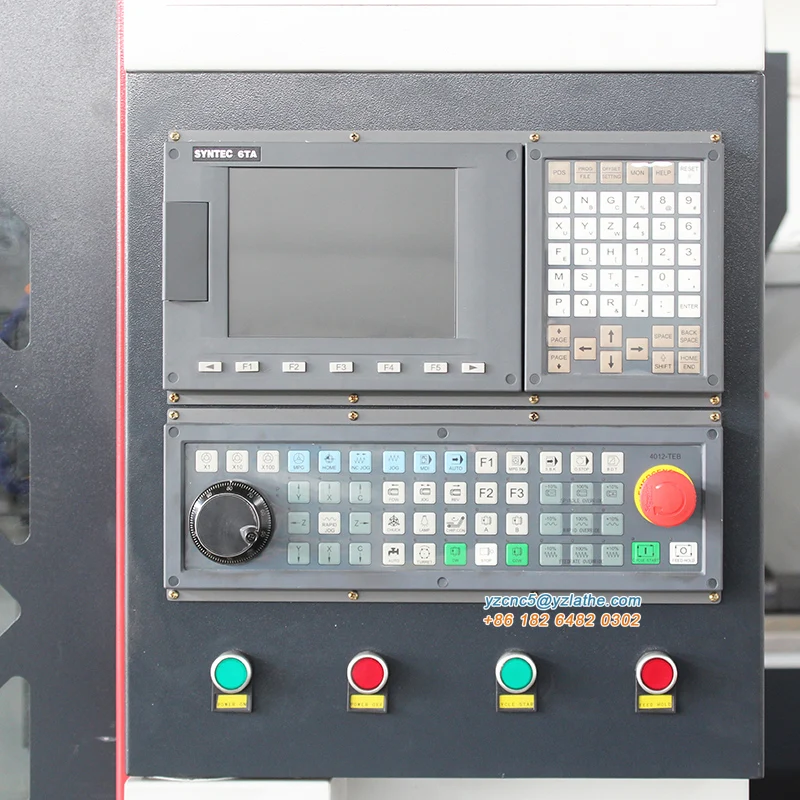

1-CNC Controller: Taiwan SYNTEC 6TA.

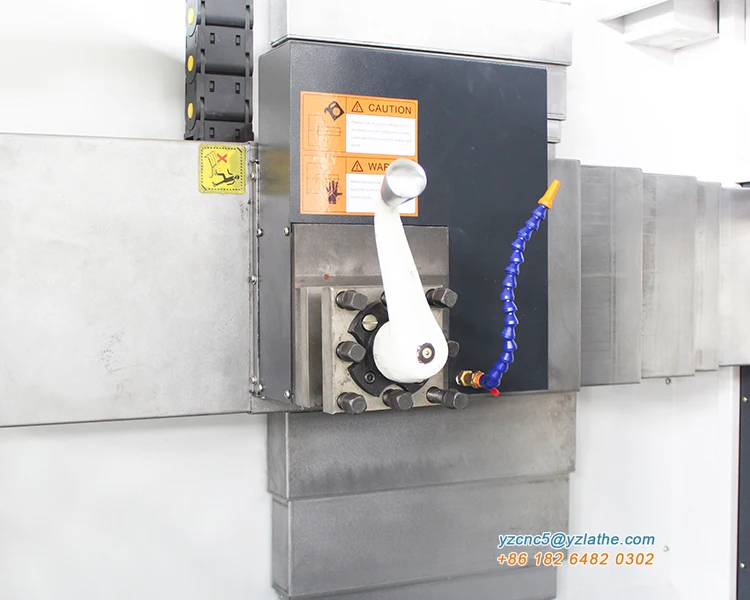

2-Four station manual turret.
3-With special 3-jaw soft jaws.
4-Automatic lubrication system.
5-Turning the cooling system.
6-With probing system.
7-One normal cutter tool.
8-One normal diamond probe.
9-Training video.
10-Special optimize software.
11-U disk (operation manual).
12-Standard export wooden case.
13-Taiwan Hiwin linear guideway.
1-CNC Controller: Taiwan SYNTEC 6TA.
2-Four station manual turret.

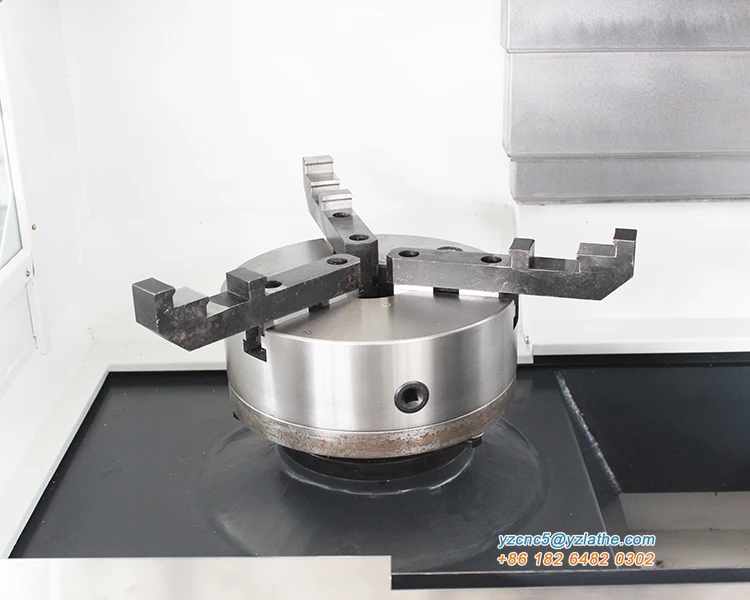

3-With special 3-jaw soft jaws.
4-Automatic lubrication system.
5-Turning the cooling system.
6-With probing system.
7-One normal cutter tool.
8-One normal diamond probe.
9-Training video.
10-Special optimize software.
11-U disk (operation manual).
12-Standard export wooden case.
13-Taiwan Hiwin linear guideway.
Details Display

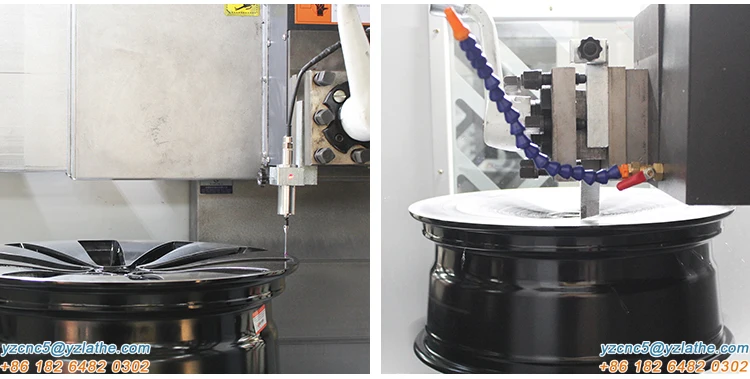

Wheel Lathe Machine Work Steps:

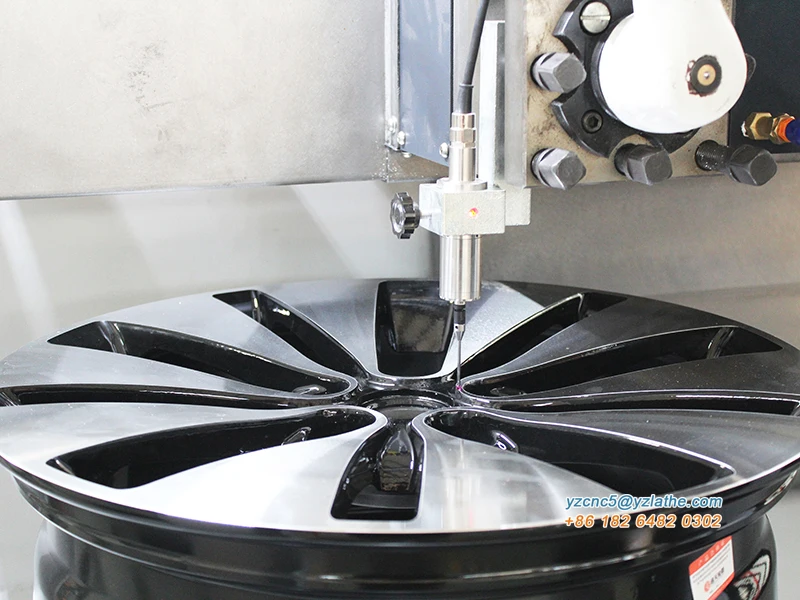

1- Probe alloy wheel profile, generate G code.

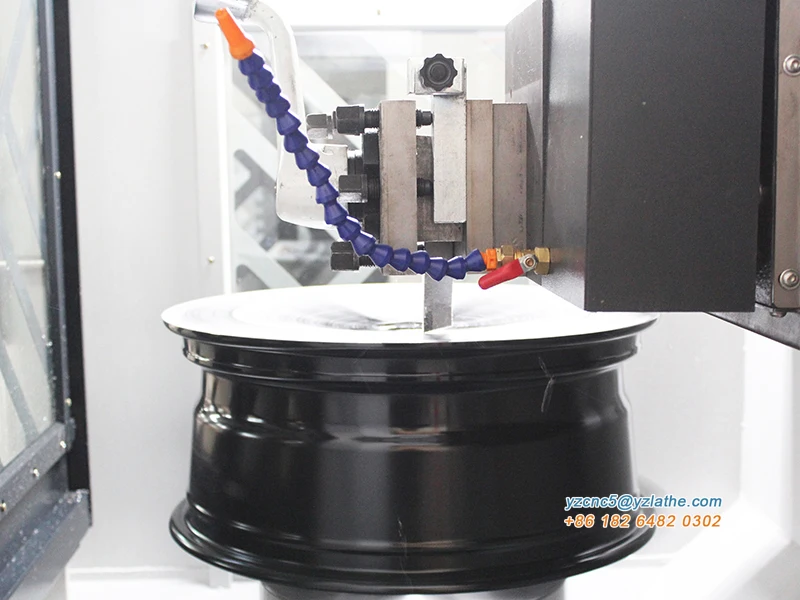

2- Diamond cut the wheel surface.
2- Diamond cut the wheel surface.

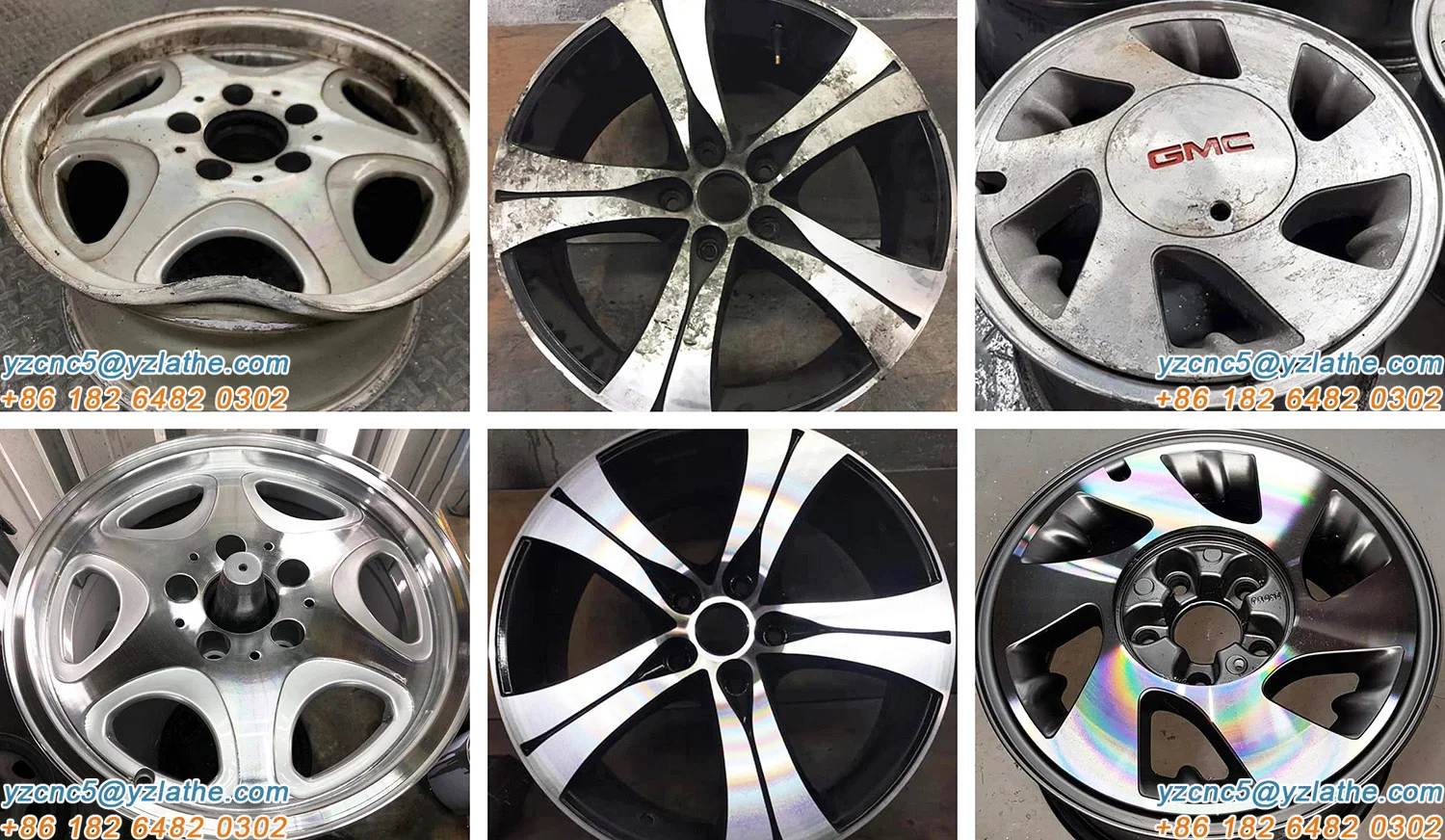

Wheel Repair Before & After:

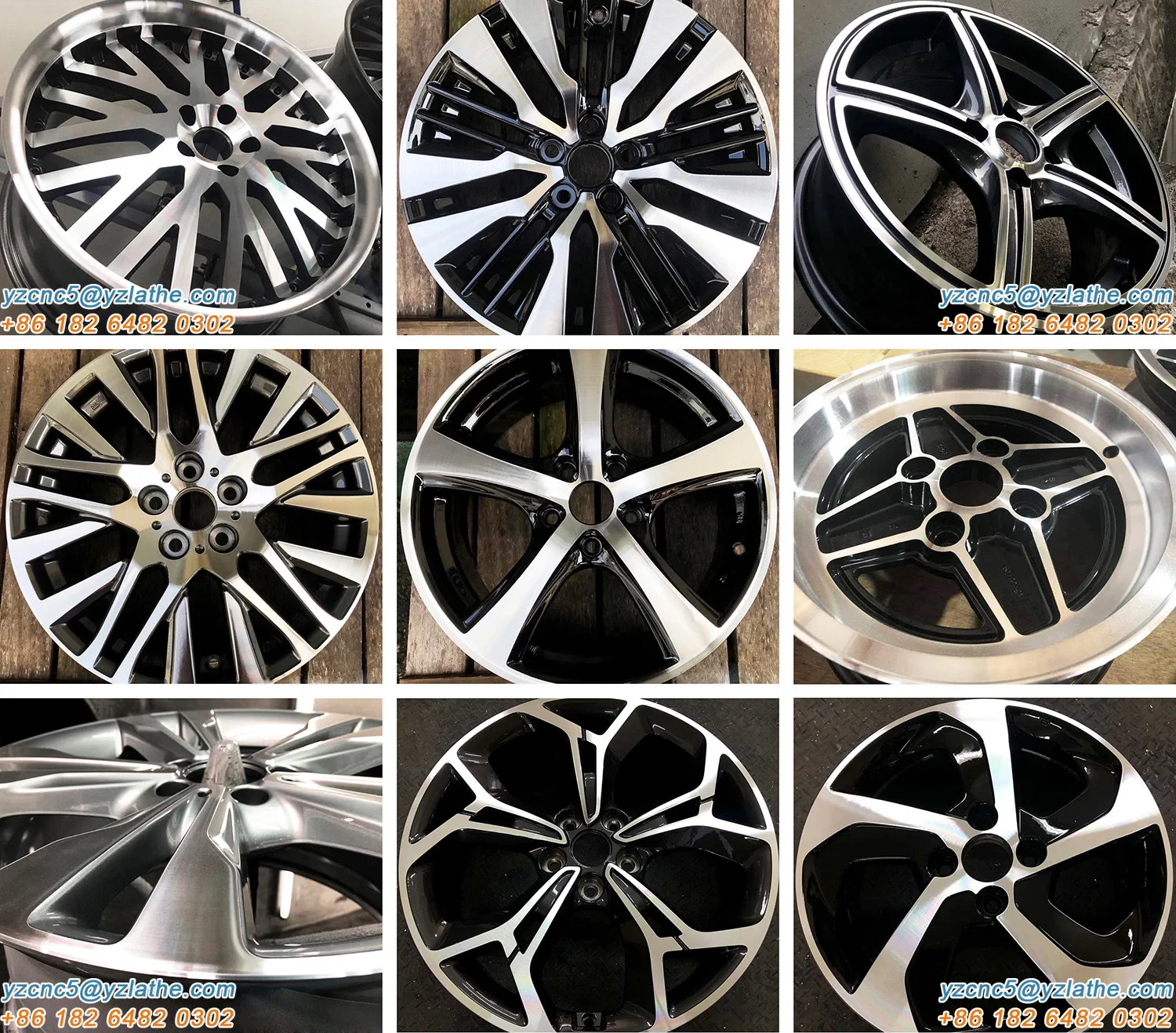

Repair Completed Wheels:
Packaging And Transportation
Company Profile
Taian Yuzhuo Machinery Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
FAQ
Q1. How can I choose the most suitable machines? |
Our engineer can help to choose the best model for you according to your wheel size. |
Q2. What's the main products of your company? |
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on. |
Q3. Where is the factory located? How can I visit there? |
Our factory is located in Tai'an city, Shandong province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And we warmly welcome you to visit us at any time. |
Q4. How long is the delivery time? |
Our machines manufacturing time is around 20 days after receiving deposit payment. |
Q5. What is the package like? Is it suitable for shipment? |
Machines will be packed by exporting standard package, water proof, anti-rust and fumigation-free. It is very much strong for oversea transportation. |
Q6. What is the payment terms? |
30% by T/T as deposit payment, the balance 70% by T/T before delivery. If other payment terms, we can discuss. Welcome to inquiry sales. |
Q7. How long is the warranty for machines? |
Machines warranty is 12 months after receiving goods. We would offer the new parts free of charge during this period. |
