Wastewater evaporators price
US $7800
YHCHEM YMD 2S 20l/h Inputs Capacity Wiped Film Evaporator Manufacturers Molecular Distillation From China
- Category: Evaporator >>>
- Supplier: Shanghai Yuanhuai Industrial Co. Ltd.
Share on (62032053617):
Product Overview
Description
Product Description
YHCHEM YMD-2S 20l/h Inputs Capacity Wiped Film Evaporator Manufacturers Molecular Distillation From China
YHCHEM wiped film distillation is a process of separation, purification and concentration of natural products, which is characterized by the separation of chemicals at the level of molecular free short route, which is different from the principle of separation by difference of traditional boiling point.
As a professional manufacturer, we can offer turnkey solutions for molecular distillation units, including molecular units, vacuum pumps, chillers, heaters, and necessary feeding / receiving components.

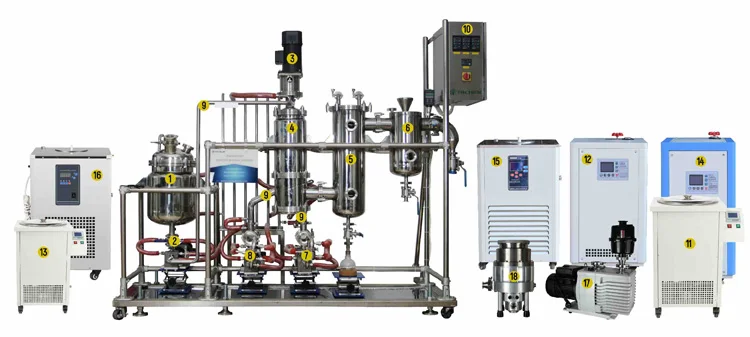

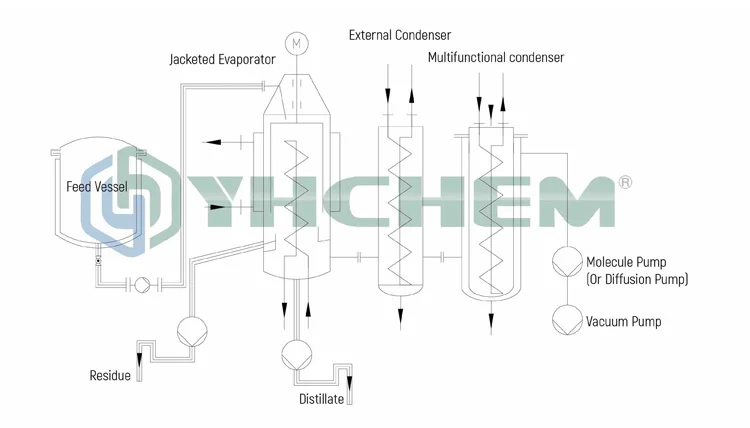

Structure Display
| Turnkey Solution for Stainless Steel Short Path Molecular Distillation | |

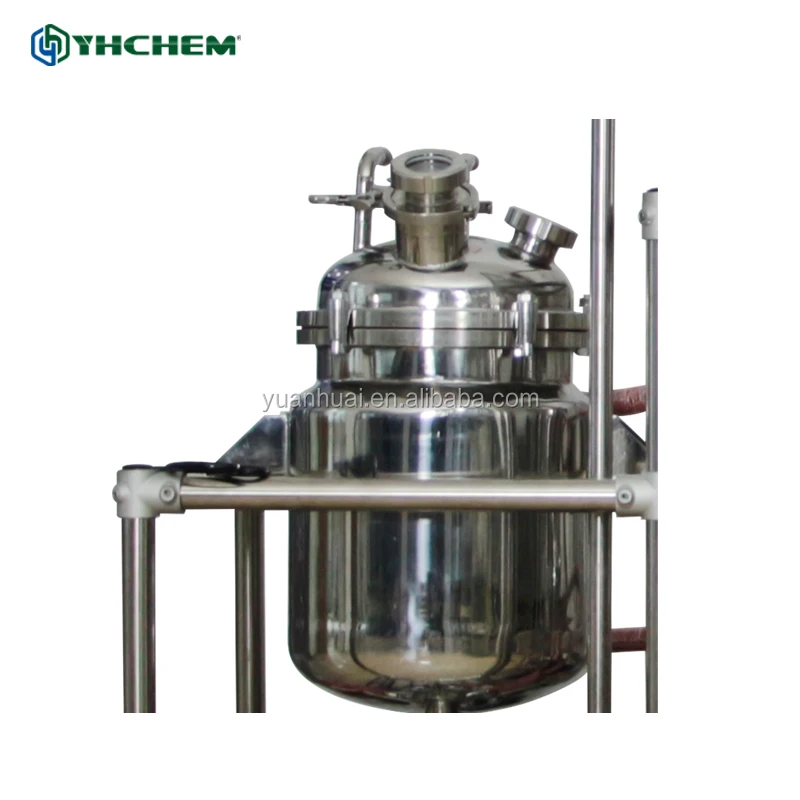

| 1 | Jacketed feeding vessel with sight glass |

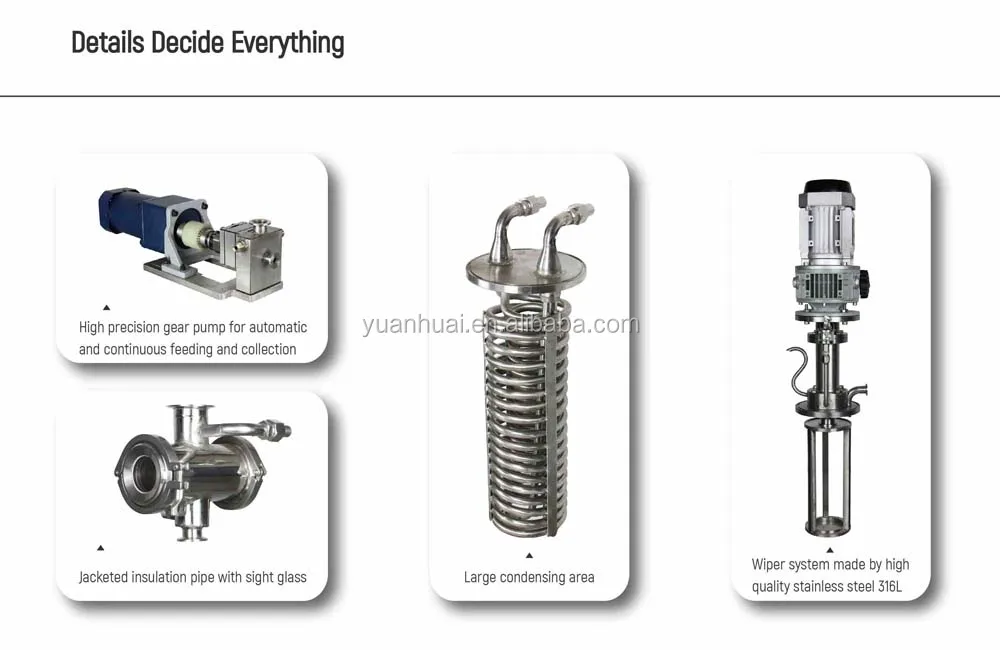

| 2 | Feed pump for automatic and continuous feeding |

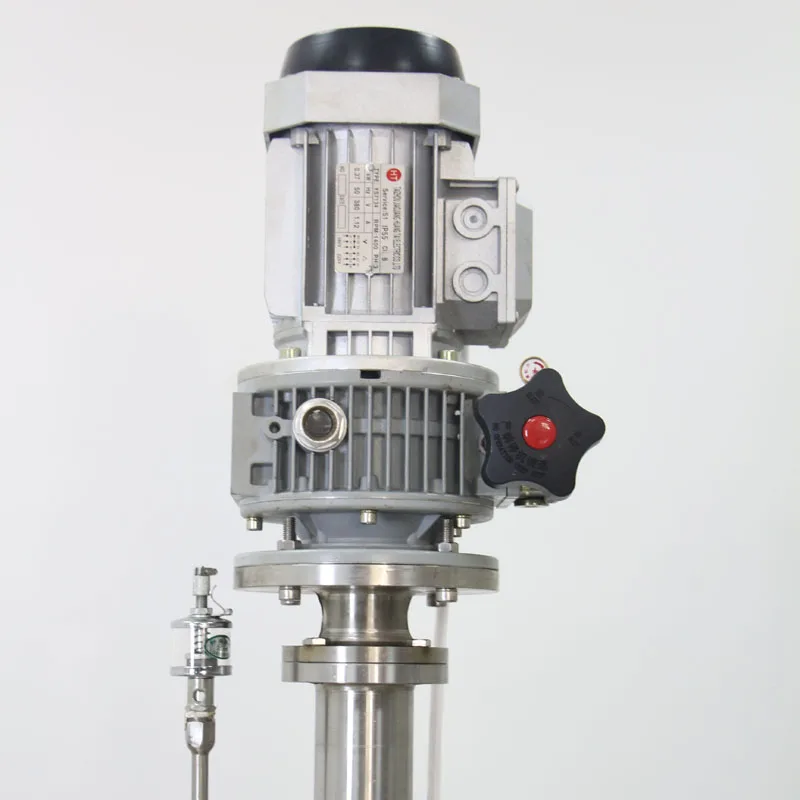

| 3 | Motor to drive rotation with mechanical sealing (Optional: Magnetic sealing) |
| 4 | Jacketed evaporator with internal condenser |

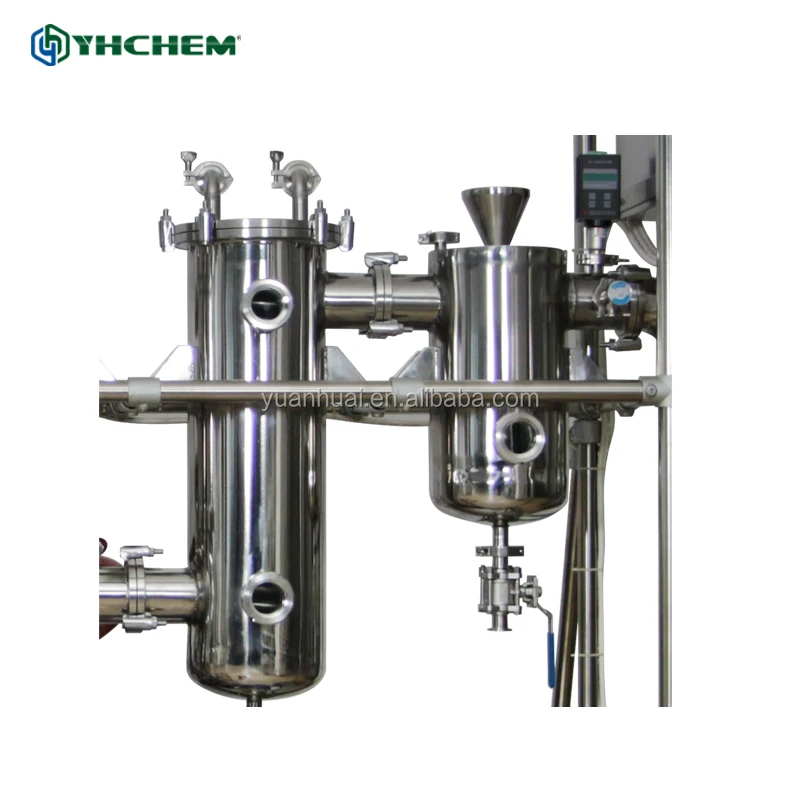

| 5 | External condenser with sight glass |
| 6 | Multifunction condenser (Both with dry ice cold trap and cooling coils condenser) |
| 7 | Collection pump(Distillate)for automatic and continuous collection |
| 8 | Collection pump (Residue) for automatic and continuous collection |
| 9 | Full jacketed pipe (feeding and collection section) |
| 10 | Control cabinet |
| 11 | Heating circulator for feeding vessel and pipeline |
| 12 | Heating circulator for jacketed evaporator |
| 13 | Heating circulator for reside collection section |
| 14 | Heating & cooling Circulator for internal condenser and distillate collection section |
| 15 | Cooling circulator for external condenser |
| 16 | Cooling circulator for multifunction condenser |
| 17 | Rotary vane vacuum pump |
| 18 | Molecular pump (Optional: Diffusion Pump) |
Technical Data
| Technical Specifications Of Stainless Steel Wiped Film | ||||||||
| Model | YMD-1S-2 | YMD-2S-2 | YMD-5S-2 | YMD-10S-2 | YMD-15S-2 | YMD-20S-2 | YMD-30S-2 | YMD-50S-2 |
| Evaporation Area m2 | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Feeding Rate L/h | 1-15 | 5-25 | 10-60 | 50-120 | 60-180 | 100-200 | 100-300 | 200-500 |
| Feeding Method | High-precision gear pump | |||||||
| Receiving Method | Continuous discharge pump | |||||||
| Equipment Height(mm) | 2100 | 2650 | 3100 | 4250 | 4500 | 5000 | 6200 | 7500 |
| Max Speed(rpm) | 50-350 | |||||||
| Operation Temperature | Up to 350C | |||||||
| Vacuum Level(mbar) | Low to 0.001 mbar | |||||||
| Feeding Mode | Gear pump for automatic and continuous feeding | |||||||
| Collection Mode | Gear pump for automatic and continuous collection | |||||||
Choose your preferred model and send us inquiry for prices!

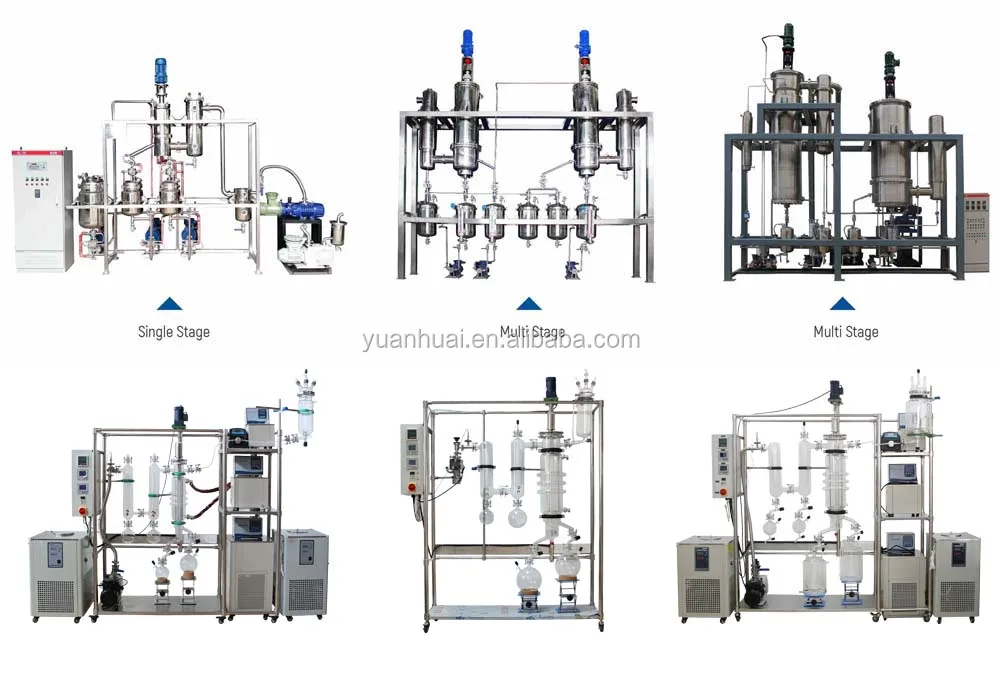

Client Case
About our factory
Certifications
FAQ
FAQs
Q: Are you trading company or manufacturer?
A: We are professional manufacturer with nearly 10 years' experience of distillation equipment. Welcome to visit our factory in Shanghai
Q: How long is your delivery time?
A: Generally it is within 7~9 days after receiving the payment. For wiped film system, it is 2~3 weeks which is quickest among all Chinese suppliers.
Q: What Is your terms of payment?
A: 100% Payment before shipment or as negotiated terms with clients. For protecting clients payment security, Trade Assurance Orderis highly recommended.
Q: What's the order process?
