Product Overview

Description


Product Description

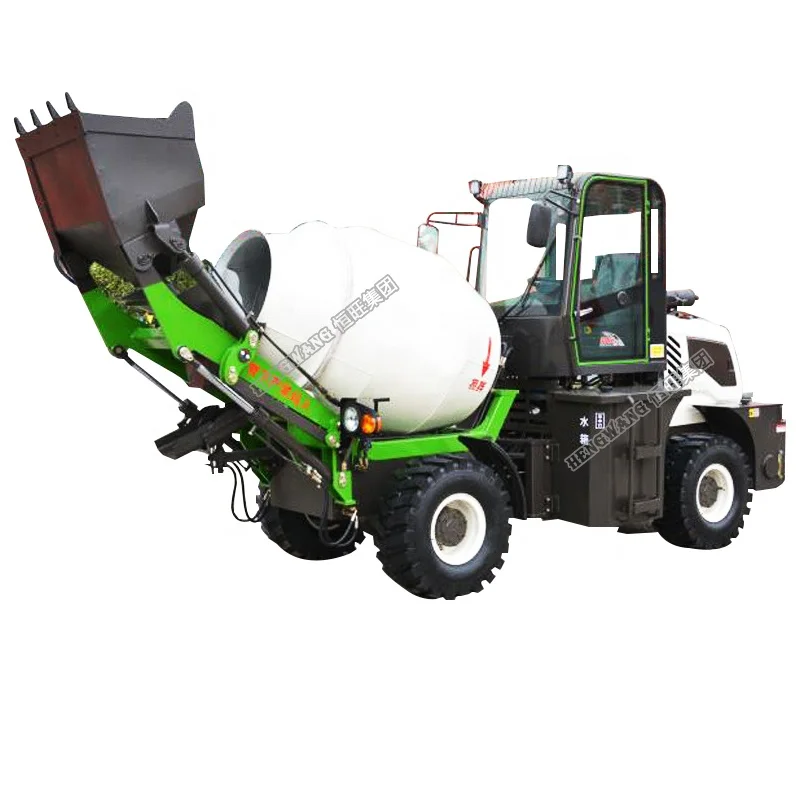

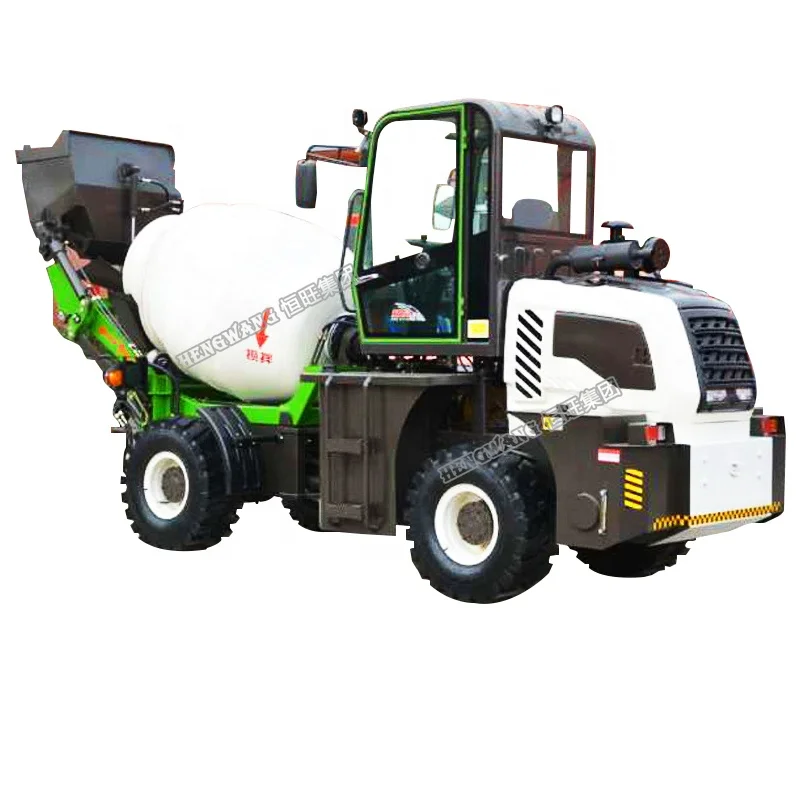

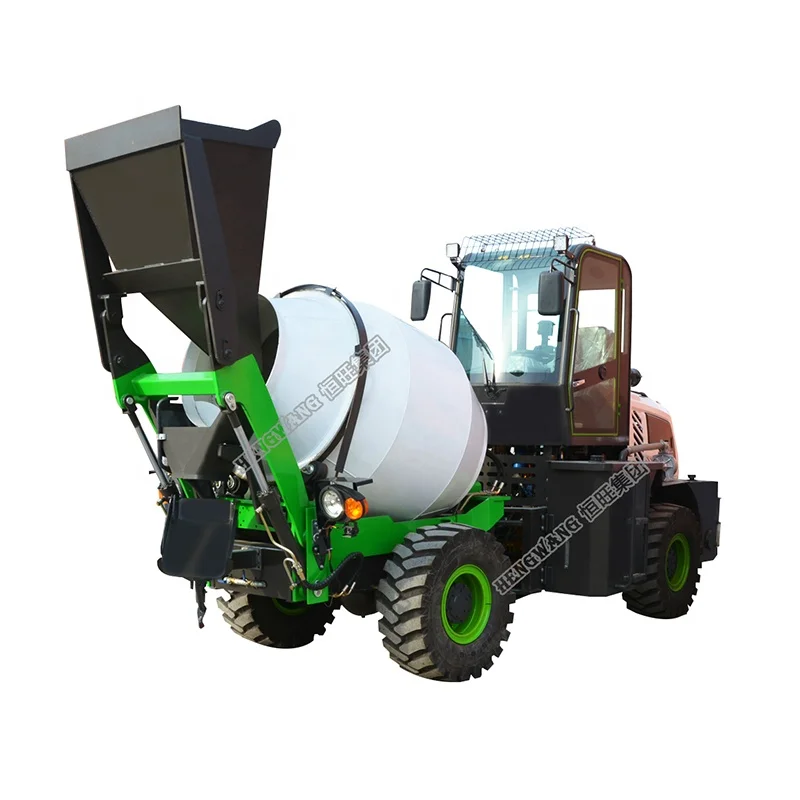

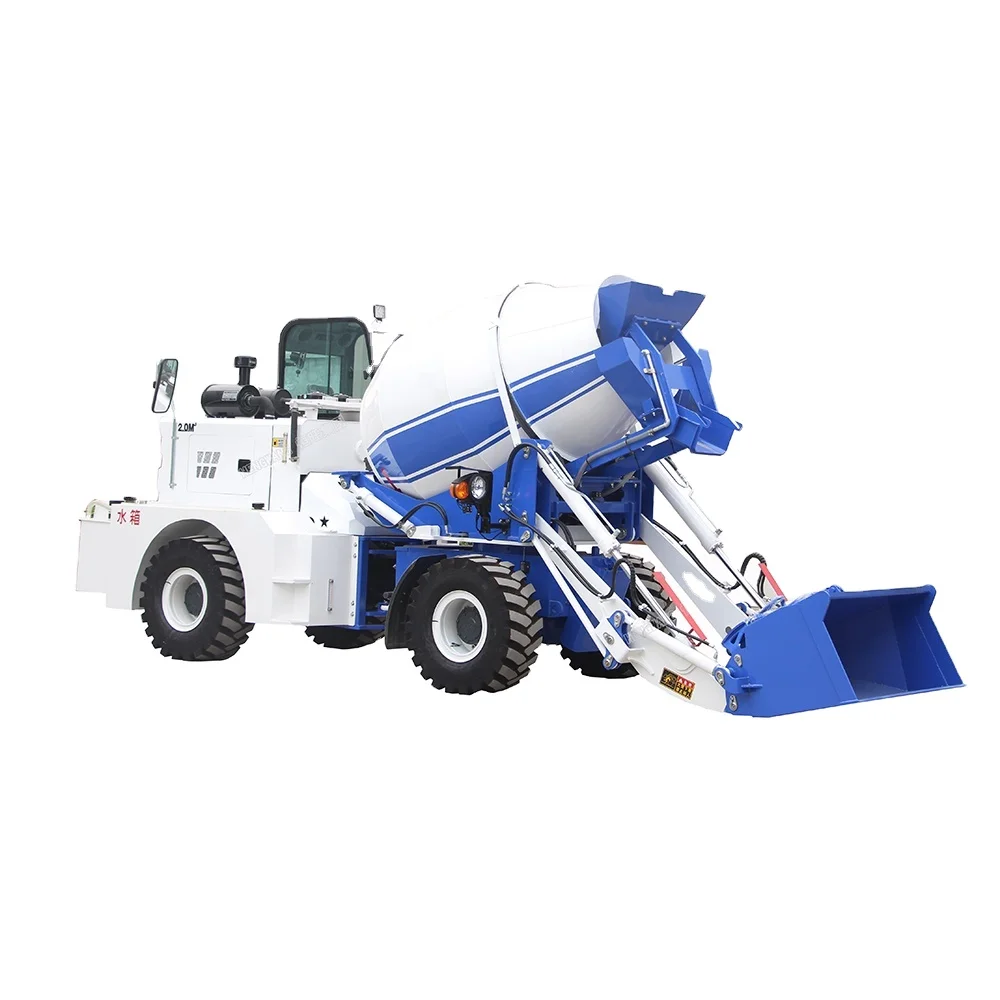

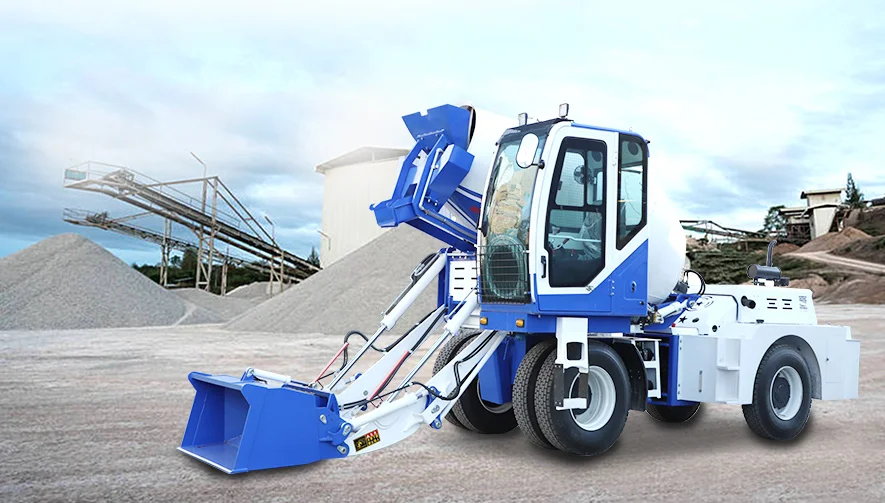

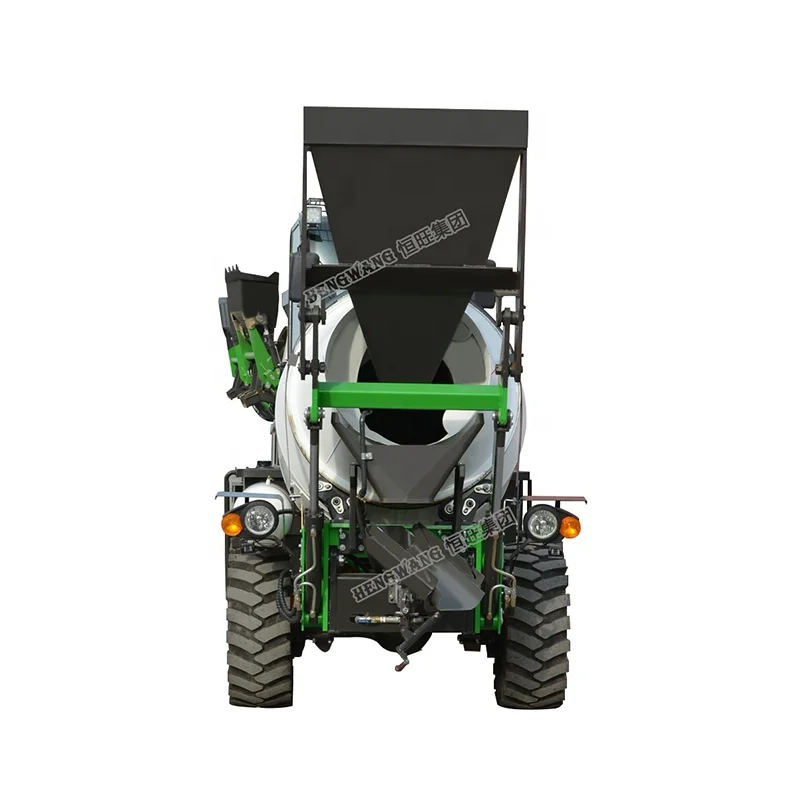

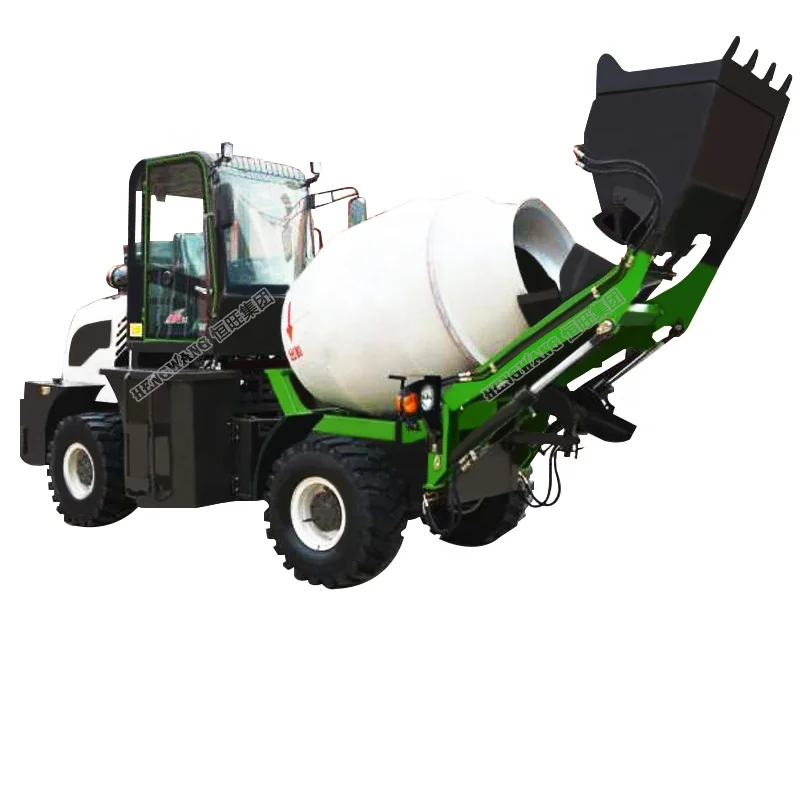

self loading concrete mixer truck

Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mixing and discharge concrete mixture. Equipped with powerful Yunnei / YUCHAI Diesel engine and 4 wheel drive and 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone,etc .
We have different capacity 0.8m3 ,1.2m3 ,1.8m3 ,2.0m3 ,2.4m3 ,3.5m3,4m4 etc.

Concrete mixer truck advantage :
1. concrete mixer truck are Italy leading design, automatic feeding mixing system.
2. our concrete mixer truck have simple and convenient operation
3. High efficiency output, save time and labor, save cost
4. The perfect combination of mixing truck and loader.
5.Our concrete mixer truck have standard equip with auto water metering supply , drive camara . and weighting system ,seat rotary,Air conditioning ,etc optional .
Specification
1.2m3 Concrete Mixer Truck parameter
Actual stirring capacity
1.2m3
Rotary drum capacity
1.4 m3
Degree of bias
16°
Rotation speed
30 r/min
Direction of rotation
load:clockwise,unload:Counterclockwise
Mixing drum blade
2sets of sprial blade and 4 sets auxiliary blade
Slump of concrete
70-260mm
Hydrulic power transmission system
Pump model
CBGV-4025
Hydrulic motor model
BMSS-250
Reducer ratio
1:10
Water supply
Tank capacity /water supply form
540/automic timing water supply mechanism
Main parameter of chassis and engine
Engine type /displacement
CF4B68G-Z-13B2
Rated power
55kw/2400 r/min
Max.torque
255/1500-1800 N.M / r/min
Max.running speed
24 km/h
Min.stirring radium
5000mm
Climbing capacity
26 °
Tire
Radial tire
Driving type
4X4
Weight
4580kg
Max.loading weight
2800kg
Whole machine weight
7380 kg
Dimension
6100*1850*3000mm

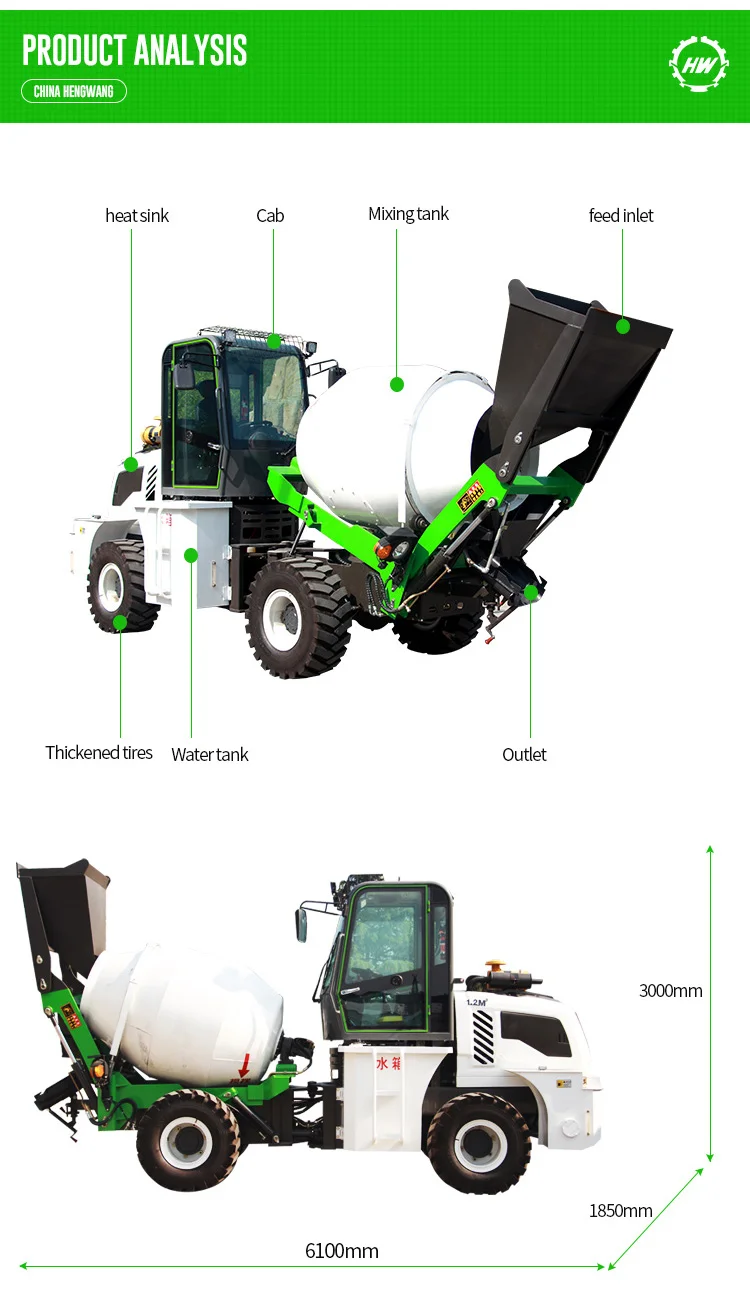

Details Images

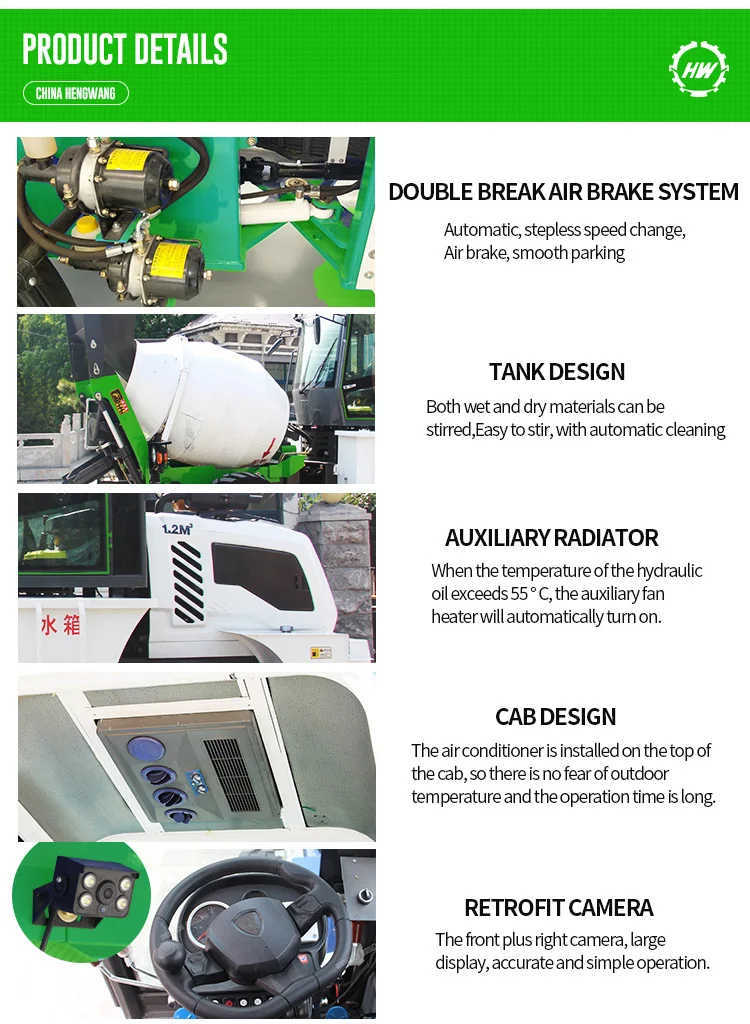

Concret Mixer Truck details :
1.Doubel break air brake system
Automatic,stepless speed change ,air brake ,smooth parking.
2.Tank Design
Both wet and dry materials can be stirred ,easy to stir,with automatic cleaning .
3.Auxiliary Radiator
When the temperature of the hydraulic oil exceeds 55 degree,the auxiliary fan heater will automatically turn on.
4.The can can add air condition, seat can be rotary , can add driving camara .

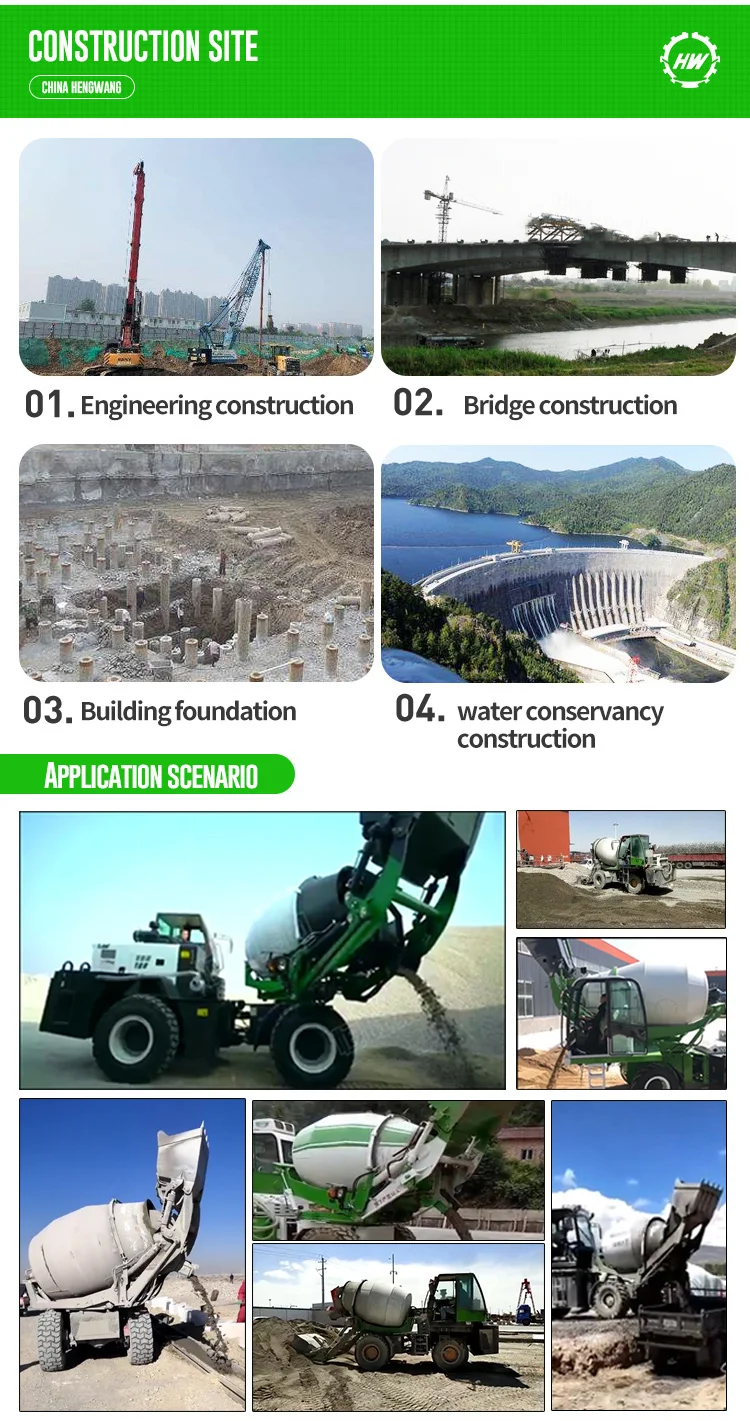

Product Usage
The Concrete mixer truck mainly used in engineering construction ,bridge construction ,building foundation ,water conservancy construction.

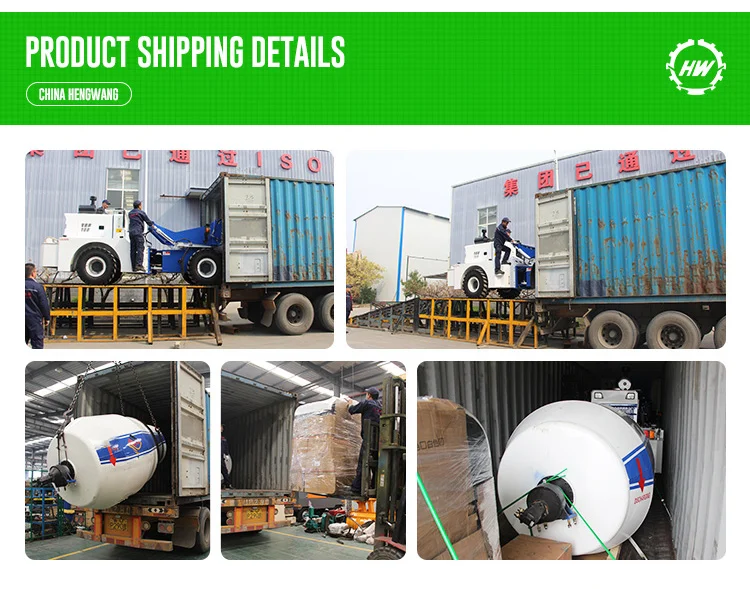

Packing & Delivery
40HQ container can load 2 sets 1.2m3 concrete mixer truck ; 2.0m3,2.4m3,3.5m3,4m3 concrete mixer truck these models need loading in 1X 40HQ container
related product
Company Profie
Our Company Introduction: Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area,Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise. Our company produces drilling rig , pile driver ,Concrete mixer truck ,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf,the need for the basic construction of the dam seepage control and so on.
Certifications
We company have ISO9001 ,CE ,BV ,TUV .......mamy different certificates .
