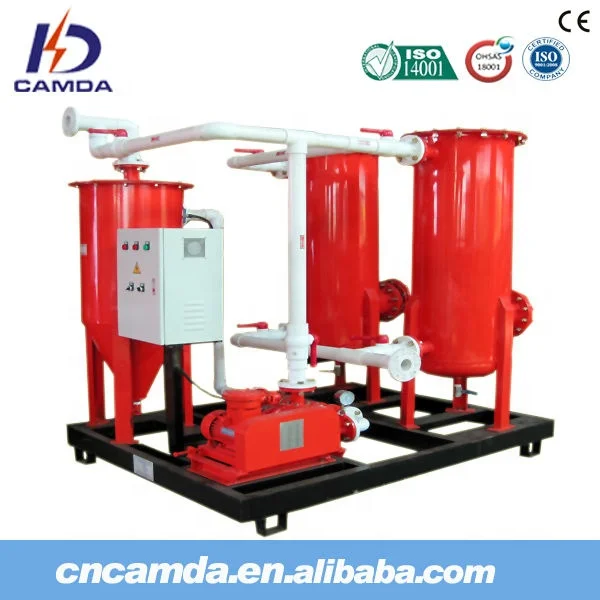

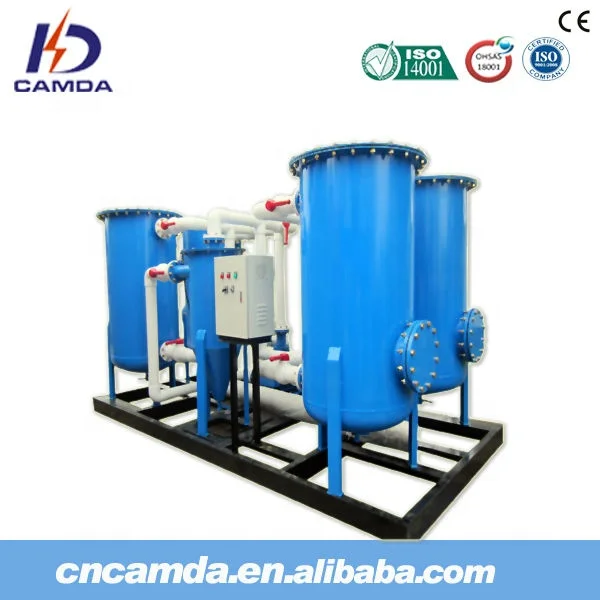

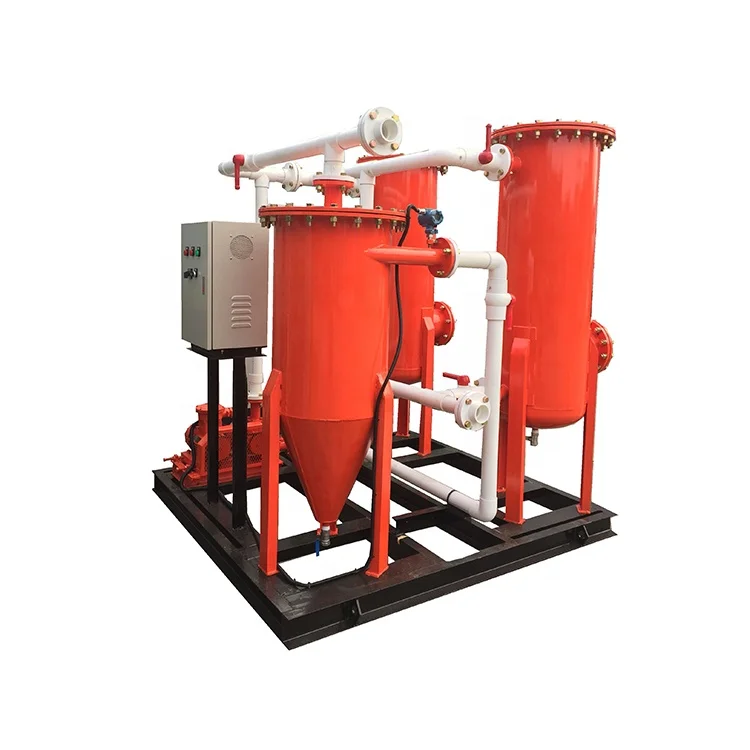

Biogas scrubber and Pretreatment of biogas system KDCL 200 WQ

Product Overview

Description

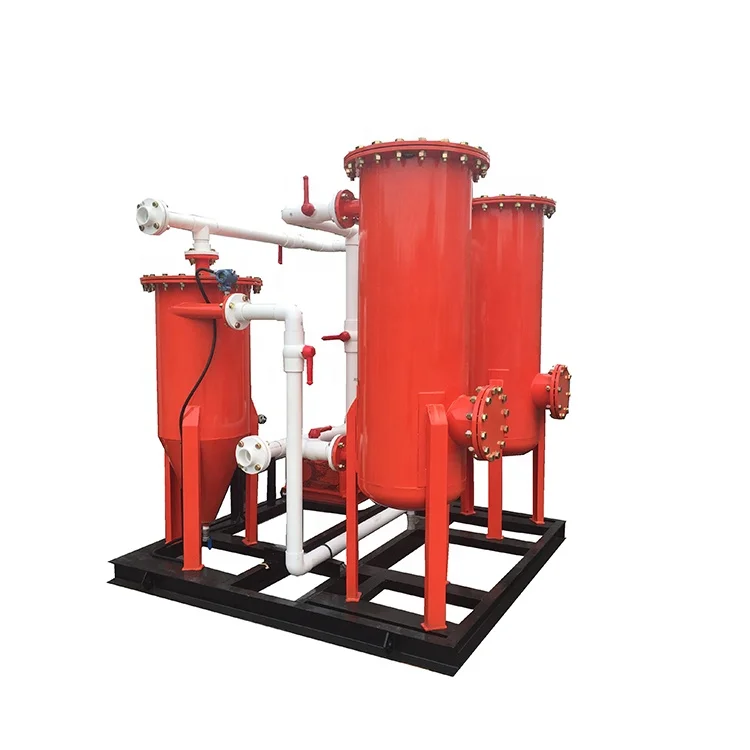

150-200kw generator matched biogas filter / biogas purification / biogas scrubber

1. Application field

The skid-mounted biogas pre-treatment system adopts the dry desulfurization system which is applicable for small industrial devices whose H2S is less than 2000ppm. The biggest skid-mounted pre-treatment system can deal with 300 Nm3/h biogas and we suggest it to be used in farmland which can equipped with CHP system. In the industrial waste water biogas project, if the devices has to run long time in a day, the H2S is high and has to synchronize with the nation grid, the biogas dry desulfurization system has to be designed specifically.

The application domains equipped with small biogas generator set:

Pig farm with more than 3000 pigs

Cow farm with more than 500 cows

Chicken farm with more than 10000 chicken

Biogas collected from more than 200 peasant households can be used to generate electricity.



2. Application Environment

The working area ambient temperature should be in the range of 0 ~ 50 ℃ due to the drained water from the pre-treatment. If there is any underground sewage wells, the system has to anti-freezing and anti-cracking. This system is better to be installed in a well-ventilated room.
