West Tune WTVO-1.9 5S 1.9CF Vacuum Oven with 10 Shelves for Drying

West Tune vacuum ovens are specially designed for degassing or purification of essential oil extracts. Using the technique of cold boiling, the oven works in a delicate ambient temp. heat atmosphere under reduced pressure conditions to expedite solvent degassing while perfectly preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-production, and easy operation.



SPECIFICATIONS FOR 1.9CF VACUUM OVEN WITH 5 SHELVES
Voltage
110V/60Hz NEMA 5-15p cable
Power
600W
Heating
4 sides heating (left, right, top, bottom)
Temperature Range
RT+ 20~150 ℉
Temperature Stability
±1℉
Dispaly type
LED
Display Resolution
0.1℉
Chamber Material
Stainless Steel
Chamber Dimensions (LxWxH)
16.5" x 14.5" x 13.8"
Ultimate vacuum level
0.039 in. Hg
Shelf qty
10 removable aluminum shelves
Shelf Dimensions (LxW)
16.4" x 14.4"
Shelf Capacity
238 inches²
Lights
2 strips of bright LEDs
Handle
Shock-resistant ABS plastic with metal parts
Dimensions (LxWxH)
28" x 22" x 21"
Weight
210 lbs
Electrical
Fused for protection
Over Heating Alarm System
Yes
Vacuum Port
KF25 connector
Gas Inlet Needle Valve
Metal adjustable valve on the panel
3/8'' connector on the back side of oven




Main Features

- 4sides heating, distribute the heat uniformly under vacuum
- Temp stability reach to +/- 1 ℉
- Dual layer tempered glass door for clear observation
- High quality temperature PID controller, LED display
- Stainless steel working chamber
- Five removable aluminum shelves
- 110 Volt, 60 Hz, US standard plug
- Has been factory tested under vacuum for more than 24hr(English test report is available)



Detailed Images

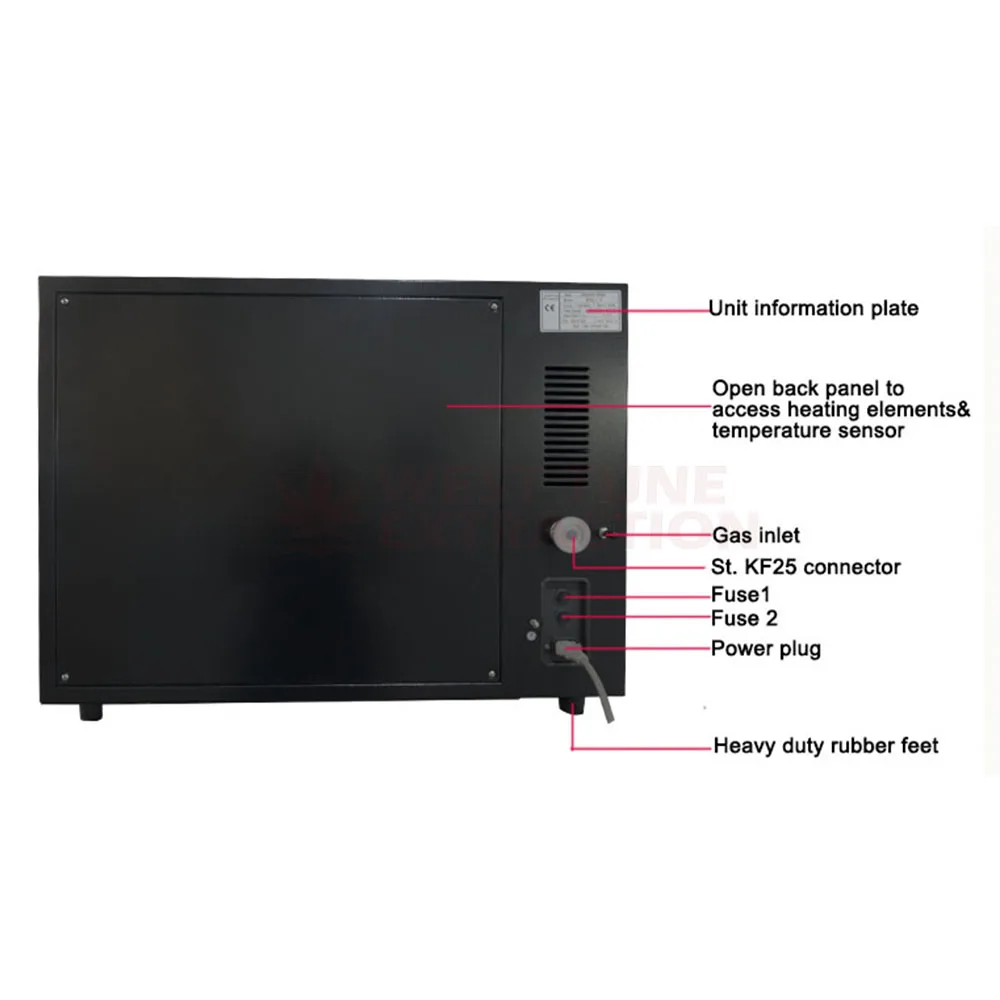

Machine Parts

Name: Vacuum gauge



Stainless steel dual scale vacuum gauge with easy





Name: Control Panel

a. Fine tuning metal knob design provides accurate gas inlet regulation


b. Stainless steel valve with silicone cap, which allows to release vacuum in seconds easily.





Name: LED Display


P.I.D. controller with classical LED display, 0.1℉ resolution provides accuracy temperature adjustment and control.






Name: Chamber


Chamber All stainless steel polished chamber, easy to clean.

Silicon sealing gasket,easy to change.





Name: Removable Shelves


Fully removable shelves easy for dealing with the Teflon papers. Shelves edges are entirely touched with the wall fixtures since heat cannot travel through a vacuum efficiently.






Name: Bulit-in LED light


25w bright white LED lights presents fully degassing process perfectly.
