Factory Price Metal Tube Steel CNC Automatic Pipe Cutting Machine
1. Brief introduction

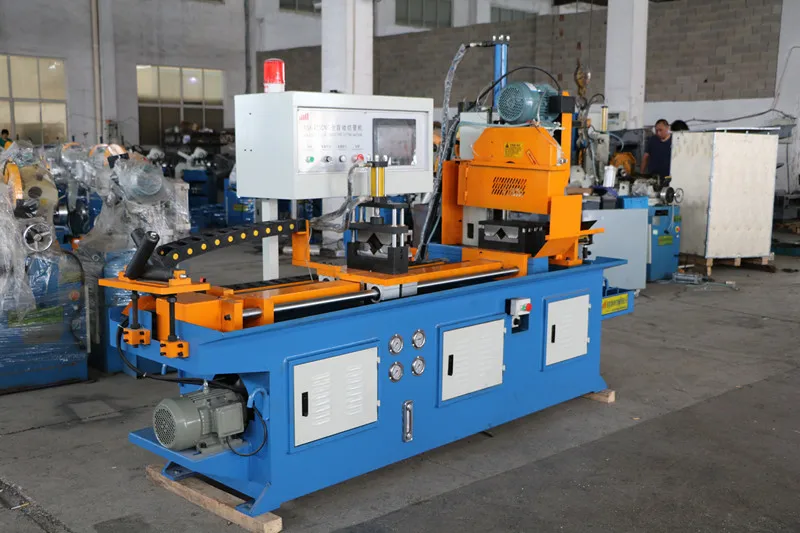

DS-425 CNC Automatic pipe cutting machine is a fully automatic cutting metal cutting machine that can cut metal materials such as ordinary steel, stainless steel and carbon steel with different cross-section shapes and aluminum.
2. Specification
Model No.
DS- 425CNC
Suitable size of saw blade
Saw diameter
φ300-450mm
Hole diameter
φ32mm
Pin hole
2×φ11×63 mm
Power of the motor
Main motor
3/4kw
Servo motor
1kw
Oil pump
2.2KW(3HP)VP2-40
Cooling motor
90W /380V
Precision
Feeding
±0.1
cutting
±0.1
Feeding way
Servo motor
Length of feeding
1500mm(1000and 2000mm are available)
Clamp the end raw material
100-150mm
Weight
1580kg
Overall size
3800× 850 ×1850 mm
3. Main characteristics
1. This machine has low noise, good sawing quality and no burrs on the cut surface of the saw, eliminating the need for two processing steps and greatly improving productivity. 2. The main box adopts four-stage full-gear variable speed drive, and the output torque is strong. 3. The servo motor drives the feeding, and the reciprocating precision is high. The required length can be obtained by inputting Arabic numerals. 4. The equipment has its own automatic lubrication system to effectively extend the service life. 5. The system has its own failure alarm, failure prompt, fault point self-check function, effective saving check, inspection, and repair time. 6. The equipment has its own tailing function, which effectively saves the problem of excessive waste of surplus materials. 7. The equipment has three sets of clamping pressure adjustable, which can effectively solve the problem of clamping force.
Other pruduct
workshop and factory
Our Service
Company history
2005 so far and product selling board and domestic
Package
case and wood box or according your request more safety
MOQ
1 SET OR according your need more quantity more discount
